URVOLAX UR62X User's Manual & Installation Instructions

URVOLAX UR62X User's Manual & Installation Instructions

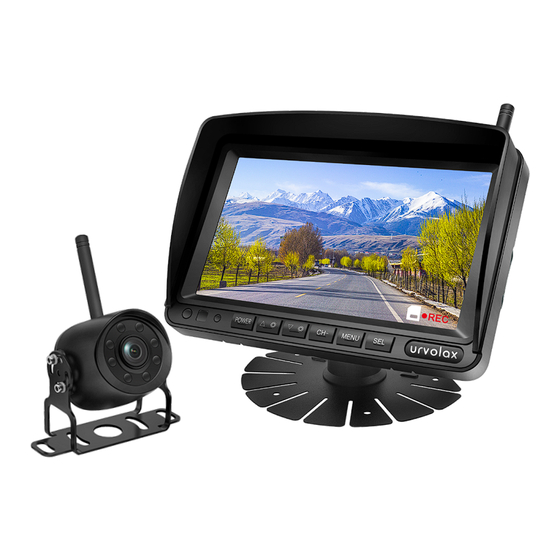

Digital wireless backup camera systems

Advertisement

Quick Links

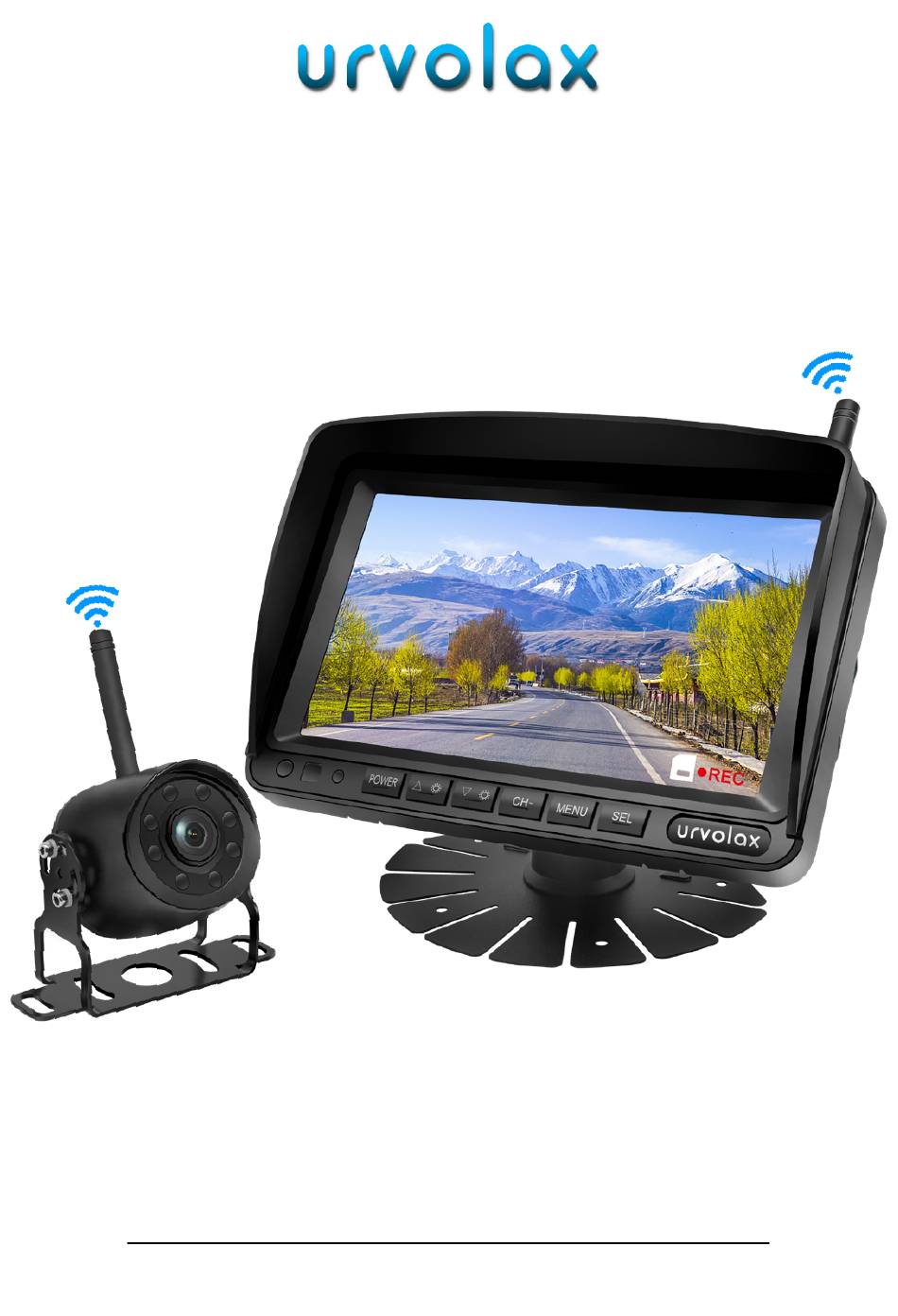

DIGITAL WIRELESS BACKUP
CAMERA SYSTEMS
User Manual / Installa�on Instruc�ons
UR62X
Please read this manual thoroughly before opera�ng the device,
and keep it for future reference.
Please Do Bench Test before Installa�on in Vehicle

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the UR62X and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for URVOLAX UR62X

  • Page 1 DIGITAL WIRELESS BACKUP CAMERA SYSTEMS User Manual / Installa�on Instruc�ons UR62X Please read this manual thoroughly before opera�ng the device, and keep it for future reference. Please Do Bench Test before Installa�on in Vehicle...
  • Page 2: Table Of Contents

    Contents 1. Introduc�on..................1 2. What’s in the Box................2 3. Monitor Opera�on................3-4 4. Bench Test before Installa�on in Vehicle..........5 5. Installa�on Tool................6-7 6. Installa�on Diagram................8-9 7. Connec�on Method.................10 8. Specifica�ons...................11 9. Troubleshoo�ng................12-13 10. Warranty Card................14...
  • Page 3: Introduc�On

    1.Introduc�on Thanks for purchasing URVOLAX Digital Wireless Backup Camera Systems! With this manual, you will be able to properly install and operate the unit. Digital Wireless Connec�on - the product adopts latest car point to point wireless connec�on technology, there is no interference with other wireless devices.
  • Page 4: What's In The Box

    2.What’s in the Box ❶ ❷ ❸ ❹ ❺ ❻ ❼ ❽ ❾ ❿ 1. 7inch IPS Monitor 7. User Manual 2. Backup Camera 8. Power cable 3. Monitor U-shaped bracket 9. Antenna 4. Monitor Swivel Head bracket 10.U-shaped bracket Installa�on Kit 5.
  • Page 5: Monitor Opera�On

    3.Monitor Opera�on Bu�on Func�on POWER Turn the Monitor ON/OFF Adjust se�ngs, SD Card Video Playback Adjust se�ngs Camera Switch 1.Camera Pairing 2.Image Rotate by MENU 3.Brightness Adjustment 4.Contrast Adjustment 5.Parking Line ON/OFF 6.Date Time Se�ng 7.Format Parking Line ON/OFF, Confirm Key Long Press for Parking Line Adjustment...
  • Page 6 3.Monitor Opera�on Long press "SEL" to enter "Parking Line Adjustment" mode and adjust by...
  • Page 7: Bench Test Before Installa�On In Vehicle

    4.Bench Test before Installa�on in Vehicle Bench Test is A MUST before Installa�on . Please use the included connector to do Bench Test √ TEST OK with Display plug into cigar socket to get Make sure Posi�ve/ power Nega�ve is �ghten connected with screw “+”...
  • Page 8: Installa�On Tool

    The format alloca�on unit of the micro SD card should be set in exFAT 32/64KB, other value is not compa�ble for the recording func�on. UNLOCK If you need free adapter and micro SD card, please feel free to contact us: service03@urvolax.cn 2.Removable Sunshade...
  • Page 9 5.Installa�on Tool 3.Op�on 1 to mount the monitor: U-shaped bracket 4.Op�on 2 to mount the monitor: Swivel Head bracket 5.Tighten the screw between 6.Fix the camera into the car the camera and bracket with the long metal screw 7. Install the antenna in the monitor and camera...
  • Page 10: Installa�On Diagram

    6.Installa�on Diagram Monitor Installa�on Place the monitor in your vehicle which does not block your view for driving safely.
  • Page 11 6.Installa�on Diagram Camera Installa�on Suitable posi�on as below...
  • Page 12: Connec�On Method

    7.Connec�on Method Car charger connect to wireless receiver in the monitor “+”ACC/Fuse/radio “-”Ground Included Camera for REAR view SECOND Camera for FRONT/SIDE view (Not included) Taillight “+” ACC/Fuse/radio“+” Ground “-” Ground “-” Two op�on for connec�ng the monitor to power: 1.Car charger (recommended): the camera will turn ON/OFF automa�cally when start/leave the car.
  • Page 13: Specifica�Ons

    8.Specifica�ons Power Supply DC9-36V Wireless Frequency 2.4 GHz 2.4G Wireless network range 2403-2480MHz Wireless Range 300m(open area) Delaying Time <200ms Opera�ng temperature -20°C ~ 80°C CAMERA Image Sensor 1/3 inch Waterproof Ra�ng IP69K View Angle 150°[H] 170°[D] Camera Pixel 1000TVL MONITOR LCD Size 7 inch IPS...
  • Page 14: Troubleshoo�Ng

    9.Troubleshoo�ng Problem Solu�on - Do Bench Test before Installa�on in Car Start the car engine. Press Screen power bu�on to Monitor turn on. No Power Check if wiring is well connected to power. Start the car engine. Camera No Power Check if wiring is well connected to power.
  • Page 15 9.Troubleshoo�ng Problem Solu�on - Do Bench Test before Installa�on in Car The night sensor on the camera may be dirty or obstructed Night Vision is poor Ensure the camera is installed at least 2 inches away from rear lights Check whether brightness and contrast are Dark Picture adjusted correctly Check if the antenna is �ght installed &...
  • Page 16: Warranty Card

    Please scan the QR code above to activate the 1-year warranty within 2 WEEKS upon product receipt. Should you have any general or technical questions about this product, please feel free to contact us as following: CUSTOMER SUPPORT service03@urvolax.cn service02@urvolax.cn Email: Company TEL:(0086)769 2198 6525...
