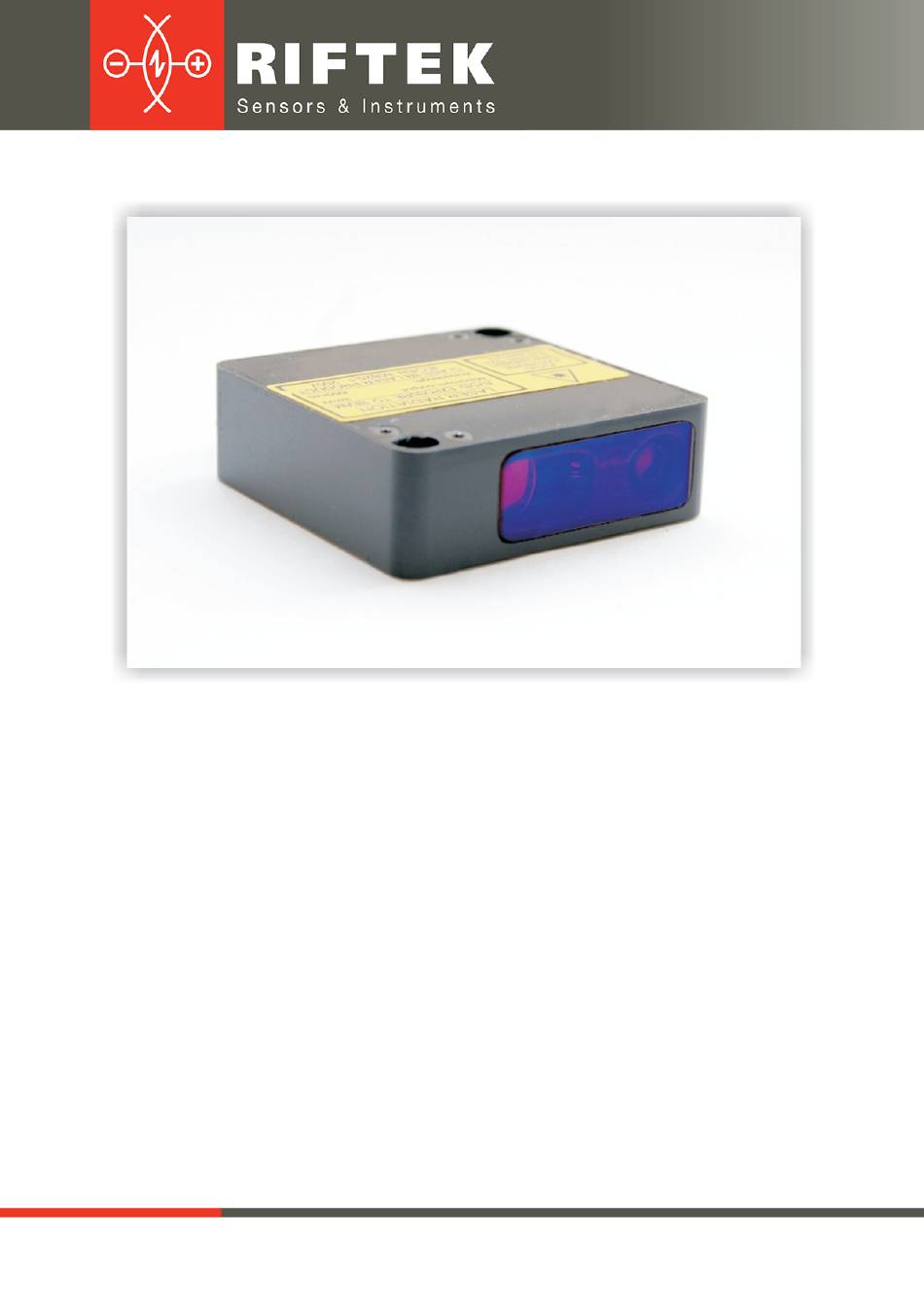

- Page 1 LASER TRIANGULATION SENSORS RF605 Series User's manual www.riftek.com info@riftek.com Certified according to ISO 9001:2015...
-
Page 2: Table Of Contents
Laser Triangulation Sensors. RF605 Series Contents Safety precautions .............................4 CE сompliance .............................4 Laser safety .............................4 General information .............................4 Basic technical data .............................5 Example of item designation when ordering .............................5 Structure and operating principle .............................6 Dimensions and mounting .............................6 8.1............................6 Overall and mounting dimensions 8.2. - Page 3 Laser Triangulation Sensors. RF605 Series 14.2............................20 Program setup 14.3............................20 Establishing a connection to the sensor 14.4............................21 Checking the sensor operability 14.5............................22 Display, gathering and viewing of data 14.6............................23 Setting and saving parameters of the sensor 14.6.1.
-
Page 4: Safety Precautions
Laser Triangulation Sensors. RF605 Series Safety precautions · Use supply voltage and interfaces indicated in the sensor specifications. · In connection/disconnection of cables, the sensor power must be switched off. · Do not use sensors in locations close to powerful light sources. -
Page 5: Basic Technical Data
Laser Triangulation Sensors. RF605 Series Basic technical data RF605- 25/50 45/100 65/250 105/500 Base distance X, мм Measurement range, mm Linearity, % ±0.1 of the range Resolution, % 0.02 of the range Temperature drift 0.02% of the range/° Max. sampling frequency, Hz... -
Page 6: Structure And Operating Principle
Laser Triangulation Sensors. RF605 Series Structure and operating principle The operation of the sensors is based on the principle of optical triangulation (Figure 1). Radiation of a semiconductor laser (1) is focused by a lens (2) onto an object (6). Radiation reflected by the object is collected by a lens (3) onto a linear CMOS array (4). -
Page 7: Overall Demands For Mounting
Laser Triangulation Sensors. RF605 Series Figure 3. Sensor with cable gland 8.2. Overall demands for mounting The sensor is positioned so that the object under control has to be placed within the working range of the sensor. In addition, no foreign objects should be allowed to stay on the path of the incident and reflected laser radiation. -
Page 8: Connection
Laser Triangulation Sensors. RF605 Series Connection 9.1. Designation of connector contacts View from the side of connector contacts used in the sensor is shown below. Binder 702 Series, #09-0427-80-08 Designation of contacts is given in the following table: Model of the sensor... -
Page 9: Configuration Parameters 10.1
Laser Triangulation Sensors. RF605 Series Configuration parameters The nature of the sensor operation depends on its configuration parameters (operation modes), which can be changed by sending commands via the serial port (RS232 or RS485). The basic parameters are given below. -
Page 10: Sampling Period 10.4
Laser Triangulation Sensors. RF605 Series Note 1. It should be noted that the ‘sampling mode’ and ‘sampling period’ parameters control only the transmission of data. The sensor operation algorithm is built in such a way that measurements are taken at the maximum possible rate determined by the integration time period, the measurement result is sent to the buffer and stored therein until a new result arrives. -
Page 11: Time Lock Of The Result
Laser Triangulation Sensors. RF605 Series Out of the range indication Mutual synchronization Hardware zero-set/ Hardware laser ON/OFF Figure 4.1 Figure 4.2 Figure 4.3 10.6. Time lock of the result If the sensor does not detect an object, or if the authentic result cannot be obtained, a zero value is transferred. -
Page 12: Description Of Rs232 And Rs485 Interfaces
Note. The network data communication protocol assumes the presence of one ‘master’ in the network, which can be a computer or other information gathering device, and from 1 to 127 ‘slaves’ (RF605 Series sensors) that support this protocol. Each ‘slave’ is assigned a unique network identification code – the device address. -
Page 13: Factory Parameters
Laser Triangulation Sensors. RF605 Series 11.4.3. Factory parameters Parameter Value Baud rate 9600 bit/s Network address Mode of data transfer request 11.5. Interfacing protocol 11.5.1. Serial data transmission format The data message has the following format: 1 start-bit 8 data bits... -
Page 14: Answer
Laser Triangulation Sensors. RF605 Series 11.5.5. Answer "Answer’’ is the data burst that can be transmitted by a ‘slave’ in the course of a session. All messages contain 1 in the most significant bit. The data in the message is transmitted in tetrads. -
Page 15: Voltage Output 0
Laser Triangulation Sensors. RF605 Series 12.2. Voltage output 0...10 V The connection scheme is shown in the figure. To reduce noise, it is recommended to install an RC filter in front of the measuring instrument. The filter capacitor value is specified for the maximum sampling frequency of the sensor (2 kHz) and this value increases in proportion to the frequency reduction. -
Page 16: Request Codes And List Of Parameters
Laser Triangulation Sensors. RF605 Series Request codes and list of parameters 13.1. Request codes Request Message Answer Description code (size in bytes) (size in bytes) Device identification — - device type (1) - firmware release (1) - serial number (2) -
Page 17: Notes 13.4
Laser Triangulation Sensors. RF605 Series Parameter Name Values code Data transfer rate in increments of 2400 baud; e.g., 4 means the rate of 4*2400=9600 baud. NOTE: the maximum baud rate = 460800. Reserved Number of averaged values 1…128 (default – 1) Reserved Lower byte of the sampling period 1) 10…65535 (default –... -
Page 18: Examples Of Communication Sessions
Laser Triangulation Sensors. RF605 Series 13.4. Examples of communication sessions 1) Request "Device identification". Condition: device address – 1, request code – 01h, device type – 61, firmware release – 88 (58h), serial number – 0402 (0192h), base distance – 80 mm (0050h), measurement range –... - Page 19 Laser Triangulation Sensors. RF605 Series - Base distance: DAT(7:0) Byte 0 Byte 1 DAT(7:0) Byte 0 Byte 1 - Measurement range: DAT(7:0) Byte 0 Byte 1 DAT(7:0) Byte 0 Byte 1 Note. Since packet number is "1", CNT is "1".
-
Page 20: Parameterization Program
Laser Triangulation Sensors. RF605 Series Parameterization program 14.1. Function The RF60 -SP software is intended for: 1) Testing and demonstration of work of RF605 series sensors. 2) Setting of the sensor parameters. 3) Reception and gathering of the sensor data signals. Download link: https://riftek.com/upload/iblock/cb3/rf60x_sp.ZIP 14.2. -
Page 21: Checking The Sensor Operability
Laser Triangulation Sensors. RF605 Series If the connection is not established, a prompt will appear asking to make an automatic search for the sensor: Click Yes to start searching. · In the Baud rate field, set the baud rate search range. -
Page 22: Display, Gathering And Viewing Of Data
Laser Triangulation Sensors. RF605 Series Clicking the Stop stream button stops the data transfer. 14.5. Display, gathering and viewing of data The measurement results are displayed in digital form and in the form of oscillogram, and stored in the PC memory. -
Page 23: Setting And Saving Parameters Of The Sensor Setting Parameters
Laser Triangulation Sensors. RF605 Series · To save the data to a file, click the Export button. The program will offer to save the data in two possible formats: internal and Excel. · To view previously saved data, click the Import button and select the file. -
Page 24: Saving And Writing A Group Of Parameters
Laser Triangulation Sensors. RF605 Series 14.6.3. Saving and writing a group of parameters The sensor parameters can be saved to a file. To do this, select File > Write parameters set. To call a group of parameters from a file, select File > Sensor parameters sets…... - Page 25 Laser Triangulation Sensors. RF605 Series Distributors AUSTRALIA BELGIUM BOSNIA AND HERZEGOVINA Applied Measurement Althen Sensors & Controls Australia Pty Ltd ASCO RAIL sp. z o.o. RAILWAY INSTRUMENTS ONLY Verrijn Stuartlaan 40, 2288 EL, EXCLUSIVE REPRESENTATIVE Rijswijk, Leidschendam Thornton Plaza, Unit 5,...
