Summary of Contents for Madison Monaco flex

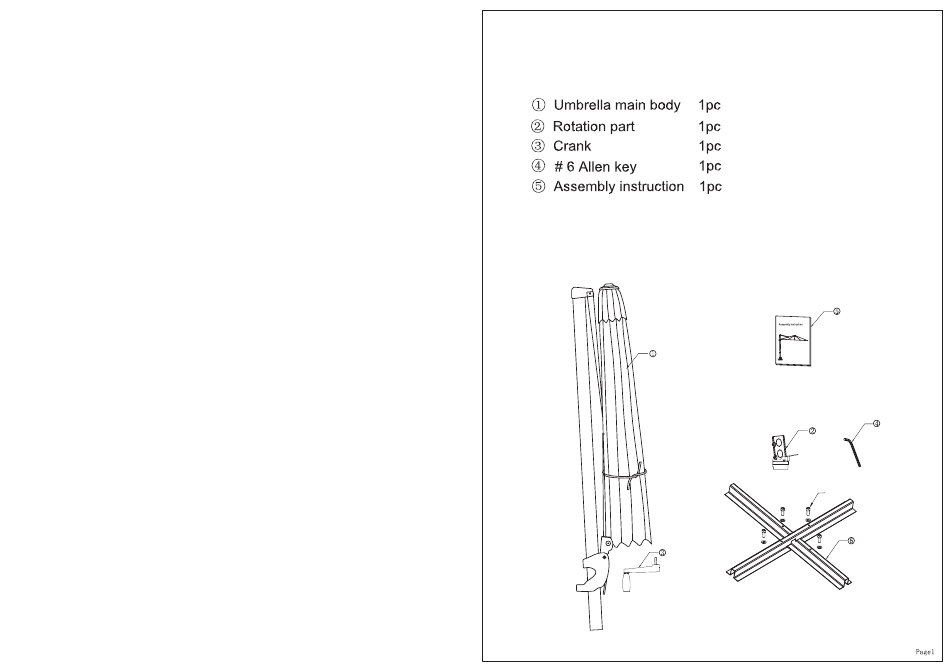

- Page 1 Monaco flex Assembly manual Umbrella components handle ⑥ Cross base 1set ⑦ Bolts/Washer 4set ⑦...
- Page 2 Install crossbase with rotation part by #6 Allen key and 4sets bolts and washers. , a-2, a-3 c. Free arm sunshade with left and right directions. Crank handle Driving handle Cross base(not included the slab)
- Page 3 4. Tilt Function in left/ right direction. Make sure the umbrella is fully opened and at the level position before operation. Pull the driving handle to the limiting position before moving the canopy to it’s requested angle pull the umbrella ribend and at left right side. then put the driving handle to it s original place. ’...
- Page 4 5. 360° Rotating function Make sure the umbrella is fully opened and at the level position before operation. Never leave this product in the open posit ion over night or while away. Weather conditions causing guesting winds could resut in damage to this product.If you notice excessive swaying or movement in windy conditions close the shade system.
