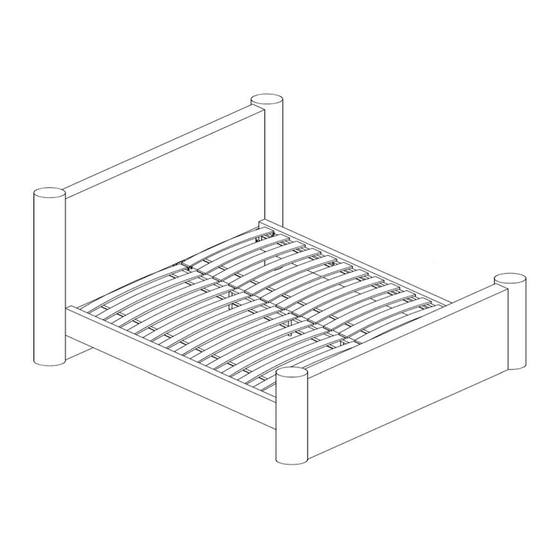

- Page 1 ATHARA FULL BED ATHARA...
-
Page 2: Parts List
PARTS LIST Hardware included in side rails carton to attach bed feet and center support system. LABEL PICTURE DESCRIPTION HEADBOARD FOOTBOARD SIDE RAILS RIGHT SIDE RAILS LEFT WASHER Φ8mm BOLT Φ8*30mm BRACKET BRACKET ALLEN KEY CENTER SUPPORT LEG H=27CM BOLT Φ6*25mm... - Page 3 WASHER Φ6mm BOLT Φ6*40mm SLAT CENTER SUPPORT RAIL...
-
Page 4: Assembly Steps
ASSEMBLY STEPS STEP 1 > Retrieve bracket from parts’ carton packed in side rails carton. Attach bracket (H) & (G) to the side rails using Bolt (F) and Washer (E) , Tighten the bolts with Allen key (I) . STEP 2 >... - Page 5 STEP 3 > Attach steel center support legs (J) to the center support rail (O) using Allen key (I), Bolt (M) and Washer (L). STEP 4 > Attach center support rail (O) to the Headboard and footboard using Allen key (I), Bolt (F) and Washer (E).Please line up the holes in the center support rail (O) and refit the bolts &...
- Page 6 STEP 5 > Attach Bolt (K) to the holes in the end of support rails using Allen key (I).(*Please note that the bolt only needs to be twisted half in and leave half out . ) STEP 6 > Move/place bed into final position in bedroom. Attach wooden slat support system to full length steel support cleats.
