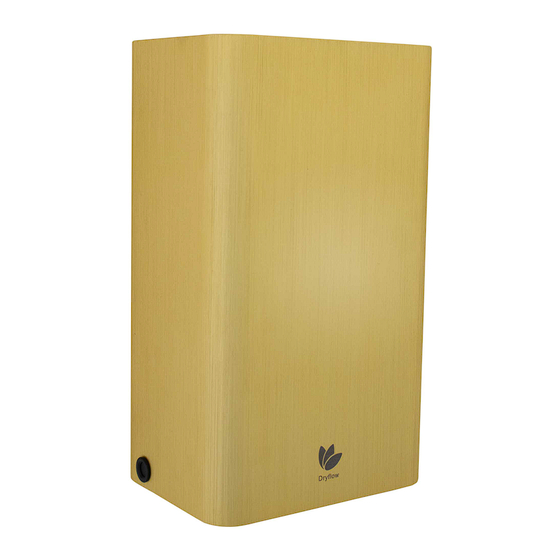

Infinity Hand dryer
General description
Expertly designed for peace and performance, this hand dryer operates quietly, perfect for sensitive
users. It offers exceptional energy efficiency, with an optional heater element, and boasts rapid drying
through its innovative airflow system. Additionally, its self-cleaning HEPA filter ensures clean air
delivery, while the robust, stylish build guarantees longevity and resilience, making it an ideal choice
for diverse settings.
Dryflow Vistosa
Vistosa
Silver - VS07, Brass - VS08, Copper - VS09,
Black - VS04
Wall Mounted
Advertisement
Related Manuals for Dryflow Vistosa VS07
Summary of Contents for Dryflow Vistosa VS07
- Page 1 Dryflow Vistosa Infinity Hand dryer Wall Mounted Vistosa Silver - VS07, Brass - VS08, Copper - VS09, Black - VS04 General description Expertly designed for peace and performance, this hand dryer operates quietly, perfect for sensitive users. It offers exceptional energy efficiency, with an optional heater element, and boasts rapid drying through its innovative airflow system.
- Page 2 Dryflow Vistosa Technical specifications Material & Finishes Aluminum Oxide 120mm Voltage 220V~/50Hz Drying time less than 15 seconds Weight 3.2KGS Noise levels 75dBA Air velocity 288KM/S Heating element 450W Motor power 550W Motor speed 30000rpm Sensor range 6-12cm Approvals CE, ROHS lsolation Class1 163mm...
- Page 3 Dryflow Vistosa Product Overview Aluminum cover Upper panel Heat switch Lower panel UV lamp switch UV lamp Outlet HEPA filter Infrared Sensor Window Motor Inlet Cable...
- Page 4 Dryflow Vistosa Method of Installation Location Ideally the dryer should be installed between the wash-basin and the washroom exit. The dryer should be installed on a completely flat wall. Recommended Mounting Height from floor to bottom of dryer 45" (114 cm) Small Children 35"...
- Page 5 Dryflow Vistosa Method of Installation Connect the cable to the PCB in accordance with the relevant markings, ensuring that the cable does not interfere with the function of the motor. Connect the live wire (coloured red or black) to the PCB marked "L". Connect the neutral wire ( coloured white or blue) to the terminal block marked "N".
- Page 6 Dryflow Vistosa Maintenance & cleaning Disconnect the electrical supply before performing any cleaning or maintenance Regularly clean the outer casing: Use a soft, damp cloth to gently wipe away any dirt. Clear dust from air-intake grille Remove any dirt from the sensor area. Never use abrasives or chemicals to clean the cover.
- Page 7 Dryflow Vistosa Terms of Guarantee • The warranty for this unit is 10 years from the time of purchase. • During its warranty period, a unit can be returned to us and replaced or fixed free of charge, this includes all parts and labour and the cost of returning the unit to you.
- Page 8 Do not use the machine in places where it is directly sprayed with water. Do not use the machine in strong direct sunlight. Certificates and Qualifications Dryflow, reserves the right to make changes and/or modifications to the products and their specifications without prior notice...
