Summary of Contents for Dryflow Slimforce

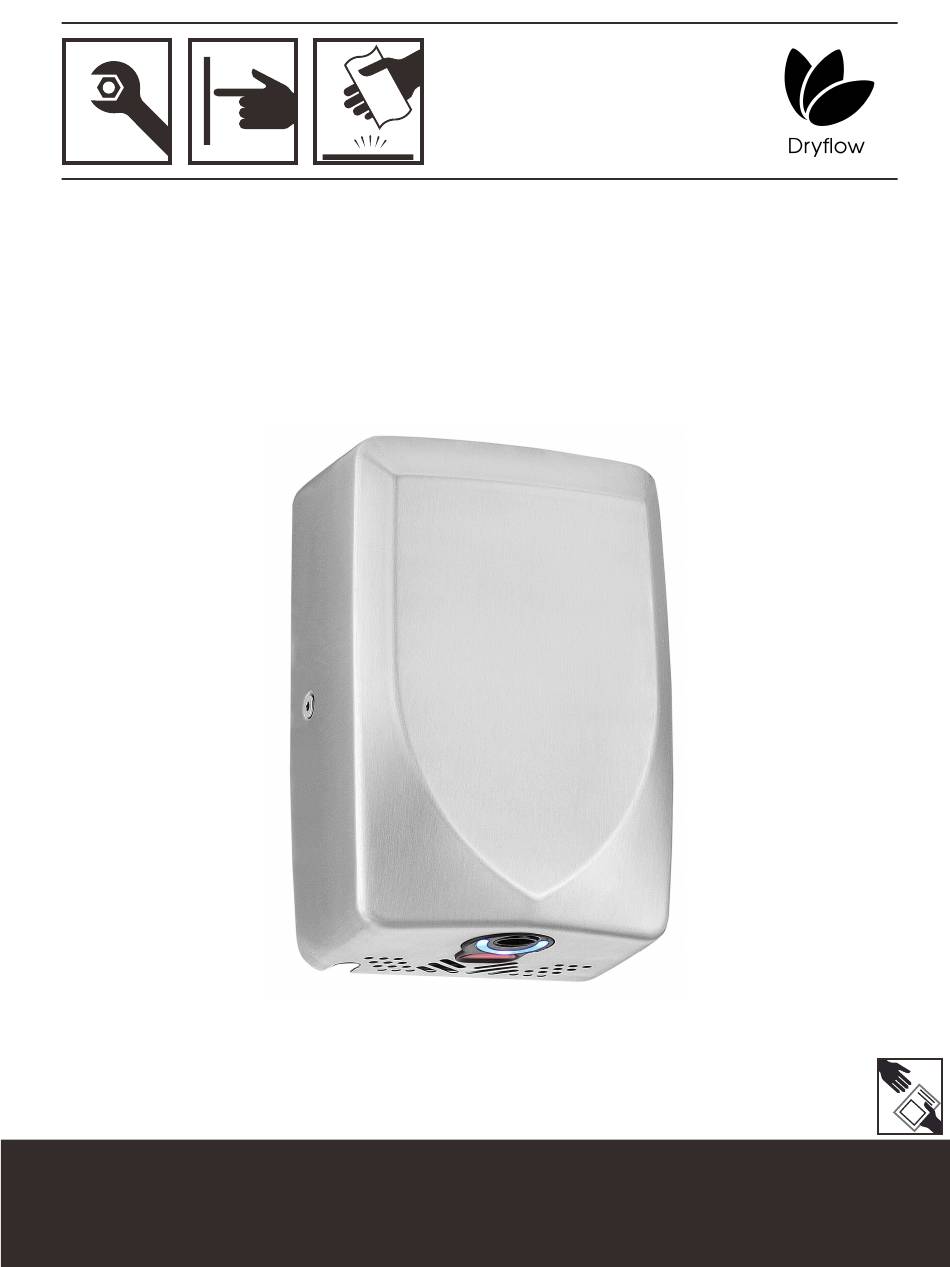

- Page 1 Slimforce Hand Dryer User Manual Dryflow, 7 Riverside Court, Don Road, Sheffield, S9 2TJ. UK. +44 (0)114 3540047 | info@dryflow.co.uk | www.dryflow.co.uk PLEASE READ CAREFULLY THROUGH THIS MANUAL BEFORE USING THE PRODUCT, OBSERVING ALL SAFETY INFORMATION, WARNINGS. V2 Jun.19...
-
Page 2: Safety Warnings
SAFETY WARNINGS Before installing, be sure to read this installation manual and retain for future reference. This product must be installed by qualified personnel in accordance with the instructions given in this manual and installation must comply with all applicable regulations, national security standards and laws in force in the country where the product is installed. -
Page 3: Packing List
PACKING LIST ITEM KEY ITEM DESCRIPTION ITEM QTY NOTES Stainless Steel 304 Cover & Cabinet Hand Dryer Unit Complete Owner Manual (OM - this booklet) Mounting Template (MT) Φ8x38MM [ 5/16" Dia.x 1-1/2"], for#10 Wall Anchors, Expansion Self-threading Phillips PH Screws M5x36MM [ No.10 AB x 1-3/16"] Flat Washer F1 For M5[No.10 AB]Phillips PH Screws... -
Page 4: Before Installation
BEFORE INSTALLATION Installation must be carried out in accordance with the current edition of the local wiring regulations code having jurisdiction. Installation should be performed only by a qualified electrician. Hand dryer is to be installed with hardwired L Min. = 300MM[11-13/16"] stub provided in advance of install by others. -
Page 5: Installation
INSTALLATION 1. Be sure to turn off the electric supply before any operation. 2. Place template against wall at desired height (see mounting height recommendations) and mark locations of 4 mounting holes Dia. 8mm(5/16"). 3. Remove hand dryer back transportation only purpose screw. 4. - Page 6 HOT AIR ON / OFF ( Customized) DETECTION DISTANCE SETTING...
-
Page 7: Operation
OPERATION No-touch operation. There is a blue LED light to guide user to the air flow. Shake excess water from hands. Place hands under the outlet to start operation. Rub hands lightly and rapidly. Stops automatically after hands are removed. Basic use... -
Page 8: Maintenance
MAINTENANCE Periodic cleaning of the unit is recommended. Remove cover and clean dryer dust lint. Wipe the cover with a damp cloth and mild cleaning solution. Do not soak. Never use abrasives to clean the cover. DIAGNOSTICS & REMEDIES Hand dryer fails to Ensure the breaker supplying the dryer is operational. - Page 9 Periodic cleaning of the unit is recommended. Remove cover and clean dryer dust lint. Stainless steel is highly resistant to rust, but there are some very strict cleaning and maintenance rules to be followed to prevent damage to its appearance. Apply neutral detergents formulated for these purposes (non-ionic surfactants and citric acid).
- Page 10 DIAGRAM BY STANDARD CIRCUIT BOARD Sensor Assembly Power (Hardwired) : 220V-240V 50/60Hz See owner Grounding adjustments Heat Element Yellow HOT/COLD Switch Terminal Block Black [ Selection ] Main Fuse Blue Motor Brown These two connectors are interchangeable LED Light Assembly [ Selection ]...
- Page 11 Surface-Mounted ADA-Compliant 101MM[4"]...
