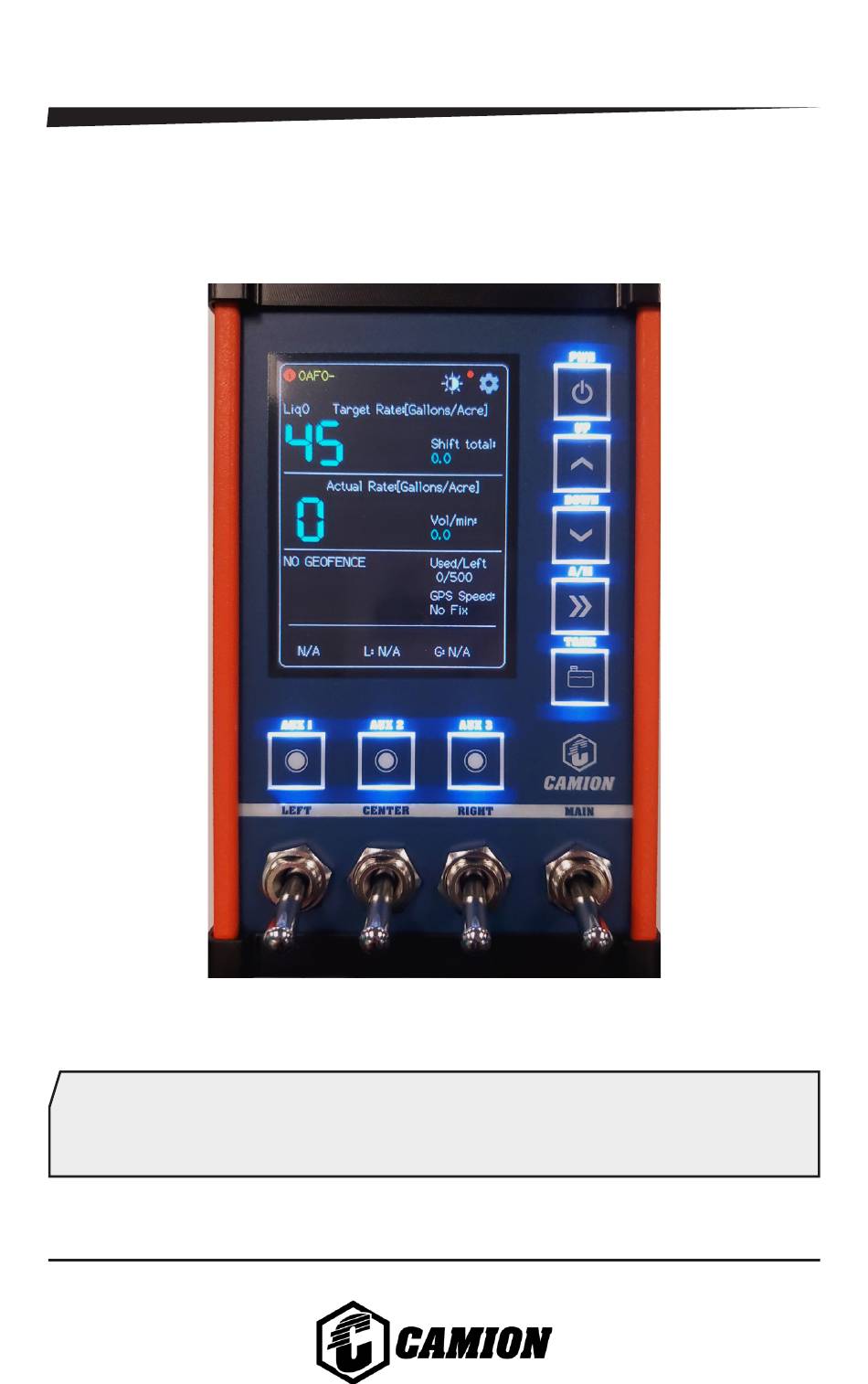

- Page 1 STORM COMMANDER ® OWNER’S MANUAL Product Code: CEC056 Version 1.3 Copyright © Enduraplas. All Rights Reserved.
-
Page 2: Table Of Contents
English CONTENTS INTRODUCTION OVERVIEW OVERVIEW DESCRIPTION 5 & 6 WARNINGS GETTING STARTED 8 - 16 MAINTAINING TROUBLESHOOTING HARNESS COMPONENTS 19 & 20 WARRANTY 21 - 24 Storm Commander ®... -
Page 3: Introduction
English INTRODUCTION Congratulations! You now own a Camion™ Storm ® Commander Take a look through this owner’s manual to learn how the ® pros use their Camion™ Storm Commander controller. Version 1.3... -
Page 4: Overview
English OVERVIEW 20 19 Storm Commander ®... -
Page 5: Overview Description

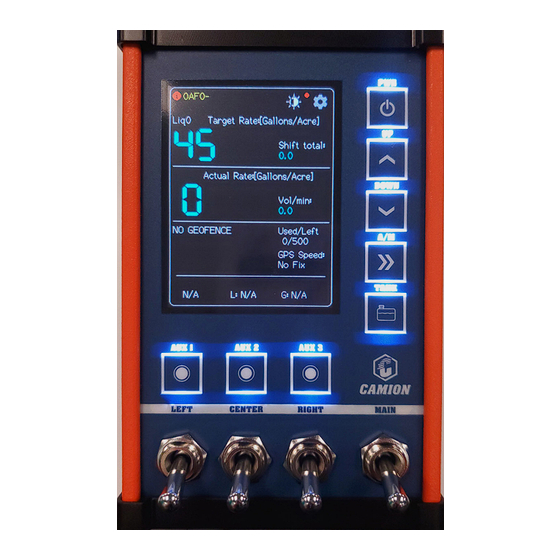

English OVERVIEW DESCRIPTION 1. Synced Indicator Light (Red-not connected, Green connected). 2. Target Rate Indicator, Shift/Site Totals. 3. Actual Rate Gallons per Acre (GPA)/Volume. 4. Geofence Location, gallons used/left, GPS speed. 5. Pump on/off button. 6. Auxilary 1 (work light). 7. - Page 6 English OVERVIEW DESCRIPTION 17. Shift/Site total. Display brightness icon. 18. Main power button. 19. Settings menu icon. 20. Cell service indicator. (Red-not connected, Green connected). 21. Display brightness icon. Storm Commander ®...
-
Page 7: Warnings
English WARNINGS 1. Always make sure controller is in a safe place in the vehicle and is secured in a location where it does not obstruct view of surroundings. 2. Always pay attention when operating the controller when vehicle is moving. 3. -
Page 8: Getting Started
English GETTING STARTED Storm Commander Setup 1) Plug in your 12v outlet plug in vehicle cab to power up your Storm ® Commander 2) To power up the receiver box at the back of unit, plug the power cable into the 7 pin plug on back of truck. - Page 9 English GETTING STARTED Storm Commander Setup ® 5) Hook up Storm Commander control box arm to back of controller and install controller mount into the cupholder of the vehicle cab. Important Tip: The control unit in the cab needs an unobstructed view to GPS signal and shouldn’t be covered or shielded with objects.
- Page 10 English GETTING STARTED Pairing Storm Commander with Unit 1) Press the power button on the top right corner of the controller to power up. 2) Press and hold settings button on the top right corner of the screen for a couple seconds or until it activates a long beep.
- Page 11 English GETTING STARTED Pairing Storm Commander with Unit 5) Press ‘Resync’ button - your controller will pair with the receiver box on the sprayer. Controller display will now show ID numbers above resync button. 6) X out of the screen by hitting the top right-hand corner of the screen.
- Page 12 English GETTING STARTED Confirming Controller is Synced to Unit 1) Turn the main boom activation toggle switch on to activate spray control. 2) Press the A/M button to activate ‘Manual’ mode allowing you to test valves are operating. 3) With main switch on, turn ‘Left’, ‘Cen- ter’, and ‘Right’...
- Page 13 English GETTING STARTED Filling Unit with Liquid 1) Before filling your unit with liquid, press the tank fill button near the bottom right of the controller screen. Then fill your sprayer tank with liquid. 2) Once the tank is filled, key in the total gallons in your tank and hit confirm.
- Page 14 English GETTING STARTED Getting Ready to Spray 1) Set your target spray rate by simply pressing the up and down arrow keys. This will change rate in 5 gallon increments. Set your desired gallon per acre (GPA) rate. 2) Ensure your pump motor is powered on and running.
- Page 15 English GETTING STARTED Resetting Shift/Site Settings 1) The Shift/Site total alternates on screen. To get to ‘shift total’, wait until display shows ‘shift total’, then press the shift icon. To get to ‘site total’, wait until display shows ‘site total’, then press the site icon.
- Page 16 English GETTING STARTED Add-On Option 1) If your unit has an auxilary work light, turn your toggle switch on at the work light. This switch is located directly be- low the work light. 2) To turn on you auxiliary work light from the controller, ensure the toggle switch in step 1 is on, then press the AUX 2 button on the bottom left of the...
-
Page 17: Maintaining
English MAINTAINING Keeping your Storm Commander controller in good condition will help you lengthen the life of the components. Everyone knows a well maintained piece of equipment ensures a longer life span. Watch Instruction Videos: www.youtube.com Discover More Helpful Tips: www.IceControlTraining.com Version 1.3... -
Page 18: Troubleshooting
English TROUBLESHOOTING CONDITION CAUSE REMEDY Unit not Power supply. 1. Ensure your unit is powering on. plugged in. 2. Make sure cable is connected properly. 3. Make sure vehicle key is on and there is power at the plug socket. Insufficient flow 1. -
Page 19: Harness Components
English HARNESS COMPONENTS ITEM NO. PART # DESCRIPTION QTY. CEC063 SC InCab Ctrl CEC064 SC Pwr Cord InCab Ctrl CEC066 SC Pwr Cord Receiver CEC067 SC Pwr Cable 3 Sec Boom CEC068 SC Ctrl Cable FM-Valve CEC069 SC Ctrl Cable Aux Pwr Split CEC070 SC Aux Pwr Cable WP Plug Version 1.3... - Page 20 English Storm Commander ®...
-
Page 21: Warranty
Buyer of Camion ® Products that it will be free from defects in workmanship for a period of one (1) Year after the date of the original purchase. At it’s sole option, Camion ® will repair or replace defective parts at no charge for parts and labor. - Page 22 (10) days that the defect becomes known, in writing, at: cs@camionsystems.com. The original invoice or other similar proof of purchase of the applicable product or part must be provided by the Buyer to Camion ®...
- Page 23 English Version 1.3...
- Page 24 ® CAMION by Enduraplas 1 (877) 265-9929 cs@camionsystems.com www.camionsystems.com 113 1st Street, Neche ND 58265, USA Discover More Helpful Tips: www.IceControlTraining.com Copyright © Enduraplas. All Rights Reserved.
