Step 1: Check what's in the box
VIA GO3 Collaboration Device
1 Power cords for US and EU
Step 2: Get to know your VIA GO3
#
Feature
1
3 x USB DEVICE 3.0 Connector
2
Power Button with LED
3
Power Connector
4
1 x HDMI OUT Connector
5
RJ-45 Connector
Step 3: Mount VIA GO3
VIA GO3 can be installed on a flat surface / wall, rear of a monitor or rack mount using the included VESA mounting bracket and
screw set:
Mount VIA GO3 to the Mounting Bracket
1.
Attach the mounting bracket to the VIA GO3 with 2 screws.
This step is required for all options detailed below.

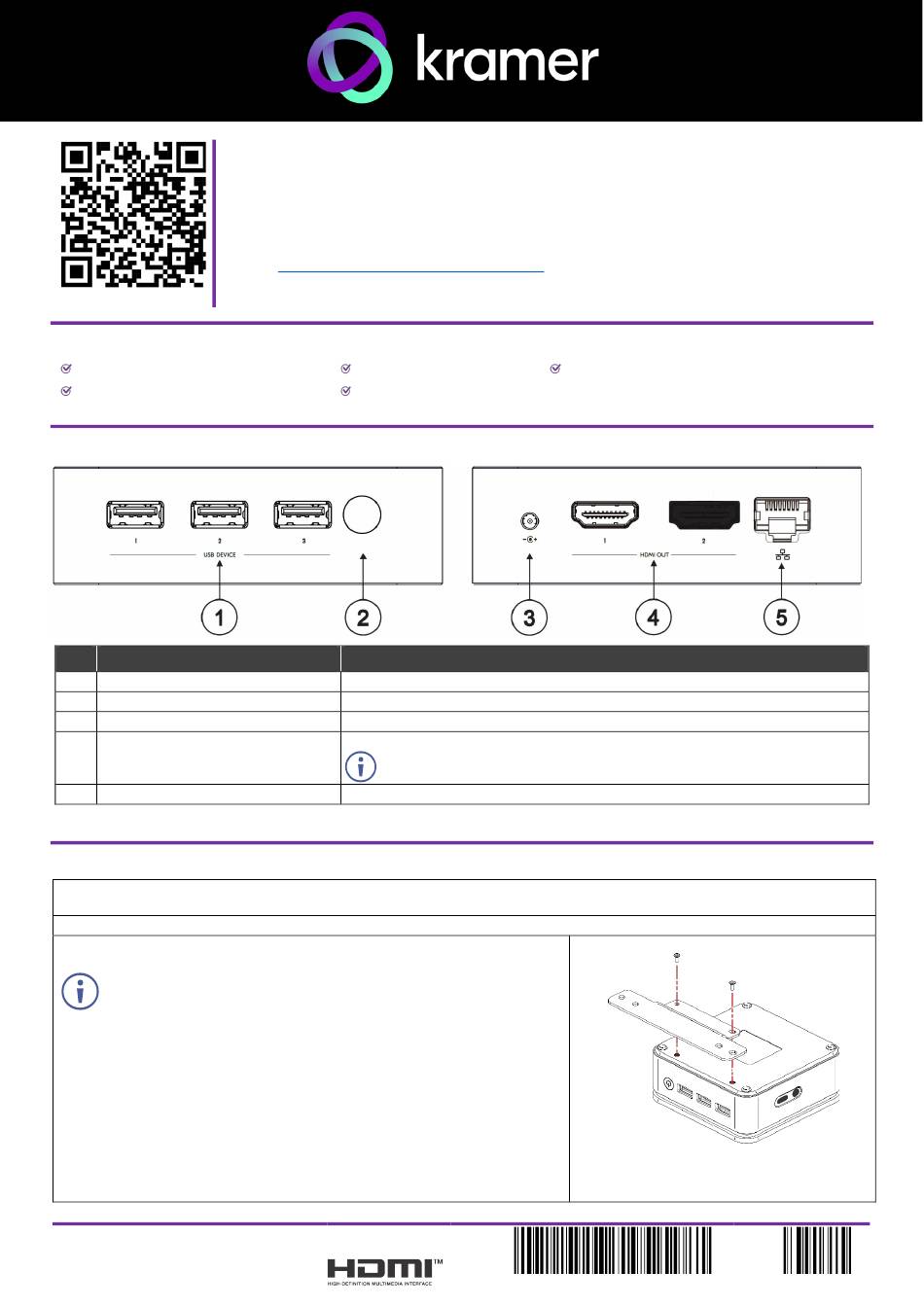

VIA GO3 Quick Start
VIA GO3 Quick Start Guide
For Installer
This guide helps you install and use your VIA GO3 for the first time.
Go to
https://www.kramerav.com/product/VIA GO3
firmware upgrades are available.
1 VESA mounting bracket
1 VESA screw set
Function
Connect to a USB device, for example, a USB speaker.
Press to power ON or turn OFF the device.
Connect to the 12V DC power supply.
Connect to an HDMI sink.
HDMI OUT 2 is unavailable.
Connect to a LAN (default mode).
to download the latest user manual and check if
1 Quick start guide
P/N:
2900- 301786QS
Rev:
1
