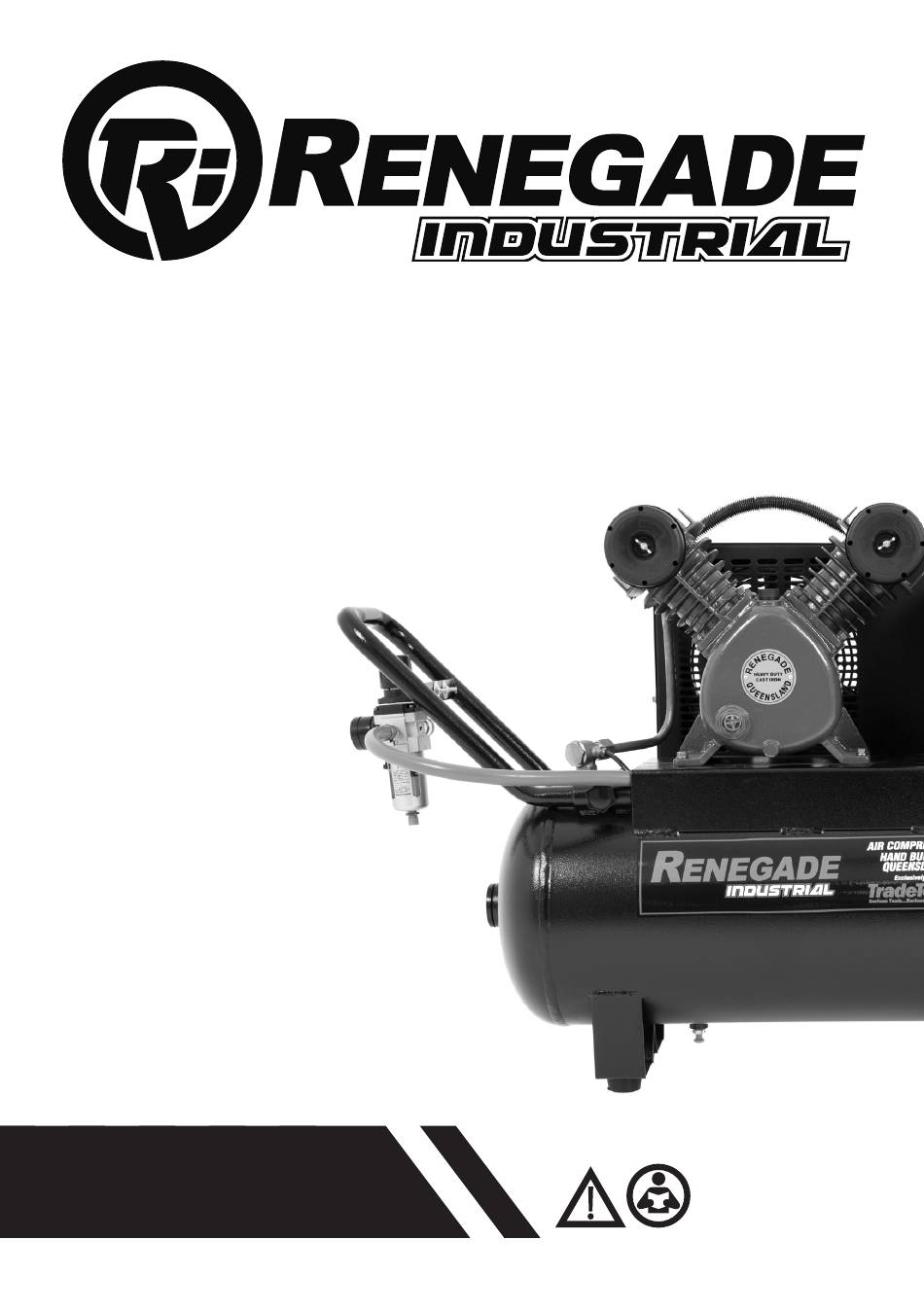

- Page 1 Electric Air Compressor Single Phase 240Volt HD200 HD210 HD290 HD300 HD310 HD320 INSTRUCTION MANUAL INSTRUCTION MANUAL Read through carefully and understand these instructions before use...
-
Page 2: Work Area
■ SPECIFICATIONS HD200 HD210 HD290 HD300 HD310 HD320 Model Power 2.2Hp 10A 2.2Hp 10A 3.2Hp 15A 3.0Hp 15A 3.2Hp 15A 3.2Hp 15A Free Air 200LPM 210LPM 290LPM 300LPM 310LPM 320LPM Delivery Tank Size Cylinder V-Twin V-Twin Triple V-Twin Triple Triple... -
Page 3: Hot Components
DO NOT FORCE AIR COMPRESSORS The air compressor will do a better, safer job and give you much better service if it’s used at the duty cycle for which it was designed. The duty cycle will only take effect after the initial (1st ) tank fill for the day. This air compressors duty cycle is 75%. - Page 4 MAINTAIN YOUR AIR COMPRESSOR WITH CARE Follow the instructions for lubricating and changing accessories. Check the air compressor power cord periodically and if damaged have it replaced by an authorised service facility. Keep handles clean, dry and free from oil and grease. Ensure that ventilation slots are kept clean and free from dust at all times. Blocked ventilation slots or air filter can cause overheating and damage to the motor and this will not be covered under warranty.
-
Page 5: Ear Protection
■ PERSONAL SAFETY CLOTHING Do not wear loose clothing, jewellery or anything that could get caught in moving machinery. HAIR Long hair should be tied back or contained in a protective covering. EYE PROTECTION The use of safety goggles is highly recommended (normal glasses are not sufficient for eye protection) when using an air compressor. -
Page 6: Electrical Data
ELECTRICAL DATA IMPORTANT This air compressor is fitted with a sealed electrical connection plug that is compatible with the mains power supply for Australia / New Zealand and meets the requirements of Australian Standards. This air compressor must be connected to a supply voltage that is equal to that stated on the rating label. If the mains power connection plug or power cord becomes damaged it must be replaced with a complete assembly that is identical to the original and this must be replaced by an authorised service centre. - Page 7 ■ OPERATING INSTRUCTIONS UNPACKING Carefully unpack your air compressor. This air compressor is bulky and heavy; two (2) person lift required. Dispose of all packing material in an environmentally responsible manner. ASSEMBLY Your air compressor requires minor assembly before initial operation. Check that you have all required components needed for assembly and initial use.
- Page 8 ■ ASSEMBLY & INSTALLATION Select a clean, dry and well lit area most preferably indoors with plenty of space for proper ventilation, cooling air flow and accessibility. Locate the compressor at least 300 mm (1 ft) from walls for ventilation or preferably no less than 600 mm (2 ft) to allow for maintenance access.
-
Page 9: Using The Air Compressor
■ RUNNING IN YOUR NEW AIR COMPRESSOR Before running in ensure that the following has been completed: 1. Oil level is correct. 2. The air compressor has been fully assembled. Your new air compressor requires running in: 1. Plug the power cord into a standard 240V AC power point. 2. -
Page 10: Adjusting The Pressure
When you have finished using your air compressor: 1. Turn your air compressor OFF, using the ON / OFF switch lever. 2. Turn the power point OFF and disconnect the power lead. 3. Disconnect your air tools and air hose. 4. -
Page 11: Belt Tension
■ BELT TENSION Correct belt tension is paramount to a safe and reliable air compressor. An over tight load belt can cause damage to bearings and premature motor failure. An over loose belt can cause poor performance and excess heat due to slippage which can also lead to premature component failure. This failures will not be covered by warranty. -
Page 12: Before Use
■ MAINTENANCE DAILY Before use 1. Seal the tank drain tap. 2. Check the oil level. 3. Check safety valve operation. 4. Check the belt tension. Movement should be 10-15mm. Adjust if required. 5. Check for belt straightness. Adjust if required. After use 1. - Page 13 THIS UNIT IS NOT DESIGNED FOR USE IN CONNECTION WITH ANY BREATHING APPARATUS WHATSOEVER. A SPECIALLY DESIGNED AIR COMPRESSOR IS NECESSARY FOR THIS FUNCTION. ALL RENEGADE INDUSTRIAL SERIES AIR COMPRESSORS ARE SPECIFIED ON SALE IN TERMS OF HORSEPOWER, TANK VOLUME, PUMP DISPLACEMENT, & FREE AIR DELIVERY. ACTUAL OUTPUT MUST MATCH OR EXCEED THE TOTAL REQUIREMENTS OF INTENDED USE.
- Page 14 ■ GENERAL VIEW AND MAIN COMPONENTS For reference only. Description No. Description Regulator Tank Pressure switch Wheel Belt guard Twin rubber stoppers Motor reset button Drain tap Belt (Not shown) Handle Air filter Tank pressure gauge Oil fill cap Safety valve Sight glass On/Off switch...
- Page 15 ■ NOTES...
- Page 16 TradeTools Pty Ltd 131 Quinns Hill Rd East Stapylton, Queensland 4207 P. 07 55406400 www.tradetools.com...
