Summary of Contents for EVA EVA-AA-74 RC

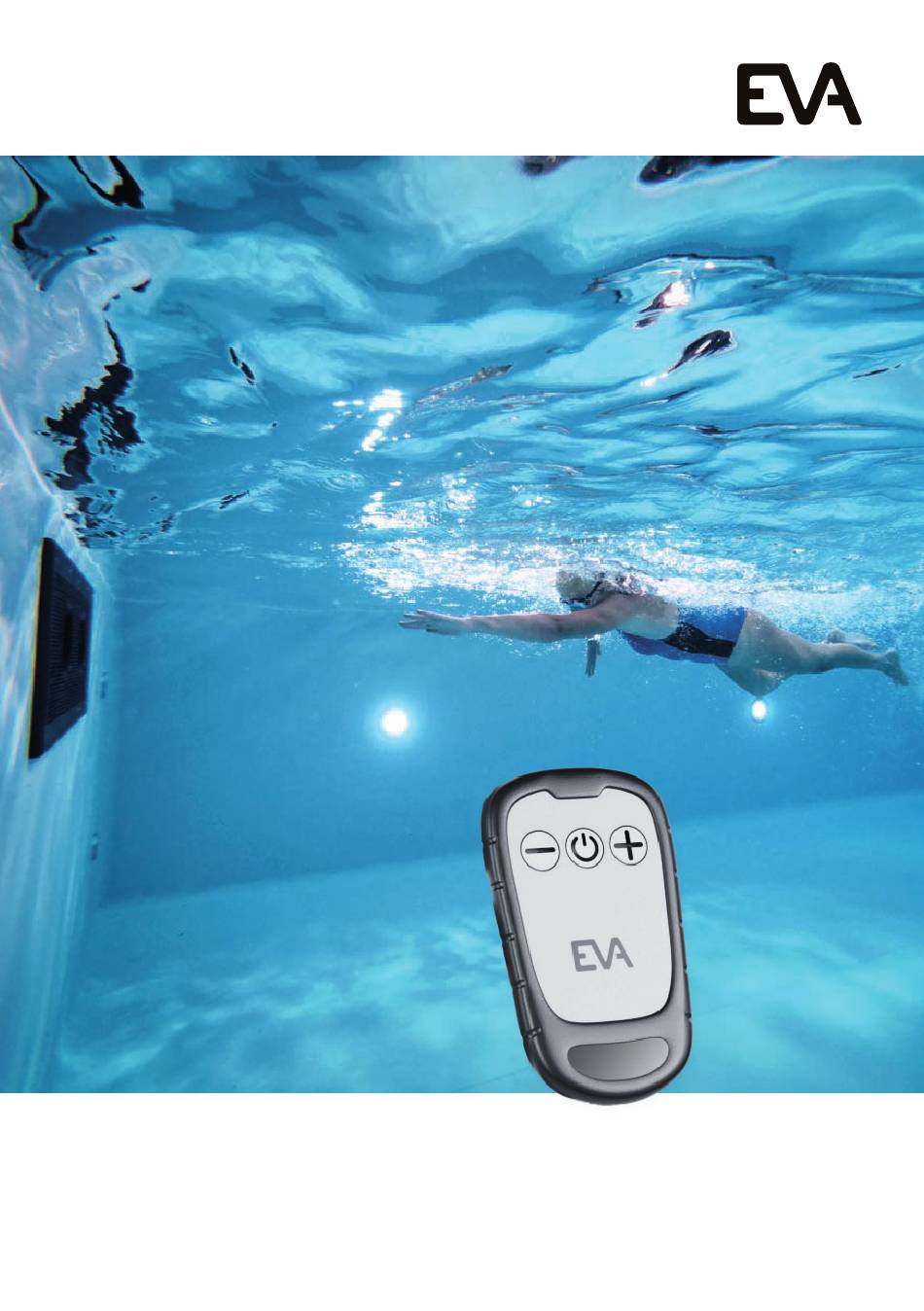

- Page 1 QUICK MANUAL EVA-AA-74 RC A step-by-step guide for operating the EVA LED underwater lighting and the EVAstream with the remote control...
-
Page 2: Table Of Contents
Connect EVA-AA-74 RC to EVA LED underwater lighting To control the EVA underwater lighting with the EVA Remote Control, connect (without EVAstream) the EVA-AA-74 RC to the EVA LED underwater lighting (4+2 channel LED driver). PCB Settings Electrical connections Functions... -
Page 3: Pcb Settings
EVA LED underwater lighting PSU Cable connection Connect the 7 wired cable from the EVA-AA-74 RC (3,4,6,7,9,10) to the Master Control Print of the EVA underwater lighting PSU (11,12,3,4,7,8) on the indicated numbers. Connect the EVA underwater lighting PSU’s to each other using DMX cable... -
Page 4: Functions
Remote control To control the EVAstream with the EVA Remote Control connect the EVA-AA-74 RC When the rotary switches of the first EVA LED underwater light are set to 605, the Remote to the EVAstream. Control has the following functions:... -
Page 5: Pcb Settings
Setting the ECA Print: Set the Rotary switches at 000 (Master mode) Cable connection Connect the 7 wired cable from the EVA-AA-74 RC (3,4,6,7,9,10) to the ECA Print of the EVAstream MCU (13,14,17,18,21,22) on the indicated numbers. 8 | Quick Manual EVA-AA-74 RC... -
Page 6: Functions
To change: press and hold the on/off button for 2 seconds: • When you see the white light, the remote starts controlling the EVAstream • When you see the blue light, the remote starts controlling the EVA LED underwater lighting... - Page 7 EVA Tech B.V. De Velde 1 8064 PH Zwartsluis The Netherlands +31 (0)38 - 33 75 067 info@evaoptic.com evaoptic.com 12 | Quick Manual EVA-AA-74 RC Quick Manual EVA-AA-74 RC | v24.1...
