Hartell LTS Installation Operation & Maintenance

L T S
L T P
Waste Water Removal Pumps from Hart ell
INTRODUCTION

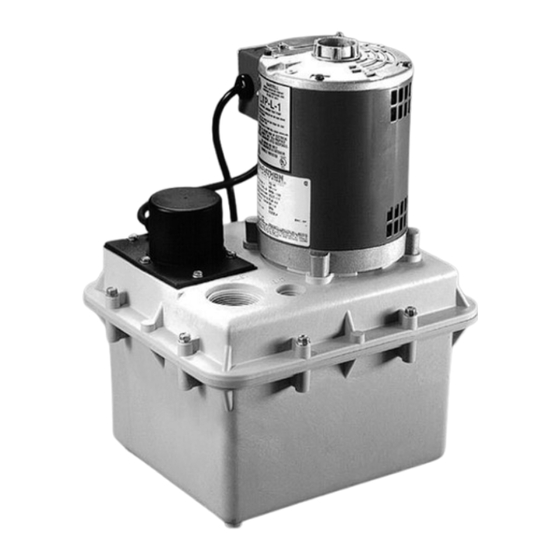

HARTELL LTS and LTP are general-purpose reservoir pumps developed for laundry and wet bar applications.
These models are utilized to pump wastewater from an area with no floor drains to an overhead or remote
drain line. The pump must be installed in conjunction with a (laundry) tub/sink. This pump has been carefully
engineered to provide long, trouble free service and is of the highest quality workmanship and materials.
These pumps have been thoroughly inspected and tested, then carefully packaged to insure safe delivery and
operation. When you receive your pump, examine it carefully to determine that there are no damaged or
broken parts. If damage is detected, notify the firm from where the pump was purchased. They will assist with
a repair or replacement.
See the precautions listed below before continuing.
CAUTION: READ ALL INSTRUCTIONS CAREFULLY BEFORE STARTING INSTALLATION
- Pump should only be used with liquids compatible with pump component materials. Do not use to pump
flammable or explosive fluids. Do not use in explosive atmospheres.
- The pump is supplied with a grounding type plug. To reduce the risk of electrical shock be certain that it is
connected to a properly grounded, grounding receptacle.
- Do not handle pump with wet hands or when standing on a wet or damp surface, or in water.
- Shut off the electrical power at the fuse box before making any connections. All wiring must comply with lo-
cal codes.
- A strainer must be installed in the tub to prevent foreign objects, (buttons, screws, etc.), from entering and
damaging the pump. In laundry applications a lint trap must be installed to prevent an excessive build-up of
lint that could interfere with proper float/switch and impeller operation. A nylon stocking works well as a lint
trap.
- Applying heat directly to the tank with a torch, or indirectly by heat transfer through copper tubing can melt
the tank. This will void the warranty. Solder fittings and tubing first, allow to cool, and then assemble to the
tank. The use of some pipe dopes will soften and/or crack the plastic used in this pump. This will void the
warranty. Use only Teflon tape when installing threaded fittings to the tank.
HARTELL LTS and LTP waste water pumps are guaranteed to be free from defects in workmanship or materials and to function satisfactorily, when
properly installed, for a period of ONE (1) year from date of installation. HARTELL will replace, without charge, any HARTELL product found to be
defective upon examination at our factory if returned within the guarantee period, transportation charges prepaid.
This guarantee does not apply if the product has been misapplied or mechanically damaged, HARTELL assumes no liability for resultant damages of
any kind arising out of the use of its products.
ONE YEAR LIMITED WARRANTY
I N S T A L L A T I O N
O P E R A
M A I N T E N A N C E
201 Ivyland Road
Ivyland, PA
18974
T I O N
Phone: 215-322-0730
Fax: 800-322-5519
Web: www.hartell.com
Email: info@hartell.com
