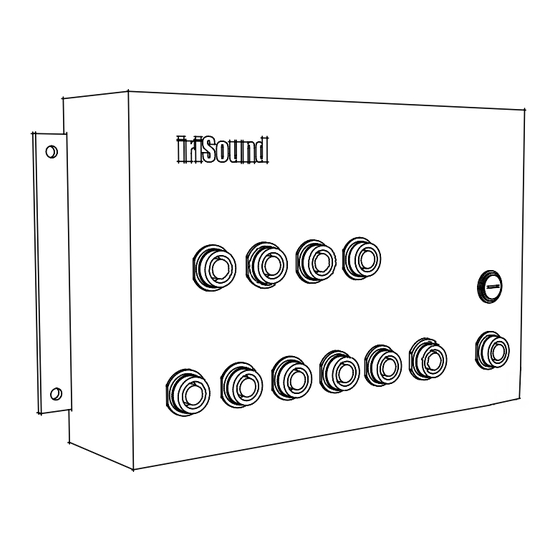

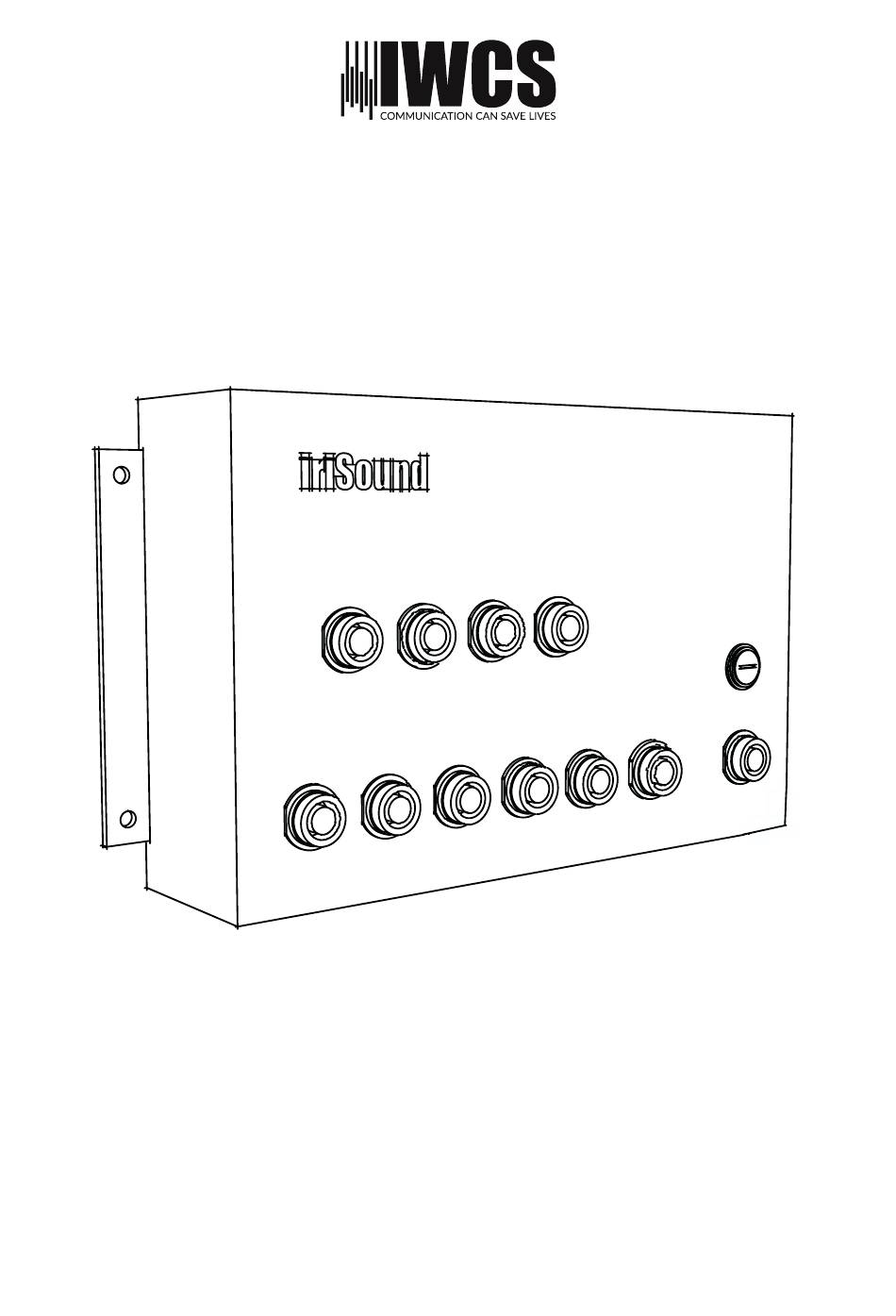

- Page 1 User manual iriSound V. 03/24FA...
-
Page 2: Table Of Contents
IWCS HOPE YOU WILL ENJOY THE BENEFITS OF TROUBLE FREE HIGH QUALITY INTERCOM. PLEASE READ THESE INSTRUCTIONS CAREFULLY BEFORE FIRST USE. IF INSTALLED, OPERATED AND MAINTAINED ACCORDING TO THIS MANUAL THE IriSound WILL BE A RELIABLE PARTNER FOR MANY YEARS TO COME. THOMAS B SVENNINGSEN CO-FOUNDER OF IWCS... -
Page 3: Introduction
Introduction 1.4 Safety warning 1.1 Disclaimer Any responsibility or liability for loss or damage in connection with the use of this product and The following general safety precautions must be observed during all phases of operation, the accompanying documentation is disclaimed by IWCS. service and repair of this equipment. Failure to comply with these precautions or with specific warnings elsewhere in this manual violates safety standards of design, manufacture and intended The information in this manual is provided for information purposes only, is subject to change use of the equipment. IWCS assumes no liability for the customer’s failure to comply with these without notice and may contain errors or inaccuracies. requirements. Manuals issued by IWCS are periodically revised and updated. Anyone relying on this information should acquire the most current version e.g. upon request at info@iwcs.eu • EMC / RF EXPOSURE IWCS is not responsible for the content or accuracy of any translations or reproductions, in the IriSound is CE and UKCA certified as stated in the Declaration of whole or in part, of this manual from any other source. Conformity. 1.2 Copyright • FIRE In case of fire, harmful gases and fumes may occur. -
Page 4: Unboxing
- The heart of all communication 1 x IriSound The importance of clear and uninterrupted communication can not be underestimated. In many cases it is what separates success from failure. Weather conditions, surrounding noise, distance to co-workers – all factors potentially making clear communication difficult or impossible. The iriSound system combines your existing VHF/UHF radios with a state-of–the-art, waterpro- of inter-com system enabling clear and trouble-free communication under the most demanding conditions. iriSound is a highly advanced audio unit that processes all sound signals to and from external units whether they are headsets, external radio units or iriBoost/iriStore. The built-in intelligence allows for easy plug-and-play installation when used with other Iridi- um products – like the iriConnect for wireless headset communication. iriSound’s rugged, cast aluminium enclosure and the IP67-rated connectors offer a fully waterproof exterior construction designed specifically for the harsh conditions onboard small and medium sized vessels, with ability to install it either inside or out-side. The electronics design is based on the newest 24bit/48kHz Digital Signal Processing (DSP) technology, which offers superior sound quality and a world of software features such as dynamic noise reduction, user controlled voice groups etc. - Page 5 Mounting 3.2 Drill template 252 mm 252 mm Dia. 5,5 mm Hejrevang 13 +45 43 43 26 26 Hejrevang 13 +45 43 43 26 26 3450 Allerød info@iwcs.eu 3450 Allerød info@iwcs.eu Denmark www.iwcs.eu Denmark www.iwcs.eu V. 03/24FA V. 03/24FA...
- Page 6 Backside of drille template Backside of drille template Hejrevang 13 +45 43 43 26 26 Hejrevang 13 +45 43 43 26 26 3450 Allerød info@iwcs.eu 3450 Allerød info@iwcs.eu Denmark www.iwcs.eu Denmark www.iwcs.eu V. 03/24FA V. 03/24FA...
-
Page 7: Installation
Status LED a minimum clearance of 200 mm from the mounting surface to allow space for cables. iriSound has a LED indicator, flashing GREEN when powered on. If any hard ware failure occurs the LED will flash RED. If the failure is momentarily, the RED indication can be reset by switching OFF and ON the iriSound. If the LED indicator stays RED, the iriSound is defect and must be repaired. Consult your dealer. DO NOT OPEN the iriSound yourself. Unauthori- zed opening will void the warranty. Hejrevang 13 +45 43 43 26 26 Hejrevang 13 +45 43 43 26 26 3450 Allerød... -
Page 8: Service And Maintenance
Service and Maintenance 5.1 Specifications Any Service or additional Upgrades must be handled by IWCS Do not try to open or modify the IWCS product DSP Mixer irisound 4 iriSound 6 iriSound 8 Audio/data channels AUX ports Weight 500 g iriSound Size 230/250 x 145 x 50/65 Waterproof IP67 Power 12 VDC / 300mAh 12 VDC / 450mAh 12 VDC / 600mAh Temperature range -20 C to +65 C Frequency range 20 - 20.000 Hz... -
