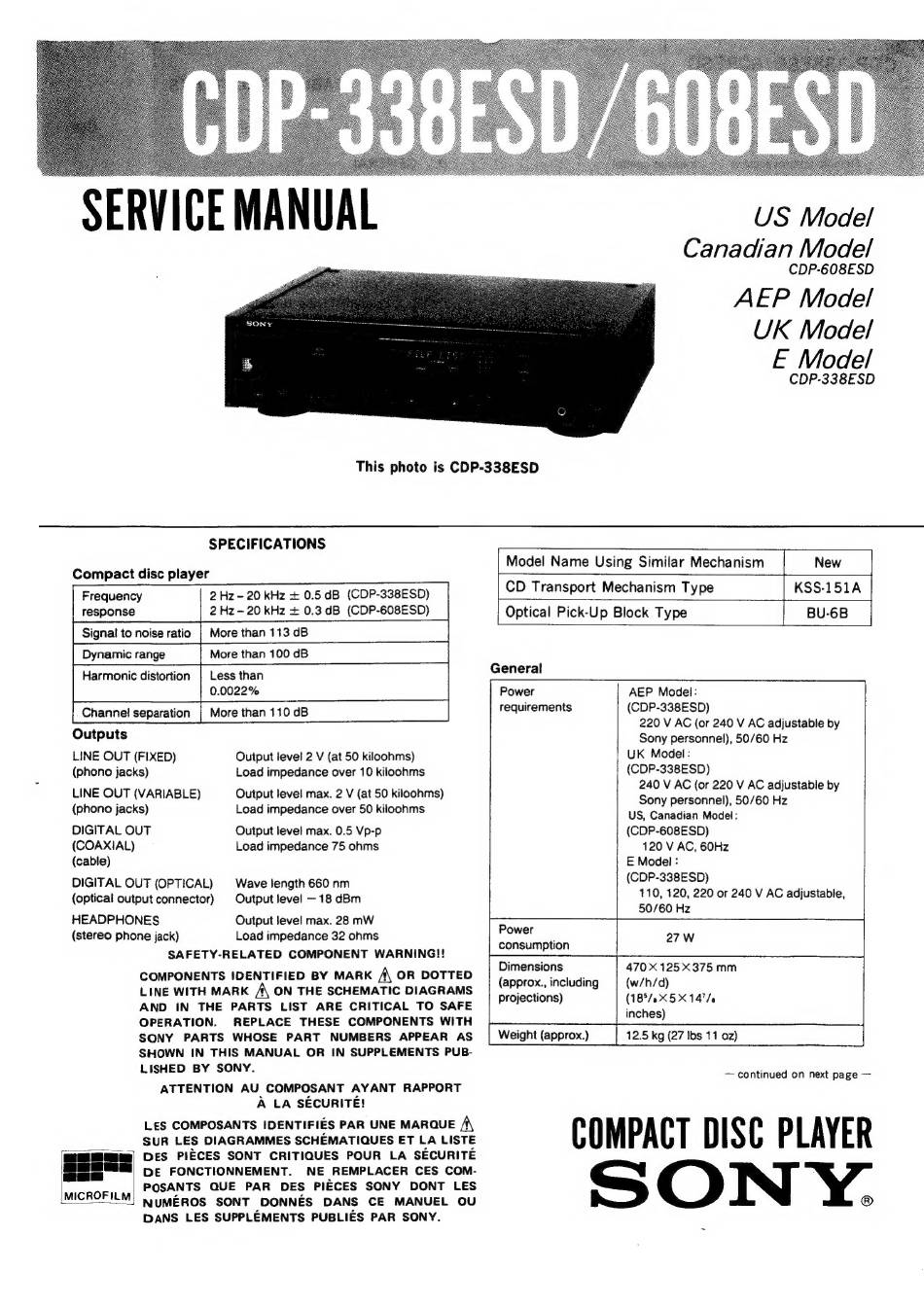

Sony CDP-338ESD Service Manual

Compact disc player
response
Frequency
Signal to noise ratio | More than 113 dB
Harmonic distortion | Less than
0.0022%
Channel separation | More than 110 dB
ee
Pa
Sees
This photo is CDP-338ESD
SPECIFICATIONS
2Hz- 20 kHz + 0.5 dB (CDP-338ESD)
2Hz-20 kHz + 0.3dB (CDP-608ESD)
Outputs
LINE OUT (FIXED) Output level 2 V (at 50 kiloohms)
(phono jacks) Load impedance over 10 kiloohms
LINE OUT (VARIABLE) Output level max. 2 V (at 50 kiloonms)
(phono jacks) Load impedance over 50 kiloonms
DIGITAL OUT Output level max. 0.5 Vp-p
(COAXIAL) Load impedance 75 ohms
(cable)
DIGITAL OUT (OPTICAL) Wave length 660 nm
(optical output connector) Output level — 18 dBm
HEADPHONES Output level max. 28 mW
(stereo phone jack)
MICROFILM |
Load impedance 32 ohms
SAFETY-RELATED COMPONENT WARNING!!
COMPONENTS !DENTIFIED BY MARK A OR DOTTED
LINE WITH MARK A ON THE SCHEMATIC DIAGRAMS
AND IN THE PARTS LIST ARE CRITICAL TO SAFE
OPERATION. REPLACE THESE COMPONENTS WITH
SONY PARTS WHOSE PART NUMBERS APPEAR AS
SHOWN IN THIS MANUAL OR IN SUPPLEMENTS PUB-
LISHED BY SONY.
ATTENTION AU COMPOSANT AYANT RAPPORT
A LA SECURITE!
LES COMPOSANTS IDENTIFIES PAR UNE MARQUE /\
SUR LES DIAGRAMMES SCHEMATIQUES ET LA LISTE
DES PIECES SONT CRITIQUES POUR LA SECURITE
DE FONCTIONNEMENT. NE REMPLACER CES COM-
POSANTS QUE PAR DES PIECES SONY DONT LES
NUMEROS SONT DONNES DANS CE MANUEL OU
DANS LES SUPPLEMENTS PUBLIES PAR SONY.
US Model
Canadian Model
CDP-608ESD
AEP Model
UK Model
E Model
CDP-338ESD
Model Name Using Similar Mechanism
New
CD Transport Mechanism Type KSS-151A
Optical Pick-Up Block Type
General
Power
requirements
Power
consumption
Dimensions
(approx., including
Projections)
Weight (approx.)
AEP Model:
(CDP-338ESD)
220 V AC (or 240 V AC adjustable by
Sony personnel), 50/60 Hz
UK Model :
(CDP-338ESD)
240 V AC (or 220 V AC adjustable by
Sony personnel), 50/60 Hz
US, Canadian Model:
(CDP-608ESD)
120 V AC, 60Hz
E Model :
(CDP-338ESD)
110, 120, 220 or 240 V AC adjustable,
50/60 Hz
470 X 125X375 mm
(w/h/d)
(185/2X5X147/e
inches)
12.5 kg (27 Ibs 11 02)
— continued on next page —-
COMPACT DISC PLAYER
SONY.
