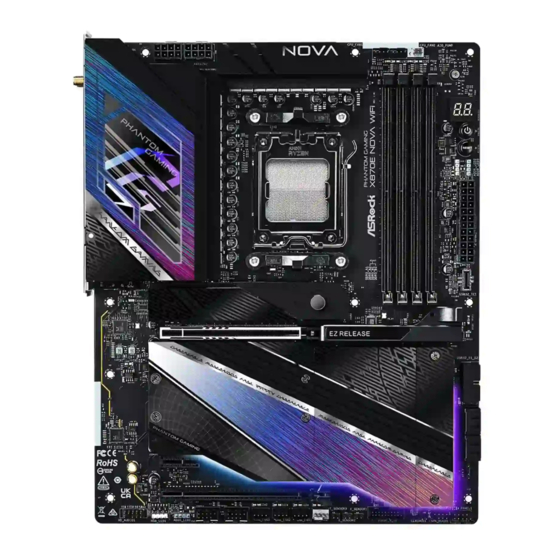

Summary of Contents for ASROCK PHANTOM GAMING X870E NOVA WiFi

  • Page 2: Contact Information

    Contact Information If you need to contact ASRock or want to know more about ASRock, you’re welcome to visit ASRock’s website at http://www.asrock.com; or you may contact your dealer for further information. For technical questions, please submit a support request form at https://event.asrock.com/tsd.asp...

  • Page 3: Table Of Contents

    Chapter 1 Introduction Package Contents Specifications Motherboard Layout I/O Panel Block Diagram 802.11be Wi-Fi 7 Module and ASRock WiFi 2.4/5/6 GHz Antenna Chapter 2 Installation Installing the CPU Installing the CPU Fan and Heatsink Installing Memory Modules (DIMM) Connecting the Front Panel Header...
  • Page 4 2.13 Smart Buttons 2.14 Dr. Debug 2.15 M.2 SSD Installation Guide (M2_1) 2.16 M.2 SSD Installation Guide (M2_2/M2_3/M2_4) 2.17 M.2 SSD Installation Guide (M2_5)

  • Page 5: Chapter 1 Introduction

    If you require technical support related to this mother- board, please visit our website for specific information about the model you are using. You may find the latest VGA cards and CPU support list on ASRock’s website as well. ASRock website http://www.asrock.com.

  • Page 6: Specifications

    • Supports DDR5 ECC/non-ECC, un-buffered memory up to 8200+(OC)* • Max. capacity of system memory: 256GB • Supports Extreme Memory Profile (XMP) and EXTended Profiles for Overclocking (EXPO) memory modules * Please refer to Memory Support List on ASRock's website for more information. (http://www.asrock.com/) Expansion CPU: Slot •...
  • Page 7 X870E Nova WiFi Graphics • Integrated AMD RDNA graphics (Actual support may vary by CPU) • 1 x HDMI 2.1 TMDS/FRL 8G Compatible, supports HDR, HDCP 2.3 and max. resolution up to 4K 120Hz • 2 x USB4, support HDCP 2.3 and max. resolution up to 8K 30Hz* * Only the CPU's embedded graphics can be displayed through USB4 ports.
  • Page 8 CPU: • 2 x USB4 Type-C (Rear) • 2 x USB 3.2 Gen2 Type-A (Rear (USB32_1 and USB32_7)) Chipset: • 1 x USB 3.2 Gen2x2 Type-C (Front) • 3 x USB 3.2 Gen2 Type-A (Rear (USB32_2 and USB32_56)) • 7 x USB 3.2 Gen1 Type-A (3 Rear, 4 Front) •...
  • Page 9 X870E Nova WiFi ASMedia ASM1061: • 2 x SATA3 6.0 Gb/s Connectors * Supports NVMe SSD as boot disks * M2_1 is the first priority for M.2 installation. * M2_1 will run at Gen5x4 with 9000 and 7000 series processors and Gen4x4 with 8000 (Phoenix 1 and Phoenix 2) series proces- sors.
  • Page 10 • ErP/EuP ready (ErP/EuP ready power supply is required) * For detailed product information, please visit our website: http://www.asrock.com Please realize that there is a certain risk involved with overclocking, including adjusting the setting in the BIOS, applying Untied Overclocking Technology, or using third-party overclocking tools.

  • Page 11: Motherboard Layout

    X870E Nova WiFi 1.3 Motherboard Layout CLRC BIOS CPU_FAN1 CPU_FAN2 AIO_PUMP ATX12V1 ATX12V2 M2_WIFI_1 HDMI1 Debug Power Reset Top: 5GLAN (RTL8126CG) USB32_TC1 PCIE1 X870E X870E AUDIO CODEC CMOS Battery PCIE2 M2_5 PCIE3 USB_3_4 USB_5_6 CHA_FAN3 CHA_FAN2 CHA_FAN1 W_PUMP PANEL1 T_SENSOR2 USB32_9_10 SPK_PLED1 HD_AUDIO1...
  • Page 12 No. Description 8 pin 12V Power Connector (ATX12V1) 8 pin 12V Power Connector (ATX12V2) CPU Fan Connector (CPU_FAN1) 2 x 288-pin DDR5 DIMM Slots (DDR5_A1, DDR5_B1) CPU Fan Connector (CPU_FAN2) 2 x 288-pin DDR5 DIMM Slots (DDR5_A2, DDR5_B2) AIO Pump Fan Connector (AIO_PUMP) Power Button (PWRBTN1) Reset Button (RSTBTN1) Addressable LED Header (ADDR_LED3)

  • Page 13: I/O Panel

    X870E Nova WiFi 1.4 I/O Panel No. Description No. Description BIOS Flashback Button USB4 Type-C Port (USB4_TC2) USB 3.2 Gen1 Type-A Ports (USB32_34)* USB 3.2 Gen2 Type-A Port (USB32_7) USB 2.0 Ports (USB_12) USB4 Type-C Port (USB4_TC1) 5G LAN RJ-45 Port** USB 3.2 Gen2 Type-A Ports (USB32_56) Microphone Input Jack*** USB 3.2 Gen2 Type-A Ports (USB32_12)****...
  • Page 14 *** Function of the Audio Ports in 2, 4, 5.1 or 7.1-channel Configuration: Channel Port Function Line Out Jack Front speaker out (Rear Panel) Pink-Mic Rear speaker out (Front Panel) Microphone Input Jack 5.1ch Central/Subwoofer speaker out (Rear Panel) Lime-Headphone 7.1ch Side Speaker out (Front Panel)

  • Page 15: Block Diagram

    X870E Nova WiFi 1.5 Block Diagram...

  • Page 16: 802.11Be Wi-Fi 7 Module And Asrock Wifi 2.4/5/6 Ghz Antenna

    1.6 802.11be Wi-Fi 7 Module and ASRock WiFi 2.4/5/6 GHz Antenna 802.11be Wi-Fi 7 + BT Module This motherboard comes with an exclusive 802.11 a/b/g/n/ac/ax/axe/be Wi-Fi 7 + BT v5.4 module that offers support for 802.11 a/b/g/n/ac/ax/axe/be Wi-Fi 7 connectivity standards and Bluetooth v5.4.

  • Page 17: Chapter 2 Installation

    X870E Nova WiFi Chapter 2 Installation This is an ATX form factor motherboard. Before you install the motherboard, study the configuration of your chassis to ensure that the motherboard fits into it. Pre-installation Precautions Take note of the following precautions before you install motherboard components or change any motherboard settings.

  • Page 18: Installing The Cpu

    2.1 Installing the CPU 1. Before you insert the 1718-Pin CPU into the socket, please check if the PnP cap is on the socket, if the CPU surface is unclean, or if there are any bent pins in the socket. Do not force to insert the CPU into the socket if above situation is found.
  • Page 19 X870E Nova WiFi Carefully place the CPU in as flat as possible. Do not drop it.
  • Page 20 Make sure the CPU is aligned with the socket before locking it into place. Make sure the black cover plate is always in place until it pops off when closing the socket lever. Please save the cover if the processor is removed. The cover must be placed if you wish to return the motherboard for after service.

  • Page 21: Installing The Cpu Fan And Heatsink

    X870E Nova WiFi 2.2 Installing the CPU Fan and Heatsink After you install the CPU into this motherboard, it is necessary to install a larger heatsink and cooling fan to dissipate heat. You also need to spray thermal grease between the CPU and the heatsink to improve heat dissipation. Make sure that the CPU and the heatsink are securely fastened and in good contact with each other.
  • Page 23 X870E Nova WiFi Installing the CPU Cooler (Type 2)
  • Page 25 X870E Nova WiFi +12V *The illustrations shown here are for reference purposes only and may not exactly match the model you purchase.
  • Page 26 Installing the CPU Cooler (Type 3)
  • Page 27 X870E Nova WiFi...
  • Page 29 +12V Please note that only one cable should be used at a time in this step. If you select RGB_LED1, please install ASRock utility "ASRock Polychrome SYNC". If you select USB connector, please install AMD utility "SR3 Settings Software". *The illustrations shown here are for reference purposes only and may not exactly match...

  • Page 30: Installing Memory Modules (Dimm)

    2.3 Installing Memory Modules (DIMM) This motherboard provides four 288-pin DDR5 (Double Data Rate 5) DIMM slots, and supports Dual Channel Memory Technology. 1. For dual channel configuration, you always need to install identical (the same brand, speed, size and chip-type) DDR5 DIMM pairs. 2.
  • Page 31 X870E Nova WiFi...

  • Page 32: Connecting The Front Panel Header

    2.4 Connecting the Front Panel Header Front Panel Wires System Panel Header Power SW (-) RESET SW (+) Power SW (+) RESET SW (-) Power LED (-) HDD LED (-) Power LED (+) HDD LED (+) PANEL1...

  • Page 33: Installing The Motherboard

    X870E Nova WiFi 2.5 Installing the Motherboard...

  • Page 34: Installing Sata Drives

    2.6 Installing SATA Drives Optical Drive SATA Drive SATA Data Cable...
  • Page 35 X870E Nova WiFi SATA Power Connector SATA Data Connector...

  • Page 36: Installing A Graphics Card

    2.7 Installing a Graphics Card CLICK! Skip Step 2 if you install a graphics card into PCIE1 slot. Illustrations here are examples only.
  • Page 37 X870E Nova WiFi Removing a Graphics Card from PCIE1 Slot Please follow the steps below to release the PCIe slot latch on PCIE1 and remove the graphics card. 1. Slide the latch to the right to release the graphics card from the PCIe slot. Green indicator shows that the latch is properly released.
  • Page 38 Expansion Slots (PCIe Slots) There are 3 PCI Express slots on the motherboard. Before installing an expansion card, please make sure that the power supply is switched off or the power cord is unplugged. Please read the documentation of the expansion card and make necessary hardware settings for the card before you start the installation.

  • Page 39: Connecting Peripheral Devices

    X870E Nova WiFi 2.8 Connecting Peripheral Devices...

  • Page 40: Connecting The Power Connectors

    2.9 Connecting the Power Connectors...

  • Page 41: Power On

    X870E Nova WiFi 2.10 Power On...

  • Page 42: Jumpers Setup

    2.11 Jumpers Setup The illustration shows how jumpers are setup. When the jumper cap is placed on the pins, the jumper is “Short”. If no jumper cap is placed on the pins, the jumper is “Open”. Clear CMOS Jumper (CLRCMOS1) (see p.7, No. 19) CLRCMOS1 allows you to clear the data in CMOS.

  • Page 43: Onboard Headers And Connectors

    X870E Nova WiFi 2.12 Onboard Headers and Connectors Onboard headers and connectors are NOT jumpers. Do NOT place jumper caps over these headers and connectors. Placing jumper caps over the headers and connectors will cause   permanent damage to the motherboard. System Panel Header (9-pin PANEL1) (see p.7, No.
  • Page 44 Power LED and Speaker Header (7-pin SPK_PLED1) (see p.7, No. 18) Please connect the chassis power LED and the chassis speaker to this header. SPK_PLED1 SPEAKER DUMMY DUMMY PLED+ PLED+ PLED-...
  • Page 45 X870E Nova WiFi Serial ATA3 Connectors Right Angle: (SATA3_1) (see p.7, No. 15)(Lower) (SATA3_2) (see p.7, No. 15)(Upper) (SATA3_A1) (see p.7, No. 16)(Lower) (SATA3_A2) (see p.7, No. 16)(Upper) These four SATA3 connectors support SATA data cables for internal storage devices with up to 6.0 Gb/s data transfer rate. *To minimize the boot time, use AMD®...
  • Page 46 USB 2.0 Headers (9-pin USB_3_4) (see p.7, No. 29) (9-pin USB_5_6) (see p.7, No. 28) There are two headers on this motherboard. Each USB 2.0 header can support two ports. USB_3_4 USB_PWR DUMMY USB_PWR USB_5_6 USB_PWR DUMMY USB_PWR...
  • Page 47 X870E Nova WiFi USB 3.2 Gen1 Headers Verical: (19-pin USB32_9_10) (see p.7, No. 20) Right Angle: (19-pin USB32_11_12) (see p.7, No. 14) There are two headers on this motherboard. Each USB 3.2 Gen1 header can support two ports. USB32_11_12 Dummy IntA_PA_D+ IntA_PB_D+ IntA_PA_D-...
  • Page 48 Front Panel Type C USB 3.2 Gen2x2 Header (20-pin USB32_TC1) (see p.7, No. 13) There is one Front Panel Type C USB 3.2 Gen2x2 Header on this motherboard. This header is used for connecting a USB 3.2 Gen2x2 module for additional USB 3.2 Gen2x2 ports.
  • Page 49 X870E Nova WiFi Front Panel Audio Header (9-pin HD_AUDIO1) (see p.7, No. 32) This header is for connecting audio devices to the front audio panel. HD_AUDIO1 MIC2_L MIC2_R OUT2_R J_SENSE OUT2_L OUT_RET MIC_RET PRESENCE# GN D High Definition Audio supports Jack Sensing, but the panel wire on the chassis must sup- port HDA to function correctly.
  • Page 50 Chassis Fan Connectors (4-pin CHA_FAN1) (see p.7, No. 25) (4-pin CHA_FAN2) (see p.7, No. 26) (4-pin CHA_FAN3) (see p.7, No. 27) These headers allow you to connect Case or Radiator fans. If you plan to connect a 3-pin fan, please connect it to Pin 1-3. CHA_FAN2 FAN_VOLTAGE CHA_FAN_SPEED...
  • Page 51 X870E Nova WiFi CPU Fan Connector (4-pin CPU_FAN1) (see p.7, No. 3) This header allows you to connect CPU fan. If you plan to connect a 3-pin fan, please connect it to Pin 1-3. CPU_FAN1 +12V CPU_F AN_SPEED FAN_SPEED_CONTROL CPU Fan Connector (4-pin CPU_FAN2) (see p.7, No.
  • Page 52 Water Pump Fan Connector (4-pin W_PUMP) (see p.7, No. 24) This header allows you to connect Water Pump or fan. If you plan to connect a 3-pin fan, please connect it to Pin 1-3. W_PUMP FAN_VOLTAGE W_PUMP_FAN_SPEED FAN_SPEED_CONTROL AIO Pump Fan Connector (4-pin AIO_PUMP) (see p.7, No.
  • Page 53 X870E Nova WiFi ATX Power Connector (24-pin ATXPWR1) (see p.7, No. 12) This motherboard provides a 24-pin ATX power connector. To use a 20-pin ATX power supply, please plug it along Pin 1 and Pin 13. ATXPWR1...
  • Page 54 ATX 12V Power Connectors (8-pin ATX12V1) (see p.7, No. 1) (8-pin ATX12V2) (see p.7, No. 2) This motherboard provides two 8-pin ATX 12V power connectors. To use a 4-pin ATX power supply, please plug it along Pin 1 and Pin 5. *Connecting an ATX 12V 8-pin cable to ATX12V2 is optional.
  • Page 55 X870E Nova WiFi Thermistor Cable Headers (2-pin T_SENSOR1) (see p.7, No. 21) (2-pin T_SENSOR2) (see p.7, No. 22) (2-pin T_SENSOR3) (see p.7, No. 23) The Thermistor Cable Headers are used to connect thermistor cables to monitor the temperature of the critical components. Plug the thermistor cables that come with the package to these headers, and then attach the sensor ends to the components to detect their temperature.
  • Page 56 RGB LED Header (4-pin RGB_LED1) (see p.7, No. 31) This RGB header is used to connect RGB LED extension cable which allow users to choose from various LED lighting effects. Caution: Never install the RGB LED cable in the wrong orientation; otherwise, the cable may be damaged.
  • Page 57 X870E Nova WiFi Addressable LED Headers (3-pin ADDR_LED1) (see p.7, No. 30) (3-pin ADDR_LED2) (see p.7, No. 11) (3-pin ADDR_LED3) (see p.7, No. 10) These headers are used to connect Addressable LED extension cables which allow users to choose from various LED lighting effects. Caution: Never install the Addressable LED cable in the wrong orientation;...
  • Page 58 1. Never install the Addressable LED cable in the wrong orientation; otherwise, the cable may be damaged. 2. Before installing or removing your Addressable LED cable, please power off your system and unplug the power cord from the power supply. Failure to do so may cause damages to motherboard components.
  • Page 59 X870E Nova WiFi 2.13 Smart Buttons The motherboard has four smart switches: Power Button, Reset Button, Clear CMOS Buttons and BIOS Flashback Button, allowing users to quickly turn on/off the system, reset the system, clear the CMOS values or flash the BIOS. Power Button (PWRBTN1) (see p.7, No.
  • Page 60 Clear CMOS Button (CLRCMOS) (see p.9, No. 16) Clear CMOS Button allows users to quickly clear the CMOS values. CLRCMOS This function is workable only when you power off your computer and unplug the power supply.
  • Page 61 X870E Nova WiFi BIOS Flashback Button (BIOS_FB) (see p.9, No. 1) BIOS Flashback Button allows users to flash the BIOS. BIOS_FB USB BIOS Flashback port...
  • Page 62 ASRock BIOS Flashback feature allows you to update BIOS without powering on the system, even without CPU. Before using the BIOS Flashback function, please suspend BitLocker and any encryption or security relying on the TPM. Make sure that you have already stored and backup-ed the recovery key.
  • Page 63 X870E Nova WiFi 2.14 Dr. Debug Dr. Debug is used to provide code information, which makes troubleshooting even easier. Please see the diagrams below for reading the Dr. Debug codes. Code Description 0x10 PEI_CORE_STARTED 0x11 PEI_CAR_CPU_INIT 0x15 PEI_CAR_NB_INIT 0x19 PEI_CAR_SB_INIT 0x31 PEI_MEMORY_INSTALLED 0x32...
  • Page 64 0x63 DXE_CPU_INIT 0x68 DXE_NB_HB_INIT 0x69 DXE_NB_INIT 0x6A DXE_NB_SMM_INIT 0x70 DXE_SB_INIT 0x71 DXE_SB_SMM_INIT 0x72 DXE_SB_DEVICES_INIT 0x78 DXE_ACPI_INIT 0x79 DXE_CSM_INIT 0x90 DXE_BDS_STARTED 0x91 DXE_BDS_CONNECT_DRIVERS 0x92 DXE_PCI_BUS_BEGIN 0x93 DXE_PCI_BUS_HPC_INIT 0x94 DXE_PCI_BUS_ENUM 0x95 DXE_PCI_BUS_REQUEST_RESOURCES 0x96 DXE_PCI_BUS_ASSIGN_RESOURCES 0x97 DXE_CON_OUT_CONNECT 0x98 DXE_CON_IN_CONNECT...
  • Page 65 X870E Nova WiFi 0x99 DXE_SIO_INIT 0x9A DXE_USB_BEGIN 0x9B DXE_USB_RESET 0x9C DXE_USB_DETECT 0x9D DXE_USB_ENABLE 0xA0 DXE_IDE_BEGIN 0xA1 DXE_IDE_RESET 0xA2 DXE_IDE_DETECT 0xA3 DXE_IDE_ENABLE 0xA4 DXE_SCSI_BEGIN 0xA5 DXE_SCSI_RESET 0xA6 DXE_SCSI_DETECT 0xA7 DXE_SCSI_ENABLE 0xA8 DXE_SETUP_VERIFYING_PASSWORD 0xA9 DXE_SETUP_START 0xAB DXE_SETUP_INPUT_WAIT 0xAD DXE_READY_TO_BOOT 0xAE DXE_LEGACY_BOOT...
  • Page 66 0xAF DXE_EXIT_BOOT_SERVICES 0xB0 RT_SET_VIRTUAL_ADDRESS_MAP_BEGIN 0xB1 RT_SET_VIRTUAL_ADDRESS_MAP_END 0xB2 DXE_LEGACY_OPROM_INIT 0xB3 DXE_RESET_SYSTEM 0xB4 DXE_USB_HOTPLUG 0xB5 DXE_PCI_BUS_HOTPLUG 0xB6 DXE_NVRAM_CLEANUP 0xB7 DXE_CONFIGURATION_RESET 0xF0 PEI_RECOVERY_AUTO 0xF1 PEI_RECOVERY_USER 0xF2 PEI_RECOVERY_STARTED 0xF3 PEI_RECOVERY_CAPSULE_FOUND 0xF4 PEI_RECOVERY_CAPSULE_LOADED 0xE0 PEI_S3_STARTED 0xE1 PEI_S3_BOOT_SCRIPT 0xE2 PEI_S3_VIDEO_REPOST...
  • Page 67 X870E Nova WiFi 0xE3 PEI_S3_OS_WAKE 0x50 PEI_MEMORY_INVALID_TYPE 0x53 PEI_MEMORY_NOT_DETECTED 0x55 PEI_MEMORY_NOT_INSTALLED 0x57 PEI_CPU_MISMATCH 0x58 PEI_CPU_SELF_TEST_FAILED 0x59 PEI_CPU_NO_MICROCODE 0x5A PEI_CPU_ERROR 0x5B PEI_RESET_NOT_AVAILABLE 0xD0 DXE_CPU_ERROR 0xD1 DXE_NB_ERROR 0xD2 DXE_SB_ERROR 0xD3 DXE_ARCH_PROTOCOL_NOT_AVAILABLE 0xD4 DXE_PCI_BUS_OUT_OF_RESOURCES 0xD5 DXE_LEGACY_OPROM_NO_SPACE 0xD6 DXE_NO_CON_OUT 0xD7 DXE_NO_CON_IN...
  • Page 68 0xD8 DXE_INVALID_PASSWORD 0xD9 DXE_BOOT_OPTION_LOAD_ERROR 0xDA DXE_BOOT_OPTION_FAILED 0xDB DXE_FLASH_UPDATE_FAILED 0xDC DXE_RESET_NOT_AVAILABLE 0xE8 PEI_MEMORY_S3_RESUME_FAILED 0xE9 PEI_S3_RESUME_PPI_NOT_FOUND 0xEA PEI_S3_BOOT_SCRIPT_ERROR 0xEB PEI_S3_OS_WAKE_ERROR...
  • Page 69 X870E Nova WiFi 2.15 M.2 SSD Installation Guide (M2_1) The M.2 is a small size and versatile card edge connector that aims to replace mPCIe and mSATA. The Blazing M.2 Socket (M2_1, Key M), supports type 2280 PCIe Gen5x4 (128 Gb/s) mode.
  • Page 70 Step 3 Push and hold the button on the M.2 heatsink (A). Then lift up the heatsink (B) and move it in the direction shown (C). *Please remove the protective films on the bottom side of the M.2 heatsink before you install a M.2 SSD.
  • Page 71 Step 7 Press the M.2 heatsink down into place. *Be sure not to press down the button on the M.2 heatsink. Step 8 Complete. For the latest updates of M.2 SSD support list, please visit our website for details: http:// www.asrock.com...
  • Page 72 2.16 M.2 SSD Installation Guide (M2_2/M2_3/M2_4) The M.2 is a small size and versatile card edge connector that aims to replace mPCIe and mSATA. The Hyper M.2 Socket (M2_2, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode. The Hyper M.2 Socket (M2_3, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode.
  • Page 73 X870E Nova WiFi Step 3 Before installing a M.2 SSD, please loosen the screws to remove the M.2 heatsink. *Please remove the protective films on the bottom side of the M.2 heatsink before you install a M.2 SSD. Step 4 Align and gently insert the M.2 SSD into the M.2 slot.
  • Page 74 Tighten the screws with a screwdriver to secure the M.2 heatsink into place. Please do not overtighten the screws as this might damage the M.2 heatsink. For the latest updates of M.2 SSD support list, please visit our website for details: http:// www.asrock.com...
  • Page 75 X870E Nova WiFi 2.17 M.2 SSD Installation Guide (M2_5) The M.2 is a small size and versatile card edge connector that aims to replace mPCIe and mSATA. The M.2 Socket (M2_5, Key M), supports type 2280 SATA3 6.0 Gb/s & PCIe Gen3x2 (16 Gb/s) modes.
  • Page 76 Step 3 Before installing a M.2 SSD, please loosen the screws to remove the M.2 heatsink. *Please remove the protective films on the bottom side of the M.2 heatsink before you install a M.2 SSD. Step 4 Align and gently insert the M.2 SSD into the M.2 slot.
  • Page 77 M.2 connector (3). *Please do not overtighten the screw as this might damage the M.2 SSD and M.2 heatsink. For the latest updates of M.2 SSD support list, please visit our website for details: http:// www.asrock.com...
