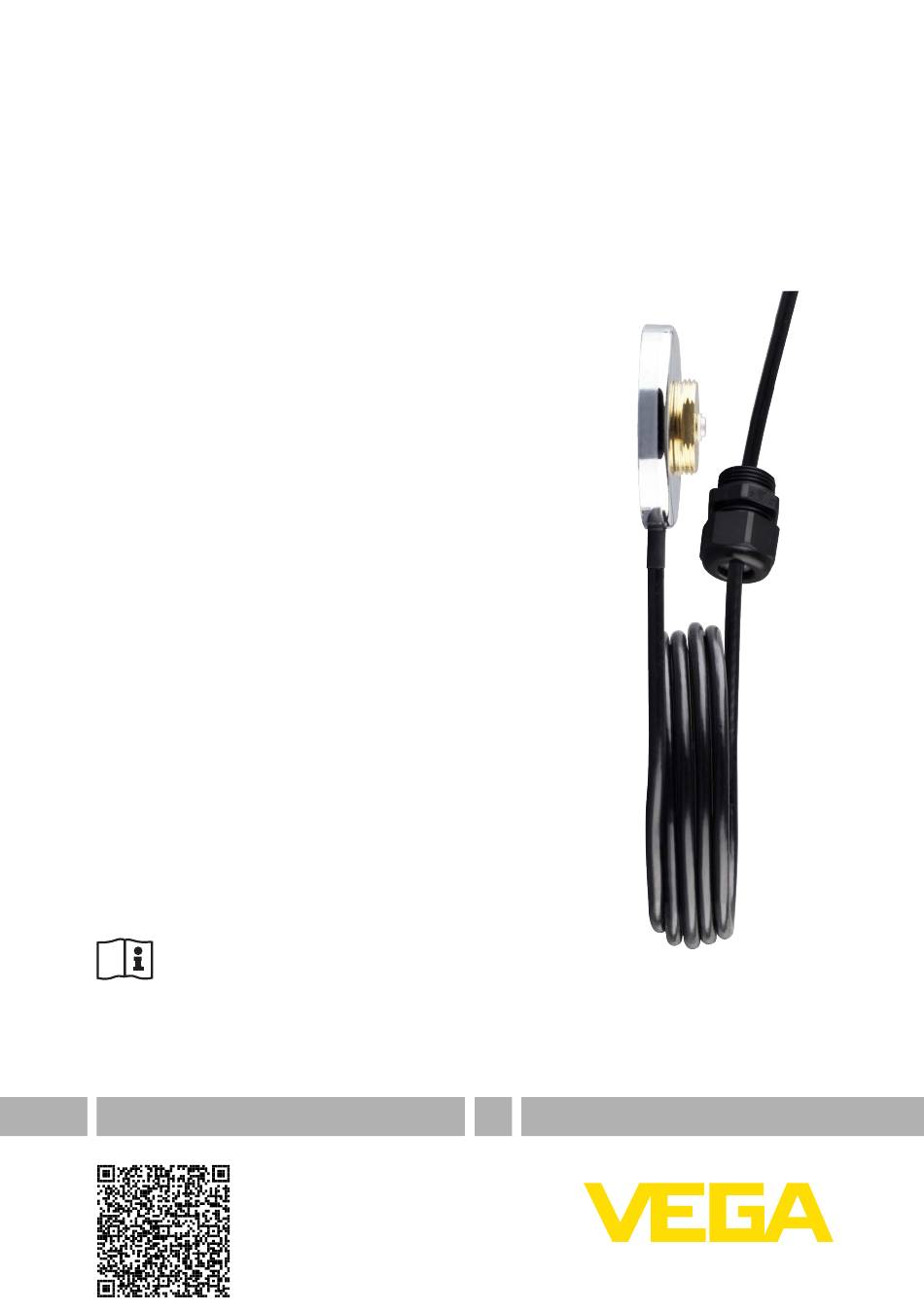

- Page 1 Mounting instructions Antenna extension PLICSMOBILE 80 series Extension cable with magnetic base Document ID: 57482...
-
Page 2: Table Of Contents
Product description ......................... 4 Mounting ........................... 5 General instructions ......................5 Mounting preparations ..................... 5 Installation procedure ....................... 5 Supplement ..........................7 Technical data ........................7 Dimensions ........................7 Editing status: 2018-03-15 Antenna extension PLICSMOBILE 80 series • Extension cable with magnetic base... -
Page 3: For Your Safety
The use of this antenna extension in Ex applications is not permitted. General safety instructions The safety information in the operating instructions manual of the respective sensor must be noted. Antenna extension PLICSMOBILE 80 series • Extension cable with magnetic base... -
Page 4: Product Description
2.9 m away from the instrument. The antenna extension is suitable for the following instruments with plastic, aluminium or stainless steel housing: • PLICSMOBILE T81 • PLICSMOBILE 81 Antenna extension PLICSMOBILE 80 series • Extension cable with magnetic base... -
Page 5: Mounting
Screwdriver with SW 33 for unscrewing the antenna socket Installation procedure Proceed as follows: 1. Switch off power supply 2. Unscrew the lid of the electronics compartment Fig. 1: Mount antenna extension Antenna cable Antenna socket Antenna Antenna extension PLICSMOBILE 80 series • Extension cable with magnetic base... - Page 6 7. Shift the open cable end of the antenna extension through the free housing opening 8. Screw the threaded fitting into the housing and tighten it 9. Insert the antenna plug 10. Screw the housing lid back on Antenna extension PLICSMOBILE 80 series • Extension cable with magnetic base...
-
Page 7: Supplement
Cable gland M20 x 1.5 (plastic) Dimensions ø36 mm (1.42") ø60 mm (2.36") Fig. 2: Dimensions magnetic base with antenna Antenna of PLICSMOBILE Magnetic base of the antenna extension Antenna extension PLICSMOBILE 80 series • Extension cable with magnetic base... - Page 8 Subject to change without prior notice © VEGA Grieshaber KG, Schiltach/Germany 2018 VEGA Grieshaber KG Phone +49 7836 50-0 Am Hohenstein 113...
