globex GX-20SP PLUS Instruction Manual

globex GX-20SP PLUS Instruction Manual

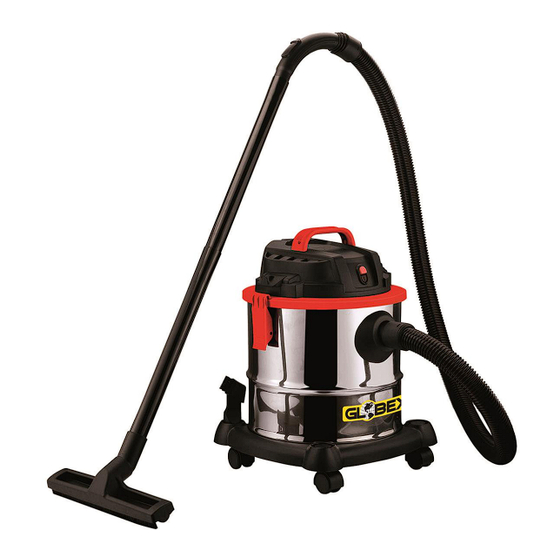

Wet&dry vacuum cleaner with air-blowing function

Advertisement

Available languages

Available languages

Quick Links

BIDONE ASPIRATUTTO SOLIDI/LIQUIDI CON FUNZIONE DI SOFFIAGGIO
WET&DRY VACUUM CLEANER WITH AIR-BLOWING FUNCTION
CONSERVARE E LEGGERE ATTENTAMENTE IL PRESENTE MANUALE PRIMA DI ASSEMBLARE, INSTALLARE, METTERE IN
FUNZIONE O EFFETTUARE LA MANUTENZIONE DEL PRODOTTO DA LEI ACQUISTATO. PROTEGGERE SE STESSI E GLI ALTRI
OSSERVANDO TUTTE LE INFORMAZIONI RELATIVE ALLA SICUREZZA. LA MANCATA OSSERVANZA DELLE ISTRUZIONI POTREBBE
DARE LUOGO A DANNI A PERSONE, ANIMALI, COSE E/O AL PRODOTTO, NONCHÉ AL DECADIMENTO DELLA GARANZIA. IL PRESENTE
MANUALE DEVE ESSERE CONSERVATO CON CURA E CONSULTATO PER QUALSIASI RIFERIMENTO FUTURO.
PLEASE READ AND SAVE THIS MANUAL. READ CAREFULLY BEFORE ATTEMPTING TO ASSEMBLY, INSTALL, OPERATE OR
MAINTAIN THE PRODUCT YOU HAVE BOUGHT. PROTECT YOURSELF AND OTHERS BY OBSERVING ALL SAFETY INFORMATION.
FAILURE TO COMPLY WITH INSTRUCTIONS COULD RESULT IN INJURY TO PEOPLE, ANIMALS, THINGS AND/OR PROPERTY DAMAGE
AND WARRANTEE INVALIDATION. THIS MANUAL MUST BE STORED WITH CARE AND CONSULTED FOR ANY FUTURE REFERENCE.
MOD. GX-20SP PLUS/COD. 45145
MANUALE DI ISTRUZIONI
INSTRUCTION MANUAL

Advertisement

loading
Need help?

Need help?

Do you have a question about the GX-20SP PLUS and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for globex GX-20SP PLUS

  • Page 1 BIDONE ASPIRATUTTO SOLIDI/LIQUIDI CON FUNZIONE DI SOFFIAGGIO WET&DRY VACUUM CLEANER WITH AIR-BLOWING FUNCTION MOD. GX-20SP PLUS/COD. 45145 MANUALE DI ISTRUZIONI INSTRUCTION MANUAL CONSERVARE E LEGGERE ATTENTAMENTE IL PRESENTE MANUALE PRIMA DI ASSEMBLARE, INSTALLARE, METTERE IN FUNZIONE O EFFETTUARE LA MANUTENZIONE DEL PRODOTTO DA LEI ACQUISTATO. PROTEGGERE SE STESSI E GLI ALTRI OSSERVANDO TUTTE LE INFORMAZIONI RELATIVE ALLA SICUREZZA.
  • Page 2: Istruzioni Di Sicurezza

    ITALIANO Grazie per aver scelto un prodotto Prima di utilizzare il prodotto da lei acquistato è necessario leggere attentamente le istruzioni contenute in questo manuale. Questo manuale è stato redatto per consentirle di conoscere bene il prodotto da lei acquistato e usarlo in condizioni di sicurezza ed efficienza.
  • Page 3  Quando l’apparecchio non è in uso, posizionare l’interruttore su “O” e staccare la spina. Il cavo di alimentazione non deve venire a contatto con le superfici calde dell’apparecchio.  Prima di effettuare qualsiasi operazione di pulizia e/o manutenzione, spegnere l’apparecchio tramite l’interruttore e staccare la spina. ...
  • Page 4: Dati Tecnici

    19. Spazzolina multiuso Asta (2 tubi rigidi da assemblare) 20. Filtro in spugna 10. Regolatora flusso aria sull’impugnatura 21. Beccuccio di aspirazione 11. Tubo flessibile DATI TECNICI BIDONE ASPIRATUTTO “GX-20SP PLUS” CODICE 45145 POTENZA 1200W ALIMENTAZIONE 220-240V~;50-60 Hz CAPACITA’ DEL BIDONE...
  • Page 5 ASSEMBLAGGIO E FUNZIONAMENTO DEL BIDONE ASPIRATUTTO ATTENZIONE: Il bidone aspiratutto può essere utilizzato come aspira solidi e liquidi. Inoltre, è dotato di funzione di soffiaggio. ATTENZIONE: L’apparecchio è dotato di un sistema di filtraggio multiplo, ciò significa che può essere utilizzato sia con il filtro HEPA accumulando la polvere nel cestello superiore, sia aggiungendo un sacchetto raccogli polvere, accumulando le impurità...
  • Page 6 FUNZIONE ASPIRA LIQUIDI Per usare la funzione di “ASPIRA LIQUIDI”, applicare correttamente il filtro di spugna [Fig. 1-(20)] inserendolo intorno al cestello portafiltro [Fig. 1-(6)] posizionato sotto il coperchio [Fig. 1-(1)]. Dopo aver bloccato coperchio [Fig. 1-(1)] e fusto [Fig. 1-(15)] con i ganci laterali [Fig.
  • Page 7: Pulizia E Manutenzione

    PULIZIA E MANUTENZIONE ATTENZIONE: Prima di ogni operazione di pulizia e manutenzione, assicurarsi che l’interruttore [Fig. 1-(12)] sia posizionato su “O” e che la presa sia scollegata. ATTENZIONE: Non immergere per nessun motivo l’unità motore [Fig. 1-(1)] in acqua e non bagnarla, ma pulirla solo con un panno asciutto.
  • Page 8 RICERCA GUASTI E INTERVENTI AMMESSI ATTENZIONE! Prima di eseguire qualsiasi tipo d’intervento sull’ apparecchio, posizionare l’interruttore [Fig. 1-(12)] su “O” e scollegare la spina dalla presa di corrente. La seguente tabella presenta dei possibili errori e descrive come potervi porre rimedio qualora l’apparecchio non funzionasse correttamente. Se in tal modo non si dovesse risolvere il problema, rivolgersi ad un rivenditore autorizzato o tecnico specializzato per la dovuta assistenza.
  • Page 9: Informazioni Agli Utenti

    INFORMAZIONI AGLI UTENTI Questo prodotto può contenere sostanze che possono essere dannose per l’ambiente e per la salute umana se non viene smaltito in modo opportuno. Vi forniamo pertanto le seguenti informazioni per evitare il rilascio di queste sostanze e per migliorare l’uso delle risorse naturali. Le apparecchiature elettriche ed elettroniche non devono essere smaltite tra i normali rifiuti urbani ma devono essere inviate alla raccolta differenziata per il loro corretto trattamento.
  • Page 10: Safety Instructions

    ENGLISH Thanks for choosing a item Before using your product, it is necessary to read carefully the instructions contained in this manual. This manual has been written in order to get familiar with your product and use it safely and efficiently. It is a part of the product and you must keep this manual on hand to consult it any time and give it with the product if it is sold or lent to others.
  • Page 11  Only use the appliance in vertical position. In the case it falls down, switch it off immediately and pull the plug out of the socket.  Make sure the switch is off before connecting the appliance to the power supply, lifting or carrying it. ...
  • Page 12 COMPONENTS WARNING: Before use check the appliance has all components listed below and they are intact, otherwise refer to own authorized dealer. Fig. 1 12. Switch Motor unit/Top cover 13. Solid and liquid suction hole Carrying handle 14. 4 swivel castors Power cord wrap system 15.
  • Page 13: Technical Data

    TECHNICAL DATA WET&DRY VACUUM CLEANER “GX-20SP PLUS” CODE 45145 POWER 1200W VOLTAGE 220-240V~; 50-60 Hz TANK CAPACITY 20 Lt SUCTION CAPACITY 16 kPa AIR FLOW 29 L/s DRUM MATERIAL STAINLESS STEEL POWER CABLE LENGHT 4 mt. DOUBLE-INSULATED APPLIANCE WET&DRY VACUUM CLEANER ASSEMBLY AND OPERATION WARNING: This appliance can be used as wet&dry vacuum cleaner.
  • Page 14 SOLID SUCTION FUNCTION To use the function “SOLID SUCTION”, after deciding whether to use HEPA filter [Fig. 1-(17)] or the dust bag [Fig. 1-(18)] too, hook top cover [Fig. 1-(1)] and drum [Fig. 1-(15)] with the lateral hooks [Fig. 1- (8)] and connect the extremity of the flexible hose [Fig.
  • Page 15: Cleaning And Maintenance

    CLEANING AND MAINTENANCE WARNING: Before any cleaning and maintenance operation, make sure the switch [Fig. 1-(12)] is on “O” and the plug is disconnected. WARNING: Don’t immerse for any reason the motor unit [Fig. 1-(1)] in the water for any reason but clean it with a dry cloth. Don’t use metal sponge or abrasive products.
  • Page 16: Failures And Troubleshooting

    FAILURES AND TROUBLESHOOTING WARNING! Before doing any operation on the appliance, place the switch [Fig. 1-(12)] on “O” and disconnect the plug from the socket. The following table presents possible mistakes and describes how to solve them in case the appliance doesn’t work correctly. If the problem persists, refer to your own authorized dealer or a specialized technician for the appropriate assistance.
  • Page 17: Information To Users

    INFORMATION TO USERS This product might contain substances which may be dangerous for the environment and for human health if not appropriately disposed. For this reason we provide with the following information in order to avoid the emission of these substances and in order to improve the usage of natural sources.
  • Page 18: Garanzia

    GARANZIA Tutti i nostri apparecchi sono garantiti secondo le disposizioni di legge e le specifiche nazionali: fattura, bolla di consegna o scontrino fiscale. La garanzia riconosce esclusivamente i componenti la cui difettosità è da ricondurre a vizio di fabbricazione. Non rispondiamo per danni riconducibili ad un utilizzo improprio o errato, usura naturale, scorretta manutenzione dell’apparecchio, sovraccarico di lavoro, manomissione e mancata osservanza delle norme contenute nel libretto di istruzione.
  • Page 19: Warranty

    WARRANTY All our items are guaranteed in accordance with the provisions of the law and national specifications: invoice, delivery note or receipt. This warranty covers only the components whose defect is due to a manufacturing defect. We are not liable for damage caused by improper use or wrong and improper maintenance, overworking, tampering and failure to follow the rules contained in the manual instruction.Burned motors due to overload, damaged cables, blocked switches, damaged components for obvious use are excluded from the guarantee.
