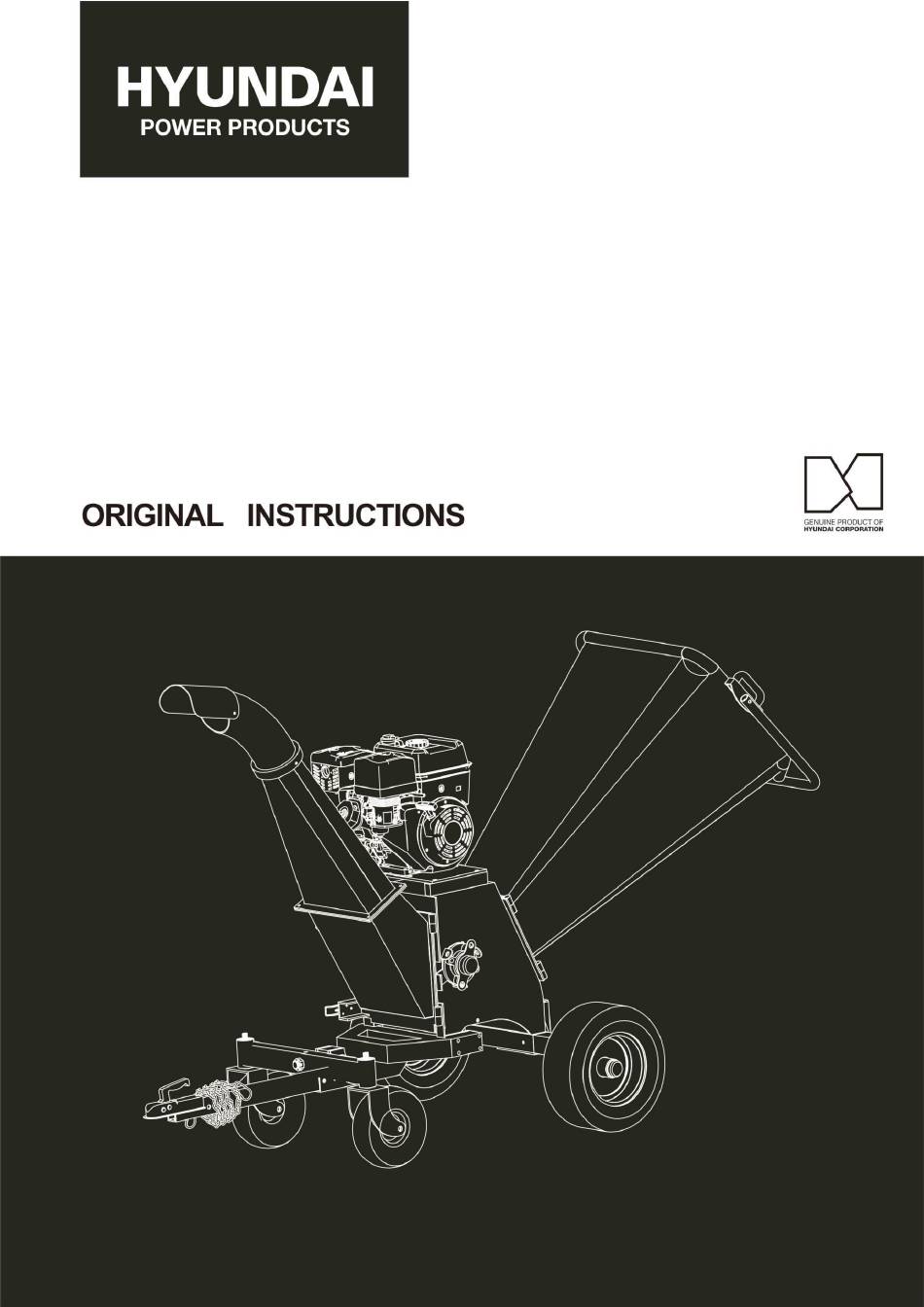

- Page 1 PETROL PLANT SHREDDER HBT1515PRO CAUTION: Read this manual before using this machine!
-
Page 2: Table Of Contents
CONTENTS 1. SAFETY INSTRUCTIONS........................3 2. ASSEMBLY............................. 9 3. OPERATION............................16 4. MAINTENANCE ...........................19 5. TRANSPORTATION AND STORAGE..................23 6. TROUBLESHOOTING.........................24 7. DECLARATION OF CONFORMITY....................25 8. GARANTIE.............................26 9. PANNE PRODUIT..........................27 10. EXCLUSIONS DE GARANTIE......................28... -
Page 3: Safety Instructions
1. SAFETY INSTRUCTIONS IMPORTANT READ CAREFULLY BEFORE USE KEEP FOR FUTURE REFERENCE Training Become familiar with the owner's manual before attempting to operate this equipment. Preparation 1) Do not allow children to operate this equipment; 2) Do not operate this equipment in the vicinity of bystanders; 3) Do not run engine powered machines in an enclosed area since the exhaust from an engine contains carbon monoxide, which is colourless, odourless, and tasteless;... - Page 4 a. inspect for damage; b. replace or repair any damage parts; c. check for and tighten any loose parts ; d. Do not attempt to repair the machine unless you are competent to do so. Have any damaged parts replaced or repaired with parts having equivalent specifications. 8) Do not allow processed material to build up in the discharge zone;...
- Page 5 to come to a complete stop before leaving machine unattended. 13) DO NOT USE IN DANGEROUS ENVIRONMENTS. DO NOT use machinery in damp, wet locations, or where any flammable or noxious fumes may exist. 14) KEEP WORK AREA CLEAN AND WELL LIT. Clutter and dark shadows may cause accidents. 15) ALWAYS DISCONNECT FROM POWER SOURCE BEFORE SERVICING MACHINERY.
- Page 6 draw the material in. The machine sometimes will draw material in very quickly and your hand may be drawn in if you are holding tightly. If the blades hit a hard object, or if the machine begins to make an unusual noise or vibration, immediately shut the chipper/shredder OFF. 10) TURN OFF CHIPPER/SHREDDER: Turn OFF the machine, allow all moving parts to come to a complete stop, and disconnect the spark plug wire before moving the machine, emptying the bag, unclogging the inlets or outlets, filling the gas tank, or performing maintenance and...
- Page 7 Contact, inhalation The exhaust gases of the machine can lead to health hazards. → Only use the motorized appliance outdoors and take regular breaks. Fire, explosion Fuel is flammable. → Smoking and open flames are prohibited during work and refueling. Other hazards Slipping, tripping or falling of persons On unstable surfaces, tripping can cause damage.
- Page 8 Keep a sufficient safety distance of at least 12 meters when the engine is running. Conforms to relevant safety standards Guaranteed sound power lever:120dB (A). Configuration table Model HBT1515PRO Power 9 kW 420 cc single cylinder four stroke Type air-cooled gasoline engine...
-
Page 9: Assembly
2. ASSEMBLY SCOPE OF DELIVERY After unpacking, check the contents of the carton/transport box for a. Completeness b. Possible transport damage Notify the dealer or manufacturer of any complaints immediately. Later complaints will not be recognized. A: Petrol engine with frame and rotor B: Feed hopper C: Ejection chute D: 2 wheels, 1 axle, cotter pins and... -
Page 10: Intended Use
INTENDED USE The shredder is designed exclusively for shredding bushes, shrubs, bark and branches up to 15 cm thick. The machine is not suitable for garden soil to prepare. Roots with soil, stones, glass, metal, textiles, kitchen waste, cardboard or plastic must never be shredded with the machine. - Page 11 b. Tighten the hopper with the two bolts on the other side. 2) Assemble rear wheels. a. Put the main frame as below position(tilt forward) and install rear wheel frame.
- Page 12 b. Install the wheels one after another with one washer, wheel, another washer, slot nut, pin and cap . 3) Assemble front wheel and tow bar a. Put the main frame as below position(tilt backward) and assemble tow frame:...
- Page 13 4) Install front wheel fitting and wheels...
- Page 14 a. Put machine on normal position and install tow bar. 5) Install the discharge...
- Page 15 6) Assemble the emergency stop bar and unlock the lock-handle. (Tips: when using the machine, can push emergency stop bar to stop and lock the engine. If want to start engine again, need to sidle the lock-handle to unlock first) 7) Connect the socket(below the infeed hopper) with plug(main frame) 8) Check all bolts and nuts to make sure they are properly tightened.
-
Page 16: Operation
3. OPERATION Damage to your eyes, hands, and ears could result from using this machine without proper protective gear. Always wear safety glasses, hearing protection, and leather gloves when operating this machine. Loose hair and clothing could get caught in machinery and cause serious personal injury. -
Page 17: Engine Oil
ENGINE OIL Note: The engine oil must be topped up before first use! Incorrect oil filling can lead to irreparable damage to the engine. In this case, the seller and manufacturer distance themselves from any warranty claims. 1) Use commercially available engine oil with the specification 10W-30 or 10W-40. 2) Unscrew the oil filler plug on the engine. -
Page 18: Refueling The Machine
Petrol is extremely flammable and explosive. You can suffer burns or other serious injuries when handling fuel. When refilling of fuel absolutely note: Switch off the engine and allow it to cool down for at least 10 minutes before removing the fuel filler cap. -
Page 19: Maintenance
twigs, brush, vines, and long grasses. DO NOT use this chipper/shredder for chipping construction debris, plastic, paper products, rope or twine, or any material that may contain metal. Note: Remove any nails, rope, twine, or rocks that may be imbedded in roots, before inserting material into the chipper/shredder. - Page 20 LUBRICATION DRUM CHIPPER Dispose of oily and greasy parts and used oil in accordance with the statutory regulations. Lubricate both sides of the blade drum bearings at the grease nipples with a grease gun before each use or after 10 operating hours and after each cleaning. The 2nd grease nipple is located behind the V-belt guard.
-
Page 21: Tensioning The V-Belt
Drum knife x2 Counter knife x1 Drum knife Counter knife Drum chopper Blunted blades can be turned over. Damaged blades (cracked, chipped, severely bent or otherwise damaged) must be replaced immediately. The machine must not be put into operation if the blades are not fully inserted! The manufacturer's original versions must be used for all spare parts. - Page 22 7) Tighten the screws on the motor again. 8) Refit the belt cover Note: The tensioning screw can also be used for fine adjustment and re-tensioning of the V-belt, if installed on the machine. Only put the machine into operation when all protective and safety devices are are in the protective position and in working order.
-
Page 23: Transportation And Storage
quantities are involved. The engine oil must be changed after the first 5 hours of operation. After that, only every 50 operating hours or every season. 1) Unscrew the oil drain plug (11). 2) Unscrew the oil filler plug (10). 3) Hold a suitable container (at least 1.5 liters) under the oil drain plug. -
Page 24: Troubleshooting
Drain the fuel. Leave the engine running until the fuel runs out. Clean the air filter and replace it if it is heavily soiled or damaged. Worn or damaged parts must be replaced. Ensure that all screw connections are tightened. ... -
Page 25: Declaration Of Conformity
Tel: +33 (0) 5.34.508.508 Fax: +33 (0) 5.34.508.509 Déclare que la machine désignée ci-dessous PETROL PLANT SHREDDER HBT1515PRO Serial number: 20240709971-20240709985 Is in conformity with the requirements of the Directive Machine 2006/42/EC and to the followings Europeans Directives: EMC Directive 2014/30/EU Emission directive (EU) 2016/1628 &... -
Page 26: Warranty
8. WARRANTY WARRANTY The manufacturer guarantees the product against defects in material and workmanship for a period of 2 years from the date of the original purchase. The warranty only applies if the product is for household use. The warranty does not cover breakdowns due to normal wear and tear. The manufacturer agrees to replace parts identified as defective by the designated distributor. -
Page 27: Product Failure
9. PRODUCT FAILURE WHAT TO DO IF MY MACHINE BREAKS DOWN? If you bought your product in a store: a) Empty the fuel tank if your product has one. b) Make sure that your machine is complete with all accessories supplied, and clean! If this is not the case, the repairer will refuse the machine. -
Page 28: Warranty Exclusions
10. WARRANTY EXCLUSIONS THE WARRANTY DOES NOT COVER: • Start-up and setting up of the product. • Damage resulting from normal wear and tear of the product. • Damage resulting from improper use of the product. • Damage resulting from assembly or start-up not in accordance with the user manual. •...
