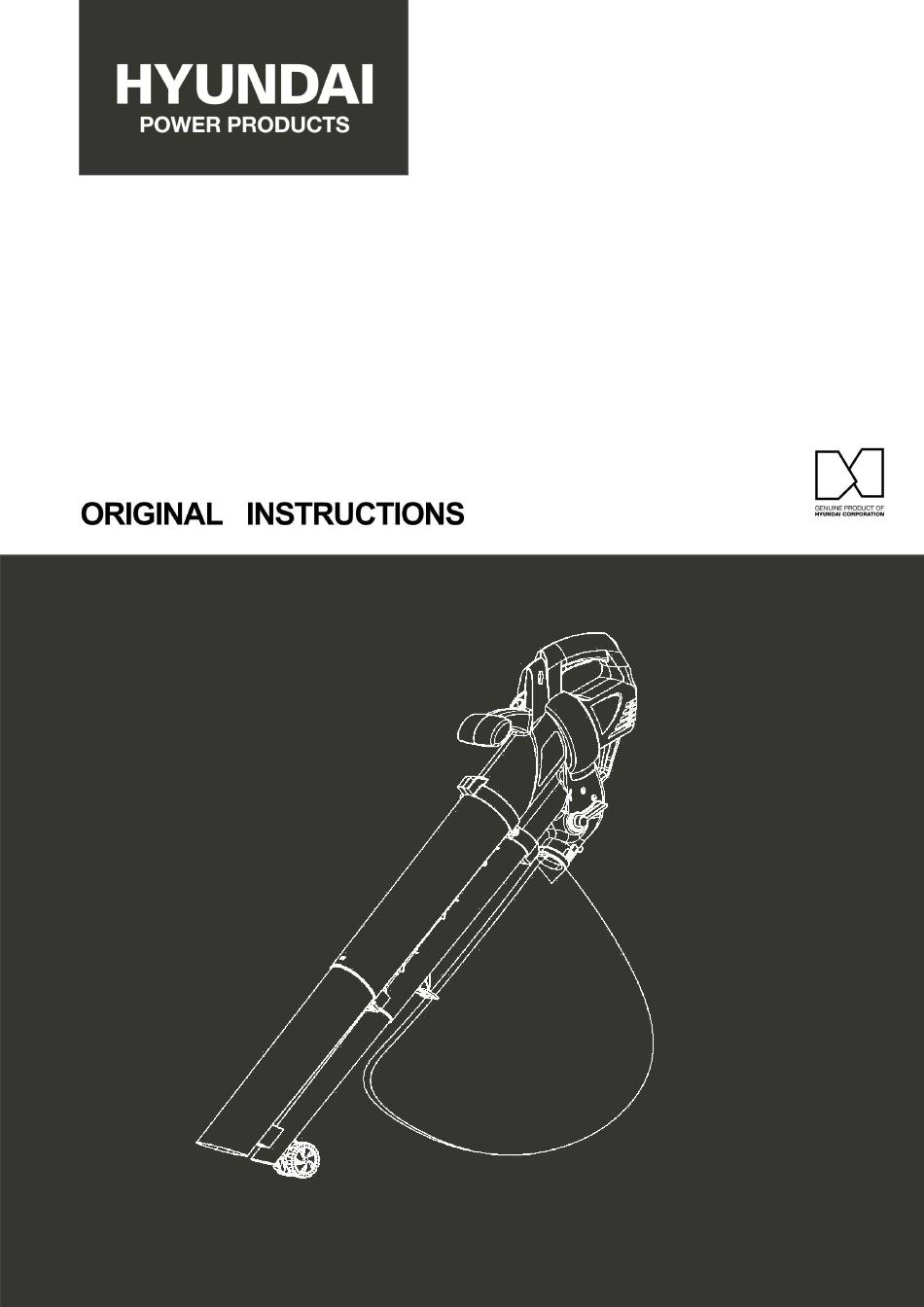

- Page 1 BLOWER VACCUM SHREDDER ELECTRIC HAS3202SV WARNING: Read thoroughly the instruction manual before using.
-
Page 2: Table Of Contents
CONTENTS 1. SAFETY INSTRUCTIONS........................3 2. YOUR PRODUCT..........................14 3. ASSEMBLY............................15 4. OPERATION............................16 5. MAINTENANCE AND STORAGE..................... 18 6. DISPOSAL............................. 18 7. DECLARATION OF CONFORMITY....................19 8. WARRANTY............................20 9. PRODUCT FAILURE........................... 21 10. WARRANTY EXCLUSIONS......................22... -
Page 3: Safety Instructions
1. SAFETY INSTRUCTIONS IMPORTANT READ CAREFULLY BEFORE USE. KEEP FOR FUTURE REFERENCE. Safe operating practices for hand-held mains- operated electrical garden vacuums, and garden blower/vacuums with or without shredding means and garden blowers Training a) Read the instructions carefully. Be familiar with the controls and the correct use of the machine. - Page 4 and only on a firm, level surface. e) Do not operate the machine on a paved or gravel surface where ejected material could cause injury. f) Before using, always visually inspect to see, that the shredding means, shredding means bolts and other fasteners are secure, the housing is undamaged and that guards and screens are in place.
- Page 5 f) When feeding material into the machine be extremely careful that pieces of metal, rocks, bottles, cans or other foreign objects are not included. g) If the cutting mechanism strikes any foreign objects or if the machine should start making any unusual noise or vibration, immediately shut off the power source and allow the machine to stop.
- Page 6 Before clearing blockages or unclogging chute, before checking, cleaning or working on the machine. after striking a foreign object to inspect the machine for damage. if the machine starts to vibrate abnormally, for immediately check. Excessive vibration can cause injury.
- Page 7 Switch-off the machine before attaching or removing the bag. Recommendation The machine should be supplied via a residual current device (RCD) with a tripping current of not more than 30 Additional instructions If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
- Page 8 place. During the operation of the machine, always wear protective equipment, including protective masks, visors or goggles, ear protection, helmet, gloves, non- slip footwear and protective clothing. Always carry the machine by its handle; never use the cord or any other part of the machine. ...
- Page 9 Do not operate the product with damaged guards or shields not in place. Do not lean. Keep a good balance at all times. Always be sure of the footing on slopes. Walk, never run, when using this product. ...
- Page 10 minutes of rest between work sessions. Work a maximum of two hours per day. Warning: Do not touch moving hazardous parts before the machine is disconnected from the mains, and before the moving parts have come to a complete stop.
- Page 11 reduction in air flow. Do not switch on the tool in enclosed or poorly ventilated spaces or in the presence of inflammable and/or explosive substances such as liquids, gasses, and powders.) Disconnect electrical supply before opening inlet cover or installing pick up tubes. Never operate unit without inlet cover secured or pick-up tubes in place.
- Page 12 inattention while operating power tools may result in serious personal injury. Residual risks Even if you use this product in compliance with all safety requirements, the potential risks of injury and damage remain. The following hazards may arise in the structure and design of this product: a.
- Page 13 j. Use personal protective equipment. Always wear hearing protection. Explanation of symbol This product is double insulated electrically. Read instruction manual before operating or attempting any maintenance work. Conforms to all relevant EC Directives. Denotes risk of personal injury, loss of life, or damage to the tool in case of non- observance.
-
Page 14: Your Product
9. Wheel 4. Front handle 10. Attachment for shoulder harness 5. Blower tube 11. Speed control roller 6. Motor housing b. Technical specifications Model HAS3202SV Rated input power 3200W Rated no-load speed 10000-15000/min Rated Voltage 230-240V~ 50Hz Blower velocity 250 km/h Maximum blower air output 10.7m... -
Page 15: Assembly
The declared total vibration value(s) and the declared noise emission value(s) have been measured in accordance with a standard test method and may be used for comparing one tool with another; The declared total vibration value(s) and the declared noise emission value(s) may also be used in a preliminary assessment of exposure. -
Page 16: Operation
Caution: In the interests of safety the tubes should not be dismantled after they have been assembled Attach the collect bag to the hook on upper tube and the outlet on the bottom of motor housing. 4. OPERATION Before starting the machine, make sure that collect bag is fitted and the shoulder harness is adjusted to a suitable working position. - Page 17 c. Speed Control You can adjust the power of the air flow with the control knob. The power goes to 1 to 6 (from the lower to the highest power). Turn the knob to adjust the power of the airflow, according the work performed. When stop to use the machine, put the knob to the position 1.
-
Page 18: Maintenance And Storage
- Make sure that the collect bag is fitted properly. - Switch on the tool by pushing and holding the ON/OFF switch. - Put the tube to the ground without putting it in the debris. Move while sucking debris - When the collection bag is filled, stop working and empty the bag. When the collect bag is full, the vacuum power will be greatly reduced. -
Page 19: Declaration Of Conformity
ZI, 32 rue, Aristide Bergès – 31270 Cugnaux - France Tel: +33 (0)5.34.502.502 Fax: +33 (0)5.34.502.503 States that the designated below machine: BLOWER VACCUM SHREDDER ELECTRIC HAS3202SV Serial number: 20240415010-20240415259 20240415010-20240415259 Developed, designed and manufactured in accordance with the requirements of directives:... -
Page 20: Warranty
8. WARRANTY WARRANTY The manufacturer guarantees the product against defects in material and workmanship for a period of 2 years from the date of the original purchase. The warranty only applies if the product is for household use. The warranty does not cover breakdowns due to normal wear and tear. The manufacturer agrees to replace parts identified as defective by the designated distributor. -
Page 21: Product Failure
9. PRODUCT FAILURE WHAT TO DO IF MY MACHINE BREAKS DOWN? If you bought your product in a store: a) Empty the fuel tank if your product has one. b) Make sure that your machine is complete with all accessories supplied, and clean! If this is not the case, the repairer will refuse the machine. -
Page 22: Warranty Exclusions
10. WARRANTY EXCLUSIONS THE WARRANTY DOES NOT COVER: • Start-up and setting up of the product. • Damage resulting from normal wear and tear of the product. • Damage resulting from improper use of the product. • Damage resulting from assembly or start-up not in accordance with the user manual. •...
