Summary of Contents for BelFone BP750

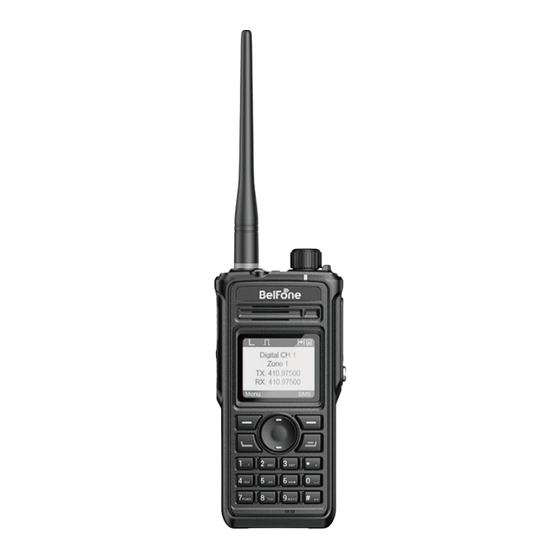

- Page 1 ＢＰ７５０ Digital FM Radio...
-
Page 3: Notice To The User
Illegal operation is punishable by fine or imprisonment or both. THANK YOU! Founded in 1989, BelFone is a leading technology and solution provider of mission and business-critical communications, dedicated to bringing cut-edge communications technologies and empowering our customers with integrated radio solutions. - Page 4 ◆If secondary development is required, please contact with BelFone or the local dealer for technical assistance. ◆Please keep the surface of radio clean and dry. To clean the radio, use a damp fabric soaked in mild washing liquid.
-
Page 5: Table Of Contents
Content Unpacking and Device Inspection ..........01 IInstallation of Accessories ............02 Installing/ Removing the antenna ..........02 Installing/ Removing the belt clip ..........02 Attaching/ Removing the strap ..........02 Attaching/Removing the Battery ..........03 Battery Information ..............04 Charging the Battery ............... - Page 6 Settings ................... 17 Accessory ................21 Emergency ................22 Lone Worker ................24 Man Down ................24 Encryption ................24 TDMA Direct Mode ..............25 Pseudo Trunk ................25 Direct Mode with Different Frequency ........25 Single Frequency Repeater Feature ........26 Ad Hoc Network Feature ............
-
Page 7: Unpacking And Device Inspection
Unpacking and Device Inspection Notes: The following instructions regarding unpacking are only for BelFone’s distributors, and service agencies or factories authorized by BelFone. After carefully unpacking the radio, identify the items listed in the table below. If any items are missing or have been damaged during shipment please contact dealer or BelFone immediately. -
Page 8: Iinstallation Of Accessories
Installation of Accessories Ｉｎｓｔａｌｌｉｎｇ／Ｒｅｍｏｖｉｎｇ ｔｈｅ ａｎｔｅｎｎａ Hold the antenna base, then screw it into the connector at the top of the radio until fasten. Turn the antenna anticlockwise to remove it. Ｉｎｓｔａｌｌｉｎｇ／Ｒｅｍｏｖｉｎｇ ｔｈｅ ｂｅｌｔ ｃｌｉｐ Attach the belt clip through two 3*4mm binding screws. Ａｔｔａｃｈｉｎｇ／Ｒｅｍｏｖｉｎｇ ｔｈｅ ｓｔｒａｐ Thread the hand strap to the loop on the back of the radio. -
Page 9: Attaching/Removing The Battery
Ａｔｔａｃｈｉｎｇ／Ｒｅｍｏｖｉｎｇ ｔｈｅ Ｂａｔｔｅｒｙ Ｗａｒｎｉｎｇ！ Don’t short-circuit the battery, which may cause damaged or catch fire; Never attempt to remove the casing from battery, the battery terminals may short circuit; Battery is flammable, don’t throw it into fire and don’t use it on dangerous area. -
Page 10: Battery Information
Ａｐｐｌｉｃａｂｌｅ Ｂａｔｔｅｒｙ To reduce the risk of injury, please only use the battery and charger specified by BelFone, other batteries may burst, causing body injury and property damage. Ｂａｔｔｅｒｙ Ｔｉｐｓ 1.When charging the battery, keep it at a temperature among 5℃—40℃. -
Page 11: Charging The Battery
Charging the Battery Use only the charger specified by the manufacturer. The charge indicator indicates the charging progress. Indicator Charger Status Charge Indicator glows green Standby(No-load) Charge Indicator glows red Battery is charging Charge Indicator glows green Battery is fully charged Charge Steps: 1.Plug the connector of the AC adapter into the AC outlet socket. -
Page 12: Getting Acquainted
Getting Acquainted ① ⑨ MIC2(Duplex mode) Power switch/volume adjust keys ② ⑩ Orange Button LED Indicator ③ OK Key Speaker ④ P1 Key MIC1 ⑤ PTT Key Direction Up ⑥ Side Button 1 Return Key ⑦ Side Button 2 P2 Key ⑧... -
Page 13: Basic Operations
Basic Operation LCD Icons Signal Strength Duplex Mode Unread message High /LowPower Half Duplex Mode Monitoring Emergency Roam on Connect to USB Scan On Battery Capacity VOX On Earphone connected Missed Call Log Message send failed Positioning on Analog Mode Configured Call Log Menu Digital Mode... -
Page 14: Select A Channel
volume level, rotate the knob clockwise to increase the volume, or rotate the knob anti-clockwise to decrease the volume. Note: Volume adjustment can only be performed when the default knob function is set as both channel and volume or only volume by programming software. -
Page 15: Group Call
analog channel press and hold down the PTT key to directly initiate call.On digital compatible analog channel press PTT key, if is not within hang time to set up digital call, within the hang time to call back. On analog compatible digital channel press PTT key, if is not within hang time to set up analog call, within the hangtime period to call back. -
Page 16: One Touch Call
One Touch Call In digital mode, the number keys 0-9, *, and # can be set as one touch call functions. Private call or group call contacts can beset to the one touch call key, then long press the key on the standby interface to enter the calling interface, and press the PTT key to set up the call. -
Page 17: Calls On Analog
Ｃａｌｌｓ ｏｎ Ａｎａｌｏｇ On analog channel, press and hold down the PTT key to transmit, release PTT key to receive. Ｂｕｔｔｏｎ Ｃｏｎｆｉｇｕｒａｔｉｏｎ Use the programming software to configure all buttons, short and long press of a key can be assigned with different functions. Shortcut Key Description Not assigned with any function... - Page 18 Talk Around Enable or disable talk around quickly. One Touch Call 1-5 Quick transmit group call/ private call/call alert or preset SMS. Manual Dial Quick access to Manual Dial. Covert Mode Enable or disable covert mode quickly. Priority Interrupt Interrupt activity of current channel forcibly. Preset Channel 1~4 Quick select a preset channel.
-
Page 19: Functions And Operations
Functions and operations Contacts Contacts list can contain a maximum of 1000 members, including private call, group call, all call. The contact menu includes frequent contacts, all contacts, new group or contacts, manual dial options. 1. Group Call / All Call While the contacts type is Group or All Call, select the menu to view its ID or send message. -
Page 20: Telephone
●Edit Name: Modify the name of a private call contact. Press” *” key to delete, press “#” to switch input method, name input 16 characters at most. ●Edit Number: Modify the number of a private call contact, the available number range is 1~16776415.（if private call contact is set as channel default address or call number on one touch call, its unable to edit number）... -
Page 21: Sms
1. New SMS It allows to edit desired text message(255 characters at most) and send it to a Private Call contact, Group Call contact or All Call contact. When editing a message, press“# ”key for switching input method, press “*” key for deletion and modification, press up or down key to switch input cursor. -
Page 22: Scan
●Answered Calls The device will record all recent private calls received in the digital mode. At most 20 recent records can be stored. Users can view the calling and called contacts in the detailed list, or delete the call records. Unknown call IDs can be stored in the contact list. -
Page 23: Roam
channels at most. Also it allows to edit the members as priority channel, indicates priority channel 1, indicates priority channel 2, each scan list may contain two priority channels at most. Roam This feature allows the radio communicate between available sites in the IP Site Connection system. - Page 24 Types Description If tone disable is on, all alerts will be off except emergency Tone Disable alarm. Off: The radio does not give any tone indication for transmission. On: The radio gives tone indication for transmission on both analog and digital channels; Call Out Tone Analog: The radio gives tone indication for transmission on analog channel;...
- Page 25 ●Boot Interface:Allow a user to enable or disable the boot screen via menu. If the Intro screen is enabled, while the radio is power on, the screen displays BelFone Logo and device name; while the Intro screen is disable, the screen only displays device name.
- Page 26 Note: ●To enable this function, TX frequency should be different from RX frequency, and the channel should be set as allowing talk around on the programming software. ●Press the programmed Talk Around key to switch DM mode and RM mode. ●Channel Lock: Allow a user to lock the channel via the menu.
-
Page 27: Accessory
●TX Contacts: Select a contact from all contacts list as current channel default address; ●RX Group List: Set current channel RX group list. ●Single Frequency Repeater: Set current channel single frequency repeater feature, it can be enabled or disabled. ●Ad Hoc Network: Set current channel Ad Hoc network feature, it can be enabled or disabled it. -
Page 28: Emergency
2. Patrol The radio supports RFID check-in function, which implements personnel patrol and management functions within the system. Select passive RFID or active RFID in the patrol menu, and the radio will receive a voice prompt of "Please read card". Place the passive RFID card above the screen of the radio to read the card information. - Page 29 Emergency Alarm Mode: Emergency Alarm: The radio sends an emergency alarm message and exits the "emergency" mode when it receives confirmation or reaches the number of attempts. Emergency Alarm with Call: The radio sends an emergency alarm message and enters "emergency mode", then press [PTT] key can initiate an emergency call.
-
Page 30: Lone Worker
Lone Worker This function is useful for persons who work alone situation. When the user encounters an incident and doesn’t press any keys or transmit audio within the preset period time, the radio will alarm automatically to ask help. 1. There are three modes to enable lone worker feature: ●... -
Page 31: Tdma Direct Mode
as the same encryption type and encryption key, otherwise the receiver cannot get the normal audio and data. 1.To enable the encryption feature Go to [Settings] menu [Channel Settings] [Encrypt Setting] [Encrypt Switch], and select On Press the preprogrammed [Encrypt] key to enable it; 2.New Encrypt Key Select “New Encrypt Key”... -
Page 32: Single Frequency Repeater Feature
Networking Feature The radio supports registration to the network system, and can adapt to the Belfone Smart Dispatching Connection (SDC) System or the Smart Virtual Trunking(SVT) system to realize the interconnection communication under the networking mode.The network mode can be selected as SDC or SVT mode. - Page 33 digital emergency alarm functions. When the channel is in different receiving and transmitting frequency, the network mode can be selected as "SVT", which will not support functions such as scanning, roaming and normal digital emergency alarms, color codes, etc. So the SDC mode, if the SDC system need roaming function that the radio can set “Roam”...
- Page 34 The standby interface of the SVT channel is different from regular channels. The first line displays the name of the belonging group, the second line displays the current channel name, the third line displays the current region name, and the fourth line displays the current networking status.
-
Page 35: Radio Priority-Based Interrupt
Voice Receiving and Transmitting Status Radio Status Transmit Receive Connecting... Prohibit Prohibit Weaken mode Allow Allow Unregistered Prohibit Prohibit Single site Allow Allow Multi station disconnection Allow Allow OFFNET mode Allow Allow Multi site interconnection Allow Allow Network mode Allow Allow In the SVT channel, directly press PTT to transmit a call to the default number, or select a contact via the menu to transmit the call. -
Page 36: Time Out Timer (Tot)
priorities available, level 1 is lower, level 3 is higher, and emergency call is the highest. Interrupt feature is divided into priority interrupt manually and priority interrupt automatically. The emergency priority interrupt, message priority interrupt, kill priority interrupt belong to priority interrupt automatically. ●... -
Page 37: Tx Permission
TX Permission Digital Channel This feature can restrict the channel to transmit if it is already in use. If "always" is set, whenever pressing PTT key the radio can transmit directly; If "color code free" is set, the radio will be unable to transmit on the channel if a radio with the color code is already in using the channel. -
Page 38: Low Battery Warning
Low Battery Warning When the gets low, LED indicator glows red and there will be a warning tone: “Please Charge”，please charge or replace the battery in time, otherwise the radio will turn off automatically while battery is too low. Monitor On analog or digital channel, if the Monitor feature is enabled, the icon: appears. -
Page 39: Ctcss Frequency Table
Decode: Only when the received call matching the decode CTCSS/CDCSS, can it be heard; Encode: The CTCSS/CDCSS will be attached to the signal before transmitting. The transmitting signal will only be heard by parties whose CTCSS/CDCSS signaling matches. CTCSS Frequency Table 103.5 159.8 67.0... -
Page 40: Cdcss Standard Code Table
CDCSS Standard Code Table Negative Negative CDCSS Positive CDCSS Positive CDCSS Positive Negative Code Code Code Code Code Code D023N D174N D174I D023I D445N D445I D025N D205N D205I D025I D464N D464N D026N D223N D223I D026I D465N D465N D031N D226I D226N D031I D466N D466I... -
Page 41: Specifications
Ｓｐｅｃｉｆｉｃａｔｉｏｎ General VHF：136-174MHz/UHF：400-480MHz Frequency Range UHF2：450-520MHz/UHF3：350-400MHz Number of Channels 1024 Zone Channel Spacing 12.5KHz /25 KHz Operating Voltage DC 7.4V (±20%) Battery Capacity 2300mAh(standard)/3350mAh(optional) Digital 21 hours, Analog 15 hours(2300mAh) Battery Life（5/5/90） Digital30 hours, Analog23 hours(3350mAh) Frequency Stability ±0.5ppm Antenna Impedance 50Ω... - Page 42 Receiver Digital Sensitivity 0.25μV /BER5% Analog Sensitivity 0.25uV (12dB SINAD) Intermodulation 65dB@12.5/25kHz Adjacent Channel Selectivity 60dB@12.5kHz/70dB@25kHz Spurious Response 70dB@12.5/25kHz FM Noise 40dB @ 12.5kHz；45dB @ 25kHz Audio Response +1/-3 dB 0.5W（8Ω Load） Rated Audio Output Power 1.5W MaxAudio Output Power ≤5% Audio Distortion -57dBm...
-
Page 43: Statement
Statement This manual is compiled to be accurate and complete for operator’s use. For any doubt, please contact Belfone. We will give you professional answers. As radio communication technologies develop rapidly, Belfone reserves the right to change product design and specification without prior... - Page 44 Add: A-15 Huaqiao Economic Development Zone, Shuangyang,Luojiang,Quanzhou,Fujian,China Tel: +86 595 28396717 Fax: +86 595 22771635 Email: overseas@belfone.com Website: www.belfone.com...
