ADI PRO 0E-RXDST Installation Instructions Manual

REQUEST-TO-EXIT DETECTOR
FIRE PULL STATION COVER
SEQUENTIAL TRIGGERING
INSTALLATION INSTRUCTIONS
INSTALLATION INSTRUCTIONS
0E-RXDST
APPLICATIONS
The ADI PRO 0E-RXDST combines a passive-infrared detector with
relay output to allow control of door ingress and egress in
request-to-exit (REX) applications. It is UL Listed as an access control
device under the UL 294 standard. It is for indoor use only. 0E-RXDST
is not designed for use as the primary means of exit for emergency
egress.
0E-RXDST can be ceiling or wall mounted over the door and the
detection pattern can be tailored via vertical aim adjustment and/or
masking of the detection pattern.
The relay output consists of two form "C" contacts that can be
adjusted to latch from 0.5 second to 64 seconds. Resettable or
non-resettable can be selected for the latch time. The relay can also
be programmed to fail safe (doors unlocked) or fail secure (doors
locked) mode in the event of a power loss.
An optional trim plate − ADI PRO model 0E-TP (not evaluated by
UL) − is available for easy and attractive installation using a standard
single gang electrical box oriented horizontally.
SPECIFICATIONS
Voltage input: 12VDC or 12VAC; 24VDC or 24VAC
Current draw: 5-75mA @ 12VDC, depending on settings and status
(see Current Ratings on page 6)
NO INTERNAL BATTERY. Budget 38mAh per hour standby
REX detector output: 2 Form C relay contacts rated 2A 30VDC/VAC
maximum for DC resistive loads
Sounder output: Adjustable up to 75dB @ 1m (dB not UL evaluated)
Indicator: Green LED for PIR detection
Tamper switch rating: 12VDC, 50mA
Relay latch duration: Adjustable from 0.5 second to 64 seconds
Timer modes: Selectable for resettable (cumulative) or
non-resettable (counting)
Power loss operation modes: Selectable for fail safe (doors
unlocked) or fail secure (doors locked)
Mounting locations: Above door(s) controlled on door frame, wall
or ceiling
Mounting height: 7' to 15'
Housing: High impact ABS plastic
Dimensions: 7"W x 1.75"H x 1.88" D (178W x 44H x 48Dmm)
Operating temperature: -20°F to 120°F (-29°C to 49°C); RH: 0-95%
RFI immunity: 26 MHz to 1000 MHz @ 50 V/m (not verified by UL)
ACCESS CONTROL
UL 294 LISTED
ACCESS CONTROL SYSTEM UNITS
Edition 6
LISTED
ADI PRO TECHNICAL SUPPORT
1.833.574.9124
ADIPRO@adiglobal.com
WEBSITE
adiglobal.com/adiexclusivebrands

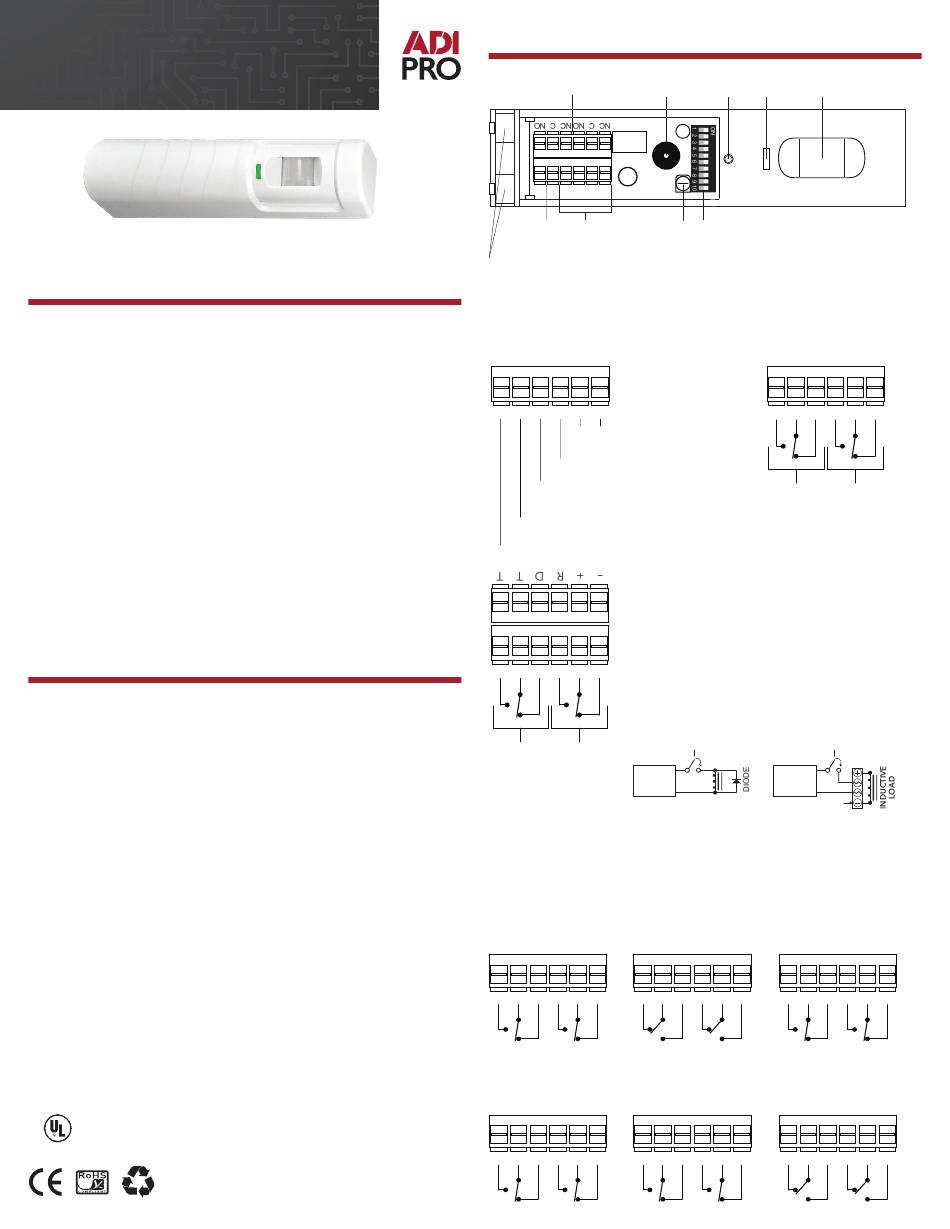

WIRING
Wiring Terminals
(Relay Contact)
Sounder
–
+ R D T T
Wiring Advanced Volume
Terminals function input Control
(Power) terminals and
tamper contacts (T,T)
Wire Channels
NOTE: All wiring connections should be made and verified before any
power is connected to the detector. All power, including standby
battery if used, should be disconnected.
Connect wires to terminals as follows:
–
+ R D T T
Tamper switch circuit
(non-polarized)
Door contact monitoring
Input for Sequential Trigger, card
reader or remote control of sounder
+12 OR 24
VDC/VAC
–
( ) COM
Use EMF (voltage) spike-protected relay
when connecting inductive loads to the detector
to protect against possible harmful EMF spikes.
Use Non EMF (voltage) spike-protected relay
for non-inductive loads. When connecting an
inductive load to the detector that is not spike-
NC C NO NC C NO
protected (such as a magnetic lock), use either
a 1kV 1A diode or 100V, 4A bridge rectifier.
Otherwise relay life may be shortened.
NON SPIKE- PROTECTED RELAY
EMF Non EMF
(voltage) (voltage)
+
spike- spike-
POWER
protected protected
SUPPLY
–
relay relay
Most UL1034 listed magnetic locks are already EMF spike-protected
and therefore do NOT require a diode or bridge rectifier, and adding
either could cause response delays. Check magnetic lock specifications.
Choose either Fail Safe or Fail Secure operation and wire to either
EMF or Non EMF contacts as follows:
FAIL SAFE FAIL SAFE
(Switch 3 ON) (Switch 3 ON)
Power OFF No Motion
NC C NO NC C NO NC C NO NC C NO
FAIL SECURE FAIL SECURE
(Switch 3 OFF) (Switch 3 OFF)
Power OFF No Motion
NC C NO NC C NO NC C NO NC C NO
Tamper
Switch LED PIR Lens
DIP Switches
NC C NO NC C NO
EMF Non EMF
(voltage) (voltage)
spike- spike-
protected protected
relay relay
NON SPIKE- PROTECTED RELAY
+
POWER
SUPPLY
–
INDUCTIVE
RECTIFIER
LOAD
FAIL SAFE
(Switch 3 ON)
Motion Detected
NC C NO NC C NO
FAIL SECURE
(Switch 3 OFF)
Motion Detected
NC C NO NC C NO
