Agio Brookfield 18616403010 Assembly Instructions

IMPORTANT!! PLEASE READ ENTIRE INSTRUCTION SHEET BEFORE ASSEMBLY!!
TO EXPEDITE ANY FUTURE WARRANTY CLAIMS, PLEASE KEEP INSTRUCTION SHEET, WARRANTY CARD AND RECEIPT
Step 1: Identify all parts packed in the carton against the parts list. Remove all protective materials.
Place parts on a non-abrasive surface to avoid scratching. If you are missing any parts or
unsure how to proceed with the assembly, call our Customer Service Center at 1-888-707-1880.
Do not attempt assembly if any parts are missing or damaged.
Step 2: Place the swivel base (with rocker assembly) on a flat, solid surface. Make sure the rocker
assembly is positioned all the way into the base. It may have shifted or vibrated out during
shipment.
Step 3: Important: We recommend 2 people work together to assemble the chair. Note the arrow
labels on the "U" bar and the rocker assembly. Also note the horseshoe shape of the rocker
plate. Point the open end of the horseshoe away from you. The arrows on the rocker
assembly should be pointing towards you. Set the chair frame on the rocker assembly with
front of the seat facing you and the arrows on the "U" bar pointing towards you as shown in
Figure 1. This is very important for a safe, balanced rocking motion. If the chair frame has
been properly positioned on the rocker assembly, all arrows on the "U" bar and rocker
assembly will be pointing in the same direction.
Step 4: Critical Step: The "U" metal plates must be installed in the proper location.
Read this step and carefully examine. Insert the "U" metal plate so that the "U" bar and
rocker plate are between both sides of the "U" metal plate. Make sure that the holes in the
"U" metal plate are completely aligned with the holes in the "U" bar as shown in Figure 2.
Guide the bolts through the holes on the bottom side of the "U" metal plate, through the holes in
the "U" bar portion of the chair, through the holes in the rocker plate and then, most
importantly, through the holes in the top side of the "U" metal plate. It is very important
that the holes in the bottom of the "U" metal plate are placed directly beneath the holes in
the rocker plate. Add a spring washer and a nut to each bolt as shown in Figure 2.
Hand tighten nuts 3-4 revolutions only. Repeat the same procedure on the other side.
CAUTION: Failure to place the "U" metal plates under the rocker plates and
above the "U" bar exactly as shown in the diagram will cause the bolt heads and nuts
to damage the structure of the rocker plates and the "U" bar. Damage due to over
tightening of bolts or improper assembly could cause injury and may void your
warranty.
Step 5: Tighten all nuts and bolts with the hex wrenches provided. Bolts must be FULLY tightened.
Remove the arrow labels from the "U" bar and rocker assembly. Cover bolts with bolt covers.
Step 6: Your chair should be ready for use. If your chair is not rocking properly, double-check your
assembly procedure, especially Steps 3-4. If the chair rocks too far forward to or is difficult
to rock backwards, you have probably installed the seat frame backwards on the rocker
assembly. If you need further assistance, please call our Customer Service Center
at 1-888-707-1880.
IMPORTANT NOTE: Damage to frames or rocker plates resulting from not FULLY tightening
the bolts, is not covered under warranty. Please read all instructions carefully before assembly.
If you have any questions regarding your assembly, call our Customer Service Center
at 1-888-707-1880.

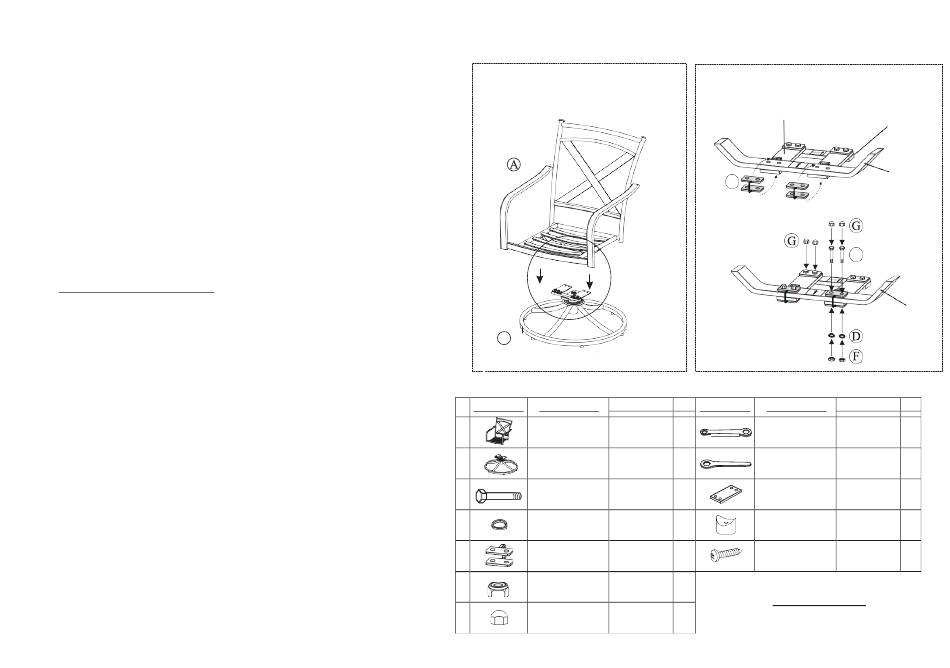

Chair Viewed From The Front
B
FOOT CAP
* NOTE: PARTS SHOWN ON PARTS LIST ARE NOT TO SCALE
ORDER PART # QTY PARTS LIST
PARTS LIST DESCRIPTION
A
AR20415
CHAIR FRAME
SWIVEL BASE &
B
AR20416
ROCKER
ASSEMBLY
5/16" X 40 MM
C
HW0906
BOLT
Ø8.0 X 2.3 MM
D
HW0003
SPRING WASHER
"U" METAL
E
HW0836
PLATE
F
5/16" NUT HW0015
G
BOLT COVER HW0028
Assembly detail shown from the REAR
of the chair for clarity
ROCKER PLATE
E
Figure 1
C
Figure 2
ORDER PART # QTY
DESCRIPTION
1
HEX WRENCH-1 HW0008
1
HEX WRENCH-2 HW0007
ROCKER PLATE
4
G0313
FACTORY ASSEMBLY
FOOT CAP
4
FC0013
FACTORY ASSEMBLY
BOLT FOR
2
FOOT CAP HW0695
FACTORY ASSEMBLY
4
ACE02101
8
ROCKER
ASSEMBLY
"U" BAR
"U" BAR
1
1
