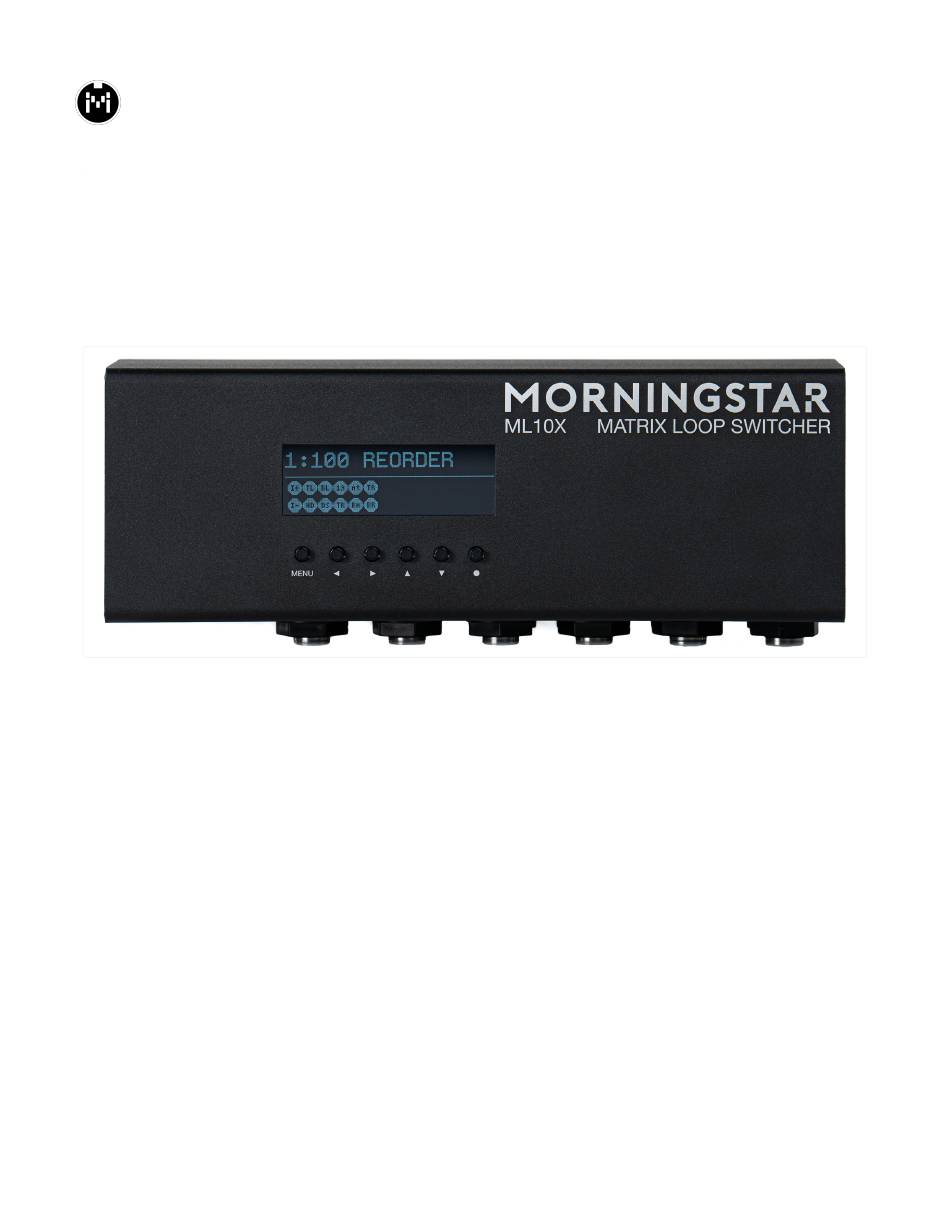

User Manual
ML10X
ML10X
User Manual
Overview
The ML10X is a MIDI-controlled reorderable Loop Switcher.
There are a total of 10 independent loops available, configured in 5 TRS send and return
ports.
The send and return ports are called Loop A , Loop B , Loop C , Loop D and Loop E . All
the ports are TRS ports, which means they take in a Tip and Ring connection.
Each Tip and Ring connection can be programmed independently. That means, you can
connect a Distortion pedal to Loop A Tip , and a Delay pedal to Loop A Ring , and then route
them to run in series.
For example:
Input Tip >> Loop A Tip >> Loop A Ring >> Output Tip
Since the Tip and Ring connections on each Loop can be used independently, that means that
you can connect up to 10 devices running in Mono and be able to switch and reorder them.
All the inputs and outputs are buffered.
1 von 19
https://manuals.morningstar.io/ml10x/user-manual
24.06.2024, 22:32

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ML10X and is the answer not in the manual?

Questions and answers

Related Manuals for Morningstar ML10X

Summary of Contents for Morningstar ML10X

  • Page 1 ML10X User Manual Overview The ML10X is a MIDI-controlled reorderable Loop Switcher. There are a total of 10 independent loops available, configured in 5 TRS send and return ports. The send and return ports are called Loop A , Loop B , Loop C , Loop D and Loop E . All the ports are TRS ports, which means they take in a Tip and Ring connection.

  • Page 2: Midi Ports

    User Manual https://manuals.morningstar.io/ml10x/user-manual All the inputs and outputs are buffered. USB Port The ML10X has one USB C port to connect the device to the editor in a Windows or Mac computer. MIDI Ports 2 von 19 24.06.2024, 22:32...

  • Page 3: Power Requirements

    Power Requirements 9-18VDC Center Negative with at least 160mA current. If connected only via USB, the ML10X processor will power on and allow you to navigate the device or connect to the Editor, but the no switching will occur until an appropriate power supply is connected.

  • Page 4: Device Controls

    If you need to use the advanced mode, you will need to use the desktop web editor to program the Preset. The ML10X is not designed to be used live with a USB cable connected, due to the potential for ground loops. If you are experiencing any increased noise floor in your rig, please disconnect the USB cable from the ML10X.

  • Page 5: Advanced Mode

    User Manual https://manuals.morningstar.io/ml10x/user-manual You can also specify what loops to spillover, such that when you bypass a loop or change Presets (simple), the specified loop will route to the output. Editing a Simple Preset Advanced Mode Advanced mode gives you the ability to create complex signal chains, with the ability to split and merge signals.
  • Page 6 To create a Preset on the ML10X, you just need to link a From connector to a To connector. Want to bypass all the loops? Just link Input to Output . How about having just Loop A in...
  • Page 7 User Manual https://manuals.morningstar.io/ml10x/user-manual Input Tip Input Ring Loop A Tip Loop A Ring Loop B Tip Loop B Ring Loop C Tip Loop C Ring Loop D Tip Loop D Ring Loop E Tip Loop E Ring Once you have selected a From connector, the device will prompt you to select a To connector to.
  • Page 8 Preset in the Editor Simple In the ML10X Editor, you can simply drag and drop each loop to create your signal chain. When the loop is Green, the loop will be engaged when the Preset is loaded. When the loop is White, the loop will be bypassed when the Preset is loaded.
  • Page 9 For example, if you are currently in Preset 1 that has a Delay effect, and you switch to Preset 2 that does not use that delay effect, you can set the ML10X to automatically merge the delay signal into your output so the delay signal does not get cut abruptly.
  • Page 10 User Manual https://manuals.morningstar.io/ml10x/user-manual To edit a Preset in Advanced mode, simply toggle the Mode button to ADVANCED . The flow editor will appear. Each loop (or Node) will have an Input and Output, coloured grey and white respectively. The left grey dot represents the send connection, while the right white dot represents the return connector.
  • Page 11 User Manual https://manuals.morningstar.io/ml10x/user-manual Output nodes have 2 send connections. This represents the audio being sent out in the Output port. There are 2 send connections because the Output port has a built-in audio summing circuit. This is useful for creating Presets with spillover effects.

  • Page 12: Creating Connections

    User Manual https://manuals.morningstar.io/ml10x/user-manual Preset 2 - Clean tone with overdriven delay repeats spilling over after switching from Preset 1 It can even be used as a volume boost, since the signal is summed. Split signal is summed, creating a volume boost.
  • Page 13 User Manual https://manuals.morningstar.io/ml10x/user-manual Drag and drop to move each node. Connection reroute points When the Editor auto-arranges the nodes, reroute points may be created automatically on the connection lines to better display the connections. You can move them or double-click to remove them.
  • Page 14 User Manual https://manuals.morningstar.io/ml10x/user-manual The exact layout and node positions created in the editor cannot be saved to your device. Each time a Preset is loaded, the nodes are arranged programmatically based on the connections created between each node. Beware of feedback loops With such flexibility, you need to be aware of potentially creating feedback loops in your setup.
  • Page 15 50% of S1 and 50% of S2 . There are no phase inverters and mixers in the ML10X. If you are experiencing signal loss when merging the signals, your signal coming out of one of your devices might be phase inverted.

  • Page 16: Connector Settings

    User Manual https://manuals.morningstar.io/ml10x/user-manual Connector Settings Connector Name By default, each port is named Loop A Tip , Loop A Ring … Loop D Tip . It is possible to name each port to suit your device for better clarity when creating Presets. For example, you...

  • Page 17: Factory Reset

    You can scroll up and down to change the MIDI Channel, and then press o to save. You can also set the ML10X to ignore any incoming MIDI messages. Factory Reset To do a Factory Reset, go to Menu >> Global Settings >> Factory Reset . All the settings will be erased and reset to default.
  • Page 18 In the Editor, you can backup and restore your device. Native Integration with Morningstar MIDI Controllers There is a ML10X Message Type in the Morningstar Editor for the MC3 / MC6MKII / MC8 to let you configure what you need without having to send CC messages.

  • Page 19: Midi Implementation

    Program Change messages PC 0 - 127 recalls Presets 0-127 in the ML10X. If you want to recall a Preset in a different bank, you will need to send a Change Bank Control Change message first, before sending the PC message to select the Preset.
