Sealey SM1304-J Instructions page 2

1.2. GENERAL SAFETY Continued
DO NOT operate the machine if damaged.

DO NOT operate the machine if any parts are missing as this may cause failure and/or personal injury.

DO NOT use saw blades which are damaged or deformed. use only Sealey blades and spare parts. non-standard blades can be

dangerous.
DO NOT get the saw wet or use in damp or wet locations or areas where there is condensation.

DO NOT expose the saw housing to flames or high temperatures.

DO NOT allow untrained persons to operate the saw.

DO NOT use saw where there are flammable liquids, solids or gases such as paint solvents and including waste wipers or cleaning rags

etc.
DO NOT leave the saw operating unattended.

DO NOT operate the saw if either of the blade covers are open or if the blade guard is not fitted.

DO NOT operate the saw when you are tired or under the influence of alcohol, drugs or intoxicating medication.

DO NOT use the saw for a task it is not designed to perform.

When not in use, switch off the saw and disconnect from the mains power.

2. DESCRIPTION & SPECIFICATIONS
fully approved to current CE regulations. Steel chassis with locking blade wheel covers. no-volt release switch prevents uncontrolled blade
re-start after power interruption. Suitable for cutting wood and plastics. fitted with tilting table for bevel cuts. Supplied with quick adjusting rip
fence, mitre gauge, dust extraction port, blade wheel brushes and push stick.
SPECIFICATIONS
Throat Depth:. . . . . . . . . . . . . . . . . . . . . 245mm
Max. Cutting Height: . . . . . . . . . . . . . . . 105mm
Table Size: . . . . . . . . . . . . . . . . . . . 340x335mm
Table Tilt Adjustment:. . . . . . . . . . . . . . . . . 0-50°
Blade Length:. . . . . . . . . . . . . . . . . . . . 1712mm
Cutting Speed: . . . . . . . . . . . . . . . . . . 730m/min
Motor Power: . . . . . . . . . . . . . . . . . . . . . 370W
Power Supply: . . . . . . . . . . . . . . . . 100V - 60Hz
Dust Extraction Port: . . . . . . . . . . . . . . . Ø60mm

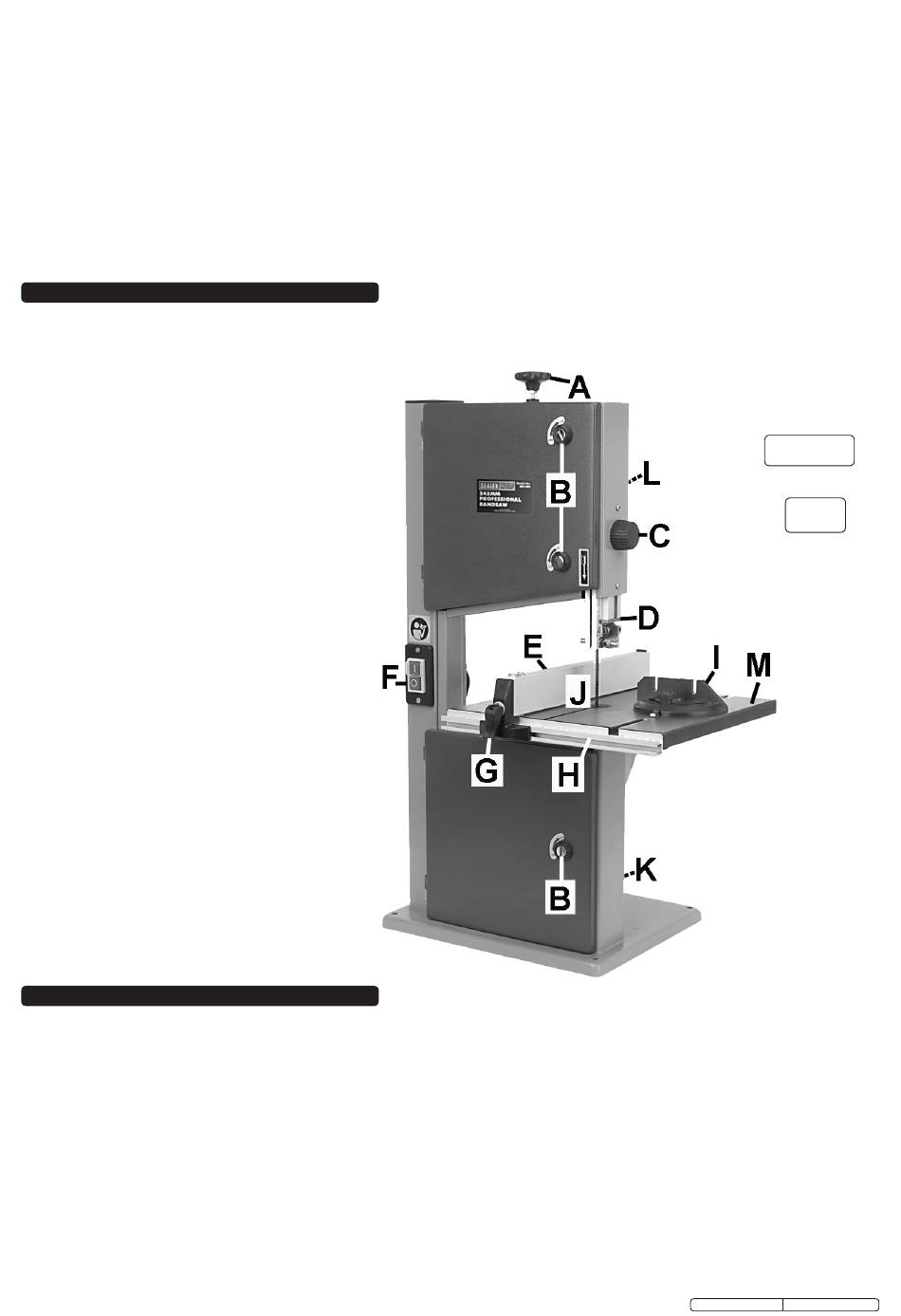

MAIN FEATURES (FIG.1)
A Blade tension adjustment knob
b Blade cover lock
C Blade guard height adjuster
D Blade guard
E fence
F no Volt On/Off switch
G fence lock handle
H Table side guide
I Mitre guide
j Saw Blade
K Extraction outlet
L Tracking adjustment knob
M Worktable
3. ASSEMbLY
unpack the product and check contents for damage. Should there be any damaged or missing parts contact your supplier immediately.
3.1. Saw Assembly
An assistant may be required to help.
3.1.1. To install the worktable:
Carefully place worktable (fig.1.M) onto its supporting base, whilst sliding saw blade through its slot. fix to base with four bolts and
washers. Before finally tightening these, check that the table blade slot and sawblade are in line, set correctly and then tighten all
bolts. using a square backed up to the saw blade, check that the worktable is square to the saw blade, if any adjustment is needed
slacken the four bolts holding the supporting bracket to the main frame of the saw. Set table to correct angle, tighten all fixings.
Attach the table side guide (fig.1.H) to worktable using four bolts and washers.
3.1.2. fit the fence (fig.1.E) by sliding onto the worktable from either the front or the back as required. Push down handle (fig.1.G) to
lock when fence is in required position.
3.1.3. Important! The saw must be placed on a firm, stable work surface capable of supporting the saw and any workpiece.
using four pre-drilled holes in base, fix to the work surface with appropriate fixings.
DO NOT attempt to use the saw if it is not on a stable surface as it may topple over during use and cause damage and/or personal
injury.
3.1.4. Connect extraction port (Ø60mm) to dust extractor system (if available).
Original Language Version
SM1304
fig.1
SM1304-J Issue: 1 - 11/04/11
