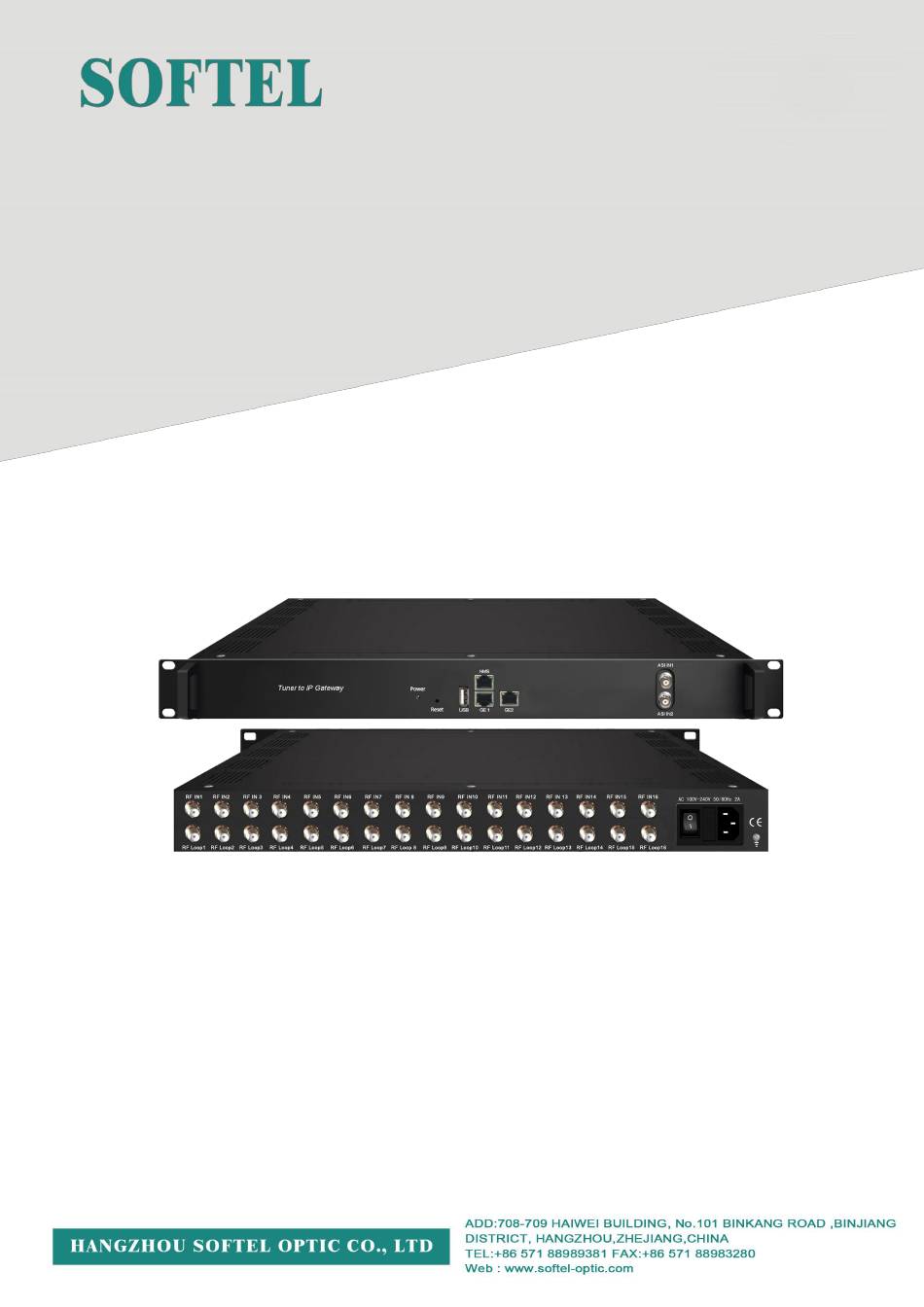

  • Page 1 SFT3508B Tuner to IP Gateway User’s Manual...

  • Page 2: Table Of Contents

    DIRECTORY CHAPTER 1 PRODUCT OUTLINE ....................1 1.1 Outline ................................1 1.2 Features ................................1 1.3 Inner Principle ..............................1 1.4 Specifications ..............................2 1.5 Appearance and Description ..........................2 CHAPTER 2 INSTALLATION GUIDE .................... 5 2.1 Acquisition Check ............................. 5 2.2 Installation Preparation ........................... 5 2.3 Wire’s Connection ............................

  • Page 3: Chapter 1 Product Outline

    Chapter 1 Product Outline 1.1 Outline SFT3508B Tuner to IP Gateway is a head-end interface conversion device which supports MPTS and SPTS output switchable. It supports 16 MPTS or 512 SPTS output over UDP and RTP/RTSP protocol. It is integrated with tuner demodulation (or ASI input)

  • Page 4: Inner Principle

    SFT3508B Tuner to IP Gateway User’s Manual 1.3 Inner Principle 1.4 Specifications Optional 1:16 tuners input +2 ASI input---SPTS output Input Optional 2:14 tuners input +2 ASI input --- MPTS output Optional 3:16 tuners input --- MPTS output Standard J.83A(DVB-C), J.83B, J.83C...

  • Page 5: Appearance And Description

    SFT3508B Tuner to IP Gateway User’s Manual Constellation QPSK, 8PSK, 16APSK, 32APSK Max input bitrate ≤125 Mbps Frequency In 950-2150MHz QPSK/8PSK /16APSK :0.5~45 Msps Symbol rate 8APSK: 0.5~40Msps 32APSK: 0.5~34Msps QPSK: 1/2, 3/5, 2/3, 3/4, 4/5, 5/6, 8/9, 9/10, 13/45, 9/20, 11/20...

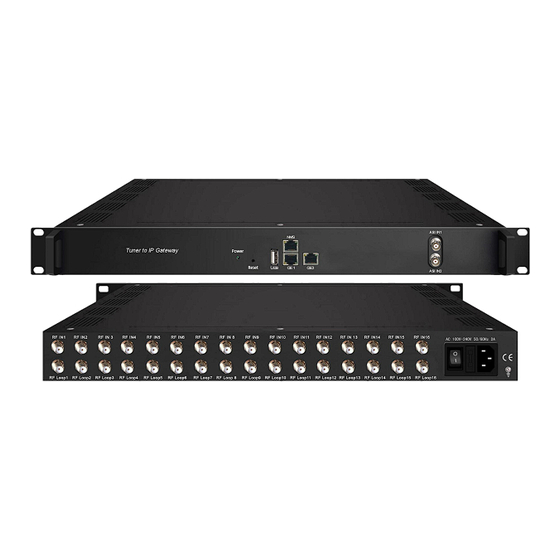

  • Page 6 SFT3508B Tuner to IP Gateway User’s Manual Power indicator Reset: Reset webmaster IP address, recover it to default IP address USB port for upgrade NMS port: Network management interface Data port（GE1&GE2）: IP out port ASI input port Rear Panel Illustration...

  • Page 7: Chapter 2 Installation Guide

    SFT3508B Tuner to IP Gateway User’s Manual Chapter 2 Installation Guide 2.1 Acquisition Check When users open the package of the device, it is necessary to check items according to packing list. Normally it should include the following items:  SFT3508B Tuner to IP Gateway ...
  • Page 8 SFT3508B Tuner to IP Gateway User’s Manual Item Requirement When user installs machine frame array in one machine hall, the Machine Hall Space distance between 2 rows of machine frames should be 1.2~1.5m and the distance against wall should be no less than 0.8m.

  • Page 9: Wire's Connection

    When the device adopts united way, the grounding resistance should be smaller than 1Ω. Caution: Before connecting power cord to SFT3508B Tuner to IP Gateway, user should set the power switch to “OFF”.

  • Page 10: Chapter 3 Web Nms Operation

    User can only control and set the configuration in computer by connecting the device to web NMS Port. User should ensure that the computer’s IP address is different from the SFT3508B’s IP address; otherwise, it would cause IP conflict. 3.1 login The default IP of this device is 192.168.0.136.
  • Page 11 Figure-2 Parameter→ Tuner input (DVB-C/T/T2/ISDBT) From the menu on top side of the webpage, click “Tuner Input”, it displays the interface where users can check the 16 Tuners input status. SFT3508B supports multi tuners switch manually. (Figure-3) Multi tuners input Figure-3 Clicking “Edit”...
  • Page 12 SFT3508B Tuner to IP Gateway User’s Manual DVB-T2 DVB-T DVB-C (J.83A/C) DVB-C (J.83B) ISDB-T Parameter→ ASI input From the menu on top side of the webpage, click “ASI Input”, it displays the interface where...
  • Page 13 SFT3508B Tuner to IP Gateway User’s Manual users can check the 2 channels of ASI input status. (Figure-4) Figure-4 Parameter→ TS Config Clicking “TS Config”, it displays the interface where users can set the output TS and configure TS ID and ON ID (Figure-5).
  • Page 14 SFT3508B Tuner to IP Gateway User’s Manual Figure-6 Parameter → SPTS Select: From the menu on left side of the webpage, clicking “SPTS Select”, it displays the interface where users can choose 16 Tuner input and 2 ASI Input programs to output from IP (max 512 SPTS).
  • Page 15 Figure-8 Note: SFT3508B support 16 Tuner input and 2 ASI input with 512 SPTS output, the parameter interface is different from MPTS. When users switch SPTS to MPTS, new mode will work after reboot the device.
  • Page 16 When users disable the ASI input, SFT3508B can support 16 Tuner input with 16 MPTS IP output (Figure-10). Enable and Disable the ASI input Figure-10 When users enable the ASI input, SFT3508B can support 14 Tuner input and 2 ASI input with 16 MPTS IP output (Figure-11).
  • Page 17 SFT3508B Tuner to IP Gateway User’s Manual Figure-11 Parameter→ IP Stream SFT3508B supports TS to output in IP (16*MPTS) format through the GE1 or GE2 port. Clicking “IP Stream”, it displays the interface where to set IP out parameters (Figure-12). Figure-12 System →...
  • Page 18 SFT3508B Tuner to IP Gateway User’s Manual Set NMS IP address, the default address 192.168.0.136 Set GE1 IP address Set GE2 IP address Figure-13 System → Date &Time: Clicking “Date & Time”, it displays the interface as Figure-14 where to set date and time.
  • Page 19 SFT3508B Tuner to IP Gateway User’s Manual Figure-15 System → Save/Restore: From the menu on left side of the webpage, clicking “Save/Restore”, it displays the screen as Figure-16 where to save or restore your configurations. Figure-16 System → Backup/Load: From the menu on left side of the webpage, clicking “Backup/Load”, it displays the screen...
  • Page 20 SFT3508B Tuner to IP Gateway User’s Manual Figure-17 System → Firmware: From the menu on left side of the webpage, clicking “Firmware”, it displays the screen as Figure-18 where to update firmware for the device. Select IP output Mode, click “Apply”...

  • Page 21: Chapter 4 Troubleshooting

    SFT3508B Tuner to IP Gateway User’s Manual Chapter 4 Troubleshooting SOFTEL’s ISO9001 quality assurance system has been approved by CQC organization. For guarantee the products’ quality, reliability and stability. All SOFTEL products have been passed the testing and inspection before ship out factory. The testing and inspection scheme already covers all the Optical, Electronic and Mechanical criteria which have been published by SOFTEL.

  • Page 22: Chapter 5 Packing List

    SFT3508B Tuner to IP Gateway User’s Manual Chapter 5 Packing list  SFT3508B Tuner to IP gateway  User’s manual  Grounding cable  RF In and Loop Out Cable  Power cord...
