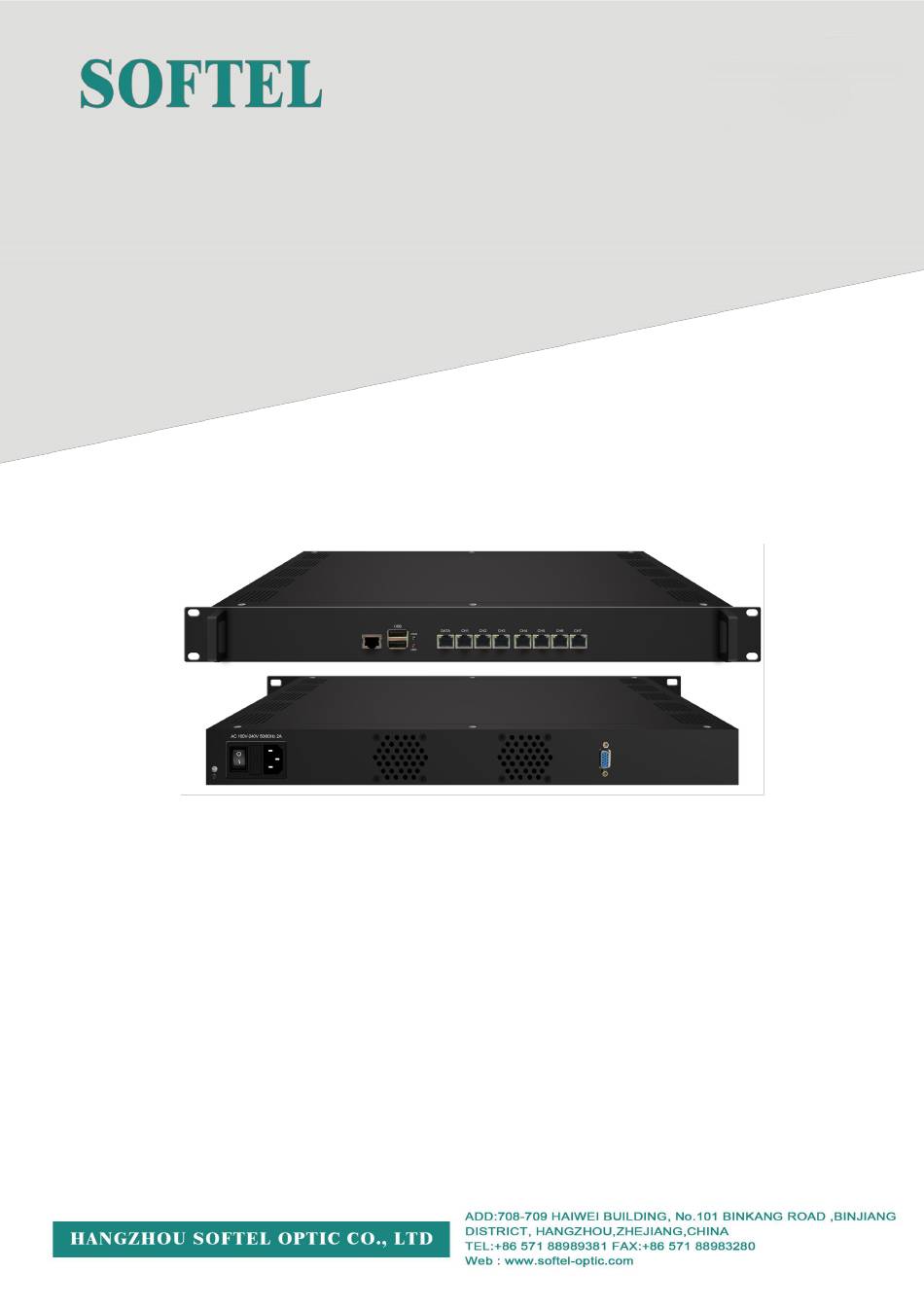

- Page 1 SFT3508F IPTV Gateway User’s Manual...
-
Page 2: Table Of Contents
DIRECTORY CHAPTER 1 PRODUCT OUTLINE..................1 1.1 Outline..................................1 1.2 Features..................................1 1.3 IP Protocol Conversion............................2 1.4 General Principle Chart............................2 1.5 Specifications................................2 1.6 Appearance and Description..........................3 CHAPTER 2 INSTALLATION GUIDE..................4 2.1 Acquisition Check..............................4 2.2 Installation Preparation............................4 2.3 Wire’s Connection..............................6 CHAPTER 3 WEB NMS OPERATION.................. -
Page 3: Chapter 1 Product Outline

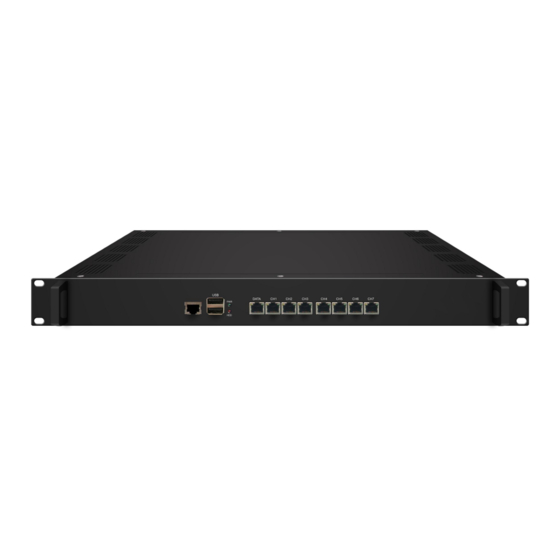

Chapter 1 Product Outline 1.1 Outline SOFTEL SFT3508F IPTV Gateway is a device which is used for the protocol conversion scenarios and streaming media distribution scenarios. It can convert the broadcast network IP stream over HTTP, UDP, RTP, RTSP and HLS and TS file into HTTP, UDP, HLS and RTMP protocol. -
Page 4: Ip Protocol Conversion
IP out thru CH 1-7(1000M) over HTTP, HLS and RTMP (Unicast) Memory: 4G Solid-State Disk(SSD): 16G Channel switching time with SOFTEL’ STB: HTTP (1-3s), HLS (0.4-0.7s) Support adding scrolling caption, welcome words, boot image and boot video System (this function is only applicable to IP out application and the STB/Android TV... -
Page 5: Appearance And Description
SFT3508F IPTV Gateway User’s Manual HTTP/RTP/RTSP/HLS is converted into UDP (Multicast), the actual application shall prevail, and suggest maximum 80% CPU utilization web-based NMS management thru DATA port Demission 482mm×324mm×44mm (WxLxH) General Temperature 0~45℃(operation), -20~80℃(storage) Power Supply AC 100V±10%, 50/60Hz or AC 220V±10%, 50/60Hz 1.6 Appearance and Description... -
Page 6: Chapter 2 Installation Guide
SFT3508F IPTV Gateway User’s Manual Chapter 2 Installation Guide 2.1 Acquisition Check When users open the package of the device, it is necessary to check items according to packing list. Normally it should include the following items: SFT3508F IPTV Gateway ... - Page 7 SFT3508F IPTV Gateway User’s Manual Item Requirement When user installs machine frame array in one machine hall, the Machine Hall Space distance between 2 rows of machine frames should be 1.2~1.5m and the distance against wall should be no less than 0.8m.
-
Page 8: Wire's Connection
When the device solely connects to protective ground, it should adopt independent way, say, share the same ground with other devices. When the device adopts united way, the grounding resistance should be smaller than 1Ω. Caution: Before connecting power cord to SFT3508F IPTV Gateway, user should set the power switch to “OFF”. -
Page 9: Chapter 3 Web Nms Operation
User can only control and set the configuration in computer by connecting the device to web NMS Port. User should ensure that the computer’s IP address is different from the SFT3508F’s IP address; otherwise, it would cause IP conflict. 3.1 login The default IP of this device is 192.168.200.136:3333... -
Page 10: Operation
SFT3508F IPTV Gateway User’s Manual 3.2 Operation System Chart When we confirm the login, it displays the status interface where users can have an overview of system chart. (Figure-2) User can click any item here to enter Schematic diagram of... - Page 11 SFT3508F IPTV Gateway User’s Manual Number 1-8 refers to 8 data ports. Number 1 refers to the output data port. So users can’t set dialing parameters. Figure-3 Streaming Media→ Custom Program Clicking “Custom Program”, it displays the interface where users can upload TS files from local sources for distributing programs.
- Page 12 SFT3508F IPTV Gateway User’s Manual can’t be changed when selecting HLS as output protocol. (Figure-5) Click here to select the programs Figure-5 : Click to edit or delect programs Click to start/stop/stop all the program distribution : Click box in front of program number, and then click it to batch programs information as below box.
- Page 13 SFT3508F IPTV Gateway User’s Manual : Click to batch delete programs : Click to sort programs manually by dragging program’s name Streaming Media→ HTTP Clicking “HTTP”, it displays the interface where users can set the HTTP parameters. HLS, HTTP and RTSP can’t be converted into HTTP directly, but UDP and RTP can be converted into HTTP.
- Page 14 SFT3508F IPTV Gateway User’s Manual Figure-6 ADV→ Rolling Subtitles ADV function is only applicable to IP out application and the STB and TV must be installed SOFTEL IPTV APK. Clicking “Rolling Subtitles”, it displays the interface where users can add rolling subtitles and set subtitles’...
- Page 15 SFT3508F IPTV Gateway User’s Manual “Add” and then upload it. After submitting, boot images will appear when starting SOFTEL IPTV APK. (Figure-8) Figure-8 More Configuration→ System Set Clicking “System Set”, it displays the interface where users can select client protocol and Unicast output port, and set ADV parameters.
- Page 16 SFT3508F IPTV Gateway User’s Manual More Configuration→ Streaming Media Setting Clicking “Streaming Media Setting”, it displays the interface where users can set streaming media parameters. (Figure-10) Figure-10 More→ Client Management Clicking “Client Management”, it displays the interface where users can download APK...
- Page 17 SFT3508F IPTV Gateway User’s Manual Figure-11 Clicking “Download APK”, it will trigger a box as below (select saving pass) to save IPTV APK flie. More→ AUZ Information Clicking “AUZ Information”, it displays the interface where users can check the authorization information. (Figure-12)
- Page 18 SFT3508F IPTV Gateway User’s Manual Figure-12 System Information Clicking “System Information”, it displays the interface where users can check the system information such as CPU usage rate, CPU usage record and so on. (Figure-13) Figure-13...
-
Page 19: Chapter 4 Troubleshooting
SFT3508F IPTV Gateway User’s Manual Chapter 4 Troubleshooting SOFTEL’s ISO9001 quality assurance system has been approved by CQC organization. For guarantee the products’ quality, reliability and stability. All SOFTEL products have been passed the testing and inspection before ship out factory. The testing and inspection scheme already covers all the Optical, Electronic and Mechanical criteria which have been published by SOFTEL.
