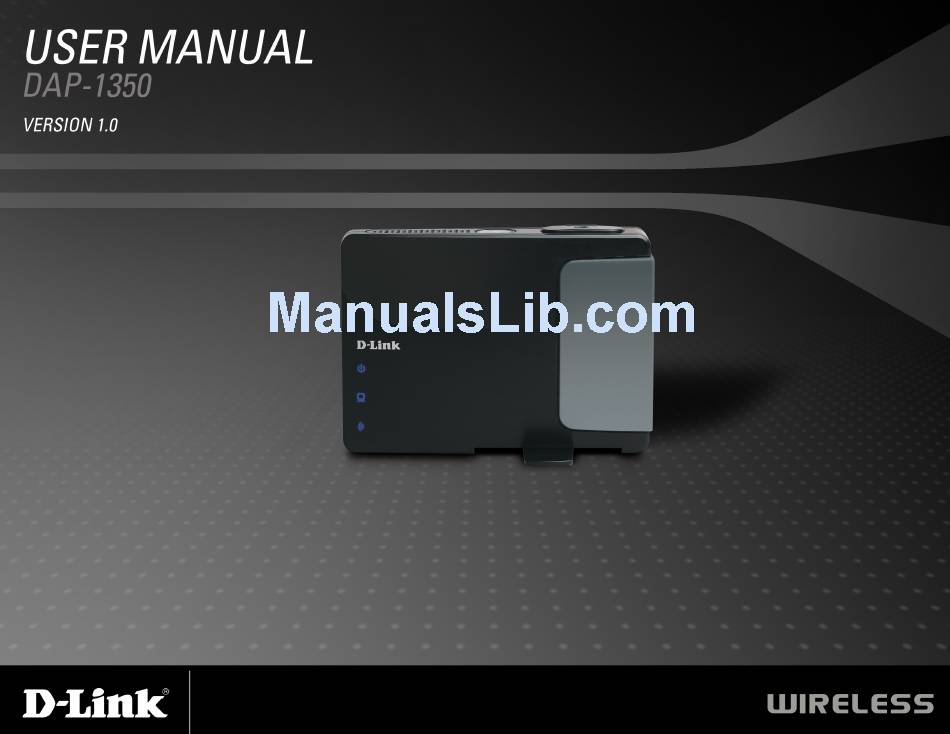

D-Link DAP-1350 User Manual
  1. Manuals
  2. Brands
  3. D-Link Manuals
  4. Wireless Router
  5. DAP-1350
  6. User manual

D-Link DAP-1350 User Manual

D-link dap-1350: user guide
Hide thumbs Also See for DAP-1350:
Table of Contents

Advertisement

Quick Links

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DAP-1350 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for D-Link DAP-1350

Summary of Contents for D-Link DAP-1350

  • Page 2: Table Of Contents

    Wireless Setup ..........26 Device Info ........... 57 LAN Setup ............ 28 Logs ............. 58 Static IP ............29 Statistics ............59 MAC Address Filter ........30 Help .............. 60 Advanced Wireless ........31 User Limit ............. 32 D-Link DAP-1350 User Manual...
  • Page 3 UPnP Settings ..........90 Using Windows Vista ......... 116 ® Guest Zone ..........91 Configure WEP ............ 118 DMZ ............. 92 Configure WPA-PSK ..........119 Administrator Settings ........93 Time Settings ..........94 Troubleshooting ............120 D-Link DAP-1350 User Manual...
  • Page 4 Wireless Modes ........... 128 Networking Basics ..........129 Check your IP address ........129 Statically Assign an IP address ......130 Technical Specifications ......... 131 Contacting Technical Support ........ 132 Warranty ..............133 Registration .............. 139 D-Link DAP-1350 User Manual...

  • Page 5: Product Overview

    Power Adapter Ethernet Cable CD-ROM USB Power Cable Travel Case Note: Using a power supply with a different voltage rating than the one included with the DAP-1350 will cause damage and void the warranty for this product. D-Link DAP-1350 User Manual...

  • Page 6: System Requirements

    Users: Make sure you have the latest version of Java installed. ® Visit www.java.com to download the latest version. Computer with the following: CD Installation Wizard • Windows XP with Service Pack 2 or Vista ® ® Requirements • An installed Ethernet adapter • CD-ROM drive D-Link DAP-1350 User Manual...

  • Page 7: Introduction

    D-Link, an industry leader in networking, introduces the new D-Link DAP-1350 Wireless N Router/Access Point. With the ability to transfer files with a maximum wireless signal rate of up to 300Mbps*, the DAP-1350 gives you high-speed wireless network access for your home or when you travel.
  • Page 8 TOTAL NETWORK SECURITY The DAP-1350 supports all of the latest wireless security features to prevent unauthorized access, be it from over the wireless network or from the Internet. Support for WPA and WPA2 standards ensure that you’ll be able to use the best possible encryption method, regardless of your client devices.

  • Page 9: Features

    This easy setup method allows you to form a secured wireless link between the DAP-1350 and another WPS enabled device. A PC is no longer needed to log into the Web-based interface.

  • Page 10: Hardware Overview

    When using as a LAN port, connect Ethernet devices such as computers or game consoles. When using as a WAN port, connect your Broadband modem or Internet connection. Power Receptor Receptor for the supplied power adapter. D-Link DAP-1350 User Manual...

  • Page 11: Side

    Once connected, the to share on your network. LED will stay solid for 5 seconds and then turn off. Bottom Reset Button Press and hold to reset the device back to the factory default settings Stand D-Link DAP-1350 User Manual...

  • Page 12: Leds

    LAN/WAN LED A solid light indicates a connection to an Ethernet-enabled device. This LED blinks during data transmission. Wireless LED A solid light indicates that the wireless segment is ready. This LED blinks during wireless data transmission. D-Link DAP-1350 User Manual...

  • Page 13: Installation

    Operation Modes Depending on how you want to use your DAP-1350 will determine which mode you use. This section will help you figure out which setting works with your setup. • Access Point mode - page 14 •...

  • Page 14: Access Point Mode

    Access Point Mode In the Access Point mode, the DAP-1350 acts as a central connection point for any computer (client) that has a 802.11n or backward-compatible 802.11b/g wireless network interface and is within range of the AP. Clients must use the same SSID (wireless network name) and channel as the AP in order to connect.

  • Page 15: Wireless Client Mode

    Connect your Ethernet-enabled device to the AP using an Ethernet cable. The AP Client mode can support one wired client. Example: Connect a gaming console using an Ethernet cable to the DAP-1350. The unit is set to Wireless Client mode which will wirelessly connect to a wireless router on your network.

  • Page 16: Router Mode

    Router Mode In the Router mode, the DAP-1350 connects to a broadband modem. In this mode, the DAP-1350 also acts as a router for wireless clients on your network and provides NAT (Network Address Translation) and a DHCP server to generate IP addresses.

  • Page 17: Wireless Installation Considerations

    1. Keep the number of walls and ceilings between the D-Link access point and other network devices to a minimum. Each wall or ceiling can reduce your adapter’s range from 3-90 feet (1-30 meters.) Position your devices so that the number of walls or ceilings is minimized.

  • Page 18: Configuration

    This section will show you how to configure your new D-Link wireless access point using the web-based configuration utility. Access Point Mode Change the mode selector to AP on the device. Connect an Ethernet cable from the Ethernet port on the DAP-1350 to a computer for configuration. If you wish to change the default settings or optimize the performance of the DAP-1350, you may use the web-based configuration utility.

  • Page 19: Wireless Setup Wizard

    To set up your wireless network, click Add Wireless Device With WPS and skip to page 24. If you want to enter your settings without running the wizard, click Wireless Setup on the left side and skip to page 26. D-Link DAP-1350 User Manual...
  • Page 20 Section 3 - Configuration This Wizard is designed to assist you in configuring your DAP-1350 as an access point. Enter the Device Name of the AP and click Next to continue. This is the NetBIOS name for the AP. It is...
  • Page 21 Click Next to continue. Click Save to save your network settings. In order for your network settings to take effect the AP will reboot automatically. When the device has finished rebooting the main screen will display. D-Link DAP-1350 User Manual...
  • Page 22 This key must be entered on your wireless clients. For WEP encryption, enter a Network Key exactly 5 or 13 characters long or exactly 10 or 26 characters using 0-9 and A-F. Click Next to continue. D-Link DAP-1350 User Manual...
  • Page 23 Section 3 - Configuration The following screen will show you your network key to enter on your wireless clients. Click Save to finish the Setup Wizard. D-Link DAP-1350 User Manual...

  • Page 24: Add Wireless Device With Wps

    Select PIN to use your PIN number from your wireless device to connect to your network. For PBC configuration, skip to the next page. Click Connect to continue. Start WPS on the wireless device you are adding to you wireless network to complete the setup. D-Link DAP-1350 User Manual...
  • Page 25 Select PBC to use the Push Button Configuration in order to connect to your network. Click Connect to continue. Press the Push Button on the wireless device that you are adding to your network to complete the setup. D-Link DAP-1350 User Manual...

  • Page 26: Wireless Setup

    Enable Auto The Auto Channel Scan setting can be selected to Channel Scan: allow the DAP-1350 to select the channel with the least amount of interference (during boot-up). Wireless Indicates the channel setting for the DAP-1350. The...
  • Page 27 Check the box if you do not want the SSID of your wireless network to be broadcasted by the DAP-1350. If checked, the Wireless: SSID of the DAP-1350 will not be seen by Site Survey utilities so your wireless clients will have to know the SSID of your DAP-1350 in order to connect to it.

  • Page 28: Lan Setup

    (DHCP) to automatically obtain an IP address on the LAN/private network. Device Name: Enter the Device Name of the AP. It is recommended to change the Device Name if there is more than one D-Link device within the subnet. D-Link DAP-1350 User Manual...

  • Page 29: Static Ip

    AP into your web browser to access the instead of IP address for configuration. If you are using the device name to connect, make sure that your PC and your DAP-1350 are on the same network. D-Link DAP-1350 User Manual...

  • Page 30: Mac Address Filter

    Save Settings. MAC Filter List: Displays the list of clients in the filter list. D-Link DAP-1350 User Manual...

  • Page 31: Advanced Wireless

    WMM is QoS for your wireless network. This will improve the quality of video and voice applications for your wireless clients. Short GI: Check this box to reduce the guard interval time therefore increasing the data capacity. However, it’s less reliable and may create higher data loss. D-Link DAP-1350 User Manual...

  • Page 32: User Limit

    Enable User Check the Enable User Limit box to enable Limit: this feature. User Limit: Enter the maximum number of clients, between 1 and 32. Save Click Save Settings to save and activate the Settings: new changes. D-Link DAP-1350 User Manual...

  • Page 33: Admin

    Authentication: image displayed on the screen to prevent online hackers and unauthorized users from gaining access to your router’s network settings. This feature is disabled by default. D-Link DAP-1350 User Manual...

  • Page 34: System

    Save button above. Note: Restoring the factory default settings will not reset the Wi-Fi Protected Status to Not Configured. Reboot the Click to reboot the access point. Device: D-Link DAP-1350 User Manual...

  • Page 35: Language Pack

    You can upgrade the firmware of the access point here. Make sure the firmware you want to use is on the local hard drive of the computer. Click on Browse to locate the firmware file to be used for the update. Please check the D-Link support website for firmware updates at http://support.dlink.com.

  • Page 36: Time

    To manually input the time, enter the values in these fields for the Year, Month, Day, Hour, Minute, and Second and then click Save Settings. You can also click the Copy Your Computer’s Time Settings button at the bottom of the screen. D-Link DAP-1350 User Manual...

  • Page 37: Schedules

    Save Settings at the top for your schedules to go into effect. Schedule Rules The list of schedules will be listed here. Click List: the Edit icon to make changes or click the Delete icon to remove the schedule. D-Link DAP-1350 User Manual...

  • Page 38: Device Info

    Section 3 - Configuration Device Info This page displays the current information for the DAP-1350. It will display the LAN and wireless LAN information. General: Displays the access point’s time and firmware version. LAN: Displays the MAC address and the private (local) IP settings for the access point.

  • Page 39: Logs

    Section 3 - Configuration Logs The DAP-1350 keeps a running log of events and activities occurring on the AP. If the AP is rebooted, the logs are automatically cleared. You can save the log files under Log Settings. Log Options:...

  • Page 40: Statistics

    Statistics The DAP-1350 keeps statistics of the traffic that passes through it. You can view the amount of packets that pass through the LAN and wireless portions of the network. The traffic counter will reset if the access point is rebooted.

  • Page 41: Wireless

    The wireless section allows you to view the wireless clients that are connected to your wireless access point. Connection Time: Displays the amount of time the wireless client has been connected to the access point. MAC Address: The Ethernet ID (MAC address) of the wireless client. D-Link DAP-1350 User Manual...

  • Page 42: Help

    Section 3 - Configuration Help D-Link DAP-1350 User Manual...

  • Page 43: Wireless Client Mode

    Section 3 - Configuration Wireless Client Mode Change the mode selector to CL on the device. Connect an Ethernet cable from the Ethernet port on the DAP-1350 to a computer for configuration. If you wish to change the default settings or optimize the performance of the DAP-1350, you may use the web-based configuration utility.

  • Page 44: Wireless Setup Wizard

    Section 3 - Configuration Wireless Setup Wizard This Wizard is designed to assist you in configuring your DAP-1350 as a wireless client. Click the Launch Wireless Setup Wizard button to use the wizard to setup your network. Enter the Device Name of the AP and click Next to continue.
  • Page 45 Select PIN to connect your wireless device with WPS. You may click Generate New PIN to use a different PIN number. Click Connect to start the WPS scan. Within 2 minutes, enter the PIN number into the other device you want to connect to. D-Link DAP-1350 User Manual...
  • Page 46 Click Connect to continue. Note: You may also press the WPS button located on the side of the DAP-1350 instead of running this wizard. On the device you want to connect to, start the PBC process on the device. You will have 2 minutes to start the PBC process on both devices.
  • Page 47 If you do not know the exact name or would like to search for the wireless network, click Site Survey. Find your access point from the list, click the radio button in the right column, and click Connect. D-Link DAP-1350 User Manual...
  • Page 48 Section 3 - Configuration If you select WPA or WPA2, enter the wireless security password. Click Next to complete the Setup Wizard. The Wireless Setup Wizard is complete. Click Finish to reboot the device. D-Link DAP-1350 User Manual...

  • Page 49: Manual Wireless Setup

    Transmission Rate: Select the transmission rate. It is strongly suggested to use the Auto setting for optimal performance. Wireless MAC You can clone the MAC address of the device connected via Ethernet to the DAP-1350. Clone: Wireless Security Select a wireless security setting. Options are None, WEP, WPA, or WPA2. See the Wireless Security section in this manual Mode: for a detailed explanation of the wireless security options.

  • Page 50: Lan Settings

    Enter the IP Address of the gateway in your network. Device Name: Enter the Device Name of the AP. It is recommended to change the Device Name if there is more than one D-Link device within the subnet. D-Link DAP-1350 User Manual...

  • Page 51: Logout

    Section 3 - Configuration Logout This section will allow you to change the local network settings of the access point and to configure the DHCP settings. D-Link DAP-1350 User Manual...

  • Page 52: Advanced Wireless

    2346 is the default setting. Short GI: Check this box to reduce the guard interval time therefore increasing the data capacity. However, it’s less reliable and may create higher data loss. D-Link DAP-1350 User Manual...

  • Page 53: Admin

    Enables a challenge-response test to require Graphical users to type letters or numbers from a distorted Authentication: image displayed on the screen to prevent online hackers and unauthorized users from gaining access to your router’s network settings. D-Link DAP-1350 User Manual...

  • Page 54: System

    If you want to save the current access point configuration settings, use the Save button above. Note: Restoring the factory default settings will not reset the Wi-Fi Protected Status to Not Configured. Reboot the Device: Click to reboot the access point. D-Link DAP-1350 User Manual...

  • Page 55: Language Pack

    You can upgrade the firmware of the access point here. Make sure the firmware you want to use is on the local hard drive of the computer. Click on Browse to locate the firmware file to be used for the update. Please check the D-Link support website for firmware updates at http://support.dlink.com.

  • Page 56: Time

    To manually input the time, enter the values in these fields for the Year, Month, Day, Hour, Minute, and Second and then click Save Settings. You can also click the Copy Your Computer’s Time Settings button at the bottom of the screen. D-Link DAP-1350 User Manual...

  • Page 57: Device Info

    Section 3 - Configuration Device Info This page displays the current information for the DAP-1350. It will display the LAN and wireless LAN information. General: Displays the access point’s time and firmware version. LAN: Displays the MAC address and the private (local) IP settings for the access point.

  • Page 58: Logs

    Section 3 - Configuration Logs The DAP-1350 keeps a running log of events and activities occurring on the AP. If the AP is rebooted, the logs are automatically cleared. You can save the log files under Log Settings. Log Options:...

  • Page 59: Statistics

    Statistics The DAP-1350 keeps statistics of the traffic that passes through it. You can view the amount of packets that pass through the LAN and wireless portions of the network. The traffic counter will reset if the access point is rebooted.

  • Page 60: Help

    Section 3 - Configuration Help D-Link DAP-1350 User Manual...

  • Page 61: Router Mode

    Section 3 - Configuration Router Mode Change the mode selector to RT on the device. Connect an Ethernet cable from the Ethernet port on the DAP-1350 to your broadband modem. You will need to connect wirelessly to the DAP-1350 to configure it.

  • Page 62: Setup Wizard

    Click Launch Internet Connection Setup Wizard to begin. If you want to enter your settings without running the wizard, click Manual Internet Configuration Setup and skip to page Click Next to continue. Create a new password and then click Next to continue. D-Link DAP-1350 User Manual...
  • Page 63 Section 3 - Configuration Select your time zone from the drop-down menu and then click Next to continue. Select the type of Internet connection you use and then click Next to continue. D-Link DAP-1350 User Manual...
  • Page 64 Click Connect to save your settings. Once the router is finished rebooting, click Continue. Please allow 1-2 minutes to connect. Close your browser window and reopen it to test your Internet connection. It may take a few tries to initially connect to the Internet. D-Link DAP-1350 User Manual...

  • Page 65: Internet Setup

    If you opt to set up your Internet connection manually, you will be redirected to a WAN page that allows you to select your Internet type and enter the correct configuration parameters. Select your Internet connection type using the “My Internet Connection is” drop-down menu. Click the Save Settings button when you have configured the connection. D-Link DAP-1350 User Manual...

  • Page 66: Dynamic Ip (Dhcp)

    1500. MAC Address: The default MAC address is set to the Ethernet MAC address your DAP-1350. You can click the Clone Your PC’s MAC Address button to replace the AP’s MAC address with the MAC address of the PC that you used to register with your ISP.

  • Page 67: Static Ip

    The default MAC address is set to the MAC address on the AP (Access Point). You can click the Clone Your PC’s MAC Address button to replace the AP’s MAC address with the MAC address of your Ethernet card. It is not recommended that you change the default MAC address unless required by your ISP. D-Link DAP-1350 User Manual...

  • Page 68: Pppoe

    Select PPPoE (Point-to-Point Protocol over Ethernet) if your ISP uses a PPPoE connection. Your ISP will provide you with a username and password. This option is typically used for DSL services. Make sure to remove your PPPoE software from your computer. The software is no longer needed and will not work through the DAP-1350. Username: Enter your PPPoE user name.

  • Page 69: Pptp

    The default MAC address is set to the MAC address on the AP (Access Point). You can click the Clone Your PC’s MAC Address button to replace the AP’s MAC address with the MAC address of your Ethernet card. It is not recommended that you change the default MAC address unless required by your ISP. D-Link DAP-1350 User Manual...

  • Page 70: L2Tp

    The default MAC address is set to the MAC address on the AP (Access Point). You can click the Clone Your PC’s MAC Address button to replace the AP’s MAC address with the MAC address of your Ethernet card. It is not recommended that you change the default MAC address unless required by your ISP. D-Link DAP-1350 User Manual...

  • Page 71: Wireless Setup Wizard

    To set up your wireless network, click Add Wireless Device With WPS and skip to page 76. If you want to enter your settings without running the wizard, click Manual Wireless Network Setup and skip to page 77. D-Link DAP-1350 User Manual...
  • Page 72 Manually: Select this option to manually enter your network key and click Next. If you selected Automatically, the summary window will display your settings. Write down the security key and enter this on your wireless clients. Click Save to save your settings. D-Link DAP-1350 User Manual...
  • Page 73 WPA Encryption instead of WEP. Click Next to continue. For WEP encryption, enter a Network Key exactly 5 or 13 characters long or exactly 10 or 26 characters using 0-9 and A-F. Click Next to continue. D-Link DAP-1350 User Manual...
  • Page 74 The summary screen will appear. Click Save to continue. If you select WPA, enter the wireless security password (8-32 characters). Click Next to complete the Setup Wizard. Click Next to continue. The summary screen will appear. Click Save to continue. D-Link DAP-1350 User Manual...

  • Page 75: Add Wireless Device With Wps Wizard

    PIN: Select this option to use PIN method. In order to use this method you must know the wireless client’s 8 digit PIN and click Connect. PBC: Select this option to use PBC (Push Button) method to add a wireless client. Click Connect. D-Link DAP-1350 User Manual...

  • Page 76: Wireless Settings

    Select Invisible if you do not want the SSID of your wireless network to be broadcast by the DAP-1350. If Invisible is selected, the SSID of the DAP-1350 will not be seen by Site Survey utilities so your wireless clients will have to know the SSID of your DAP-1350 in order to connect to it.

  • Page 77: Network Settings

    Local Domain: Enter the Domain name (Optional). Enable DNS Relay: Uncheck the box to transfer the DNS server information from your ISP to your computers. If checked, your computers will use the router for a DNS server. D-Link DAP-1350 User Manual...

  • Page 78: Dhcp Server Settings

    DHCP Server Settings DHCP stands for Dynamic Host Control Protocol. The DAP-1350 has a built-in DHCP server. The DHCP Server will automatically assign an IP address to the computers on the LAN/private network. Be sure to set your computers to be DHCP clients by setting their TCP/IP settings to “Obtain an IP Address Automatically.”...

  • Page 79: Dhcp Reservation

    Click Save to save your entry. You must click Save Settings at the top to activate your reservations. Number of In this section you can see what LAN devices are Dynamic DHCP currently leasing IP addresses. Clients: D-Link DAP-1350 User Manual...

  • Page 80: Usb Settings

    Note: If using the SharePort option, users will need to install the SharePort Utility into the computers to share the USB device through the router. Please see the SharePort Manual on the CD for more information. Note: The USB port may be used for 3G adapters. Currently only D-Link’s 3G cards will be supported. D-Link DAP-1350 User Manual...

  • Page 81: Virtual Server

    Section 3 - Configuration Virtual Server The DAP-1350 can be configured as a virtual server so that remote users accessing Web or FTP services via the public IP address can be automatically redirected to local servers in the LAN (Local Area Network).
  • Page 82 The schedule of time when the Virtual Server Rule will be enabled. The schedule may be set to Always, which will allow the particular service to always be enabled. You can create your own times in the Tools > Schedules section. D-Link DAP-1350 User Manual...

  • Page 83: Application Rules

    TCP or UDP, then enter the firewall (public) ports associated with the trigger port to open them for inbound traffic. The DAP-1350 provides some predefined applications in the table on the bottom of the web page. Select the application you want to use and enable it.

  • Page 84: Mac Address Filter

    To find the MAC address on a computer, please refer to the Networking Basics section in this manual. DHCP Client: Select a DHCP client from the drop-down menu and click << to copy that MAC Address. D-Link DAP-1350 User Manual...

  • Page 85: Website Filters

    Save Settings. The text to be blocked will appear in the list. To delete the text, click Clear the List Below. Website URL/ Enter the keywords or URLs that you want to Domain: block (or allow). Any URL with the keyword in it will be blocked. D-Link DAP-1350 User Manual...

  • Page 86: Firewall Settings

    Section 3 - Configuration Firewall Settings A firewall protects your network from the outside world. The D-Link DAP-1350 offers a firewall type functionality. The SPI feature helps prevent cyber attacks. Sometimes you may want a computer exposed to the outside world for certain types of applications.

  • Page 87: Advanced Wireless Settings

    WMM is QoS for your wireless network. This will improve the quality of video and voice applications for your wireless clients. Short GI: Check this box to reduce the guard interval time therefore increasing the data capacity. However, it’s less reliable and may create higher data loss. D-Link DAP-1350 User Manual...

  • Page 88: Wi-Fi Protected Setup

    Restore the default PIN of the router. Default: Generate New Create a random number that is a valid PIN. This becomes the router’s PIN. You can then copy this PIN to the user interface PIN: of the registrar. D-Link DAP-1350 User Manual...
  • Page 89 PIN, or pressed a special Wi-Fi Protected Setup button on the device. The router acts as a registrar for the network, although other devices may act as a registrar as well. Add Wireless Start the wizard. Device Wizard: D-Link DAP-1350 User Manual...

  • Page 90: Upnp Settings

    Section 3 - Configuration UPnP Settings UPnP Settings: To use the Universal Plug and Play (UPnP ™ feature click on Enabled. UPnP provides compatibility with networking equipment, software and peripherals. D-Link DAP-1350 User Manual...

  • Page 91: Guest Zone

    Enable Routing Check to allow network connectivity between Between Zones: the different zones created. Security Mode: Select the type of security or encryption you would like to enable for the guest zone. D-Link DAP-1350 User Manual...

  • Page 92: Dmz

    This feature allows you to set up a DMZ (Demilitarized Zone) host. If you have a client PC that cannot run Internet applications properly from behind the DAP-1350, then you can set the client up for unrestricted Internet access. The DMZ allows a computer to be exposed to the Internet.

  • Page 93: Administrator Settings

    Administrator tasks. This feature enables you to perform Administrator tasks from the remote (Internet) host. Remote Admin The port number used to access the DAP-1350. Port: D-Link DAP-1350 User Manual...

  • Page 94: Time Settings

    Manual: To manually input the time, enter the values in these fields for the Year, Month, Day, Hour, Minute, and Second and then click Set Time. You can also click Copy Your Computer’s Time Settings. D-Link DAP-1350 User Manual...

  • Page 95: Syslog

    The address of the SysLog server that will be Address: used to send the logs. You may also select your computer from the drop-down menu (only if receiving an IP address from the router via DHCP). D-Link DAP-1350 User Manual...

  • Page 96: System Settings

    Any settings that have not been saved will be lost, including any rules that you have created. If you want to save the current router configuration settings, use the Save button above. Reboot Device: Click to reboot the router. D-Link DAP-1350 User Manual...

  • Page 97: Firmware Update

    You can upgrade the firmware of the Router here. Make sure the firmware you want to use is on the local hard drive of the computer. Click on Browse to locate the firmware file to be used for the update. Please check the D-Link support site for firmware updates at http://www.dlink.com/support.

  • Page 98: Schedules

    Save Settings at the top for your schedules to go into effect. Schedule Rules The list of schedules will be listed here. Click the List: Edit icon to make changes or click the Delete icon to remove the schedule. D-Link DAP-1350 User Manual...

  • Page 99: Device Information

    Device Information This page displays the current information for the DAP-1350. It will display the LAN, WAN (Internet), and Wireless information. If your Internet connection is set up for a Dynamic IP address then a Release button and a Renew button will be displayed. Use Release to disconnect from your ISP and use Renew to connect to your ISP.

  • Page 100: Wireless

    Section 3 - Configuration Wireless The wireless client table displays a list of current connected wireless clients. This table also displays the connection rate and MAC address of the connected wireless clients. D-Link DAP-1350 User Manual...

  • Page 101: Logs

    Log Settings: This button opens a new menu where you can configure the log settings. Refresh: This button refreshes the log. Save Log: This option will save the router log to a file on your computer. D-Link DAP-1350 User Manual...

  • Page 102: Statistics

    Section 3 - Configuration Statistics The screen below displays the Traffic Statistics. Here you can view the amount of packets that pass through the DAP-1350 on the Internet, wireless, and the LAN ports. The traffic counter will reset if the device is rebooted.

  • Page 103: Internet Sessions

    LA: Last ACK -- Waiting for a short time while a connection that was in Close Wait is fully closed. CL: Closed -- The connection is no longer active but the session is being tracked in case there are any retransmitted packets still pending. D-Link DAP-1350 User Manual...
  • Page 104 300 seconds - UDP connections. 240 seconds - Reset or closed TCP connections. The connection does not close instantly so that lingering packets can pass or the connection can be re-established. 7800 seconds - Established or closing TCP connections. D-Link DAP-1350 User Manual...

  • Page 105: Help

    Section 3 - Configuration Help D-Link DAP-1350 User Manual...

  • Page 106: Wireless Security

    Section  - Security Wireless Security This section will show you the different levels of security you can use to protect your data from intruders. The DAP-1350 offers the following types of security: • WPA2 (Wi-Fi Protected Access 2) • WPA2-PSK (Pre-Shared Key) •...

  • Page 107: What Is Wpa

    WPA/WPA2 incorporates user authentication through the Extensible Authentication Protocol (EAP). EAP is built on a more secure public key encryption system to ensure that only authorized network users can access the network. D-Link DAP-1350 User Manual...

  • Page 108: Configure Wep

    7. Click Save Settings at the top of the window to save your settings. If you are configuring the access point with a wireless adapter, you will lose connectivity until you enable WEP on your adapter and enter the same WEP key as you did on the access point. D-Link DAP-1350 User Manual...

  • Page 109: Configure Wpa/Wpa2 Personal

    If you are configuring the access point with a wireless adapter, you will lose connectivity until you enable WPA-PSK on your adapter and enter the same passphrase as you did on the access point. D-Link DAP-1350 User Manual...

  • Page 110: Configure Wpa/Wpa2 Enterprise

    6. Next to Port, enter the port you are using with your RADIUS server. 1812 is the default port. 7. Next to Shared Secret, enter the security key. 8. Click Save Settings to save your settings. D-Link DAP-1350 User Manual...

  • Page 111: Connect To A Wireless Network

    Click on a network (displayed using the SSID) and click the Connect button. If you get a good signal, but cannot access the Internet, check you TCP/IP settings for your wireless adapter. Refer to the Networking Basics section in this manual for more information. D-Link DAP-1350 User Manual...

  • Page 112: Configure Wep

    XP Wireless Utility by right-clicking ® on the wireless computer icon in your system tray (lower-right corner of screen). Select View Available Wireless Networks. 2. Highlight the wireless network (SSID) you would like to connect to and click Connect. D-Link DAP-1350 User Manual...
  • Page 113 It may take 20-30 seconds to connect to the wireless network. If the connection fails, please verify that the WEP settings are correct. The WEP key must be exactly the same as on the wireless access point. D-Link DAP-1350 User Manual...

  • Page 114: Configure Wpa-Psk

    XP Wireless Utility by right-clicking ® on the wireless computer icon in your system tray (lower-right corner of screen). Select View Available Wireless Networks. 2. Highlight the wireless network (SSID) you would like to connect to and click Connect. D-Link DAP-1350 User Manual...
  • Page 115 It may take 20-30 seconds to connect to the wireless network. If the connection fails, please verify that the WPA-PSK settings are correct. The WPA-PSK passphrase must be exactly the same as on the wireless access point. D-Link DAP-1350 User Manual...

  • Page 116: Connect To A Wireless Network

    Network and Sharing Center. The utility will display any available wireless networks in your area. Click on a network (displayed using the SSID) under Select a network to connect to and then click the Connect button. D-Link DAP-1350 User Manual...
  • Page 117 The utility will display the following window to indicate a connection is being made. The final window indicates the establishment of a successful connection. The next two pages display the windows used to connect to either a WEP or a WPA-PSK wireless network. D-Link DAP-1350 User Manual...

  • Page 118: Configure Wep

    Click on a network (displayed using the SSID) using WEP under Select a network to connect to and then click the Connect button. Enter the appropriate security key or passphrase in the field provided and then click the Connect button. D-Link DAP-1350 User Manual...

  • Page 119: Configure Wpa-Psk

    Click on a network (displayed using the SSID) using WPA-PSK under Select a network to connect to and then click the Connect button. Enter the appropriate security key or passphrase in the field provided and then click the Connect button. D-Link DAP-1350 User Manual...

  • Page 120: Troubleshooting

    Section  - Troubleshooting Troubleshooting This chapter provides solutions to problems that can occur during the installation and operation of the DAP-1350. Read the following descriptions if you are having problems. (The examples below are illustrated in Windows XP. If you have ®...
  • Page 121 • Close your web browser (if open) and open it. • Access the web management. Open your web browser and enter the IP address of your D-Link access point in the address bar. This should open the login page for your the web management.
  • Page 122 ® ® and press Enter (or click OK). • Once the window opens, you’ll need to do a special ping. Use the following syntax: ping [url] [-f] [-l] [MTU value] Example: ping yahoo.com -f -l 1472 D-Link DAP-1350 User Manual...
  • Page 123 • To change the MTU enter the number in the MTU field and click Save Settings to save your settings. • Test your email. If changing the MTU does not resolve the problem, continue changing the MTU in increments of ten. D-Link DAP-1350 User Manual...

  • Page 124: Wireless Basics

    Strictly adhering to the IEEE standard, the D-Link wireless family of products will allow you to securely access the data you want, when and where you want it. You will be able to enjoy the freedom that wireless networking delivers.

  • Page 125: What Is Wireless

    D-Link is the worldwide leader and award winning designer, developer, and manufacturer of networking products. D-Link delivers the performance you need at a price you can afford. D-Link has all the products you need to build your network. How does wireless work? Wireless works similar to how cordless phone work, through radio signals to transmit data from one point A to point B.
  • Page 126 Who uses wireless? Wireless technology has become so popular in recent years that almost everyone is using it, whether it’s for home, office, business, D-Link has a wireless solution for it. Home • Gives everyone at home broadband access •...

  • Page 127: Tips

    The wireless connection in public places is usually called “hotspots”. Using a D-Link Cardbus Adapter with your laptop, you can access the hotspot to connect to Internet from remote locations like: Airports, Hotels, Coffee Shops, Libraries, Restaurants, and Convention Centers.

  • Page 128: Wireless Modes

    An Infrastructure network contains an Access Point or wireless bridge. All the wireless devices, or clients, will connect to the wireless bridge or access point. An Ad-Hoc network contains only clients, such as laptops with wireless cardbus adapters. All the adapters must be in Ad-Hoc mode to communicate. D-Link DAP-1350 User Manual...

  • Page 129: Networking Basics

    Check your IP address After you install your new D-Link adapter, by default, the TCP/IP settings should be set to obtain an IP address from a DHCP server (i.e. wireless router) automatically. To verify your IP address, please follow the steps below.

  • Page 130: Statically Assign An Ip Address

    2000 - From the desktop, right-click My Network Places > Properties. ® Step 2 Right-click on the Local Area Connection which represents your D-Link network adapter and select Properties. Step 3 Highlight Internet Protocol (TCP/IP) and click Properties. Step 4 Click Use the following IP address and enter an IP address that is on the same subnet as your network or the LAN IP address on your router.

  • Page 131: Technical Specifications

    Maximum wireless signal rate derived from IEEE Standard 802.11g and Draft 802.11n specifications. Actual data throughput will vary. Network conditions and environmental factors, including volume of network traffic, building materials and construction, and network overhead, lower actual data throughput rate. Environmental conditions will adversely affect wireless signal range. Range varies depending on country’s regulation. D-Link DAP-1350 User Manual...

  • Page 132: Contacting Technical Support

    • Hardware Revision (located on the label on the bottom of the access point (e.g. rev A1)) • Serial Number (s/n number located on the label on the bottom of the access point). You can find software updates and user documentation on the D-Link website as well as frequently asked questions and answers to technical issues.

  • Page 133: Warranty

    Any repair or replacement will be rendered by D-Link at an Authorized D-Link Service Office. The replacement hardware need not be new or have an identical make, model or part. D-Link may, at its option, replace the defective Hardware or any part thereof with any reconditioned product that D-Link reasonably determines is substantially equivalent (or superior) in all material respects to the defective Hardware.
  • Page 134 Warranty Period and is subject to the same limitations and exclusions. If a material non-conformance is incapable of correction, or if D-Link determines in its sole discretion that it is not practical to replace the non-conforming Software, the price paid by the original licensee for the non-conforming Software will be refunded by D-Link;...
  • Page 135 • The customer is responsible for all in-bound shipping charges to D-Link. No Cash on Delivery (“COD”) is allowed. Products sent COD will either be rejected by D-Link or become the property of D-Link. Products shall be fully insured by the customer and shipped to D-Link Systems, Inc., 17595 Mt.

  • Page 136: Limitation Of Liability

    RESULTING FROM THE USE OF THE PRODUCT, RELATING TO WARRANTY SERVICE, OR ARISING OUT OF ANY BREACH OF THIS LIMITED WARRANTY, EVEN IF D-LINK HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES. THE SOLE REMEDY FOR A BREACH OF THE FOREGOING LIMITED WARRANTY IS REPAIR, REPLACEMENT OR REFUND OF THE DEFECTIVE OR NONCONFORMING PRODUCT.

  • Page 137: Federal Communication Commission Interference Statement

    This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator & your body. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. D-Link DAP-1350 User Manual...

  • Page 138: Industry Canada Statement

    The firmware setting is not accessible by the end user. For detailed warranty information applicable to products purchased outside the United States, please contact the corresponding local D-Link office. D-Link DAP-1350 User Manual...

  • Page 139: Registration

    Appendix F - Registration Registration Product registration is entirely voluntary and failure to complete or return this form will not diminish your warranty rights. Version 1.0 November 3, 2009 D-Link DAP-1350 User Manual...

Table of Contents
