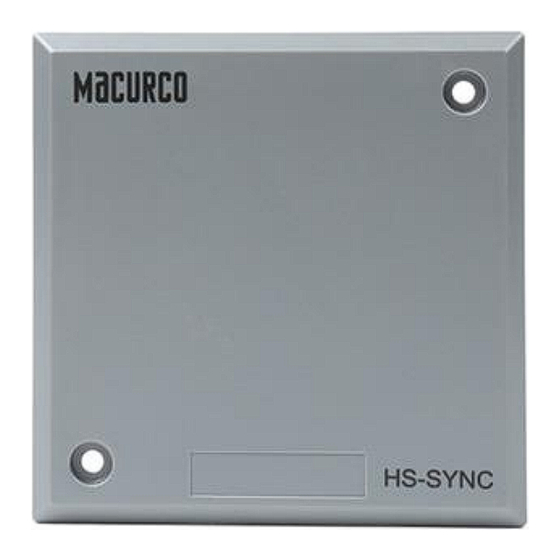

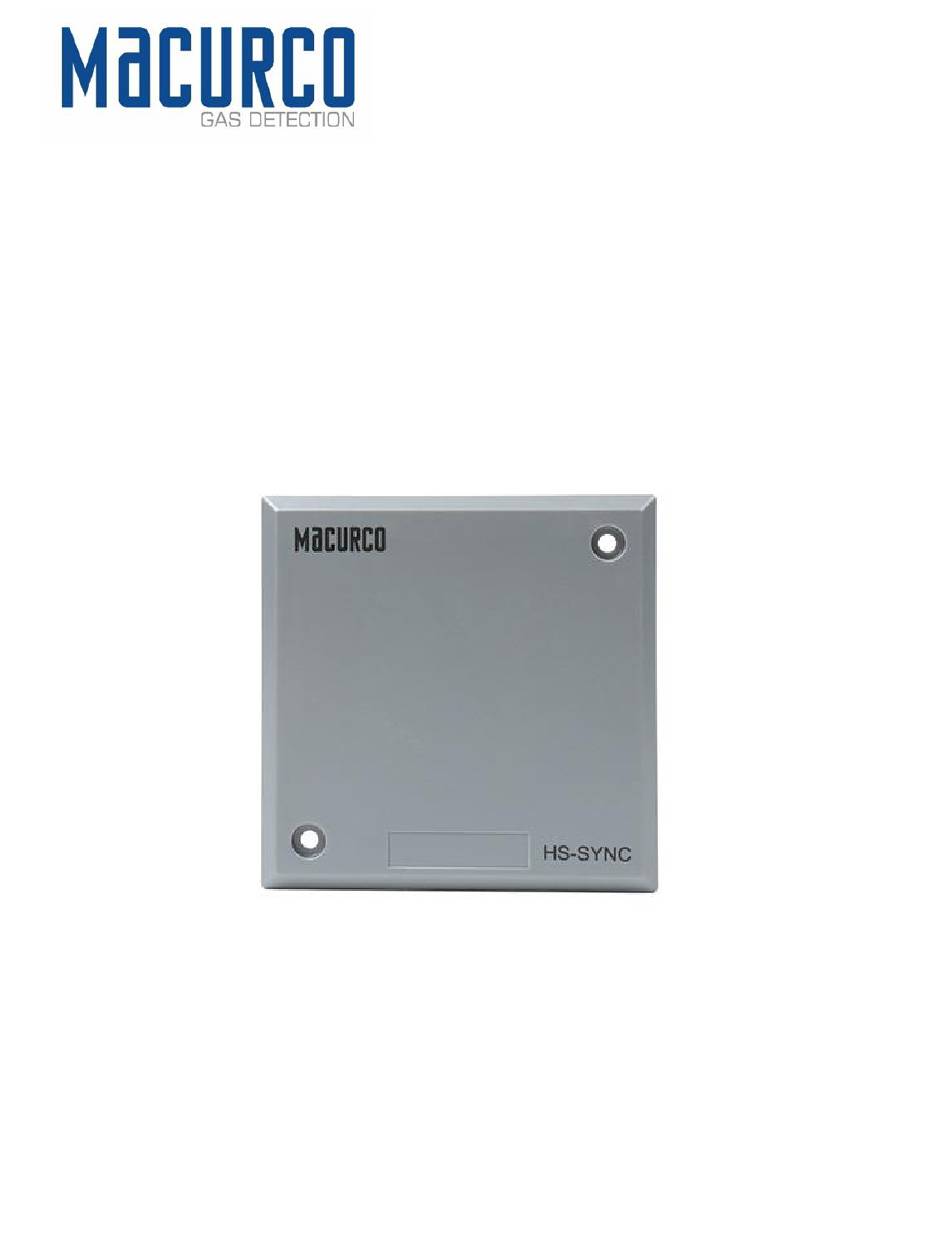

- Page 1 Macurco™ HS-Sync Horn & Strobe Synchronization Module User Instructions IMPORTANT: Keep these user instructions for reference.
- Page 2 Use Instructions and Limitations ........................3 Features ................................4 Specifications ..............................4 Installation Instructions ..........................4 Compatible Notification appliances .......................5 Macurco Gas Detection Product limited warranty..................6 Technical Support Contact Information ......................... 6 General Contact Information ............................6 REV – 1.0 34-1221-4120-2 P a g e...
-
Page 3: General Safety Information
The following instructions are intended to serve as a guideline for the use of the Macurco HS-Sync Synchronization Module. This manual will refer to this device as HS-Sync. This manual is not to be considered all-inclusive, nor is it intended to replace the policy and procedures for your facility. If you have any doubts about the applicability of the equipment to your situation, consult a FPE or your local AHJ or call Technical Support at 1-844-325-3050. -
Page 4: Installation Instructions
• Synchronizes Macurco Notification Series • Operating voltage: 16 to 33 VDC • 10 to 93% RH • Compatible with Macurco Control Panels and other 24VDC devices 2.2 Specifications • Size: 4.5” x 4.5” x1” • Weight: 0.5 lbs •... -
Page 5: Compatible Notification Appliances
The Macurco Sync Module provides synchronization for a circuit of compatible notification appliances. See Figure 1. 24VDC power supply External Relay *Comes with HS-Sync Figure 1: Standalone and Grouping with Sync Module 4 Compatible Notification Appliances Model Number Description Maximum Number of Devices... - Page 6 FITNESS FOR PARTICULAR PURPOSE ARE LIMITED TO A PERIOD OF TWO (2) YEARS FROM THE PURCHASE DATE. Macurco shall not be liable for any incidental or consequential damages for breach of this or any other warranty, express or implied, arising out of or related to the use of said device. The manufacturer or its agent’s liability shall be limited to replacement or repair as set forth above.
