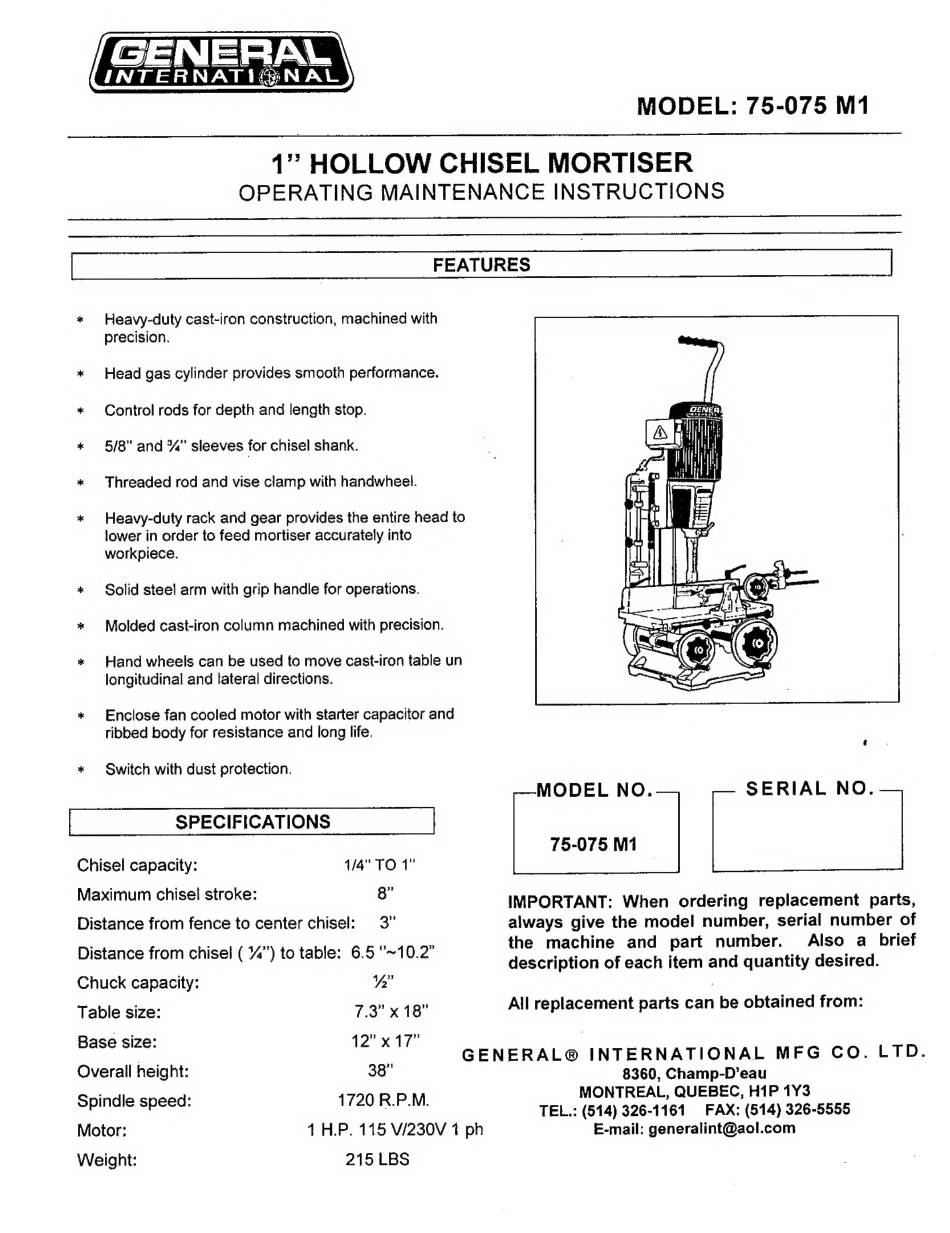

MODEL: 75-075 M1
1" HOLLOW CHISEL MORTISER
OPERATING MAINTENANCE INSTRUCTIONS
*
Heavy-duty cast-iron construction, machined with
precision.
*
Head gas cylinder provides smooth performance.
*
Control rods for depth and length stop.
*
5/8" and %" sleeves for chisel shank.
*
Threaded rod and vise clamp with handwheel.
*
Heavy-duty rack and gear provides the entire head to
lower in order to feed mortiser accurately into
workpiece.
*
Solid steel arm with grip handle for operations.
*
Molded cast-iron column machined with precision.
x
Hand wheels can be used to move cast-iron table un
longitudinal and lateral directions.
*
Enclose fan cooled motor with starter capacitor and
ribbed body for resistance and long life.
*
Switch with dust protection.
SPECIFICATIONS
Chisel capacity:
1/47 TO 1"
Maximum chisel stroke:
8"
Distance from fence to center chisel:
3"
Distance from chisel ( %4") to table: 6.5 °~10.2"
Chuck capacity:
s"
Table size:
7.3" x 18"
Base size:
12" x17"
Overall height:
38"
Spindle speed:
1720 R.P.M.
Motor:
1 H.P. 115 V/230V 1 ph
Weight:
215 LBS
MODEL
NO.
SERIAL
NO.
75-075 M1
All replacement parts can be obtained from:
8360, Champ-D'eau
MONTREAL, QUEBEC, H1P 1Y3
TEL.: (514) 326-1161
FAX: (514) 326-5555
E-mail: generalint@aol.com
