Residential pendent lead free sprinkler k4.9
Hide thumbs

Advertisement

Table of Contents

Telephone: 269-945-9501 Technical Services: 877-384-5464 Fax: 269-818-1680 Email: techsvcs@vikingcorp.com
Visit the Viking website for the latest edition of this technical data page: www.vikinggroupinc.com

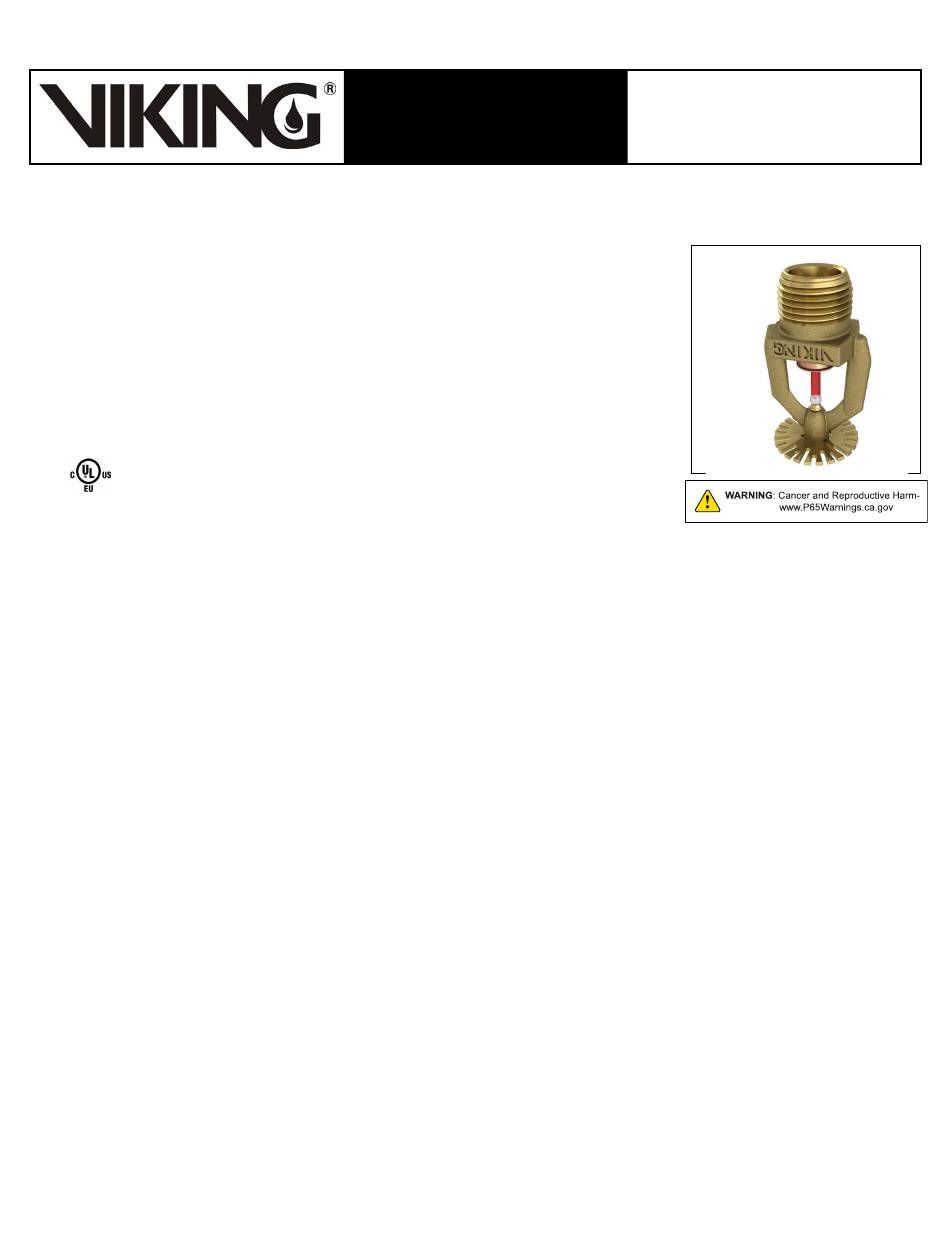

1. DESCRIPTION
Viking Freedom
Residential Pendent Lead Free* Sprinkler VK4680 is a small, thermo-
®
sensitive, glass-bulb residential sprinkler available in several different finishes and tem-
perature ratings to meet varying design requirements. The orifice design, with a K-Factor
of 4.9 (70.6 metric
), allows efficient use of available water supplies for the hydraulically
†
designed fire-protection system. The glass bulb operating element and special deflector
characteristics meet the challenges of residential sprinkler standards.
* Lead content complies with the definition of 'Lead Free' established in the Reduction of Lead in
Drinking Water Act (S.3874) endorsed by AWWA's Water Utility Council, and California Assembly
Bill #1953.
2. LISTINGS AND APPROVALS
UL Listed (cULusEU): Category VKKW
UL Classified to: NSF/ANSI/CAN Standard 61, Drinking Water System
Components and NSF/ANSI 372 (MH48034).
Refer to the Approval Chart and Design Criteria for C-UL-US-EU Listing require-
ments that must be followed.
3. TECHNICAL DATA
Specifications:
Available since 2011.
Minimum Operating Pressure: Refer to the Approval Chart.
Maximum Working Pressure: 175 psi (12 bar). Factory tested hydrostatically to 500 psi (34.5 bar).
Thread size: 1/2" (15 mm) NPT
Nominal K-Factor: 4.9 U.S. (70.6 metric
† Metric K-factor measurement shown is in Bar. When pressure is measured in kPa, divide the metric K-factor shown by 10.0.
Glass-bulb fluid temperature rated to -65 °F (-55 °C)
Overall Length: 2-1/4" (58 mm)
Material Standards:
Frame Casting: Brass UNS-C89833
Deflector: Phosphor Bronze UNS-C51000
Bulb: Glass, nominal 3 mm diameter
Belleville Spring Sealing Assembly: Nickel Alloy, coated on both sides with PTFE Tape
Pip Cap: Brass UNS-C64200
Compression Screw: Brass UNS-C36000
Ordering Information: (Also refer to the current Viking price list.)
4. INSTALLATION
Refer to appropriate NFPA Installation Standards.
5. OPERATION
During fire conditions, the heat-sensitive liquid in the glass bulb expands, causing the glass to shatter, releasing the pip cap and
sealing spring assembly. Water flowing through the sprinkler orifice strikes the sprinkler deflector, forming a uniform spray pattern
to extinguish or control the fire.
6. INSPECTIONS, TESTS AND MAINTENANCE
Refer to NFPA 25 for Inspection, Testing and Maintenance requirements.
7. AVAILABILITY
The Viking Model VK4680 Sprinkler is available through a network of domestic and international distributors. See The Viking
Corporation web site for the closest distributor or contact The Viking Corporation.
Form No. F_101010
Rev 03
TECHNICAL DATA
The Viking Corporation, 210 N Industrial Park Drive, Hastings MI 49058
)
†
January 2024
FREEDOM
PENDENT LEAD FREE
SPRINKLER VK4680 (K4.9)
Replaces Form No. F_101010 Rev 02
(Removed C23000, UNS-C26000, NYC Approval & MEA.)
Page 1 of 6
RESIDENTIAL
®
