Summary of Contents for LG LDF6920

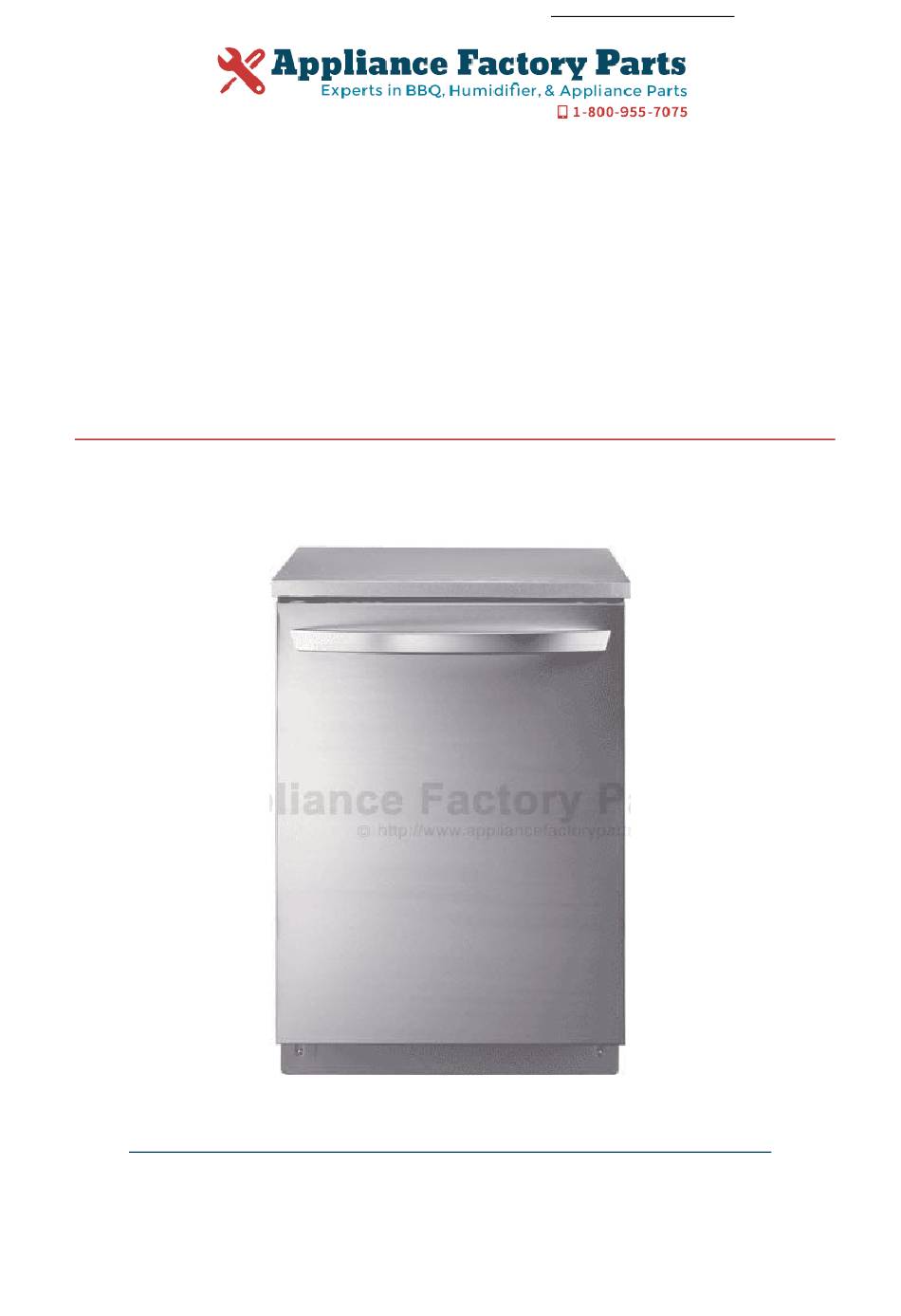

  • Page 1 This Owner's Manual is provided and hosted by Appliance Factory Parts. LG LDF6920WW Owner's Manual Shop genuine replacement parts for LG LDF6920WW Find Your LG Dishwasher Parts - Select From 102 Models -------- Manual continues below --------...
  • Page 2 P/No. : MFL37554803...
  • Page 3 DISHWASHER SERVICE MANUAL NOTE BEFORE SERVICING THE UNIT, PLEASE READ THIS MANUAL CAREFULLY FOR SAFETY AND CORRECT SERVICES. MODEL : LDF6920(WW,BB,ST)

  • Page 4: Table Of Contents

    CONTENTS 1. CAUTION......................... 4 2. SPECIFICATIONS ......................5 3. WIRING DIAGRAM......................6 4. FEATURES & TECHNICAL EXPLANATION ..............7 5. PARTS NAME ........................ 11 6. PROGRAM CHART ..................... 12 7. HOW TO DISASSEMBLE .................... 13 8. TROUBLE SHOOTING METHODS ................21 A.

  • Page 5: Caution

    CAUTION ! DISCONNECT POWER CORD BEFORE SERVICING RECONNECT ALL GROUNDING DEVICES IMPORTANT SAFETY NOTICE ! This service information is intended for individuals possessing adequate backgrounds of electrical, electronic and mechanical experience. Any attempt to repair this appliance may result in personal injury and property damage.

  • Page 6: Specifications

    2. SPECIFICATION SPECIFICATION ITEM Rated Voltage / Frequency AC 120V/60Hz Installation Built-In Place Settings Product Dimension(in) 23 3/4 x 24 5/8 x 33 5/8 ̋ ̋ ̋ Product Weight(lbs) 90lbs Door Color White, Black, Stainless Tub Material Stainless Steel Control Electronic Rated Power(Watt) 1,350...

  • Page 7: Wiring Diagram

    3. WIRING DIAGRAM 6920 serise - 6 -...

  • Page 8: Features & Technical Explanation

    If you raise the Upper Rack, you can load large dishes in the Lower Rack. (Max. 14 in.) The tall tub provides large dishes loading as well as large capacity. LG dishwashers let you load oversized items in the Lower and Upper Rack. Slim Direct Motor ■ ■...
  • Page 9 4-2. Display Panel LDF 6920 Series ■ ■ Control panel may vary on some models. PROGRAM • Press the program that corresponds to your desired wash cycle. INDICATOR • Child lock: Lamp will turn on when Child Lock setting is on. •...
  • Page 10 DELAY START • If you want to delay the start of a selected program, press the Delay Start button. • Each press of Delay Start will delay the start of the cycle by one hour. • The delay start time can be adjusted from 1 to 12 hours in one-hour increment.
  • Page 11 4-3. TEST MODE LDF 6810/6920 Series CHECK PROGRAM The number of Door open/ BUTTON Load and Checking points pushing button Display closed Upper Only + Time Delay + 1 TIME 3H/U2 All LEDs are lighting Both POWER Power Scrub 1 TIME All LEDs are lighting Both Normal...

  • Page 12: Parts Name

    5. PARTS NAME 5-3. LDF 6810 Series � Control Panel � Detergent & Rinse Aid Dispenser � Door Handle � Vapor Vent Cover � Front Cover � Upper Rack � Lower Cover � Cutlery Basket � Leveling Foot � Lower Rack �...

  • Page 13: Program Chart

    6. PROGRAM CHART(SCHEMATIC DIAGRAM) LDF 6920 Series - 12 -...

  • Page 14: How To Disassemble

    7. HOW TO DISASSEMBLE BEFORE DISASSEMBLING THE DISHWASHER ; 1) Remove the cord from electric outlet to avoid electric shock. 2) Close the Water Tap (faucet). 3) Remove all dishes and items in the dishwasher. 4) Remove the Lower Rack and the Upper Rack. 5) Remove the inlet hose and drain hose connetion to avoid the hose damages.

  • Page 15: Door Assembly

    3-1. Door Assembly 1) Front Cover Open the door. Remove 12 screws(stainless). 2) Control Panel Assembly Remove 2 screws(Stainless). Remove the wire connections. Be sure the wiring should not be Control Panel Front Cover changed in reassembling Remove the Latch assembly. Remove the Front Display.
  • Page 16 3) Fan Assembly Gasket Inner Cover Open the door. Detergent Remove 4 screws and a earth screw for Dispenser Fan Assembly Door Bracket. Remove the wire connetions. Remove the Air Duct. Air Duct Turn the Inner Cover counterclockwise. Hose 4) Detergent Dispenser Flange Close the door Remove the wire connections.

  • Page 17: Lower Frame

    4. Lower Frame 1) Press the holder hook as shown in figure. 2) Remove 4 screws. Lower Frame Lead Wire Holer Lead Wire Holer Hook 5. Put the Dishwasher upside down. 6. Drain Hose Holder 1) Press the holder hook as shown in figure. 2) Pull the Drain Hose and remove the Drain Hose Holder.

  • Page 18: Base Cover

    7. Base Cover Base Cover 1) Remove 2 screws. 2) Pull the Base Cover out. Cabinet Base 8. Harness & Hose Assembly 1) Remove the wiring connections. 2) Remove the Hose connections from Sump Assembly. You can see the information of Wiring Diagram at the back of Lower Cover.

  • Page 19: Cabinet Base

    9. Cabinet Base Cabinet Base 1) Remove 8 screws. 2) Lift it upward. 10. Inlet Valve 1) You can disassemble the lnlet Valve by Cabinet Base removing the 2 screws. Inlet Valve 11. Air Braker Assembly 1) Disconnect the 3 hoses assembly. 2) Turn the Air Braker Nut counterclockwise.

  • Page 20: Sump Assembly

    12. Sump Assembly Sump Holder Remove 2 screws. Remove the Sump Holder and push the Sump Assembly down with pulling aside Hook. Be careful not to drop the Sump Assembly to the bottom. Hook Sump Assembly 1) Heater & Drain Motor Pull the Heater out of the Sump after Drain Pump releasing the nut.
  • Page 21 When you reassemble the Sump Assembly, be careful not to kink, tear and take off the seals. 13. Holder Supporter, Tub Packing and Hinge Supporter Assembly. Rotate the screwdriver, after slide it into the gap between Stopper Roller and Rail Roller. You must take off Stopper Roller(F117) by –...

  • Page 22: Trouble Shooting Methods

    8.TROUBLE SHOOTING METHODS A. TROUBLE SHOOTING ACCORDING TO DISPLAYED ERROR MESSAGE POSSIBLE CAUSE ERROR MESSAGE REMEDY FOR ERROR OCCURRENCE Take action on Water Supply The Water Supply Tap is closed. INLET ERROR The Water Supply is shut off. device. The Inlet Hose is kinked. The Water Pressure is very low.
  • Page 23 POSSIBLE CAUSE ERROR MESSAGE REMEDY FOR ERROR OCCURRENCE EXCESS ERROR The Inlet Valve is troubled. Replace the Inlet Valve. The Controller is troubled. Repair or replace the Controller. displayed Condition Excessive water is sup- plied than normal water level.(Automatically drain Pump operated.) THERMAL ERROR The Inlet Water Temperature is...

  • Page 24: Trouble Diagnoses And Repair By Symptom

    B. TROUBLE DIAGNOSES AND REPAIR BY SYMPTOM No Power on when the power button pressed. • Re-connect the Powr connection. The Power connection is correctly connected. • Check the electricity is failed or not. The Fuse or Circuit Breaker • Replace the Fuse or Circuit Breaker of house. of house is O.K? The Power Switch or •...
  • Page 25 The Wash Pump/Motor does not run. • close the Door tightly. The Door is tightly closed? • Check the Door Switch in Latch Handle. • Re-connect the wiring connections related to the The Wiring connections is OK? Washing Motor. The Blade is not locked •...
  • Page 26 Washing Results are not Satisfactory After washing, are there still White deposits or streaks on Reduce the amount of Rinse-Aid the dishes? (for Streak) After washing, are there still food soils on the dishes? Check that : - the amount of detergent Correctly used or not - Filters clogged or not.
  • Page 27 Power Button not automatically off after operation. Check the button is blocked by foreign materials. Check the Power Switch.(Replace it, if necessary.) Check the Controller.(Replace it, if necessary.) - 26 - - 26 -...

  • Page 28: Installation Instruction

    9. INSTALLATION INSTRUCTION Step 1: PREPARE CUPBOARD OPENING 1. This dishwasher is designed to fit a standard dishwasher opening as shown below. 2. Select a location as close to sink as possible for easy connections to water and drain lines. 3.
  • Page 29 Step 2: PREPARE THE ELECTRICAL WIRING WARNING For personal safety, remove house fuse or open circuit breaker before installation. Do not use an extension cord or adapter plug with this dishwasher. Electrical and grounding connections must comply with the national electrical code/provincial and municipal code and/or other local codes.
  • Page 30 Step 3: PREPARE THE WATER SUPPLY CONNECTION 1. This dishwasher may be connected to either hot or cold water. If the water can not be maintained below 149℉ ℉ (65℃), the dishwasher must be connected to cold water. 2. When connecting the dishwasher water line, sealing tape or compound should be used to avoid leaks.
  • Page 31 Step 5: INSTALL THE DISHWASHER IN CUPBOARD 1. Remove the Lower Cover and orient dishwasher as shown below. 2. Before sliding the dishwasher into the cupboard opening, make all necessary height adjustments using the legs. 3. Slide the dishwasher into the cabinet opening carefully. Make sure that the drain hose inside the cabinet is not kinked.

  • Page 32: Step 6: Drain Line Connection

    Step 6: DRAIN LINE CONNECTION 1. If the end of the drain hose does not fit to the drain line, use an adapter (not supplied) that must be resistant to heat and detergent and may be obtained from a plumbing shop. 2.

  • Page 33: Step 7: Water Supply Connection

    Step 7: WATER SUPPLY CONNECTION 1. When connecting, sealing tape or sealing compound should be used to avoid water leaks. 2. Before connecting, turn off the water supply. Inlet Valve 3. After fitting the Elbow into the Elbow Inlet Valve, slide the Flexible Stainless Tube or Copper Tube Water Supply Tube into the Elbow.

  • Page 34: Step 9: Final Checks

    Step 9: FINAL CHECKS 1. Turn electrical power back on at the circuit breaker. 2. Turn house water supply back on. 3. Operate the dishwasher through one cycle (Quick cycle is recommended) to check for water leaks and operating conditions. 4.

  • Page 35: Exploded View

    10. EXPLODED VIEW...
  • Page 36 EXPLODED VIEW F101 E005 E010 F103 F102 F001 M210...
  • Page 37 EXPLODED VIEW - TUB ASSEMBLY M086 F040 F060 F045 F050 F022 M090 F041 F042 F043 F171 F011 F014 F013 F117 F144 F132 F110 F143 F117 M005 M006 F011 F210 F013 - 36 -...
  • Page 38 EXPLODED VIEW - RACK ASSEMBLY F192 F004 A150 F005 A080 A070 A101 A102 A060 A103 A073 A074 A151 A152 A140 A050 F191 A142 A141 A110 - 37 -...
  • Page 39 EXPLODED VIEW - PANEL ASSEMBLY K216 K201 K215 K207 K253 K220 K260 K203 K200...
  • Page 40 EXPLODED VIEW - DOOR ASSEMBLY K110 K121 K124 K002 K005 K010 F174 K030...
  • Page 41 EXPLODED VIEW - SUMP ASSEMBLY M001 M038 M110 M025 M130 M035 M221 M027 M028 M120 M031 M220 M088 M034 M026 M050 M007 M036 M087 M081 M060 - 40 -...

  • Page 42: Replacement Part List

    11. REPLACEMENT PART LIST CAUTION : BEFORE REPLACING ANY OFTHESE COMPONENTS. READ CAREFULLY THE SAFETY PRECAUTIONS IN THIS MANUAL NOTE : S(SAFETY PARTS), AL(ALTERNATIVE PARTS) LG MODEL: D1608(WB,BB,TB) Run_Date : 2008-02-26 YOUR MODEL: LDF6920(WW,BB,ST) SPECIFICATION: 120V 60Hz DESC PART No. COMMENTS *001...
  • Page 43 PART NAME PART No. SPEC&COLOR Q'ty F041 HOSE,INLET 5214DD3001A F042 HOSE,CONNECTOR 5214DD3003A F043 HOSE,CONNECTOR 5214DD3002A F045 COVER,PROTECT 3550DD2001A F050 NUT,COMMON 4020FD3641C F060 GASKET 4986DD3001A F101 PACKING 3920DD3002A F110 RAIL ASSEMBLY 5219DD2002A F117 STOPPER,ROLLER 4620ED3001A F132 PACKING 3920DD3005A TUB PACKING F141 HINGE ASSEMBLY 4775DD2002A DOOR RIGHT...
  • Page 44 PART NAME PART No. SPEC&COLOR Q'ty K215 COVER,GUIDE 3550ED1009B OPTION K216 BUTTON,CONTROL 5020ED3012C PROGRAM OPTION 5020ED3012D 5020ED3012E K220 NAME PLATE,PET 3846ER1001A 3846ER1001B 3846ER1001A K251 PCB ASSEMBLY,MAIN 6871DD1006M K252 PCB ASSEMBLY,DISPLAY 6871DD2001F K253 PCB ASSEMBLY,DISPLAY 6871DD2002D K260 LOCKER ASSEMBLY 4027ED3002A K301 SCREW,CUSTOMIZED 4000FD4268A K302...
  • Page 45 MEMO - 44 -...
  • Page 46 MEMO - 45 -...
  • Page 47 MEMO - 46 -...
