Philips SR Transceiver Installation Instructions

Philips SR Transceiver Installation Instructions

Advertisement

Quick Links

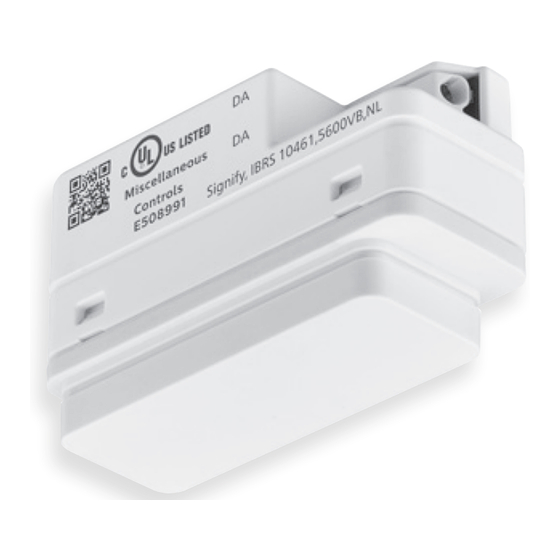

SR Transceiver
SC100B/02
Installation Instructions
Instructions d'installation
Instrucciones de instalación
50.8 mm (2.00 in)
42.8 mm (1.69 in)
1
IR receiver
RF antenna
LED indicator
4422 964 50152
26 August 2024
Istruzioni per l'installazione
Installatie-instructies
18.9 mm
(0.74 in)
4x
r = 2.5 mm (0.10 in)
DA
SC100B/02
DA
Connectors
(non-polarized)
05
TYPE D
Installationsanweisungen
イ ンス トール手順
SR-
SR+
SR driver
max
≤90%
65 °C
kg
min
18.5 g
-40 °C
安装指示书
‫إرشادات التركيب‬
SC100B/02
SR driver
Solid conductor wire
0.25 to 0.75 mm
(AWG 24 to 18)
2
7 to 9 mm
(0.28 to 0.35 in)
Conduct material: Copper
www.philips.com/lighting
