Summary of Contents for Numatic CTB370 NX

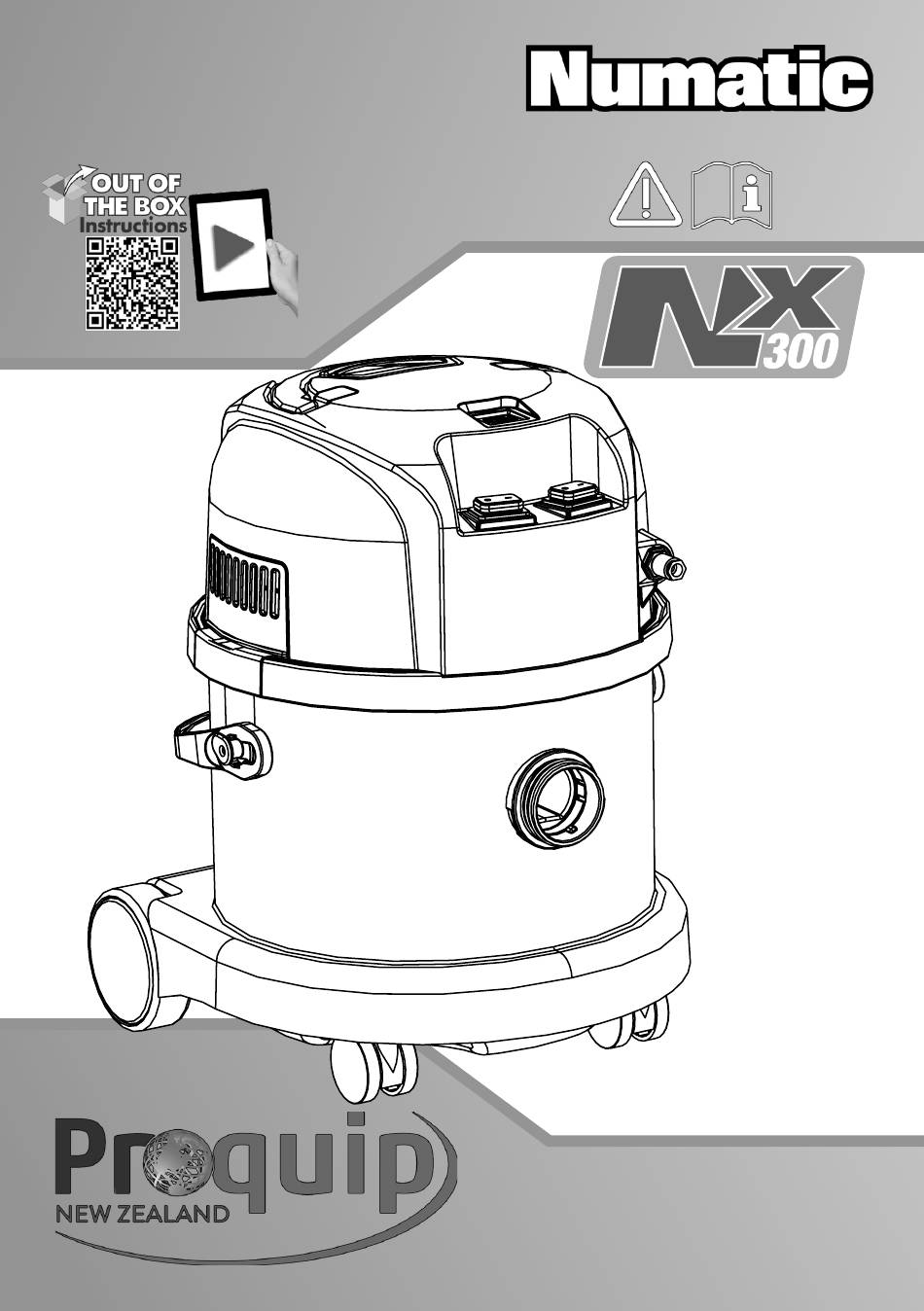

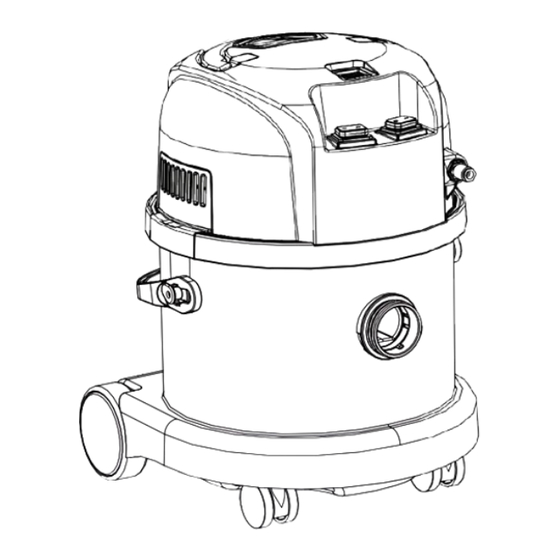

- Page 1 CTB370 NX CTB370 NX numatic.com numatic.com & CTX.170 (X-tract Kit) & CTX.170 (X-tract Kit) Original Instructions Original Instructions CAUTION, CAUTION, Read the Instructions before using the machine. Read the Instructions before using the machine.
-
Page 2: Battery Status
Kit Included NX300 Battery Fitting Battery Status Low Battery Fully charged... -
Page 3: Charging Your Battery
Charging your battery 80% Charge - 1 hour 100% Charge - 2 Hours For information relating to the operation and charging of your battery refer to the battery and charger original operating instructions... - Page 4 Wet / Assembling the machine for extraction use...
- Page 5 Cold Water C MAX) IMPORTANT INFORMATION 1. On startup, the pump must not be allowed to run dry (no water flowing) for more than 30 seconds to avoid damaging the pump. 2. During use, the pump must not be allowed to run dry (no water flowing) to avoid damaging the pump. 3.
- Page 6 X-tract Scrub Brush Setup Scrub brush mode Wet pick-up mode...
- Page 7 Emptying your machine Wand Dock After cleaning the desired area, with the vacuum still running, collapse the wand and dock on the back of the CTB before turning the vacuum motor off.
-
Page 8: Cleaning The Machine
Cleaning the machine... - Page 9 Tool Head Removal / Fitting...
-
Page 10: About Your Machine
Protection Note: A risk assessment should be conducted to determine which PPE should be worn. Failure to rectify the problem or in the event of a breakdown contact your Numatic dealer or the Numatic Technical helpline +44 (0)1460 269268 Daily Keep the machine clean, including hoses and tubes. -
Page 11: Fault Finding
Information for Spray / Extraction Battery Vacuum Cleaners Warning Read the instruction manual before using the machine. Operators shall be adequately instructed on the use of these machines. As with all electrical equipment, care and attention must be exercised at all times during use, in addition to ensuring that routine and preventative maintenance is carried out periodically to ensure safe operation. - Page 12 0086-755-83283710 0044-146-068600 www.numatic.co.uk | www.numatic.de | www.numatic.ch | www.numatic.fr www.numatic.nl | www.numatic.co.za | www.numatic.pt | www.numatic.es | www.numatic-online.dk 1. DEFECTIVE BATTERIES If a customer wishes to return a battery to a supplier, then collection of the battery must be arranged by the supplier; however. Faulty batteries must not be returned through the postal system or by courier.
-
Page 13: Handling And Storage
Do not incinerate the battery – danger of explosion! • Do not use defective or deformed batteries. • Use only original NUMATIC chargers to charge the battery. STORAGE: • Good batteries should be stored in a protected area away from sources of direct heat and sunlight and should be kept dry. -
Page 14: Hazards Identification
• An example of a well protected area with a cage to protect against accidental impact damage and with the batteries stored in a protective container to protect from heat, impact and accidental spillage of liquids. • Care when handling / moving with forklift trucks or pallet trucks is needed at all times to avoid any physical damage to the batteries. -
Page 15: Exposure Controls, Personal Protection
Use and store the battery with-in temperature range (as shown in Temperature Range Table). Warning: The battery included in this product must only be charged by the Numatic Charger and docking system supplied with the product and in NO circumstances should an alternative non Numatic charger be used as there is risk severe damage and fi... -
Page 16: Charging Batteries
Check the mains cord regularly for any sign of damage. • Do not use damaged devices. • If the mains cord of the charger is damaged, it must be replaced by an original NUMATIC INTERNATIONAL cord available from the manufacturer or service agent. -
Page 17: Warranty
Serial number of the machine ii. Battery date code iii. Date purchased iv. Proof of Purchase v. Maintenance history and charging regime Failure to use the correct Numatic charger will void your warranty. Schematic diagram PCB ASSEMBLY DISPLAY SWITCH... -
Page 18: Machine Data
Machine Data CTB370-NX & X-tract Data Run Time Water Flow Rate Motor Power Charge Time (Vac + Pump) (Pump Only) 80% = 1 Hour 400W 38Min 1.1L/min 100% = 2 Hours Water Flow Rate Max Airflow Max Pressure Max Pressure (in Product (Motor Only) (Motor Only) - Page 19 Notes:...
- Page 20 Numatic International Limited (Head Offi ce) Chard, Somerset TA20 2GB, UNITED KINGDOM Tel: 01460 68600 numatic.com Numatic International GmbH Fränkische Straße 15-19, 30455 Hannover, DEUTSCHLAND Tel: +49 (0) 511 984 2160 numatic.de Numatic International Denmark Fränkische Straße 15-19, 30455 Hannover, DEUTSCHLAND Tel: +45 (0) 316 40808 numatic-online.dk...
