INSTALLATION AND USER MANUAL
A
C
DEO
ONTROL
S
G
ERVER
ATEWAY
for Control4 integrations
V4
Firmware version: 1.0.34
December 2023
Ad eo C o nt ro l i s a b ra nd o f Ad eo G ro u p s.r .l .
Adeo Control SGDD-C4-4
Manual
SGDD-C4-4
DMX & DALI2
Rev. 5
1 / 21
Advertisement
Table of Contents
Related Manuals for ADEO CONTROL SGDD-C4-4
Summary of Contents for ADEO CONTROL SGDD-C4-4
- Page 1 Adeo Control SGDD-C4-4 Adeo Group s.r.l. Via della Zarga n. 50 - 38015 LAVIS (TN) Manual Tel: +39 0461 248211 - Fax: +39 0461 245038 Mail: info@adeogroup.it – www.adeogroup.it Rev. 5 SGDD-C4-4 ONTROL DMX & DALI2 ERVER ATEWAY for Control4 integrations INSTALLATION AND USER MANUAL Firmware version: 1.0.34...
-
Page 2: Table Of Contents
Adeo Control SGDD-C4-4 Adeo Group s.r.l. Via della Zarga n. 50 - 38015 LAVIS (TN) Manual Tel: +39 0461 248211 - Fax: +39 0461 245038 Mail: info@adeogroup.it – www.adeogroup.it Rev. 5 Summary Relese Note ............................ 3 Application ............................4 Technical Notes ..........................5 Characteristics .......................... -
Page 3: Relese Note
Adeo Control SGDD-C4-4 Adeo Group s.r.l. Via della Zarga n. 50 - 38015 LAVIS (TN) Manual Tel: +39 0461 248211 - Fax: +39 0461 245038 Mail: info@adeogroup.it – www.adeogroup.it Rev. 5 1. Relese Note Dashboard version Firmware version TCP/IP stack version 0.0.81... -
Page 4: Application

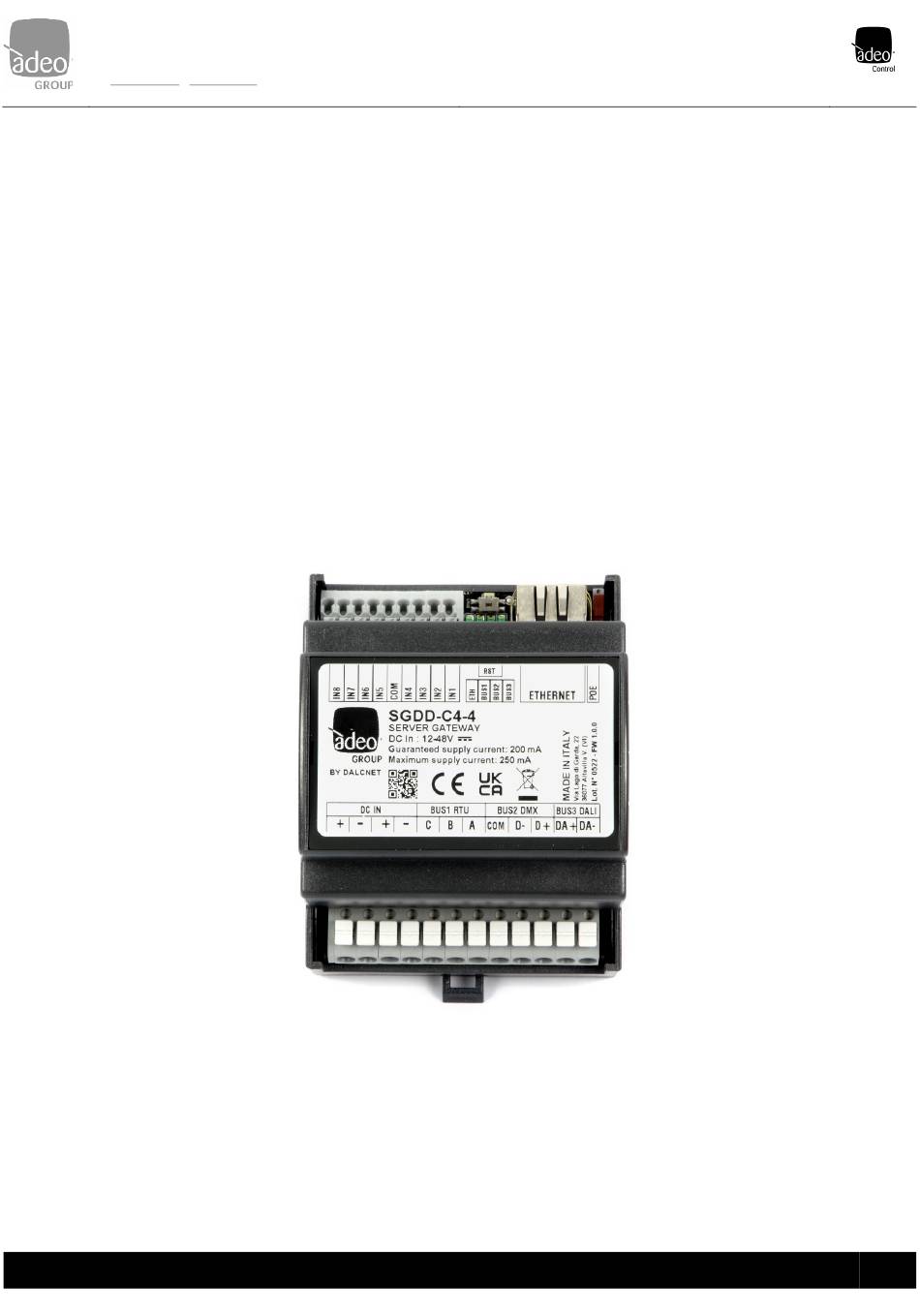

2. Application The new Adeo Server Gateway SGDD-C4-4 is a multi-output device that operates at the network level and allows data packets to be routed to fieldbus communication systems such as DMX512A and DALI to provide advanced lighting control. Once the IP address is assigned on the Composer Pro, the SGDD-C4-4, through specific drivers, is able to manage the individual channel or RGB through DMX or DALI. -
Page 5: Technical Notes
Adeo Control SGDD-C4-4 Adeo Group s.r.l. Via della Zarga n. 50 - 38015 LAVIS (TN) Manual Tel: +39 0461 248211 - Fax: +39 0461 245038 Mail: info@adeogroup.it – www.adeogroup.it Rev. 5 3. Technical Notes Installation: •Installation and maintenance must only be carried out by qualified personnel in accordance with the regulations in force. -
Page 6: Characteristics
L’SGDD-C4-4 provides commands for the DT6 control gears, compatible with IEC 62386-207 L’SGDD-C4-4 provides commands for the DT8 control gears, compatible to IEC 62386-208 (colour type Tc, colour type RGBWAF) Ad eo C o nt ro l i s a b ra nd o f Ad eo G ro u p s.r .l . -
Page 7: Connections
POWER OVER PASSIVE ETHERNET (POE) The device is also capable of operating on PoE power. The SGDD-C4-4 is a passive PD (Passive Power Device) that is powered without negotiation or communication processes from a PoE switch. To enable this power supply, simply move the PoE selector upwards. -
Page 8: Status Led
Adeo Control SGDD-C4-4 Adeo Group s.r.l. Via della Zarga n. 50 - 38015 LAVIS (TN) Manual Tel: +39 0461 248211 - Fax: +39 0461 245038 Mail: info@adeogroup.it – www.adeogroup.it Rev. 5 7. Status LED LED1(left) LED2 LED3 LED4(right) Function Ethernet... -
Page 9: Web Server (Ethernet)
Adeo Control SGDD-C4-4 Adeo Group s.r.l. Via della Zarga n. 50 - 38015 LAVIS (TN) Manual Tel: +39 0461 248211 - Fax: +39 0461 245038 Mail: info@adeogroup.it – www.adeogroup.it Rev. 5 9. Web Server (Ethernet) 1. Access your operating system browser (Google Chrome recommended) and access the local gateway address after connecting the Ethernet cable to the local network. -
Page 10: Configuration Menu
Adeo Control SGDD-C4-4 Adeo Group s.r.l. Via della Zarga n. 50 - 38015 LAVIS (TN) Manual Tel: +39 0461 248211 - Fax: +39 0461 245038 Mail: info@adeogroup.it – www.adeogroup.it Rev. 5 10. Configuration menu Channels: complete list of channels with relative control (not visible if in DALI CONFIG mode) -
Page 11: Channells
Adeo Control SGDD-C4-4 Adeo Group s.r.l. Via della Zarga n. 50 - 38015 LAVIS (TN) Manual Tel: +39 0461 248211 - Fax: +39 0461 245038 Mail: info@adeogroup.it – www.adeogroup.it Rev. 5 11. Channells The gateway has a WebApp to supervise and set up all available channels by choosing from the Channels pop-up menu, which can be used from any recent device with a compatible browser (see below). -
Page 12: Bus Configuration
Adeo Control SGDD-C4-4 Adeo Group s.r.l. Via della Zarga n. 50 - 38015 LAVIS (TN) Manual Tel: +39 0461 248211 - Fax: +39 0461 245038 Mail: info@adeogroup.it – www.adeogroup.it Rev. 5 12. Bus Configuration Bus 1 and 2 are related to the first and second RS-485 ports. -
Page 13: Dali Global Settings
Adeo Control SGDD-C4-4 Adeo Group s.r.l. Via della Zarga n. 50 - 38015 LAVIS (TN) Manual Tel: +39 0461 248211 - Fax: +39 0461 245038 Mail: info@adeogroup.it – www.adeogroup.it Rev. 5 13. DALI global settings Only in Dali config mode is it possible to change the parameters to be sent to the BUS DALI,... -
Page 14: Dali Config
Adeo Control SGDD-C4-4 Adeo Group s.r.l. Via della Zarga n. 50 - 38015 LAVIS (TN) Manual Tel: +39 0461 248211 - Fax: +39 0461 245038 Mail: info@adeogroup.it – www.adeogroup.it Rev. 5 14. DALI config After enabling DALI config from the Bus type menu under BUS 3 in Bus configuration, the... - Page 15 Adeo Control SGDD-C4-4 Adeo Group s.r.l. Via della Zarga n. 50 - 38015 LAVIS (TN) Manual Tel: +39 0461 248211 - Fax: +39 0461 245038 Mail: info@adeogroup.it – www.adeogroup.it Rev. 5 Visual identification of addressed devices Change address It is possible to make the...
-
Page 16: Local Inputs Configuration
Adeo Control SGDD-C4-4 Adeo Group s.r.l. Via della Zarga n. 50 - 38015 LAVIS (TN) Manual Tel: +39 0461 248211 - Fax: +39 0461 245038 Mail: info@adeogroup.it – www.adeogroup.it Rev. 5 SETTINGS 16. Local inputs configuration On this page, you can enable or disable the 8 local inputs. By default, local inputs are disabled. -
Page 17: Network
Adeo Control SGDD-C4-4 Adeo Group s.r.l. Via della Zarga n. 50 - 38015 LAVIS (TN) Manual Tel: +39 0461 248211 - Fax: +39 0461 245038 Mail: info@adeogroup.it – www.adeogroup.it Rev. 5 17. Network The gateway uses the Ethernet port via IPv4 protocol. -
Page 18: Telnet
Adeo Control SGDD-C4-4 Adeo Group s.r.l. Via della Zarga n. 50 - 38015 LAVIS (TN) Manual Tel: +39 0461 248211 - Fax: +39 0461 245038 Mail: info@adeogroup.it – www.adeogroup.it Rev. 5 19. Telnet The gateway has a Telnet server that can receive and/or transmit a DMX512A/DALI/MODBUS RTU universe from/to other devices via TCP protocol, in our case to the Control4 driver. -
Page 19: Firmware Update
Adeo Control SGDD-C4-4 Adeo Group s.r.l. Via della Zarga n. 50 - 38015 LAVIS (TN) Manual Tel: +39 0461 248211 - Fax: +39 0461 245038 Mail: info@adeogroup.it – www.adeogroup.it Rev. 5 21. Firmware update The firmware update is not automatic and can only be carried out if you are in possession of the *.upf file provided through the Adeo Group's channels. -
Page 20: Log
Adeo Control SGDD-C4-4 Adeo Group s.r.l. Via della Zarga n. 50 - 38015 LAVIS (TN) Manual Tel: +39 0461 248211 - Fax: +39 0461 245038 Mail: info@adeogroup.it – www.adeogroup.it Rev. 5 DIAGNOSTIC 22. Log Technical support can be provided remotely through the DIAGNOSTIC web page in the LOG section. -
Page 21: Best Practice
C4-4 TW DT8 Driver DMX, recommended even if implausible. The addressing will take away two channels associated with 2 Adeo Control SGDD-C4-4 Single Dim-Light Driver. In this case we have 512 channels available. We recommend the use of the ADEO CONTROL 4CH-LED-DIMMER-DMX.
