Humboldt H-1336D Product Manual

Marshall mechanical compactors

Download this manual

product manual

07.24

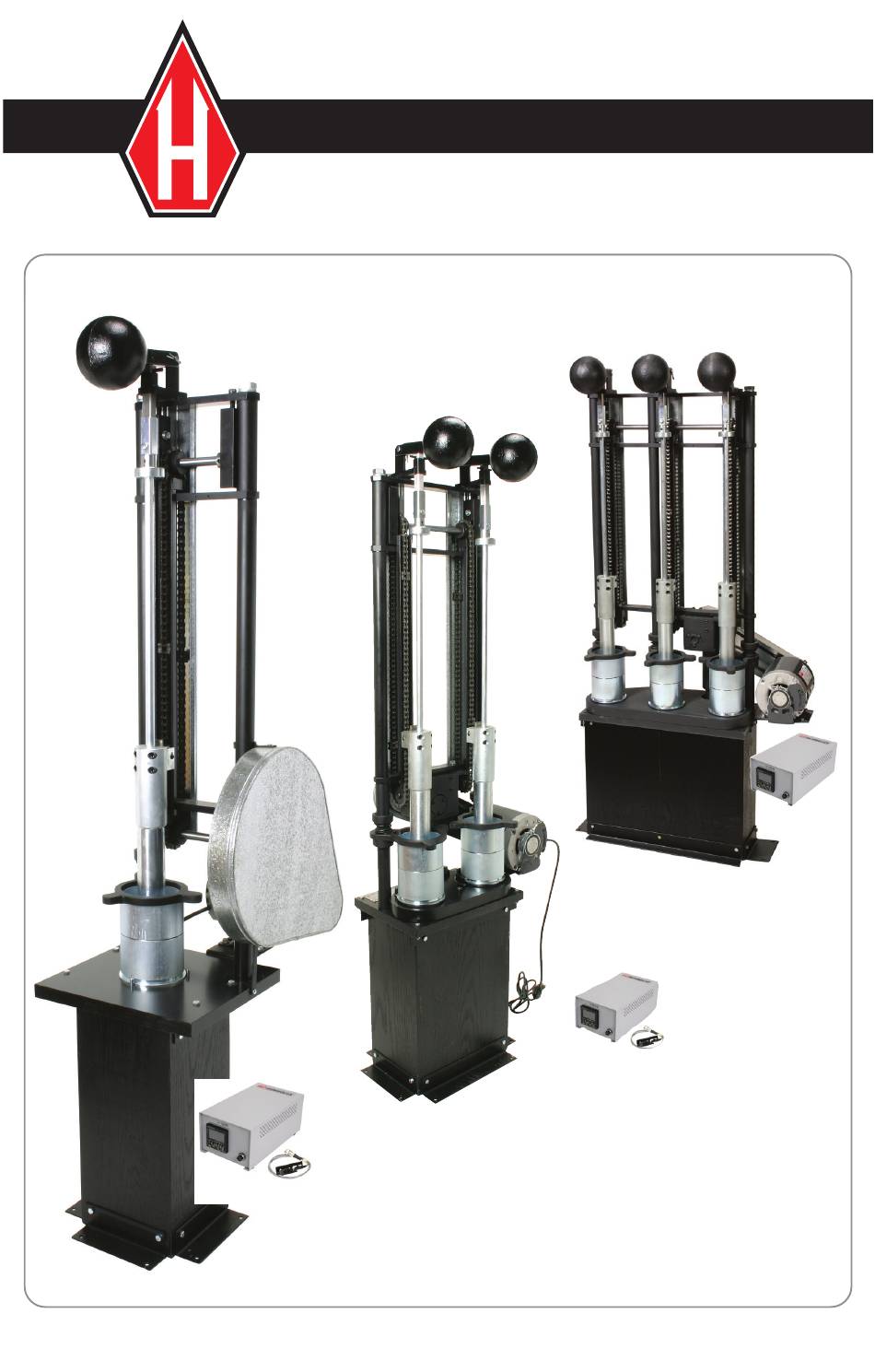

H-1336D, H-1346D & H-1356D

Marshall

Mechanical

Compactors

Need help?

Do you have a question about the H-1336D and is the answer not in the manual?

Page 1 07.24 H-1336D, H-1346D & H-1356D Marshall Mechanical Compactors...
Page 2: Cleaning And Lubrication
It is recommended to have additional mold and hammer assemblies for your compactor for ease of use. Hammers are available in three configurations: the standard H-1338A, a 4" flat foot used in the H-1336D with the stationary mold; H-1338B, a 4" tapered-foot hammer for use with the H-1346D and H-1356D rotating molds and, H-1338C, a 4"...
Page 3: Approved Lubricants
Remove master link from new chain. Assemble chain on H-1336D compactor with open ends at rear. Put master link above the roller and pin (see drawing H-1336D). Tighten chain tension as you would on a bicycle, by lifting adjustment blocks, tighten screws.
Page 4 H-1336D...
Page 5 H-1346D...
Page 6 H-1356D...
Page 7 Hammer Replacement Parts Description Model Clevis pin with screw H-1338.29 Locator guide H-1338.25 Hex head bolt H-1338.25.1 Washer H-1338.25.2 H-1338.29 H-1338.40 H-1338.25.3 H-1338.40.1 Spacer H-1338.25.4 H-1338.28 H-1338.40A Hammer handle H-1338.26 Complete lift catch Spring pin H-1338.26.1 assembly H-1338.30 H-1338.28.1 Hammer rod H-1338.27 H-1338.27.1 H-1338.31...
Page 8 Warranty Humboldt Mfg. Co. warrants its products to be free from defects in material or workmanship. The exclusive remedy for this warranty is Humboldt Mfg. Co., factory replacement of any part or parts of such product, for the warranty of this product please refer to Humboldt Mfg. Co. catalog on Terms and Conditions of Sale.

H-1346dH-1356d
