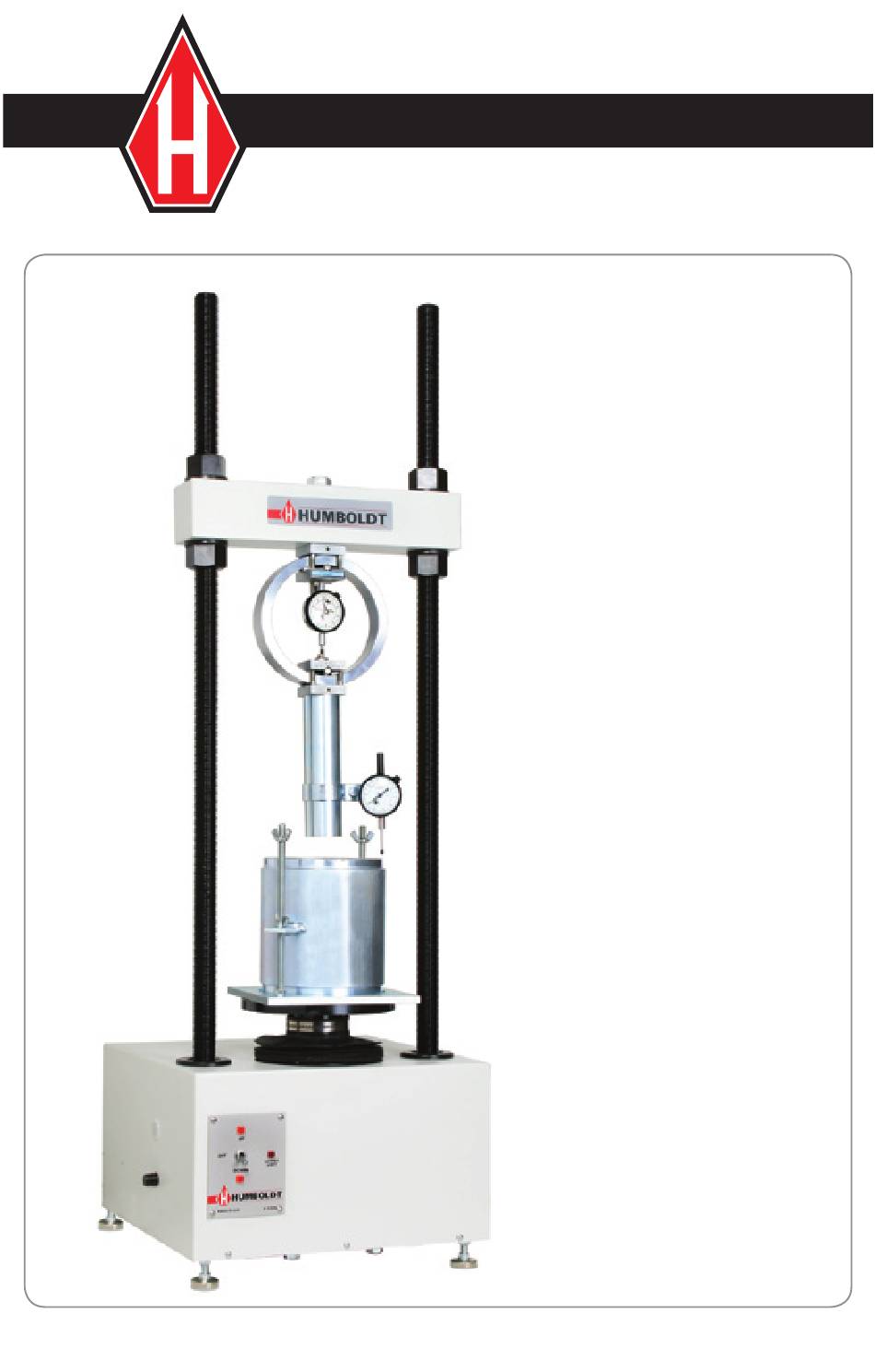

- Page 1 09.08 H-4156M CBR-Specific Load Frame...
- Page 2 this is a blank page corrector...
- Page 3 BS 1377: Part 4 Standard of .04" (1.00mm) per minute. When operated at 60Hz, the H-4156M.4F complies with the ASTM D1883 Standard; and, when operated at 50Hz it complies with the BS 1377: Part 4 Standard. The H-4156M.4F also includes the following items:...
- Page 4 Notify Humboldt Mfg. Co. or your local agent and file a claim with any carriers involved if you find any damage to the machine. Unpack all of the equipment carefully to prevent loss of small items or manuals.
- Page 5 The Marshall Compression and Testing Machine is rated at 10,000lbf (or 50kN). Penetration Measurement Can be measured with the H-4178 Penetration Piston and Stud and the H-4158.1 Dial Indicator, which is mounted to the penetration piston by H-4178BR Dial Indicator Bracket. These items are included with your H-4156M CBR-Specific Load Frame.
- Page 6 Load Ring Calibration Your H-4454.100 was calibrated before leaving the factory. Periodically you should have it re-calibrated. Humboldt provides calibration services for these load rings, please contact us at: 1.800.544.7220, 1.708.456.6300, 1.708.456.0137 fax or hmc@humboldtmfg.com. Maintenance The machine and transducers should be kept clean and the machine should not be over lubricated.
- Page 7 WFO4 3/4" flat washer SHH04 3/4-16 x 3 1/2" Hex Head Bolt H-1339.6 H-4454.100 Load Ring H-4178 Penetration Piston and Stud H-4178BR Dial Indicator H-4158.1 Bracket Dial Indicator 1.000" x .001" H-1339.18 Platen H-1339.14 Threaded H-1339.17 Bellows H-1339.4 Leveling Foot...
- Page 8 Warranty Humboldt Mfg. Co. warrants its products to be free from defects in material or workmanship. The exclusive remedy for this warranty is Humboldt Mfg. Co., factory replacement of any part or parts of such product, for the warranty of this product please refer to Humboldt Mfg.
