Summary of Contents for Humboldt H-4219T
- Page 1 H-4219T H-4219QC product manual 07.24 Dual-Mass, Dynamic Cone Penetrometer...
-
Page 3: Table Of Contents
Below Bound Layers or Pavement Pavement with Thin Seals Data Recording and Tablulation DM-DCP Data Form Tabulated Correlation of CBR Data Correlations Example Excel Template Excel Template Instructions Maintenance DM-DCP Overview H-4219T Parts List H-4219QC Parts List Dual-Mass DCP Accessories... -
Page 4: Quick Start Guide
To begin assembly of the DM-DCP, attach the Drive Rod, which should already have the Upper Scale Guide attached to it, to the Upper Drive Rod. In the case of the H-4219T this would involve screwing the two items together us- ing the wrenches provided. -
Page 5: Dm-Dcp Parts Drawing (Figure #1)
Handle Dual-Mass Hammer Upper Drive Rod Quick-Connect End or Threaded End Upper Scale Guide Scale Drive Rod Scale Guide Foot Hard-Tip Cone Figure #1... -
Page 6: Pre-Test Check
To replace it, order H-4219.5.1 Test Methods Because Humboldt’s DM-DCPs utilize a mounted distance scale, they can be operated by a single person or they can be operated by the traditional two person method. -
Page 7: Two-Person Method
Holding the DM-DCP in a vertical position, raise the hammer until it touchs, but does not impact, the handle. From this po- sition let the hammer free-fall so it impacts the anvil/coupler assembly. Care should be exercised when raising the ham- mer to ensure that the hammer is touching the bottom of the handle but not lifting the cone before it is allowed to drop. -
Page 8: Penetration
of the handle but not lifting the cone before it is allowed to drop. The hammer must be allowed to fall freely with its downward movement not influenced by any hand move- ment. The operator should also be careful not to exert any downward force on the handle after dropping the hammer. -
Page 9: Rejection
ber of tests that can be run per day. It also helps to greatly reduce user fatigue, as well as excess wear and tear on the DM-DCP Slide Hammer Assembly. Rejection Rejection occurs when the DM-DCP can not be advanced into the soil or that advancement has slowed to a negligible amount. -
Page 10: Below Bound Layers Or Pavement
6'. When using extension rods it is suggested that you purchase the 12" Drive Road (H-4219T.12 or H-4219QC.12). This allows you to work with the extensions without needing a ladder to begin testing with each added extension rod. In use, you would replace the original drive rod with the 12"... -
Page 11: Data Recording And Tablulation
A form like the one shown in Figure #3 on the next page, is very helpful for recording test data. A copy of this sheet can be downloaded from the Humboldt website: https://www.humboldtmfg.com/manuals/collectionsheet.pdf Figure #2 shows this form with test data. -
Page 12: Dm-Dcp Data Form
Project: Date: Location: Soil Type(s): Personnel: Weather: Raw Test Data DCP Index Penetration Cumulative Penetration Hammer # of Moisture Penetration Increase per Blow/ Blow CBR % Blows (mm) Factor (mm) Figure #3 DM-DCP Data Form Available from our website: https://www.humboldtmfg.com/manuals/collectionsheet.pdf... -
Page 13: Tabulated Correlation Of Cbr
DCP Index DCP Index CBR % CBR % mm/blow mm/blow <3 53-54 56-57 59-60 61-62 10-11 63-64 65-66 67-68 69-71 72-74 75-77 78-80 18-19 81-83 20-21 84-87 22-23 88-91 24-26 92-96 27-29 97-101 30-34 102-107 35-38 108-114 115-121 122-130 131-140 141-152 153-166 166-183... -
Page 14: Data Correlations
Data Correlations An estimate of the CBR value can be determined using the DCP index (column 4 on the DM-DCP Data Form on page 11/12 of this manual) and the Tabulated Correlation of CBR versus DCP Index, Figure #4 on page 13 of this manual. -
Page 15: Excel Template Instructions
Excel Template Instructions dcp-cbr-Spreadsheet-Template.xlsm 1. Open the file in Microsoft Excel version 5 or later 2. Click on cell C4 and type the Project Name, then hit enter key. 3. Enter a Test Location Name in cell C5, then hit enter key. 4. Enter the data Day-Month-Year in cell G4, then hit enter key. 5. Choose a Soil Type by Clicking on the soil type CH, CL, or All other soils. If the soil type is not known, choose All other soils and describe the soil in cell G5. 6. Choose a Hammer Type, select either 10.1 lb, or the Both hammers used for 17.6 lb. 7. Type in test data in cells A13-55 and B13-55. Also, if cells C13-55 are blank, enter 1 when using the 17.6 lb (8kg) hammer or 2 when using the 10.1 lb (4.6kg) hammer. 8. CBR vs Depth will plot automatically. 9. Save button can be used to save the test data. When the file is saved, the name is printed on the data sheet below ADCP TEST DATA@ 10. D ELETE button will delete current DCP test data and prepare the spreadsheet for entering new test data. PROJECT, LOCATION, DATA, SOIL, TYPE, and HAM- MER information will have to be updated. 11. PRINT will print the DCP data sheet including the CBR vs Depth graph and profile drawing. -
Page 16: Maintenance
Maintenance Normal usage of your DM-DCP results in wear of the metal parts that make up the device. In order to ensure maximum service life, periodic inspections of the DM-DCP for fatigue or damage should be done. Any parts found to be fatigued or damaged should be replaced. -
Page 17: Dm-Dcp Overview
430 to 10,800 psf. They are typically used to asses materials at depths up to 30" (750mm), but can use extensions to extend that range to 6ft. (2m). All Humboldt DM-DCPs comply with ASTM D6951 specifications and come with a chart to compute CBR values. - Page 18 Humboldt’s DM-DCPs are known for their high-quality manufactur- ing and reliability, and, are available with either threaded connections or with a quick-connect design. Both Humboldt DM-DCPs feature our exclusive easy-grip hammer that provides a finger grip machined into the back side of the hammer flange, which provides easy, non-slip lift- ing when performing a test.
-
Page 19: H-4219T Parts List
Humboldt, Dual-Mass Dynamic Cone Penetrometers H-4219QC — Quick-Connect Version Pelican case Includes a hard-cone tip and a disposable cone Adapter Quick-Connect Ends Dual-Mass, Dynamic Cone Penetrometer with Threaded Connectors ASTM D6951 DCP w/ Quick-Connect Connectors H-4219QC Ship wt. 65lbs. (29.5kg) Included with the H-4219QC DCP:... -
Page 20: H-4219Qc Parts List

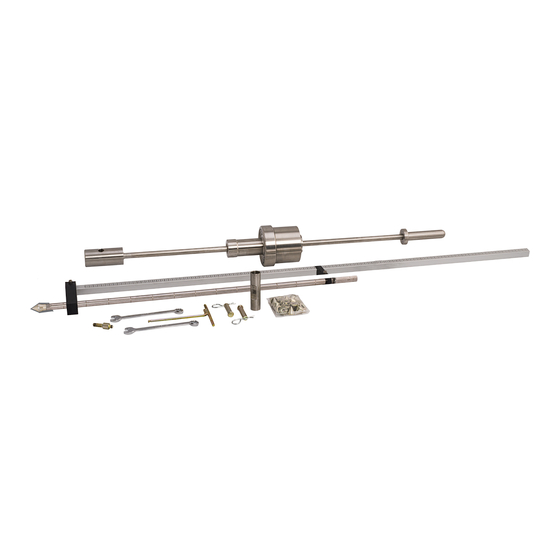

Threaded Ends cone Adapter Dual-Mass, Dynamic Cone Penetrometer with Threaded Connectors ASTM D6951 DCP w/ Threaded Connectors H-4219T Ship wt. 65lbs. (29.5kg) Included with the H-4219T DCP: Description Model Dual-Mass DCP Hammer, H-4219T.1 Threaded Connection Drive Rod, Threaded, 37.75" H-4219T.2 (959mm) Disposable Cone Adapter H-4219.5... -
Page 21: Dual-Mass Dcp Accessories
Dual-Mass DCP Accessories H-4219QC.12 H-4219T.12 H-4219.8 H-4219.100 Accessories Model Drive Rod, 12-inch H-4219T.12 Threaded Drive Rod, 12-inch H-4219QC.12 Quick-Connect Extension Rod, 24-inch, Threaded (For use with H-4219.8 both Quick-Connect and Threaded models) Disposable Cones (100 pk.) H-4219.100... - Page 24 The Humboldt Mfg. Co. liability under the warranty contained in this clause is limited to the repair or replacement of defective goods and making good, defective workmanship.
