Humboldt H-4215 Product Manual

Rapid soil processor

Download this manual

product manual

07.24

H-4215

Rapid Soil Processor

Need help?

Do you have a question about the H-4215 and is the answer not in the manual?

Page 1 07.24 H-4215 Rapid Soil Processor...

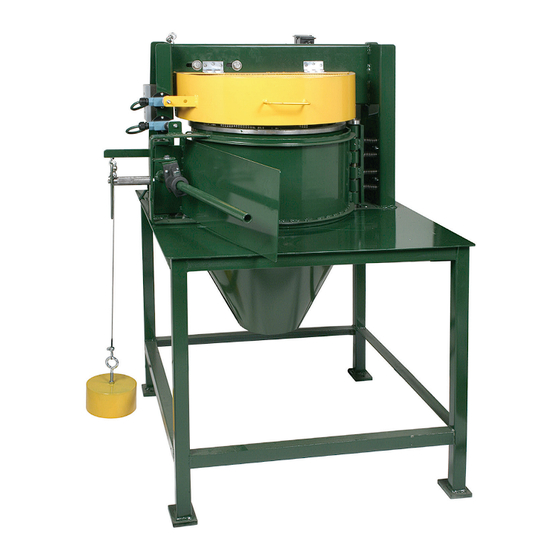

Page 3 Introduction Compact all-metal soil processor allows customer to produce five-point moisture density relationship test results in about 5 hours. Processor also handles samples for rapid compaction of a family of curves test. Processes up to 30 lbs. of lean-to-fat and tough clays at field moisture in fewer than 15 minutes.
Page 4 The Weight on the Pressure Plate Arm has been pre-determined and should be sufficient to move material into the screen. Operating Instructions Be sure that the Automatic Kill Switch (H-4215.50) is properly set before starting the machine. Detach weight from the Pressure Plate Arm (H-4215.3.4).
Page 5 Unit Cleaning Release Pressure Plate (H-4215.3 and H-4215.3.12), and bring to open position; by lifting out the Pressure Plate (H-4215.3.4), the machine will open, exposing the inside of the Pressure Plate, Plate Guide, Screen and Table Top. The Cleaning Attachment on the back side, will help clean the Screen by letting the machine run a short time while it is empty.
Page 6 H-4215 Parts...
Page 7 H-4215 Additional Parts...
Page 8 Warranty Humboldt Mfg. Co. warrants its products to be free from defects in material or workmanship. The exclusive remedy for this warranty is Humboldt Mfg. Co., factory replacement of any part or parts of such product, for the warranty of this product please refer to Humboldt Mfg.
