ESTENSIONE CAVALLETTO LATERALE - SIDE STAND EXTENSION - FUSSVERBREITERUNGEN FÜR SEITENSTÄNDER
N°
Descrizione

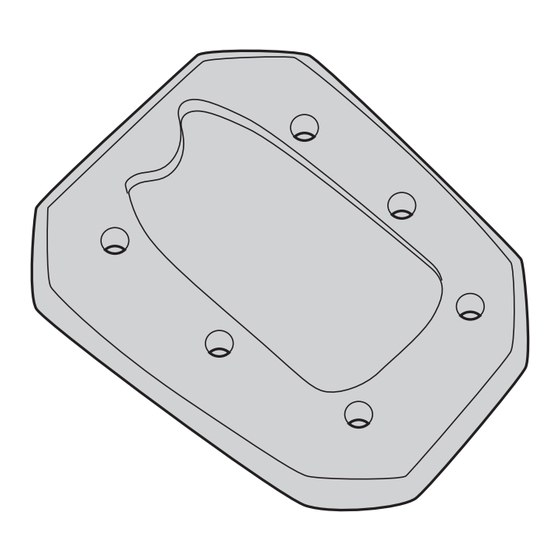

Supporto inferiore - Lower support - Support inférieur -
1
Soporte inferior - Untere Halterung - Suporte inferior
Supporto superiore - Support higher - Support supérieur
2
Halterung höher - Soporte superior - Apoio superior
Vite - Screw
3
Vis - Schraube
Tornillo - Parafuso
1
©Copyright 4/08/2021LF-Rev00
ES2159 - ES2159K
ZIJSTANDAARD EXTENSIE - EXTENSIÓN DEL CABALLETE LATERAL - EXTENSÃO DO CAVALETE LATERAL
YAMAHA TRACER 9
2
3
ISTRUZIONI DI MONTAGGIO - MOUNTING INSTRUCTIONS
INSTRUCTIONS DE MONTAGE - BAUANLEITUNG
INSTRUCCIONES DE MONTAJE - INSTRUÇÕES DE MONTAGEM
(2021)
Caratteristiche
Alluminio Sp.8mm
Inox Sp.2mm
510TBFTIX
Codice
GL4907AG
GL4908SM
M5x10 INOX
T 25
Quantità
1
1
6
1/2
