Midland G15 Instruction Manual
Uhf portable radio
Hide thumbs
Also See for G15:
- Instruction manual (94 pages) ,
- Owner's manual (20 pages) ,
- Instruction manual (82 pages)
Subscribe to Our Youtube Channel
Related Manuals for Midland G15
Summary of Contents for Midland G15

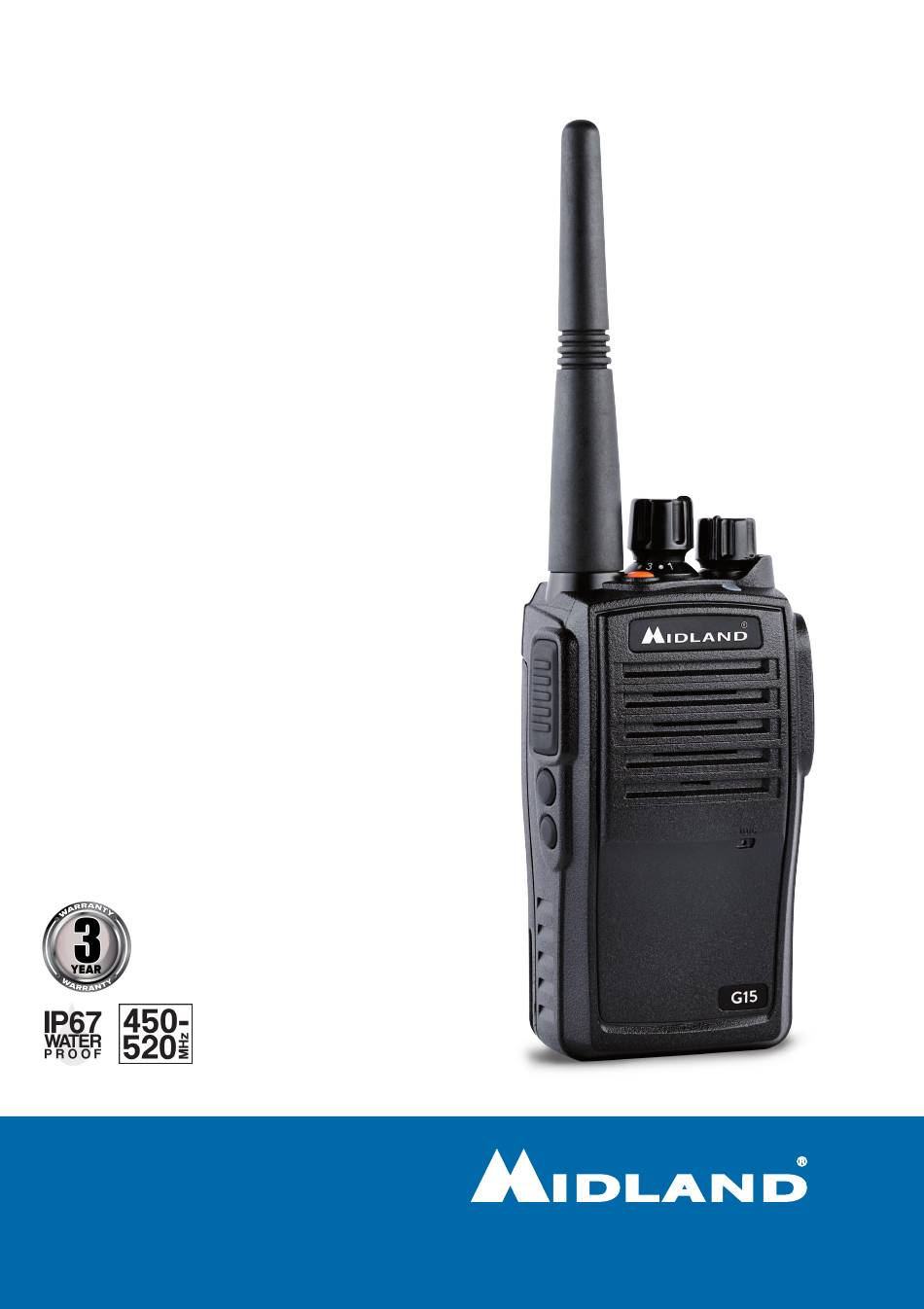

- Page 1 ” Instruction Manual U H F P O R T A B L E R A D I O | 16 Programmable Channels. Waterproof. 5W Power. 6/16...
-
Page 2: Table Of Contents
Content Main characteristics Coverage and Range Main controls and parts of the radio Operations Power on/off and volume adjustment Transmission Monitor/Scan Squelch Battery recharge Roger Beep (End transmission tone) Keypad Beep Maintenance Technical specifications 9-10 Troubleshooting Midland G15 instruction guide... -
Page 3: Programming Software (Optional)
Thanks for choosing Midland! G15 is a portable transceiver that has many uses in hospitality, recreation and most workplace situations. Midland G15 is a 16 channel, programmable UHF transceiver. Combining the latest technology in radio communication along with a sturdy mechanical frame, G15 is the ideal and effective solution for the... -
Page 4: Main Controls And Parts Of The Radio
10. Function key 2: Long press: SCAN function activation 11. External Speaker/Mic Jack- allows the connection with external devices such as headsets, microphones. Note: Dust cover must be securely fitted to maintain the radio's waterproof rating. Midland G15 instruction guide... -
Page 5: Operations
Squelch permanently ope- ned. Press briefly the Function key 1 to enable such function. Scan This function is enabled by pushing Function key 2 for 3 seconds; The LED will alternately blink green. Midland G15 instruction guide... -
Page 6: Squelch
If no functions are selected, scan will start after 5 seconds. If you press the PTT, the radio will transmit on the latest busy channel. After 10 seconds from releasing the PTT, G15 will return to the default channel and scanning will be active again. -
Page 7: Roger Beep (End Transmission Tone)
With the programming software you can enable/disable the VOX feature and select the sensitivity levels. Maintenance Your G15 is designed to fulfill any statutory warranty obligations and to provide many years of service. As is true for all electronic devices, we recommend following these few... - Page 8 • If it appears that the Radio emits a peculiar smell or smoke, please shut off its power immediately and remove the charger or battery from the Radio. Do not transmit without an antenna. • Midland G15 instruction guide...
-
Page 9: Technical Specifications
• BC-G15 - Replacement Belt Clip • AC Adaptor • PB-G15 - Replacement Battery Pack • Instruction Manual • CA-G15 - Desktop Charger Cradle • AC-G15 - AC Adaptor to Suit Charger Cradle Specifications subject to change without notice. Midland G15 instruction guide... -
Page 10: Troubleshooting
Move to another area. communicate are communicating with other parties. with. Check that the CTCSS tone or DCS code cor- Incorrect CTCSS or DCS. responds to the one set by the parties you are communicating with. Midland G15 instruction guide... - Page 11 The radio has been installed too close to Increase the distance equipment that causes between the radio and interference (televi- this equipment. sions, computers, etc.) 10 | Midland G15 instruction guide...
- Page 12 www.audioxtra.com.au www.midlandeurope.com/en...
