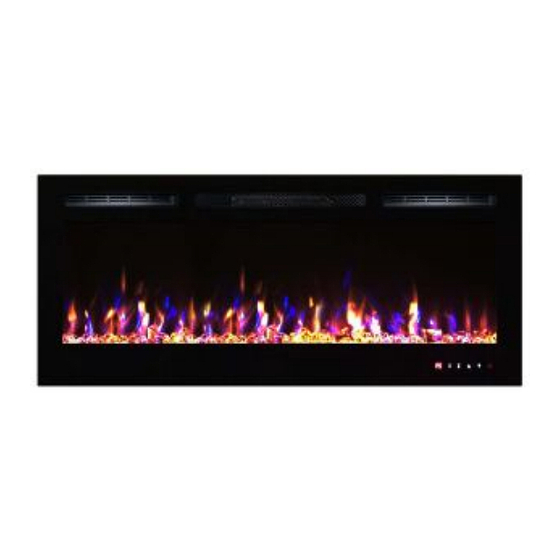

Led wall mounted or built-in electric fireplace
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
ELECTRIC FLAT PANEL FIREPLACE HEATER
Model# :
BG-36B
BG-45B
BG-50B
BG-55B
BG-60B
BG-72B
BG-100B
OWNER'S MANUAL
36"/45"/50"/55"/60"/72"/100"
LED Wall Mounted Or Built-in Electric Fireplace
AC 220-240V 50Hz
1400-1600W
Read and understand this entire owner's manual, including all safety
information, before plugging in or using this product. Failure to do so could
WARNING
result in fire, electric shock, or serious personal injury.
Keep this owner's manual for future reference. If you sell or give this product
CAUTION
away, make sure this manual accompanies this product.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the BG-36B and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Noble Flame BG-36B

Summary of Contents for Noble Flame BG-36B

  • Page 1 ELECTRIC FLAT PANEL FIREPLACE HEATER Model# : BG-36B BG-45B BG-50B BG-55B BG-60B BG-72B BG-100B OWNER’S MANUAL 36"/45"/50"/55"/60"/72"/100" LED Wall Mounted Or Built-in Electric Fireplace AC 220-240V 50Hz 1400-1600W Read and understand this entire owner’s manual, including all safety information, before plugging in or using this product. Failure to do so could WARNING result in fire, electric shock, or serious personal injury.

  • Page 2: Important Safety Information

    IMPORTANT SAFETY INFORMATION! WARNING  Read all instructions before using this heater!  This heater is hot when in use. To avoid burns, DO NOT let bare skin touch hot surfaces. If provided, use handles when moving this heater. Keep combustible materials, such as furniture, pillows, bedding, papers, clothes, and curtains at least 3 feet (0.9m) from the front of the heater, and keep them away from the sides and rear.
  • Page 3  For residential use only! NOT for commercial use! Any commercial or public use of this heater voids all warranties, and could cause injury.  This product is not intended to be a primary heat source. It is for supplemental heat only. ...

  • Page 4: Parts And Hardware

    Preparation This product includes a GLASS panel! Always use extreme caution when handling glass. Failure to do so could result in personal injury or property damage. Remove all parts and hardware from the carton and place them on a clean, soft, dry surface. Parts and assembly steps are grouped for free-standing or wall-hanging use.

  • Page 5: Installation And Assembly

    Product Dimension(mm) Insert Dimension(mm) Flame view Dimension(mm) Model Number BG-36B 824.5 520.6 BG-45B 1143 1013 520.6 BG-50B 1280 1190 520.6 1150 BG-55B 1397 1190 520.6 1150 BG-60B 1524 1190 520.6 1150 BG-72B 1828 1737.5 520.6 1697 BG-100B 2540 2448.5 520.6...
  • Page 6 Hole Size ( A ) ( B ) STEP A. Selection a dry wall to open a hole for fireplace box. Size of hole as below chart Figure ( A ) Model Number BG-36B 32” 20.75” BG-45B 40” 20.75” BG-50B 47”...
  • Page 7 ( C ) STEP C. Take off the two screws in both sides of the glass panel. Figure ( C ) STEP D. Have two person to take the glass panel out of the fireplace box. Place it to a soft and clean place.

  • Page 8: Wall Mounted Installation

    F. Check the appliance for stability ensuring that the bracket will not pull free from the wall. BG-36B / BG-45B / BG-50B / BG-60B Wall Bracket Illustrated...
  • Page 9 Log set / Crystal / Pebble Ember Installation (NOTE:Please make the installation according to the embers which you bought or selected.) Glass front must be removed and the appliance must be mounted in its final location before the log set / crystal / pebble embers are installed. If your fireplace come with log set, remove the log set from the package, put it to the fireplace designed place.

  • Page 10: Operation

    Operation Read and understand this entire owner’s manual, including all safety information, before plugging in or using this product. Failure to do so could result in electric shock, fire, serious injury, or death. Power Make sure the ON/OFF switch, located on the left side panel, is in the OFF position. Plug the power cord into a 220~240 Volt 15 Amp grounded outlet (see IMPORTANT SAFETY INFORMATION on Pages 2 and 3).
  • Page 11 FLAME button: Makes flame effect 1. Press once. Flame brightness effect gets dimmer and brighter. changing. NOTE: Flame effect stays on until power 2. Press again. until desired setting is button is turned off. Flame effect must be FLAME reached. on for heater to turn on.

  • Page 12: Care And Maintenance

     Instructions for battery installation are on the Remote Control battery compartment. NEVER dispose of batteries in fire. Failure to observe this precaution may result in an explosion. Dispose of batteries at your local hazardous material processing center. Care and Maintenance Cleaning ALWAYS turn the heater OFF and unplug the power cord from the outlet before cleaning, performing maintenance, or moving this fireplace.

  • Page 13: Troubleshooting

    Troubleshooting WARNING DISCONNECT THE APPLIANCE COMPLETELY AND LET COOL PRIOR TO ANY SERVICE. ONLY A QUALIFIED SERVICE PERSON SHOULD SERVICE AND REPAIR THIS ELECTRIC APPLIANCE. Problem Possible Cause Solution 1. Reset switch by turning 1. Fireplace turns off 1. Fireplace has overheated main power switch off and safety device has and will not turn on.
  • Page 14 1. Turn unit off and unplug unit 7. Heater does not 1. Thermal switch has been for 10 minutes. Plug back in provide heat when tripped. turned on. and turn unit on. If plug cannot be reached, follow directions for tripped circuit breaker.
