Specifications - Icom IC-M80 Owner's Manual

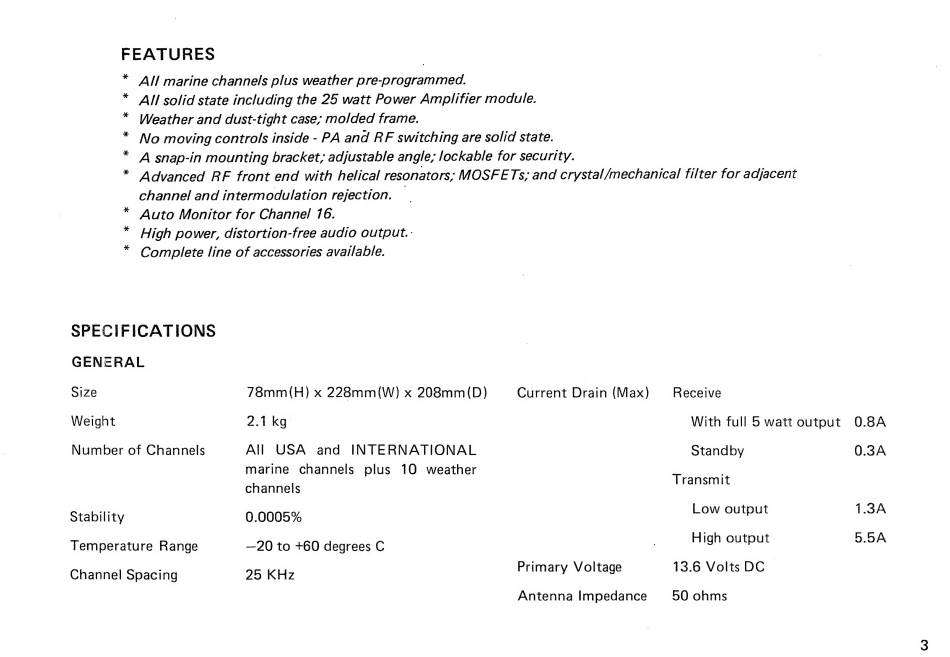

FEATURES
All marine channels plus weather pre-programmed.
All solid state including the 25 watt Power Amplifier module.
Weather and dust-tight case; molded frame.
No moving controls inside - PA and RF switching are solid state.
A snap-in mounting bracket; adjustable angle; lockable for security.
channel and intermodulation rejection.
Auto Monitor for Channel 16.
High power, distortion-free audio output.
Complete line of accessories available.
SPECIFICATIONS
GENERAL
Size 78mm(H) x 228mm(W) x 208mm(D) Current Drain (Max)
Weight 2.1 kg
Number of Channels All USA and INTERNATIONAL
marine channels plus 10 weather
channels
Stability 0.0005%
Temperature Range —20 to +60 degrees C
Channel Spacing 25 KHz Primary Voltage
Antenna Impedance
Receive
With full 5 watt output 0.8A
Standby
Transmit
Low output
High output
13.6 Volts DC
50 ohms
О.ЗА
1.ЗА
5.5A
