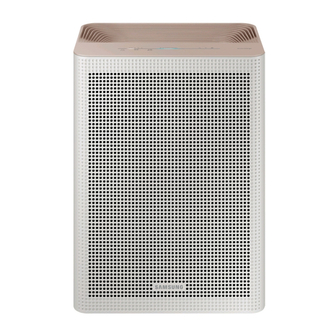

Samsung AX033B310GBD Service Manual
  1. Manuals
  2. Brands
  3. Samsung Manuals
  4. Air Cleaner
  5. AX033B310GBD
  6. Service manual

Samsung AX033B310GBD Service Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

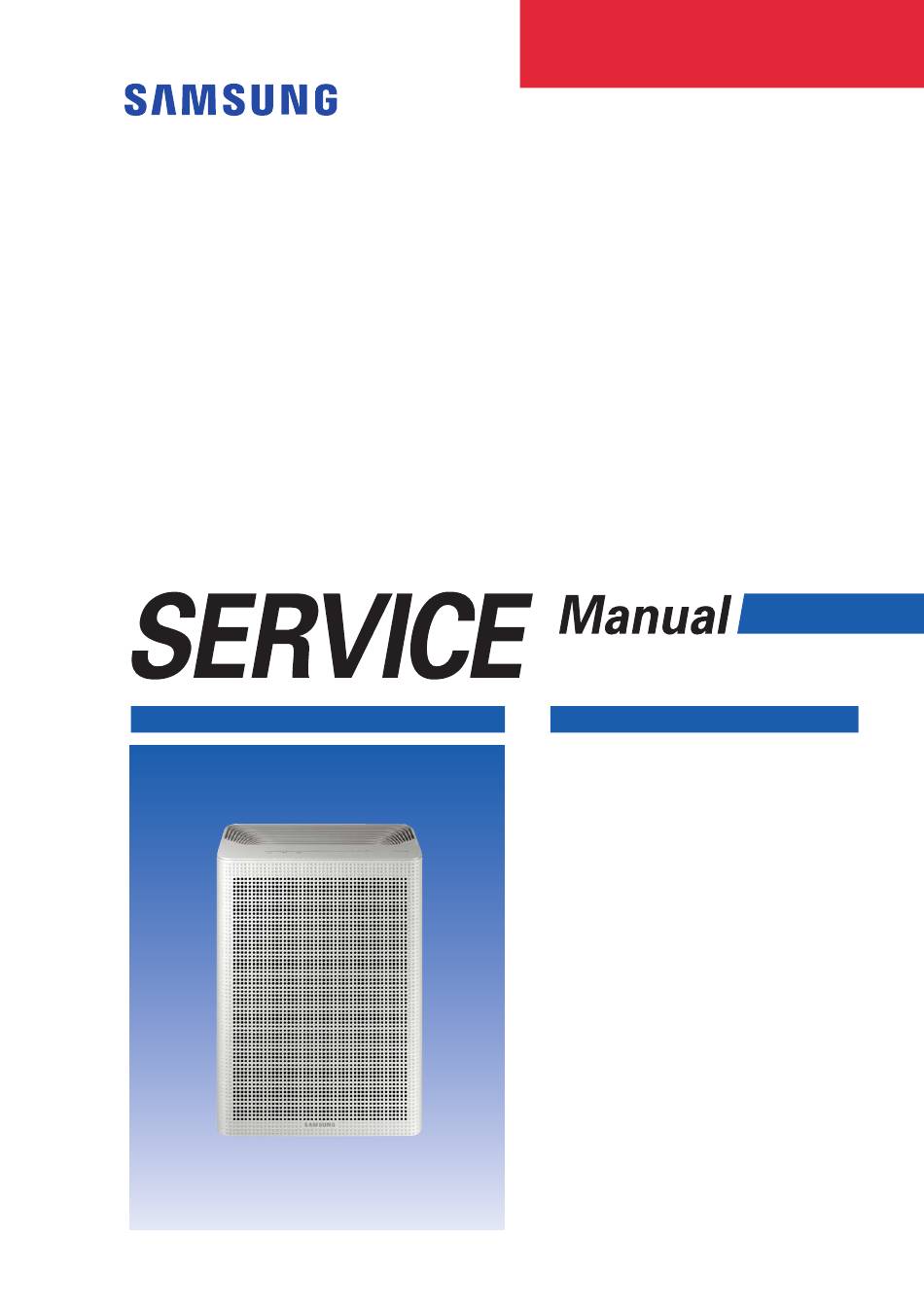

AIR PURIFIER
Air Purifier
Basic
: AX033B310GBD
Model : AX32BG3100GBSV
AX32BG3100GBNA
AX32BG3100GGNA
AX32BG3100GGEU
AX26BG3100GGAA
AX32BG3100GBST
AX32BG3100GBTC
AX32BG3100GBME
AX32BG3100GBSA
AX32BG3100GGZS
AX32BG3100GBSG
AX32BG3100GGSA
AX32BG3100GWSA
CONTENTS
1. Precautions
2. Product Specifications
3. Disassembly and Reassembly
4. Troubleshooting
5. PCB Diagram and Parts List
6. Wiring Diagram
7. Reference Sheet

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AX033B310GBD and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Samsung AX033B310GBD

Summary of Contents for Samsung AX033B310GBD

  • Page 1 Air Purifier Basic : AX033B310GBD Model : AX32BG3100GBSV AX32BG3100GBNA AX32BG3100GGNA AX32BG3100GGEU AX26BG3100GGAA AX32BG3100GBST AX32BG3100GBTC AX32BG3100GBME AX32BG3100GBSA AX32BG3100GGZS AX32BG3100GBSG AX32BG3100GGSA AX32BG3100GWSA AIR PURIFIER CONTENTS 1. Precautions 2. Product Specifications 3. Disassembly and Reassembly 4. Troubleshooting 5. PCB Diagram and Parts List 6.

  • Page 2: Table Of Contents

    CONTENTS 1. Precautions ......................... 1-1 1-1. Precautions for the Service ........................ 1-1 1-2. Precautions related to static electricity and PL ................1-1 1-3. Precautions related to product safety ....................1-1 1-4. Other precautions ..........................1-1 2. Product Specifications ...................... 2-1 2-1.

  • Page 3: Precautions

    1. Precautions 1-1. Precautions for the Service • Repair the connection of harness solidly during maintenance. - Abnormal noise or malfunction can occur when the connection is bad. • Work on the work cloth when disassembling or assembling the product while laying the product sideways. - Damage can occur to the back of the product.

  • Page 4: Product Specifications

    2. Product Specifications 2-1. The Feature of Product 2-1-1. Features ■ TOTAL AIR CARE!! • Air cleaning that use 3 steps filtering system: It improves the quality of indoor air by perfect harmony of Pre filter (large dust removal) → HEPA filter (fine dust removal) →...

  • Page 5: Labels For Product

    2-1-3. Labels for Product ■ Air purifier labeling standard Left Side Front Right Side Back Print on products Part name Corresponding model Label Instruction E-star Label AX26BG3100GGAA Label Instruction Integrated QR label All models Rating Label Product specification check All models...

  • Page 6: Product Specifications

    2-2. Product Specifications Vietnam India AX32BG3100GBSV AX32BG3100GBNA AX32BG3100GGNA IMAGE 41 ㎡ 41 ㎡ 41 ㎡ Coverage 320 ㎥ /h 320 ㎥ /h 320 ㎥ /h Air purification CADR (global) capacity Dust collection rate 90%↑ 90%↑ 90%↑ Deodorization rate 80%↑ 80%↑ 80%↑...
  • Page 7 Vietnam India AX32BG3100GBSV AX32BG3100GBNA AX32BG3100GGNA IMAGE Body Greige Greige Greige Design Color Sand Beige Sand Beige Canvas Gray Front Panel Greige Greige Greige Safety Performance Safety Specification AHAM / BAF Wi-Fi (Product/ ● / ● ● / ● ● / ● Module) Type Power Plug...
  • Page 8 Europe North America Thailand AX32BG3100GGEU AX26BG3100GGAA AX32BG3100GBST IMAGE 41 ㎡ 41 ㎡ Coverage 260 ft2 320 ㎥ /h 320 ㎥ /h Air purification CADR (global) capacity Dust collection rate 90%↑ 90%↑ 90%↑ Deodorization rate 80%↑ 80%↑ 80%↑ Power consumption (W) Based on High Operation current (A) Based on High...
  • Page 9 Europe North America Thailand AX32BG3100GGEU AX26BG3100GGAA AX32BG3100GBST IMAGE Body Greige Greige Greige Design Color Canvas Gray Canvas Gray Sand Beige Front Panel Greige Greige Greige RF, UV 시험 Safety CB/EMC Performance AHAM Safety Specification AHAM / BAF Wi-Fi (Product/ ● / ● ●...
  • Page 10 Philippine Malaysia Australia AX32BG3100GBTC AX32BG3100GBME AX32BG3100GBSA IMAGE 41 ㎡ 41 ㎡ 41 ㎡ Coverage 320 ㎥ /h 320 ㎥ /h 320 ㎥ /h Air purification CADR (global) capacity Dust collection rate 90%↑ 90%↑ 90%↑ Deodorization rate 80%↑ 80%↑ 80%↑ Power consumption (W) Based on High Operation current (A) Based on High...
  • Page 11 Philippine Malaysia Australia AX32BG3100GBTC AX32BG3100GBME AX32BG3100GBSA IMAGE Body Greige Greige Greige Design Color Sand Beige Sand Beige Sand Beige Front Panel Greige Greige Greige CB, SAA, EMC/RF, 호 Safety RF(NTC) SIRIM 주무선 (SDoC) Performance Safety Specification AHAM / BAF Wi-Fi (Product/ ●...
  • Page 12 Chile AX32BG3100GGZS AX32BG3100GBSG IMAGE 41 ㎡ 41 ㎡ Coverage 320 ㎥ /h 320 ㎥ /h Air purification CADR (global) capacity Dust collection rate 90%↑ 90%↑ Deodorization rate 80%↑ 80%↑ Power consumption (W) Based on High Operation current (A) Based on High 0.37 0.37 Performance...
  • Page 13 Chile AX32BG3100GGZS AX32BG3100GBSG IMAGE Body Greige Greige Design Color Canvas Gray Sand Beige Front Panel Greige Greige Safety Performance Safety Specification AHAM / BAF Wi-Fi (Product/ ● / ● ● / ● Module) Type Power Plug Code Info. 3903-001222 3903-001216 Display English English...
  • Page 14 Australia Australia AX32BG3100GGSA AX32BG3100GWSA IMAGE 41 ㎡ 41 ㎡ Coverage 320 ㎥ /h 320 ㎥ /h Air purification CADR (global) capacity 90% ↑ 90% ↑ Dust collection rate 80% ↑ 80% ↑ Deodorization rate Power consumption (W) Based on High 0.37 0.37 Operation current (A)
  • Page 15 Australia Australia AX32BG3100GGSA AX32BG3100GWSA IMAGE Greige Greige Body Canvas Gray Airy White Design Color Greige Greige Front Panel CB, SAA, EMC/RF, 호주무선 CB, SAA, EMC/RF, 호주무선 Safety (SDoC) (SDoC) Performance Safety Specification AHAM / BAF Wi-Fi (Product/ ● / ● ●...

  • Page 16: Specifications Of Optional Items

    2-3. Specifications of optional items 2-3-1. Accessories Item Descriptions Code-No. Q'ty Remarks AX32BG3100GBTC AX32BG3100GBNA AX32BG3100GGNA DB68-11676A AX32BG3100GBME AX32BG3100GBSA AX32BG3100GGSA AX32BG3100GWSA DB68-11677A AX26BG3100GGAA User manual DB68-11678A AX32BG3100GGEU DB68-11679A AX32BG3100GBSV DB68-11680A AX32BG3100GBST DB68-11683A AX32BG3100GGZS DB68-11685A AX32BG3100GBSG 2-3-2. Filter Specifications Item Descriptions Code-No. Q'ty Remarks Pre Filter...

  • Page 17: Disassembly And Reassembly

    3. Disassembly and Reassembly 3-1. Necessary Tools Items Remarks +SCREW DRIVER -SCREW DRIVER MONKEY SPANNER LONG NOSE PLIER...

  • Page 18: Procedure

    3-2. Procedure Descriptions Procedure Image Prior check 1. Stop the operation of the air purifier, and cut off details the main power. 1. Open the Front Panel. COVER FRONT (Grasp both sides of the top of the Front Panel and pull it forward.) 1.
  • Page 19 Descriptions Procedure Image ASSY CABI 1. Remove the 9 screws from the front of the PARTS product. 1. Separate the COVER-CONTROL. 2. Remove the 1 screw fixed to PLATE CONTROL UP of ASSY PCB. ASSY PCB MAIN 3. Separate the PLATE CONTROL UP of the ASSY PCB.
  • Page 20 Descriptions Procedure Image 1. Lift up the ASSY COVER TOP and separate it. 2. Disconnect the 2 connectors as shown in the picture. ASSY COVER 3. Disconnect the connector and separate the Wi-Fi MODULE. Gas sensor 1. Remove the 1 screw fixed to the sensor and then ASSY DUST- separate the DUST SENSOR.
  • Page 21 Descriptions Procedure Image 1. Separate the COVER BACK. ASSY FAN PARTS 2. Separate the ASSY BLOWER by turning the nut counterclockwise and then remove the washer.
  • Page 22 Descriptions Procedure Image 3. Remove the 3 screws fixed to the BRACKET MOTOR. ASSY FAN PARTS 4. Separate the MOTOR from the body.

  • Page 23: Troubleshooting

    4. Troubleshooting 4-1. Service Mode Key Name Power Mode Sleep Hidden Short Key Press Operation On/Off Mode Selection Sleep On/Off Long Key Press for 3 Sec. Lock Filter Reset Long Key Press for 5 Sec. AP On/Off Wi-Fi Connection Info. Long Key Press for 10 Sec.
  • Page 24 ■ Option Code per Model Manual input Precess/HASS use Model Code Option Code Option Code AX32BG3100GB/SV 0000 0101 20-41-00-08-00 AX32BG3100GB/NA AX32BG3100GG/NA AX32BG3100GG/EU AX26BG3100GG/AA AX32BG3100GB/ST AX32BG3100GB/TC 0000 0 100 20-41-00-48-00 AX32BG3100GB/ME AX32BG3100GB/SA AX32BG3100GG/ZS AX32BG3100GB/SG AX32BG3100GGSA AX32BG3100GWSA...

  • Page 25: Error Codes

    4-2. Error Codes Error Meaning Description Code Signal Detection target: Main Indoor Unit When to detect: When not in Standby mode De tection condition - An error occurs when communication is not received for 360 seconds - If communication is not received for 270 seconds, perform Register Reset and Default Set Tx/Rx communication output to Low, and the network power line output to Low (Turn off the network module's power)
  • Page 26 Error Meaning Description Code Signal Detection target: Main Indoor Unit When to detect: Fan is in operation after power supply Detection condition: If the fan's RPM F/B runs below 160 RPM for 15 seconds. Indoor unit operation: Consumer mode < Error sound, error symbol on the indoor Auto Wind LED display, indoor unit operation off >...

  • Page 27: Measures For Each Symptom

    4-3. Measures for Each Symptom 4-3-1. If the AUTO LED light flickers on the display panel 1. Check Procedure Turn off the main power switch Is a wire connected to the motor (CN200) shorted, or does Replace due to a faulty BLDC Motor it have a faulty contact? Is there a short circuit (with a reading of 0Ω) between the 3rd...

  • Page 28: If The Color Of Air Quality Indicator Remains The Same

    4-3-2. If the color of air quality indicator remains the same 1. Check Procedure Turn off the main power switch Low Speed High-speed LED light Operation is LED light flickers in the flickers in the service mode. normal service mode. Is the linked Is the linked Reassemble/...

  • Page 29: 4-3-3.If The Power Does Not Switch On

    4-3-3.If the power does not switch on 1. Check Procedure Turn off the main power switch Is the linked power Reassemble/Replace due to input wire short-circuited, or does it the defective power wire have a bad contact? Is there any short Replace the Fuse due to circuit found in both ends of the Fuse (F10) a short-circuited fuse...

  • Page 30: If The Led Light Flickers In The Service Mode

    4-3-4. If the LED light flickers in the service mode 1. Check Procedure Turn off the main power switch Refer if the color of the air quality indicator High-speed LED light flickers does not change Refer if the color of the air quality indicator Low speed LED light flickers does not change Sleep LED light flickers...

  • Page 31: Pcb Diagram And Parts List

    #2 : AC 220V #3 : DC 5V #3 : AGND #4 : FAN POWER SAVE #4 : DC 15V #5 : FAN CONTROL #5 : CONTROL #6 : FAN FEEDBACK #6 : FEEDBACK This Document can not be used without Samsung’s authorization.

  • Page 32: Panel Pba

    5-1-2. PANEL PBA This Document can not be used without Samsung’s authorization.
  • Page 33 #5 : FAN CONTROL #5 : DC 12V #5 : Empty pin #6 : FAN FEEDBACK #6 : DC 5V #7 : Gas sensor input #8 : GND CN200 ④ - DOWNLOADING This Document can not be used without Samsung’s authorization.

  • Page 34: Wiring Diagram

    6. Wiring Diagram Wi-Fi COMM. ERROR GAS SENSOR ERROR DUST SENSOR ERROR FAN MOTOR ERROR EEPROM ERROR OPTION ERROR This Document can not be used without Samsung’s authorization.

  • Page 35: Reference Sheet

    7. Reference Sheet 7-1. Index for Model Name Product Buyer Country Product Capacity Year Grade Feature Feature Version Design 1 Design 2 feature Code 10th 11th 12th 13th 14th Code Product Note Capacity Introduction Introduction Grade Feature Feature Version General Model Buyer Code Korea : pyeong / Point...
  • Page 36 K-Zone http://20.8.111.9 © Samsung Electronics Co., Ltd. June. 2022. This Service Manual is a property of Samsung Electronics Co., Ltd. Any unauthorized Printed in Korea. use of Manual can be punished under applicable International and/or domestic law. Code No. AC-00293E_3...
