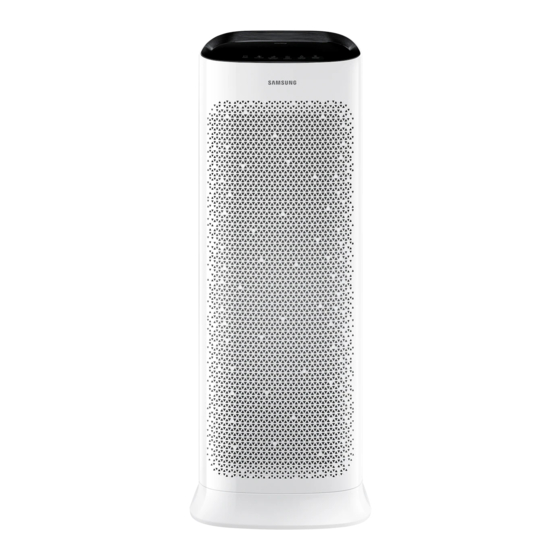

- Page 1 Air Purifier User manual AX90A7080WD ꞏ Thank you for purchasing this Samsung air purifier. ꞏ Before operating this unit, please read this user manual carefully and retain it for future reference.
-
Page 2: Table Of Contents
Contents Safety Information Safety Information Package Content Accessories / Product specifications At a Glance General Display and buttons Removing the filters Assembling the filters Operation Features Turning the power on/off / Controlling the fan speed Sleep mode / Timed on/off function / Display lighting Turning the Wi-Fi feature on/off / Clearing the filter replacement reminder / Lock function Checking the air quality Cleaning and Maintenance... -
Page 3: Safety Information
Safety Information These safety precautions are for owner’s safety and preventions of property damage. Therefore, please read this manual thoroughly before using your product. WARNING Hazards or unsafe practices that may result in severe personal injury or death. CAUTION Hazards or unsafe practices that may result in minor personal injury or property damage. - Page 4 • Having the cord hanging from above the plug may damage the wires inside, which can lead to electric shock or fire. Please contact your local Samsung Service Centre if the power plug or cord is damaged. If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
- Page 5 Remove the power plug of your air purifier when it is not used for a period of time and during a thunderstorm. • Follow instructions to avoid electric shock or fire. Product installation must be handled by official Samsung service personnel or a certified local technician to avoid power cord or plug damage, which can be dangerous.
- Page 6 • This may cause a spark when reconnecting the plug, which can lead to an explosion or fire. Please contact your local Samsung Service Centre when you require repair service. • Follow instructions to avoid electric shock or fire. Do not handle the power plug with wet hands.
- Page 7 If any of the electric components inside the air purifier has contacted liquid or water, disconnect the product from the power source and contact your local Samsung Service Centre. • Follow instructions to avoid electric shock or fire. Do NOT attempt to repair or modify the product.
- Page 8 Safety Information Do not handle the product with wet hands. • Follow instructions to avoid electric shock. This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
-
Page 9: Package Content
Dimensions Model name Area coverage (width × height × depth) AX90A7080WD 360 mm x 1054 mm x 284 mm 90 m² ¹⁾ ¹⁾ The area coverage value is in accordance with the Korea Air Cleaning Association (KACA) standard. English... -
Page 10: At A Glance
At a Glance General 01 Air outlet (top) 09 Handle (rear side) 02 Display and buttons 10 Air outlet (side) 03 Display lighting 11 2-in-1 filter(Deodorization Filter+Dust Collecting Filter) 04 Filter holder 12 Pre-filter 05 Air inlet / Front panel 06 Laser PM sensor 07 Gas sensor 08 Dongle mount... -
Page 11: Display And Buttons
* Diameter of a human hair: 50 to 70 ㎛ Bixby is the name of a Samsung AI solution and allows you to control the product with voice. To use the voice recognition function, you must connect the SmartThings app on your smartphone to the product. -
Page 12: Removing The Filters
At a Glance Removing the filters When using the 2-in-1 filters for the first time or replacing them with a new set, remove the vinyl packaging first. STEP 1 Remove the front panel. • Use your thumbs to press on the top of the product and pull the front panel forward with other fingers. -
Page 13: Assembling The Filters
Assembling the filters STEP 1 Place the 2-in-1 filters • Let the filters sit inside the grooves at the bottom. • Check the insert direction before placing the filters. STEP 2 Secure the 2-in-1 filters. • Rotate the filter holder 90° clockwise to hold the filter in place. - Page 14 At a Glance STEP 4 Place the front panel. • First, insert the hook on the panel into the groove at the bottom of the product. STEP 5 Before using new filters, reset the filter replacement reminders. • Press and hold the Lighting [ ] button for 3 seconds or longer.
- Page 15 – The 2-in-1 filter is a consumable material, and even if the warranty period is free, replacement of filter that occurs during use will be charged. • Replacement filters are available for sale from a Samsung retailer or a Samsung Service Centre. English...
-
Page 16: Operation Features
Operation Features Turning the power on/off • Press the Power button. The air purifier turns on with a notification sound and automatically begins operation. – Sensor preparation begins upon startup with a display indication and continues for 12 seconds. The air quality is then indicated by colour and the concentration level. -
Page 17: Sleep Mode / Timed On/Off Function / Display Lighting
Sleep mode Sleep mode provides a clean, quiet and comfortable room for a good night's sleep. • Use Sleep mode to only allow the mode indicator and turn off all other display indicators. • Changing the fan speed when Sleep mode has been active for 10 seconds or more will cancel the mode and the sensor loading display will appear. -
Page 18: Turning The Wi-Fi Feature On/Off / Clearing The Filter Replacement Reminder / Lock Function
• Press and hold the Sleep mode [ ] button for 3 seconds or more to turn the Wi-Fi on or off. • To use this feature, first register the product to Samsung SmartThings app. Once connected, the Wi-Fi icon will automatically light up. -
Page 19: Checking The Air Quality
Checking the air quality You can review the current air quality from the display panel with the colour (reflecting the PM10 / PM2.5 / PM1.0 / gas pollution) and the concentration level indicators. • By default, the colour and PM10 / PM2.5 / PM1.0 level indicators reflect the PM10 concentration. •... - Page 20 Operation Features NOTE • The dust concentration may vary depending on the environmental conditions (for example, when the product is near a construction site, road, or fabric sofa, or when a vacuum cleaner is used or bedding and clothes are arranged near the product, etc.). •...
-
Page 21: Cleaning And Maintenance
Cleaning and Maintenance Be sure to disconnect the power plug from the socket before cleaning the product. Cleaning the air purifier exterior • Dampen a soft cloth with lukewarm water and wring it out, and then wipe the product exterior with it. -
Page 22: Cleaning And Drying The Filters
Cleaning and Maintenance Cleaning and drying the filters NOTE • About removing/assembling the filters, see pages 12 and 13. Cleaning the pre-filters • Depending on the dust accumulation, first remove dust with a vacuum cleaner and gently wash the filter with a pH-neutral detergent diluted in lukewarm water. -
Page 23: Smartthings App
Feature performance may vary based on distance and network quality. All devices should be registered with a single Samsung Account. Some SmartThings features are available with a compatible Samsung smartphone and compatible Samsung home appliance only. Others also require a SmartThings Wi-Fi Hub and other compatible devices (such as smart lights). - Page 24 Select NOTE Select • If you already have a Samsung account, log in You can add a product you want to connect to to the account. If you have a smartphone that by selecting it manually or by selecting “Scan”.
- Page 25 (Please use the “Inquiry” menu.) • If a Samsung account-related country error occurs It is also possible to obtain the complete during connecting to your product, log out of your...
- Page 26 SmartThings app Controlling your air purifier with SmartThings app Smartly control your air purifier using the SmartThings app. Category Function Description Check the indoor air cleanliness. Indoor air • Touch the icon to view the PM10 / PM2.5 / PM1.0 levels and quality gas cleanliness.
- Page 27 Category Function Description Touch the buttons for various additional functions you want to run. Operation • Deactivated buttons are the functions that your air purifier does functions not support. Check the settings for region, lighting, mute, or filters. • If you change the region, your display panel will show the outdoor air quality information for the new region.
-
Page 28: Appendix
Before Requesting Service Check the following before requesting service from the Service Centre. Operation The air purifier does not operate. • Check the power supply and turn on the air purifier again. • Make sure that the power plug is plugged in, and then turn on the air purifier again. - Page 29 • If the indicator colour stays in red after you have followed all the provided instructions and solutions, it may be a sensor issue. In this case, please contact your local Samsung Service Centre. • When humidifiers, electric pressure cookers, sprayers and such are being used in the same room, the pollution level may be measured as Poor.
- Page 30 ] button for 3 seconds or more to reset the filter replacement reminder. Strange indications appear on the display. • Contact your local Samsung Service Centre if your air purifier displays Air circulation The fan does not seem to circulate the air evenly.
- Page 31 Memo English...
- Page 32 QUESTIONS OR COMMENTS? COUNTRY CALL OR VISIT US ONLINE AT 1800 7267864 | 1800-SAMSUNG (Other) SINGAPORE www.samsung.com/sg/support 1800 4252997 | 1800-GALAXYS (HHP) DB68-11214A-00...
