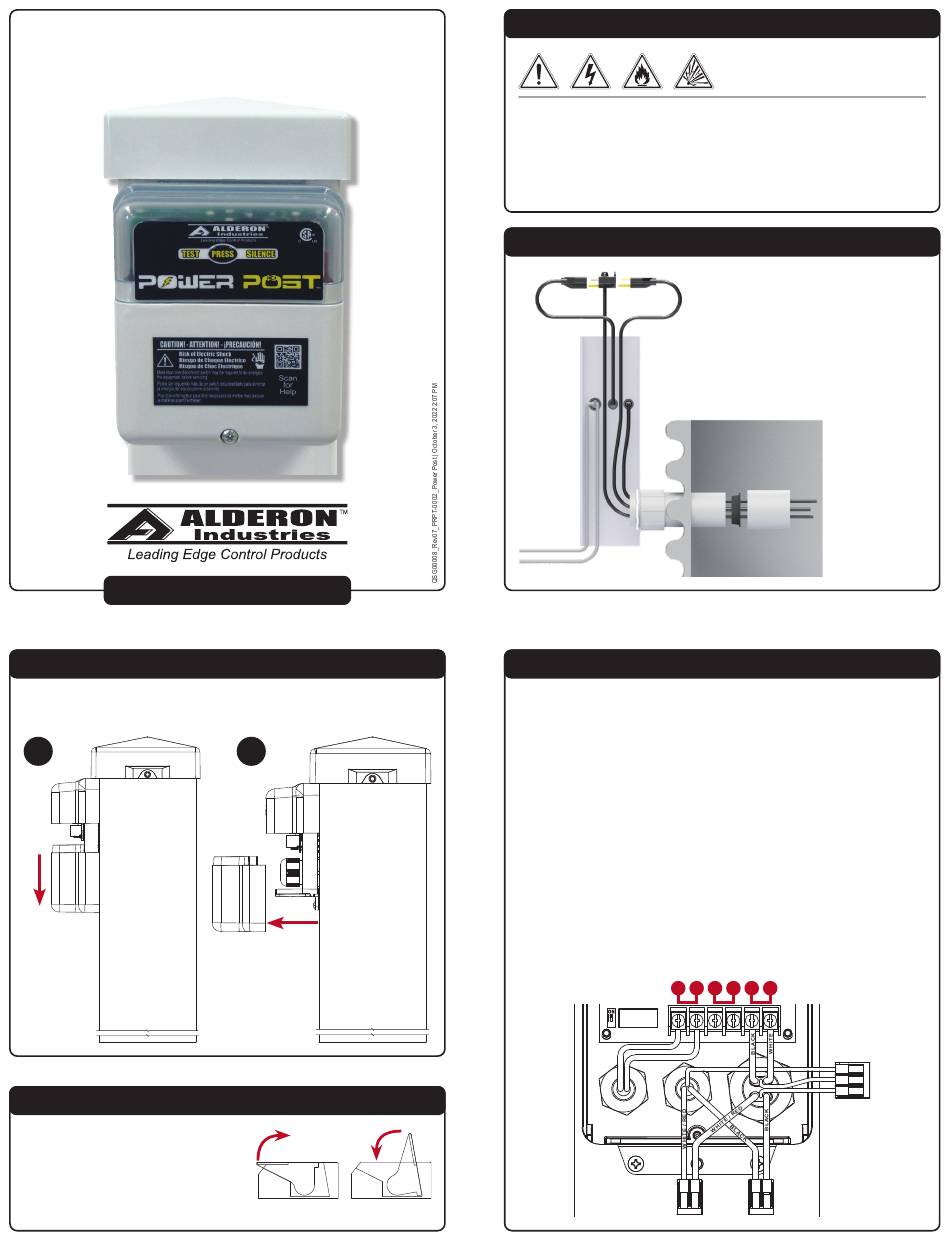

Alderon Industries Power Post PRPT-0002 Quick Start Manual

Power Post
Pump Connection Center | Model: PRPT-0002
QUICK START GUIDE
Step 2: Remove Bottom Cover
Remove the bottom enclosure cover screw, slide directly downward
(2A) and then pull directly away (2B).
2A
Step 3: Install Wire into Wago Connector
1) Lift tab(s) upward.
2) Insert wire(s) into slot.
3) Press tab(s) downward.
4) Make sure wire(s) are secured.
™
2B
TO OPEN TO CLOSE
WAGO WAGO
Safety Guidelines
Before proceeding with the installation or operation of this product,
read all instructions thoroughly, as well as complying with all federal,
state and local codes, regulations, and practices. This product must
be installed by qualified personnel familiar with all applicable local
electrical and mechanical codes. Refer to the National Electrical Code
(NFPA 70). Failure to properly install and test this product can result in
personal injury or equipment malfunction.
Step 1: Install Post
Determine location for the post in the
ground near a tank and drill access
holes for the float switch cables using
the customer supplied conduit/fittings or
Alderon's riser connection kit. Route the
cables through access holes and wire
as described in step 4.
Note: Seal all conduits to prevent moisture and gases
from entering the post per local codes.
Step 4: Wiring
The diagram below shows the six terminals on the terminal block that
consists of three pairs of connections.
1) Bring the high level float switch cable through the cable grip on the
left side of the panel. Connect the float switch to terminals 1 and 2.
2) Installing an auxiliary device to terminals 3 and 4 is optional. Bring
the wire through the cable grip on the left side of the panel.
3) Bring two sets of power cables in through the cable grip on the right
side of the panel. Pump power through the bottom and terminate
using the pre-installed Wago connectors on female receptacle and
alarm power through the top to terminals 5 and 6.
4) After bringing all the cables through the cable grips and the wire
terminations are complete, tighten all grips firmly.
5) NEVER leave ground wire(s) exposed inside panel, use provided
Wago connectors for wire termination.
SENSOR
1 2 3 4 5 6
BLACK
WHITE
WAGO
WARNING
AUX POWER
WAGO
GREEN
GROUND
GROUND
WAGO
