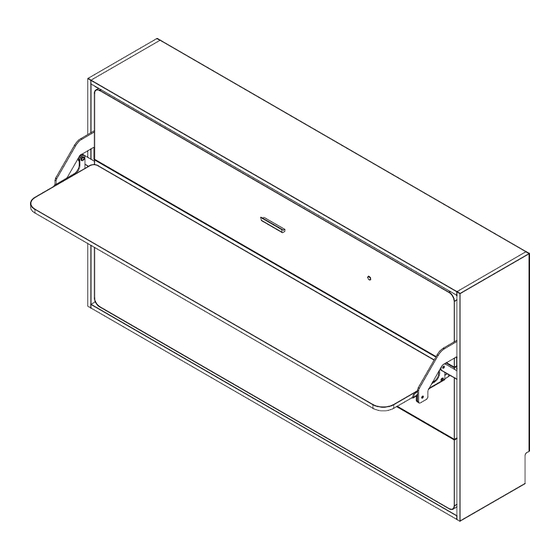

Lori Horizontal Twin Desk Kit Assembly Instructions Manual

Hide thumbs

Advertisement

Quick Links

Download this manual

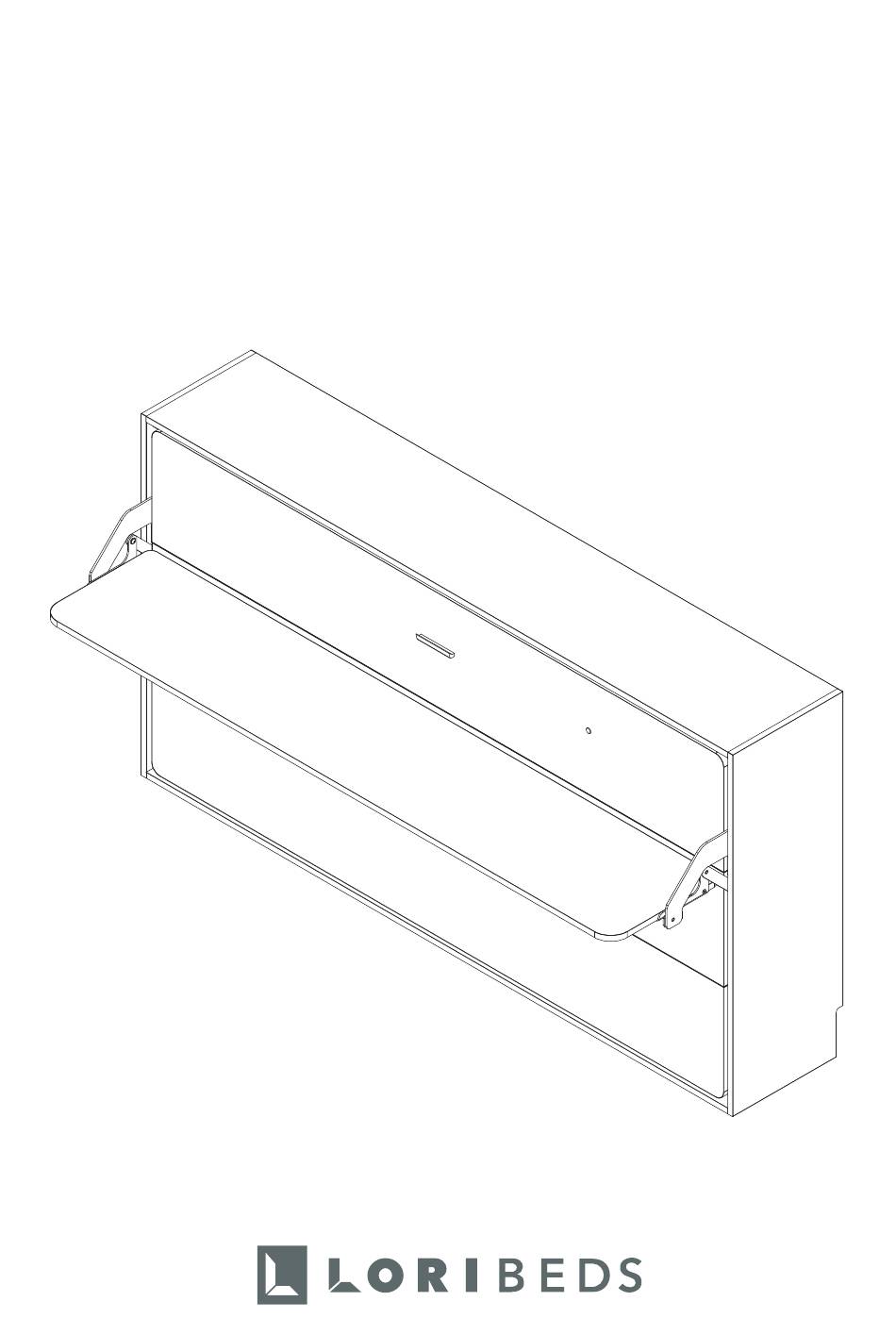

T h e L o r i B e d
H o r i z o n t a l Tw i n D e s k K i t
A s s e m b l y I n s t r u c t i o n s

Advertisement

loading
Need help?

Need help?

Do you have a question about the Horizontal Twin Desk Kit and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Lori Horizontal Twin Desk Kit

Summary of Contents for Lori Horizontal Twin Desk Kit

  • Page 1 T h e L o r i B e d H o r i z o n t a l Tw i n D e s k K i t A s s e m b l y I n s t r u c t i o n s...

  • Page 3: Parts List

    PARTS LIST BOX: Desk Kit Hardware parts are packed in bags and labeled per part and assembly step number PART PART NUMBER PART NAME WOOD PART Desk Panel Desk/ Shelf Support Beam Desk Leg Left Desk Leg Right METAL PART Lifting Arm Left Lifting Arm Right Desk L Bracket Left...

  • Page 4: Hardware Parts

    CASE 1: Assemble The Lori Bed Horizontal Twin with a Desk Kit (1 x Desk) - From Page 5 CASE 2: Install the add-on option - Desk Kit (1 x Desk) to an existing Lori Bed Horizontal Twin- From Page 22...
  • Page 5 CASE 1 Assemble The Lori Bed Desk Kit 1. Assemble The Lori Bed Horizontal Twin from Case 1 - Step 10 in this guide book to complete the bed with Desk Kit (1 x Desk). 2. Use the alternative parts and hardware provided in the Desk Kit (1 x Desk).
  • Page 6 Hardware Tool 2 Persons assembly recommended PISTON ASSEMBLY * NOTE: If you are assembling your Lori Bed with a Desk Kit (1 x Desk), you must continue assembly per the assembly guide provided with the Desk Kit. Be sure to use the correct pistons provided with the Desk Kit in place of the pistons provided with the bed kit.
  • Page 7 STEP 10 Piston Installation Y1 x 2 I x 4 Hardware Tool 2 Person assembly recommended REMOVE THE PISTON COMPRESSION STRAPS STEP 10.3 With a partner, gently press down on the bed platform to compress the Piston and loosen the metal straps. Carefully remove the compression straps while your partner is holding the bed...
  • Page 8 STEP 11 Install Desk Legs and Lifting Arm P1 x 4 S1 x 4 K x 4 C x 6 V1 x 2 Hardware Tool DESK LEG ASSEMBLY STEP 11 Attach part (29) to the right side of the outer frame of the Metal Platform using 1 x washer (V1) and 2 x washer (S1) on each side of the hole on the Metal Platform, fastening in place with 2 x screw (P1) and 1 x screw (K).
  • Page 9 STEP 11 Install Desk Legs and Lifting Arm P1 x 4 S1 x 4 K x 4 C x 6 V1 x 2 Hardware Tool DESK LEG ASSEMBLY STEP 11.2 Attach the Lifting Arm Left (30) to the Mechanism Plate (9) as shown, using 2 x washer (C) on the Mechanism Plate (9) side of the Lifting Arm Left (30), and 1 x washer (C) on the screw head side of the Lifting Arm Left (30), fastening in place with screw (K).
  • Page 10 STEP 12 Install the Key Lock D1 x 2 W x 1 R x 4 H x 2 Hardware Tool KEY LOCK ASSEMBLY STEP 12.1 STEP 12.2 Attach the Key Lock Bar Long Install the Key Lock (W) and (19) and Key Lock Bar Short 2 x Lock Bar Connectors (20) to the Lock Bar Connectors (D1) to the Wood Platform...
  • Page 11 STEP 12 Install the Key Lock D1 x 2 W x 1 R x 4 H x 2 Hardware Tool INSTALL KEY LOCK BEZEL RING STEP 12.5 After attaching the Key Lock Bezel Ring, securely tighten all bolts (R) in the back of Key Lock.
  • Page 12 STEP 13 Install the Handle S x 2 T x 1 Hardware Tool HANDLE STEP 13 Using a hand-help Phillips screwdriver, attach the Handle part (T) to the Wood Platform Panel (6) with 2 x screws (S).
  • Page 13 STEP 14 Install the Mattress Straps C1 x 4 Hardware MATTRESS STRAPS STEP 14 Thread the Mattress Strap (23) end through the mattress strap anchor bracket on the Metal Platform frame. Feed the Mattress Strap pin (C1) through the Mattress Strap (23) end to secure it to the Mattress Strap Anchor Bracket.
  • Page 14 STEP 15 Install the Comfort Slats F1 x 28 Hardware COMFORT SLATS STEP 15.1 Attach the Comfort Slat Mounts Outer (F1) to the Metal Platform Frame Outer Bottom (14) by firmly pressing the pins of the Comfort Slat Mounts Outer (F1) into the corresponding holes on the Metal Platform Frame Outer Bottom (14).
  • Page 15 STEP 16 Install the Mattress Rests MATTRESS RESTS STEP 16.1 Assemble the Mattress Rest by connecting the 2 x parts (25) as shown in the below diagram. STEP 16.2 Place the 2 ends of the Mattress Rest into the corresponding holes on the Metal Platform and raise the Mattress Rest (25) into position as show in the diagram.
  • Page 16 STEP 17 Install the Mechanism Covers Q x 12 Hardware Tool MECHANISM COVERS STEP 17 Fasten the Mechanism Cover Left (26) and Mechanism Cover Right (27) to the Wood Cabinet using screws (Q).
  • Page 17 STEP 18 Raise the Bed Platform Raise the Bed Platform to prepare to assemble the Desk Panels. 90°...
  • Page 18 STEP 19 Desk Panel Assembly Q x 12 Q1 x 2 R1 x 4 Hardware Tool DESK PANEL ASSEMBLY STEP 19.1 Fasten metal part (32) to Desk Panel part (33) using 6 x screws (Q). STEP 19.2 Attach 2 x Plastic Leveling Foot (Q1) to Part (32).
  • Page 19 STEP 19 Desk Panel Assembly Q x 12 Q1 x 2 R1 x 4 Hardware Tool DESK PANEL ASSEMBLY STEP 19.3 Fasten Desk L Bracket Right (35) to Desk Panel assembly, using 2 x screws (R1). Repeat this step for (34) on the left side. STEP 19.4 Thread 6 x screws (Q) to ix Parts (34), (35) with Desk Panel Assembly.
  • Page 20 STEP 20 C x 6 K x 2 N1 x 4 U1 x 2 Install Assembly from Step 19 Hardware Tool DESK PANEL ASSEMBLY STEP 20.1 Attach Desk Panel Assembly from Step 19 to the pivot position on the Desk leg left and right (28), (29). STEP 20.2 Fasten Desk Leg Left (28) to Desk Panel assembly, using 1 x (U1) and 2 x screws (R1).
  • Page 21 STEP 20 Install Assembly from Step 19 C x 6 K x 2 N1 x 4 U1 x 2 Tool Hardware DESK PANEL ASSEMBLY STEP 20.3 With a partner, gently press down on the bed platform to a 90 degree angle with the wood cabinet.
  • Page 22 CASE 2 Install the add-on Desk Kit to an Existing Lori Bed 1. Uninstall the required parts and hardware. 2. Switch the alternate parts and hardwares from the Desk Kit box as guided. 3. Follow the assemble steps in this guide to complete the bed with the new configuration.
  • Page 23 STEP 1 Remove existing Piston Tool 2 Persons assembly recommended STEP 1.1 Remove the Mechanism Covers (26), (27) on both left and right sides. Save all screws (Q) as they are required to re-install later on. STEP 1.2 Loosen the piston nuts on both left and right sides (I) using tool (T4).
  • Page 24 STEP 1 Remove existing Piston Tool 2 Persons assembly recommended STEP 1.3 Raise the platform to about a 30 degree angle from the loor. Install the Compression Straps to the existing Pistons (Y) on both left and right sides of the bed. STEP 1.4 With a partner holding the Platform in place, remove the Piston Nuts (I) by hand.
  • Page 25 STEP 2 Replace the Pistons Y1 x 2 Hardware Tool 2 Persons assembly recommended STEP 2.1 Install Pistons (Y1) on both left and right sides. 30° STEP 2.2 Using the (I) nuts you saved, tighten by hand to secure. Repeat for both left and right sides.
  • Page 26 STEP 2 Replace the Pistons Y1 x 2 Hardware Tool 2 Persons assembly recommended STEP 2.3 With a partner, gently press down on the bed platform to compress the Piston and loosen the metal straps. Carefully remove the compression straps while your partner is holding the bed platform steady.
  • Page 27 STEP 3 Install Desk Legs and Lifting Arm P1 x 4 S1 x 4 K x 4 C x 6 V1 x 2 Hardware Tool In order to remove the required parts, you may have to remove some of the Comfort Slats. STEP 3.1 Remove the screws that fasten Bed Leg Small Plate (22) and...
  • Page 28 STEP 3 P1 x 4 S1 x 4 K x 4 C x 6 V1 x 2 Install Desk Legs and Lifting Arm Hardware Tool STEP 3.2 Attach part (29) to the right side of the outer frame of the Metal Platform using 1 x washer (V1) and 2 x washer (S1) on each side of the hole on the Metal Platform, fastening in place with 2 x screw (P1) and 1 x screw (K).
  • Page 29 STEP 4 Install Mechanism Covers STEP 4 Fasten the Mechanism Cover Left (26) and Mechanism Cover Right (27) to the Wood Cabinet using screws (Q) you saved per STEP 1 of this guide.
  • Page 30 STEP 5 Raise the Bed Platform Raise the Bed Platform to prepare to assemble the Desk Panels. 90°...
  • Page 31 STEP 6 Desk Panel Assembly Q x 12 Q1 x 2 R1 x 4 Hardware Tool DESK PANEL ASSEMBLY STEP 6.1 Fasten metal part (32) to Desk Panel part (33) using 6 x screws (Q). STEP 6.2 Attach 2 x Plastic Leveling Foot (Q1) to Part (32).
  • Page 32 STEP 6 Desk Panel Assembly Q x 12 Q1 x 2 R1 x 4 Hardware Tool DESK PANEL ASSEMBLY STEP 6.3 Fasten Desk L Bracket Right (35) to Desk Panel assembly, using 2 x screws (R1). Repeat this step for (34) on the left side. STEP 6.4 Thread 6 x screws (Q) to ix Parts (34), (35) with Desk Panel Assembly.
  • Page 33 STEP 7 Install Assembly from Step 6 C x 6 K x 2 N1 x 4 U1 x 2 Hardware Tool DESK PANEL ASSEMBLY STEP 7.1 Attach Desk Panel Assembly from Step 6 to the pivot position on the Desk Leg Left and Right (28), (29). STEP 7.2 Fasten Desk Leg Left (28) to Desk Panel assembly, using 1 x (U1) and 2 x screws (R1).
  • Page 34 STEP 7 Install Assembly from Step 6 C x 6 K x 2 N1 x 4 U1 x 2 Hardware Tool DESK PANEL ASSEMBLY STEP 7.4 With a partner, gently press down on the bed platform to a 90 degree angle with the wood cabinet.
