DESCRIPTION
OMNI Ceiling Mount Sensors employ passive infrared and ultrasonic technologies to turn lighting on and off based on occupancy. These sensors represent the
state-of-the-art in sensor technology and are designed to provide accurate turn-on while virtually eliminating false-offs. The sensors feature patented IntelliDAPT®
technology, which makes all the sensor adjustments automatically. Throughout the product's lifespan, smart software analyzes the controlled area and makes
digital adjustments to sensitivity and timer settings. Occupancy sensors with IntelliDAPT provide a maintenance-free "Install and Forget" operation.
SPECIFICATIONS
• Power Requirements: Powered by UVPP or MP-Series power pack (sold separately)
• IntelliDAPT self-adaptive technology
• All-digital passive infrared, ultrasonic and dual technology versions available
• Non-volatile memory for sensor settings
• Coverage range: 450 sq. ft. to 2000 sq. ft. (based on model)
• Optional Isolated Form C relay with Normally Open / Normally Closed contacts
• For indoor use only
• Five year limited warranty
PRECAUTIONS
• Read and understand all instructions before beginning installation.
• NOTICE: For installation by a licensed electrician in accordance with National and/or local Electrical Codes and the following instructions.
• Disconnect switch or a circuit breaker must be provided and marked as the disconnecting device.
• Disconnect switch / circuit breaker must be within reach of operator.
• CAUTION: RISK OF ELECTRICAL SHOCK. Turn power off at service panel before beginning installation.
• Never wire energized electrical components.
• CAUTION: USE COPPER CONDUCTOR ONLY.
• Confirm device ratings are suitable for application prior to installation. Use of device in applications beyond its specified ratings or in applications other than
its intended use may cause an unsafe condition and will void manufacturer's warranty.
• Use only approved materials and components (i.e. wire nuts, electrical box, etc.) as appropriate for installation.
• NOTICE: Do not install if product appears to be damaged.
OCCUPANCY SENSOR COVERAGE AND PLACEMENT
• The patterns for range coverage are provided below. Closely follow the range diagrams for major and minor motion coverage.
• Sensor must have an unobstructed view of the room. Do not mount behind or near tall cabinets, shelves, hanging fixtures, etc.
• Keep the sensor away from air ow – at least 6-8 feet from HVAC vents.
• For interior use only. These sensors should not be installed in damp locations such as near a shower or steam source, in wet locations, or where exposed to rain.
• Do NOT install wall mount sensor in view of strong direct or reected light sources.
• Decrease total coverage area by 15% for "soft" rooms (for example, heavy draperies or heavy carpeting).
• Indicated ranges are based on mounting heights of 8'-12' . Ceiling and wall mounted sensors should not be mounted on ceilings or walls above 12' .

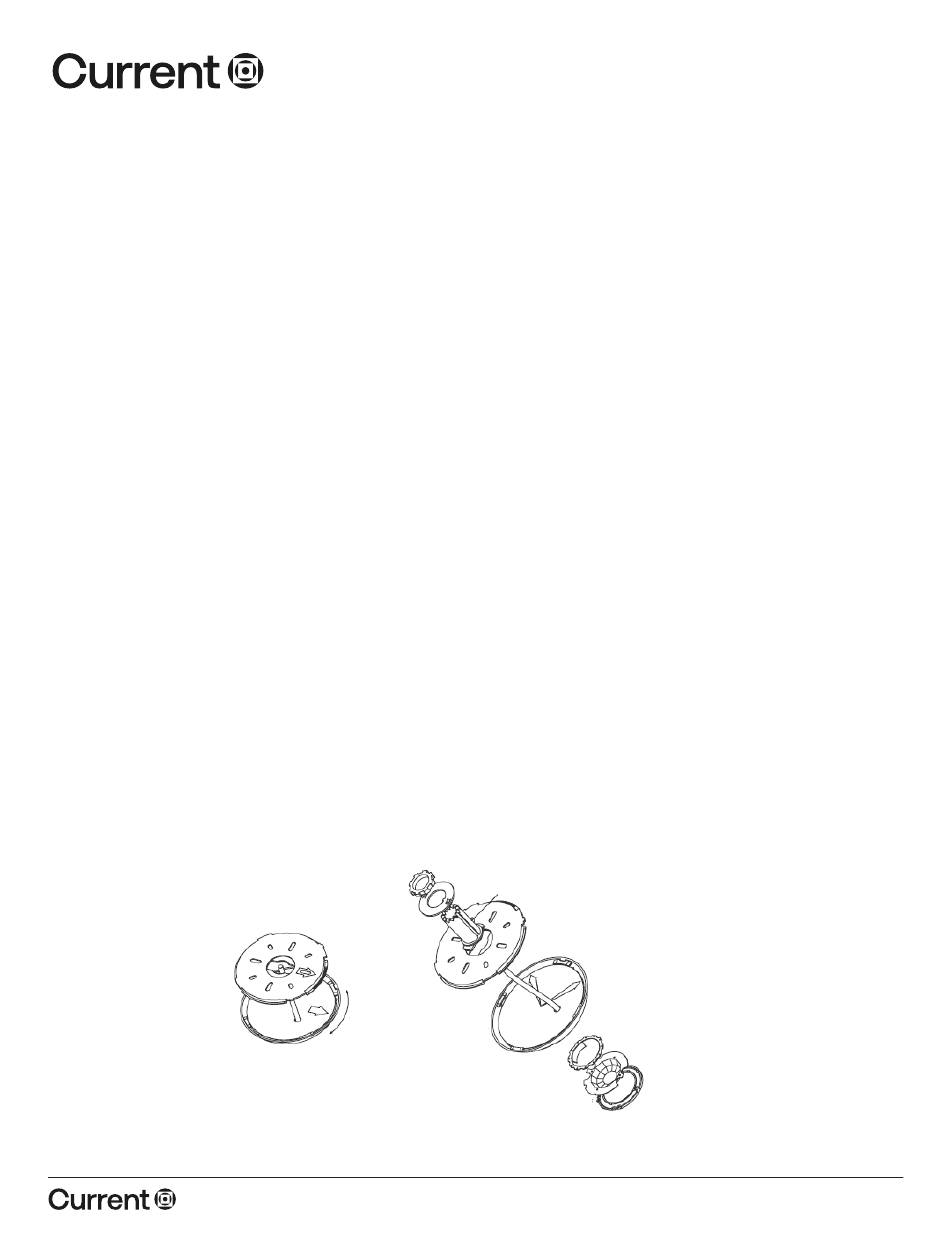

COMPONENTS
30°
Match arrows to twist and
lock. Cover plate allows for
30° adjustment.
currentlighting.com
© 2022 HLI Solutions, Inc. All rights reserved. Information and specifications subject to change
without notice. All values are design or typical values when measured under laboratory conditions.
OMNI® Passive Infrared, Ultrasonic and
Nut
Threaded
Washer
Mounting Post
Twist-Lock
Cover Plate
Sensor Body
Mask**
Infrared Lens*
Retainer Ring*
*
OMNI-DT and IR only
** Optional
Dual Technology Ceiling Senors
INSTALLATION INSTRUCTIONS
72-00146, Rev. D
Page 1 of 6
Rev 06/09/22
1401B_OMNI_Install
