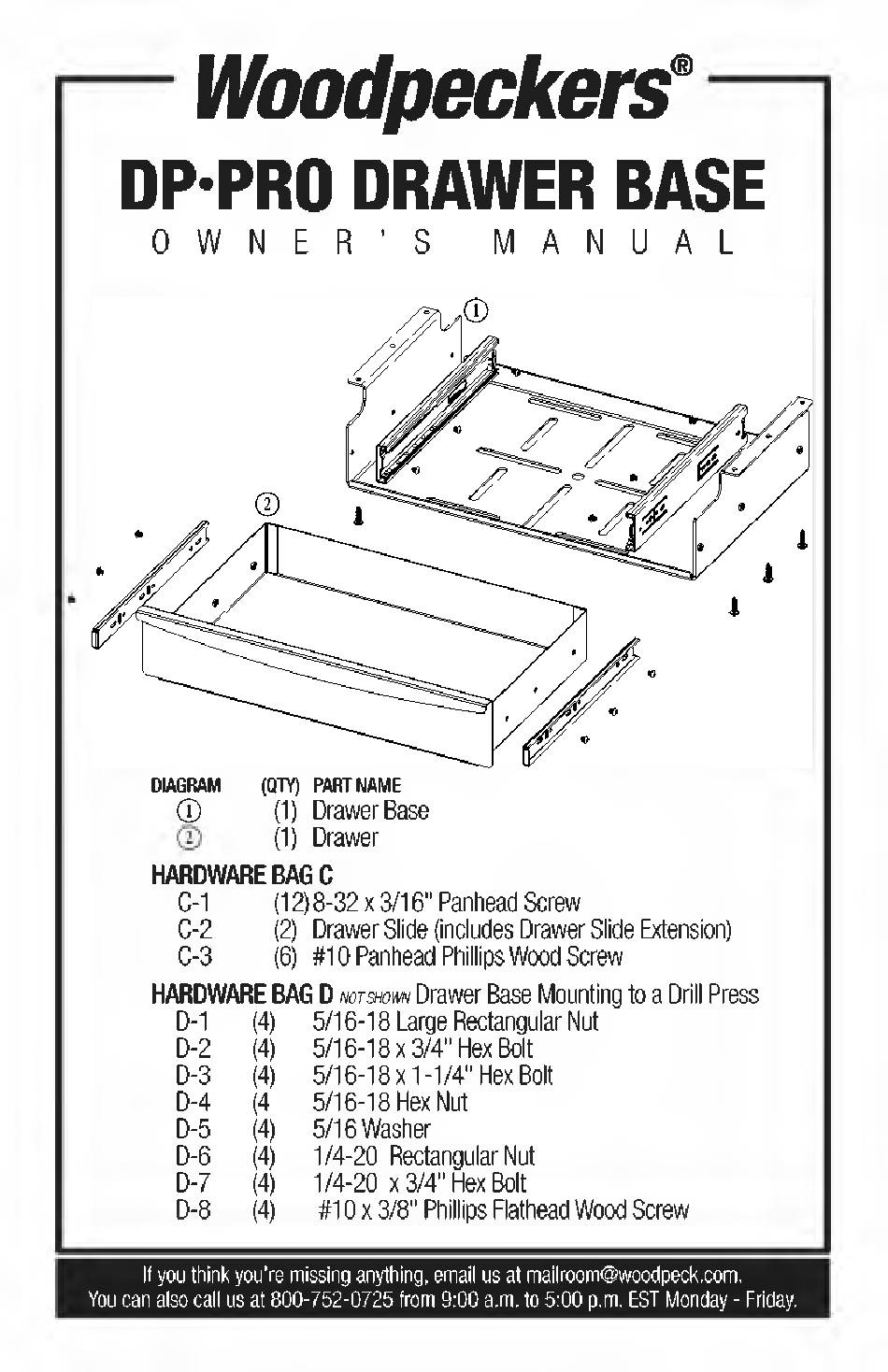

Woodpeckers DP-PRO-DRILL-PRESS-TABLE-GROUP Owner's Manual

oodpeckers
P-PRO RAWER BASE
WNER ' S MANUAL
If you think you ' re missing anything, email us at mailroom@woodpeck.com .
You can also call us at 800-752-0725 from 9:00 a.m. to 5:00 p.m. EST Monday - Friday.
IAGRAM (QTY) PART NAME
1
(1) Drawer Base
2 (1) Drawer
HAR WARE BAG C
C-1 (1 2) 8-32 x 3/16" Panhead Screw
C-2 (2) Drawer Slide (includes Drawer Slide Extension)
C-3 (6) #10 Panhead Phillips Wood Screw
HAR WARE BAG
ot show
Drawer Base Mounting to a Drill Press
D-1
(4)
5/16-18 Large Rectangular Nut
D-2
(4)
5/16-18 x 3/4" Hex Bolt
D-3
(4)
5/16-18 x 1-1/4" Hex Bolt
D-4
(4
5/16-18 Hex Nut
D-5
(4)
5/16 Washer
D-6
(4)
1/4-20 Rectangular Nut
D-7
(4)
1/4-20 x 3/4" Hex Bolt
D-8
(4)
#10 x 3/8" Phillips Flathead Wood Screw
