Woodpeckers AUTO-LINE DRILL GUIDE Owner's Manual

can the QR code above
to watch the video
or visit woodpeck.com
under the video tab towards
the bottom of the product page.
OWNER ' S MANUAL
If you think you ' re missing anything, email us at mailroom@woodpeck.com .
You can also call us at 800-752-0725 from 9:00 a.m. to 4:00 p.m. EST Monday - Friday.
DIAGRAM
LETTER
ALDG-21-DEL
DELUXE
KIT
( QTY)
ALDG-21
TANDARD
KIT
(Q T Y)
ALDG-2 1 -F K
FLIP- TOP
KIT
(QTY)
ALDG-EXT-21
12 -24 " FENCE
GUIDE EXTEN ION
(Q T Y)
PART
NAME
1
(1) (1)
0 0
Base
2 (1) (1)
0 0
Chuck Carrier
3
(1) (1)
0 0
Chuck
4
(1) (1)
0 0
Standard Hex Shank Fitting
5
(2) (2)
0 0
Lock Knob w/ 5mm Allen Wrench Tip
6
(1) (1)
0 0
Fence w/ (2)Knobs
7
(1) (1)
0 0
Tapered Rod
8
(1) (1)
0 0
Spring w/Rod
9
(1) (1)
0 0
Depth Control Stop Collar
10
(2) (2)
0 0
Centering Pin
11
(2) (2)
0 0
Guide Rod
12
(6)
0
(2) (4)
Extension Rod
13
(2)
0
(2)
0
Flip-Stop
14
(1) (1)
0 0
Chuck Key
15
(1)
0
(1) (1)
Wrench

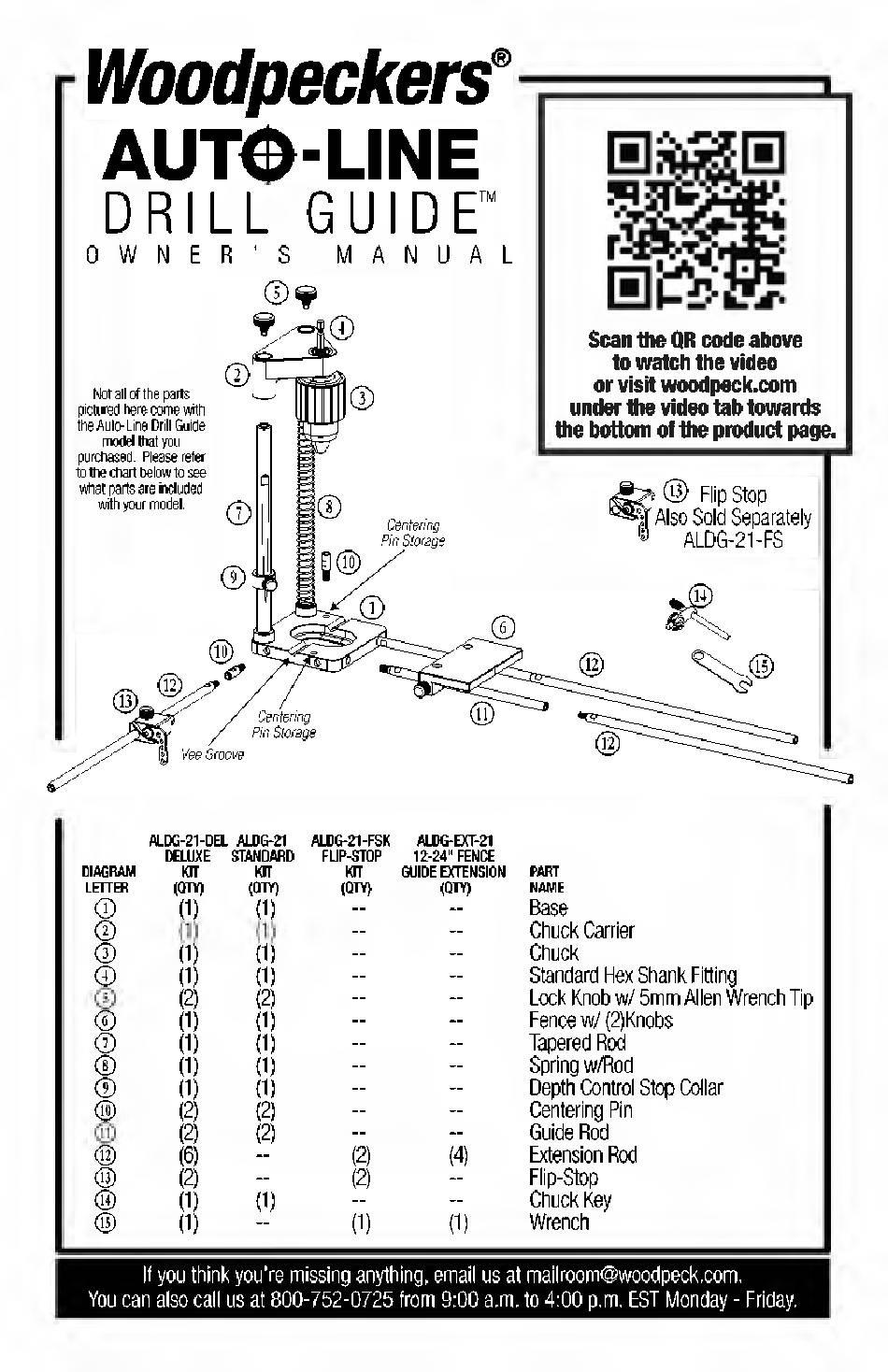

Not all of the parts
pictured here come with
the Auto-Line Drill Guide
model that you
purchased. Please refer
to the chart below to see
what parts are included
with your model.
RILL GUI E™
