Installation Guide
for Andersen
Fullview Multi-point Lock
®
Handle Set
READ ENTIRE GUIDE BEFORE BEGINNING INSTALLATION. Please handle your components with care to avoid damage and/or scratches.
pLEASE NOTE: Proper assembly, installation and maintenance are essential if the benefits of your Andersen
Therefore, please read and follow this Installation Guide completely. If your abilities do not match this procedure's requirements, contact an
experienced contractor.
You may direct any questions to the Service Hotline at 1-800-933-3626, Monday through Friday, 7 a.m. to 7 p.m. Central Time, and
Saturday and Sunday, 8 a.m. to 5 p.m. Central Time.

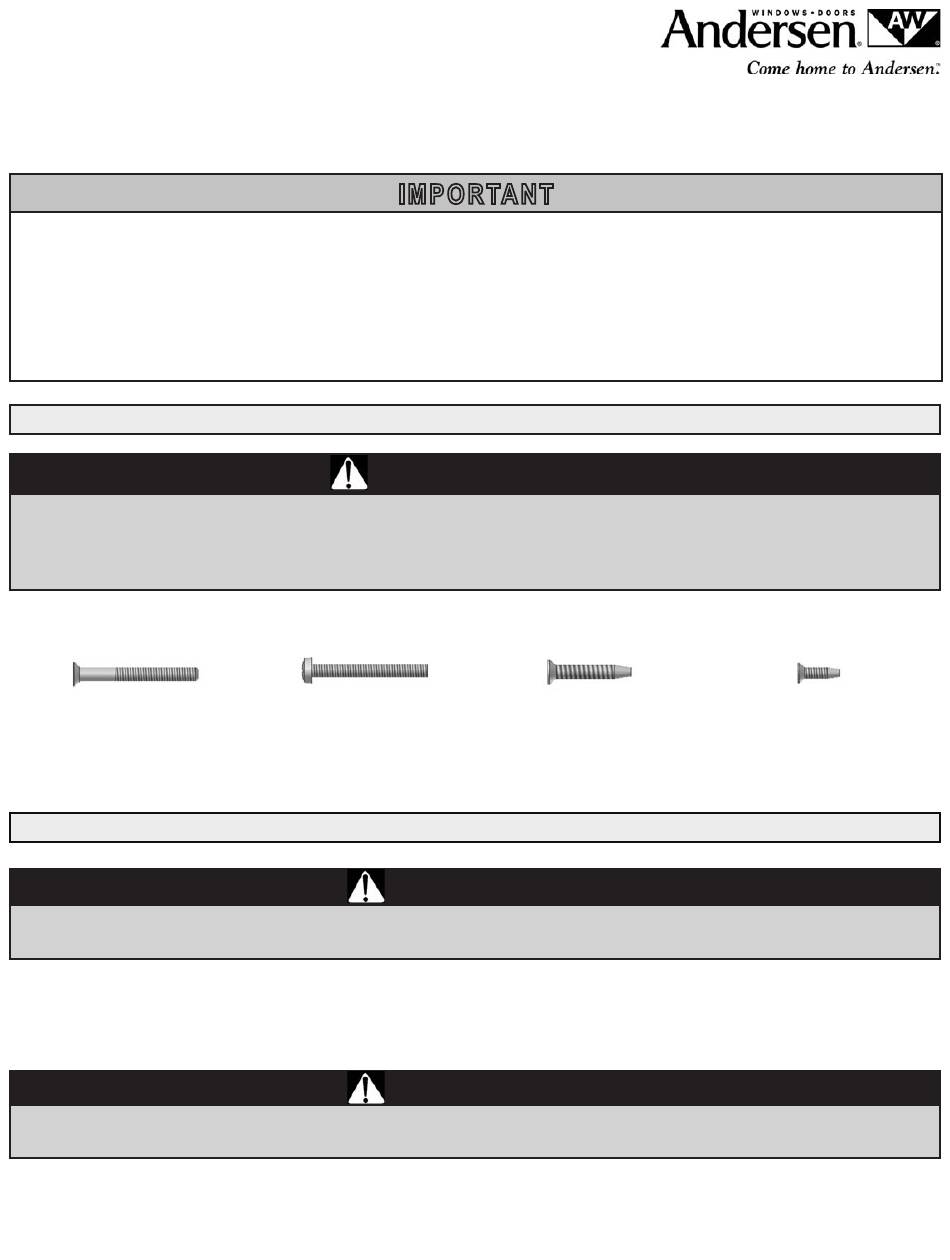

FASTENER IDENTIFICATION
Metal fasteners and other hardware components may corrode when exposed to preservative treated and fire-retardant treated lumber. Obtain
and use the appropriate size stainless steel fasteners and hardware as called out by the installation guide to fasten unit to any rough opening
made from pressure treated and fire-retardant treated lumber. Failure to use the appropriate materials for the installation may cause a failure
resulting in injury, property or product damage.
#10 X 1 1/2"
PHILLIPS FLaT HEaD SCrEw
QTY: 1
RECOMMENDED TOOLS
Improper use of hand or power tools could result in injury and/or product damage. Follow equipment manufacturer's instructions for safe
operation. Always wear safety glasses.
• Safety Glasses
• Center punch
• Tape measure
Windows and doors can be heavy. Use safe lifting techniques and a reasonable number of people with enough strength to lift, carry, and install
window and door products. Failure to do so may result in injury and/or product damage.
EMCO Enterprises, Inc. is a wholly owned subsidiary of Andersen Corporation. EMCO manufactures Andersen® and EMCO®
doors. EMCO supports the limited warranties covering Andersen® storm and screen doors. "Andersen", "EMCO" and all other
marks where denoted are trademarks of Andersen Corporation. ©2007 Andersen Corporation. All rights reserved.
I MpO R TA N T
w a r n I n G
#8 X 1 1/2"
PHILLIPS Pan HEaD SCrEw
QTY: 2
w a r n I n G
• Drill
• Phillips head screwdriver
• Pencil
w a r n I n G
#8 X 1"
PHILLIPS FLaT HEaD SCrEw
QTY: 6
• 1/8", 3/32" drill bits
• Hammer
• Chisel
product are to be fully attained.
®
#6 X 1/2"
PHILLIPS FLaT HEaD SCrEw
QTY: 8
EMCO Enterprises, Inc.
PO Box 853
Des Moines, IA 50306-0853
Revised 1-2007 - 6338
Part Number 612661
Advertisement
Table of Contents
Related Manuals for Andersen 38951
Summary of Contents for Andersen 38951
- Page 1 EMCO Enterprises, Inc. is a wholly owned subsidiary of Andersen Corporation. EMCO manufactures Andersen® and EMCO® PO Box 853 doors. EMCO supports the limited warranties covering Andersen® storm and screen doors. “Andersen”, “EMCO” and all other Des Moines, IA 50306-0853 marks where denoted are trademarks of Andersen Corporation.
- Page 2 1. ROTATE LATCH FOR LEFT OR RIGHT HINGED DOOR: I M pO RTAN T STEP 1B PHILLIPS HEaD SCrEwDrIVEr FaCE PLaTE Prior to installation of the multi-point lock assembly, make sure DEaDBOLT edge seal is installed on the door per door installation guide. LaTCH BOLT a.
- Page 3 2. INSTALL MULTI-pOINT LOCK ASSEMBLY, EXTERIOR AND INTERIOR TRIM pLATES: STEP 2a a. With door open, insert the multi-point lock assembly into the EDGE SEaL slots in edge of door. Make sure face plate is properly resting TOP OF on the door frame and edge seal. The latch bolt should be GLaSS DOOr above the deadbolt.
- Page 4 3. INSTALL KEY CYLINDER AND HANDLES: STEP 3a STEP 3D a. Install key cylinder through slot STEP 3B/C FaCE nYLOn PLaTE of interior trim plate with the waSHEr thumbturn on the interior of the TrIM PLaTE door. Fasten key cylinder in SCrEw place using the #10 x 1 1/2”...
- Page 5 4. INSTALL TOp AND BOTTOM STRIKERS: STEP 4a STEP 4B a. Extend the dead bolt hooks and close the door. With a pencil, mark the top and bottom of the top dead bolt hook on the handle rOUnD #6 X 1/2” SCrEw MOUnTInG side Z-bar.
-
