ATTE IPMP-70-550 Instruction Manual

IPMP-70-550
PoE Power supply/Midspan PoE Passive 55V 70W 1 channel
10/100/1000Mbps
The IPMP-70-550 is used to power PoE-compliant devices in LAN networks. Placed between a
switch that does not have PoE power (or does not have a sufficient power budget) and network
devices (e.g. cameras, access points, extenders), it enables simultaneous power and data transmission
to PoE IP devices using a single UTP cable at 10/100/1000Mbps.
Power over Ethernet (PoE) is an easy-to-install, fast and cost-effective solution for powering
network products. There is no need to replace existing Ethernet switches and cabling.
In combination with the APT series, it enables us to create extensive installations in a tree
topology using only UTP cables without 230VAC power supply.
It provides power using both data pairs in UTP (1/2 and 3/6) and after free pairs (4/5 and 7/8).
This allows maximum use to be made of the available cabling and powering of demanding receivers.
Notes:
The unit is supplied with 230V mains voltage and does not offer buffer power backup. A power cable
is included in the scope of supply. The unit is rated for continuous operation at 70W with proper
cooling during operation. It does not have an on/off switch, so adequate protection must be provided
and the user must be instructed on how to switch off.
ul. 3 Maja 5, 32-400 Myślenice, tel: +48 12 378 94 02, e-mail: support@atte.pl
INSTRUCTION MANUAL

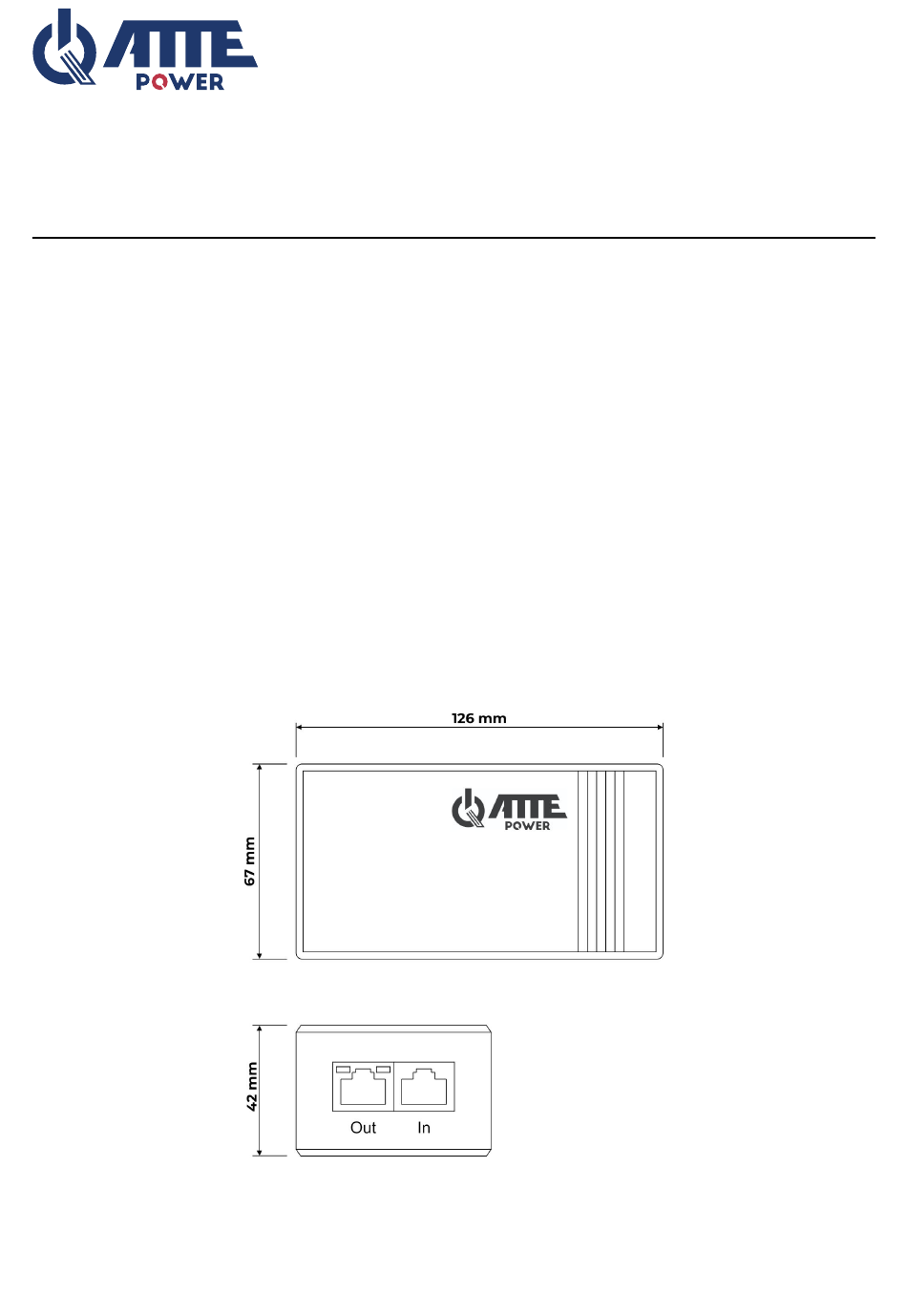

General view of the device
